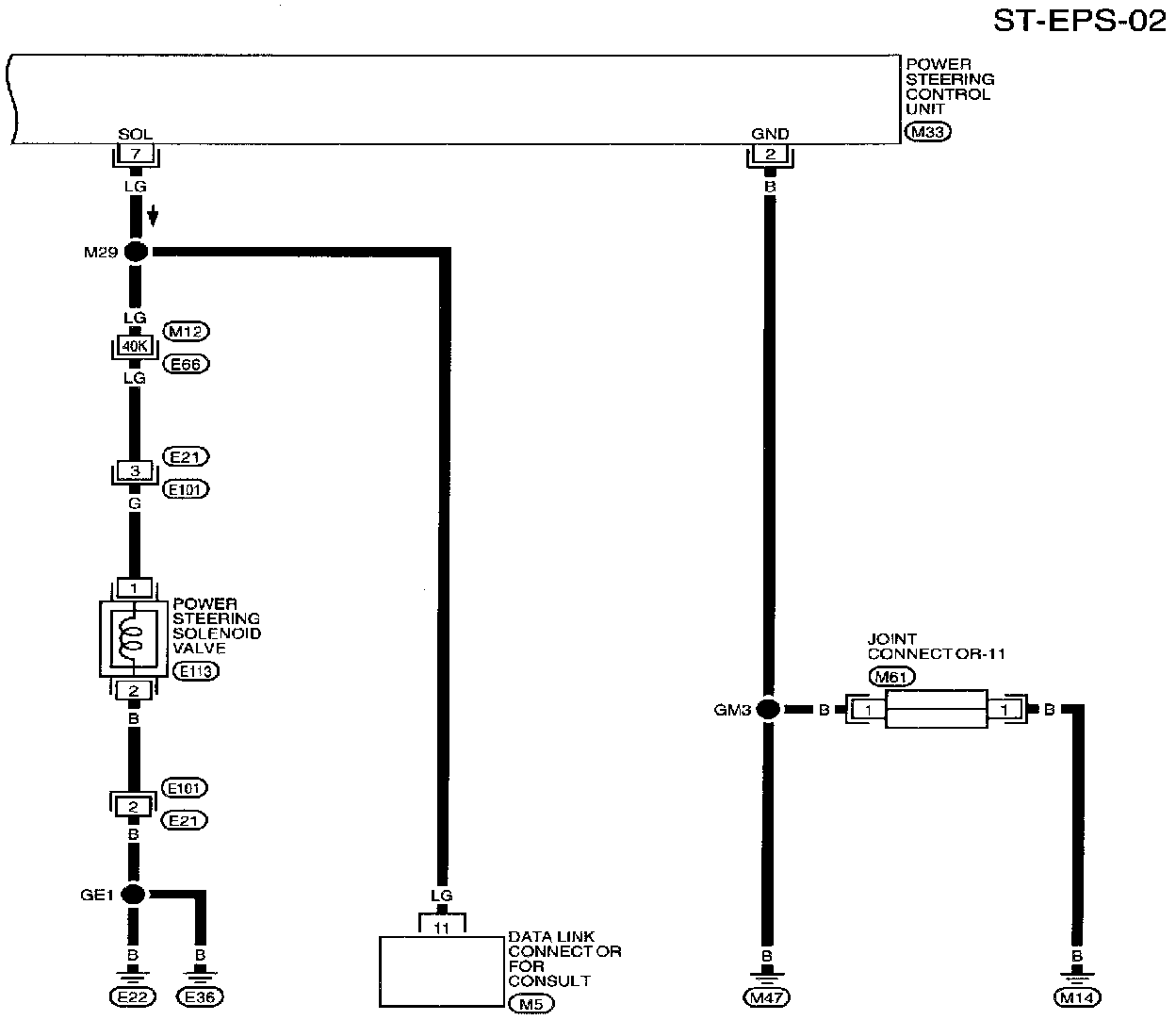

ST-EPS-02
ST-EPS-02
ST-EPS-02
Circuit Connectors
E66, M12 - Body, Engine, Instrument, Main Harness - Terminal Arrangement
