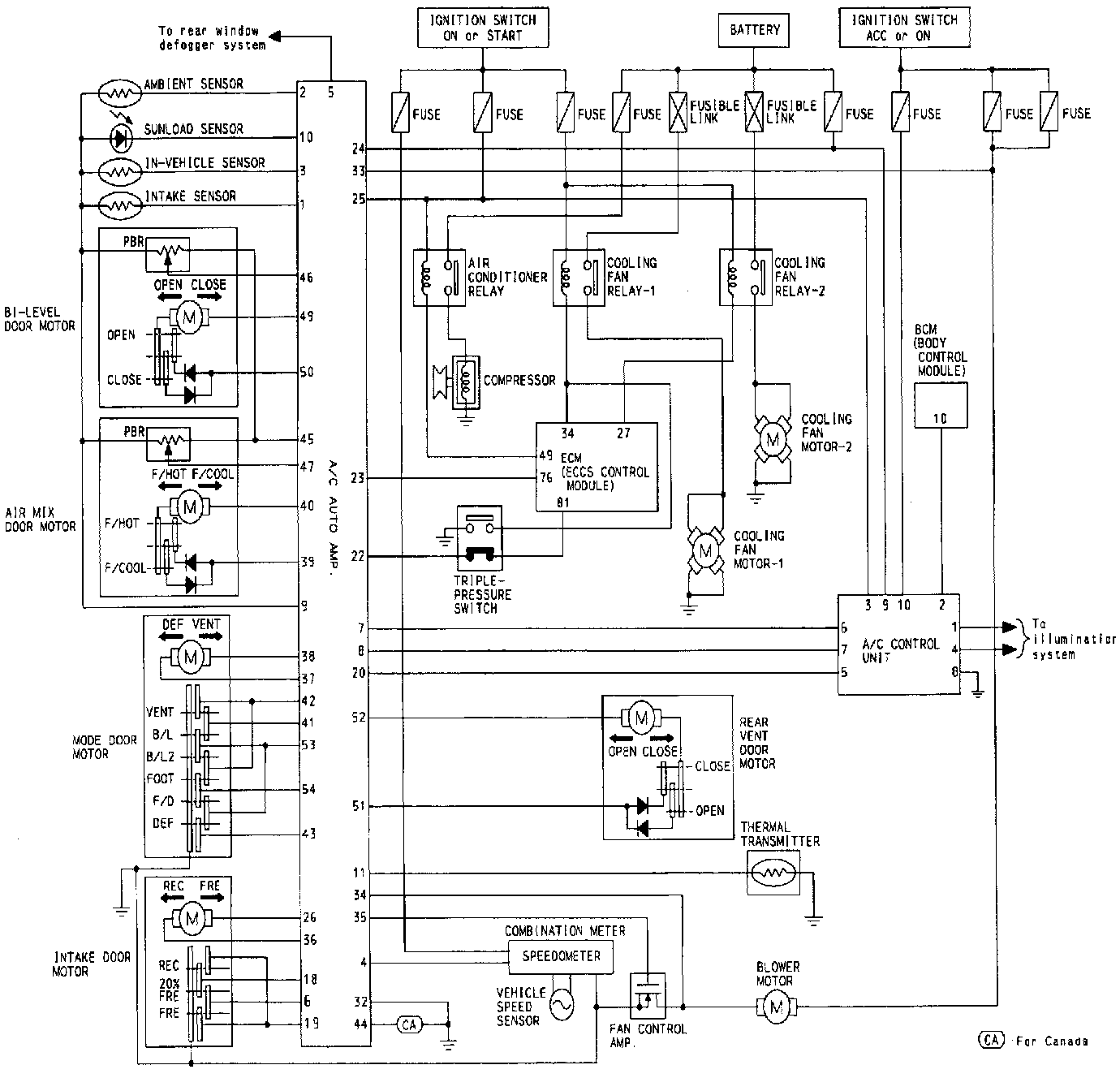

Heating and Air Conditioning

Schematic









(Part 1 of 9)

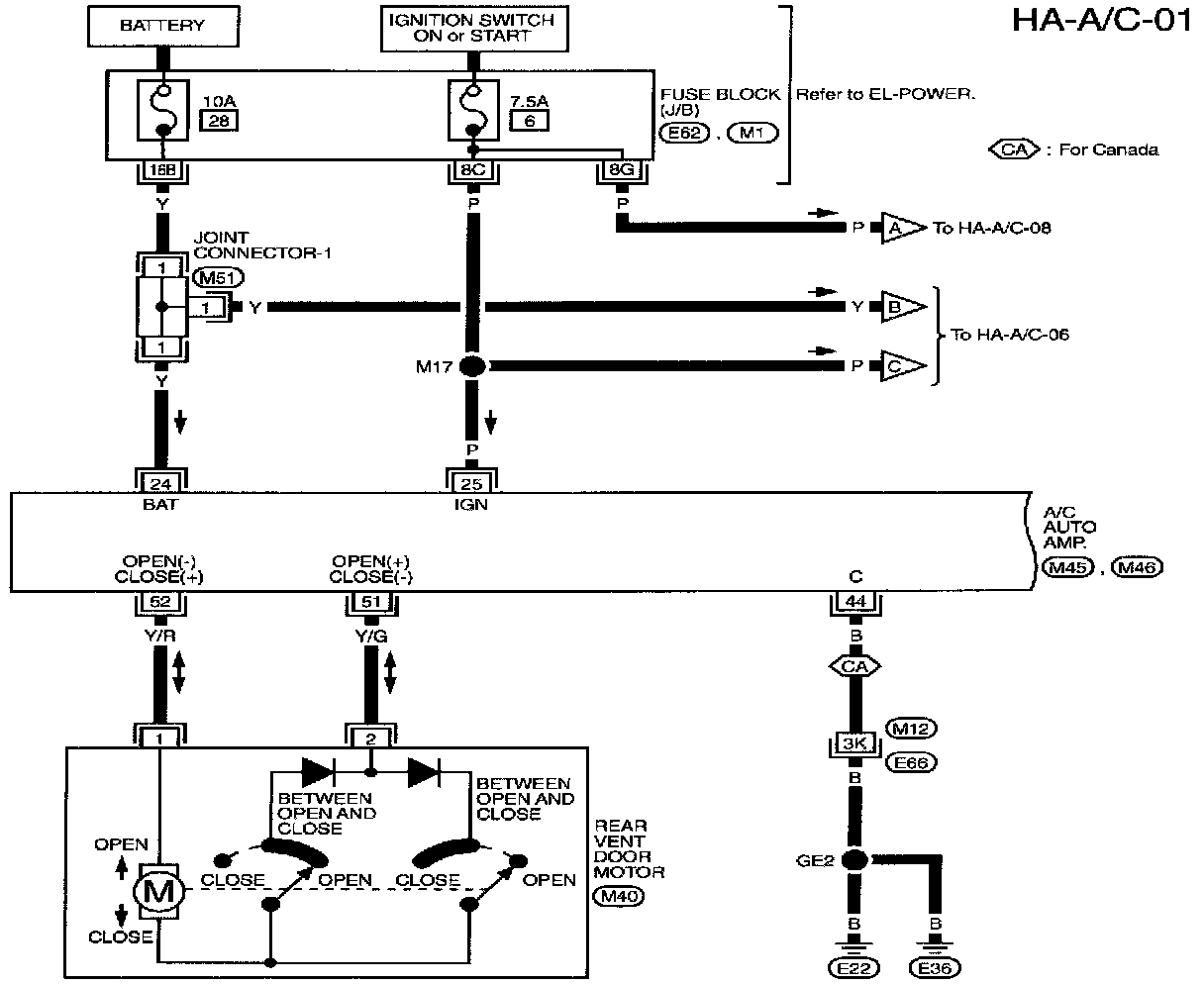

A/C Auto AMP.
Battery
Fuse Block (J/B)
Rear Vent Door Motor




(Part 2 of 9)
A/C Auto AMP
Joint Connector 5, 11
Mode Door Motor




(Part 3 of 9)

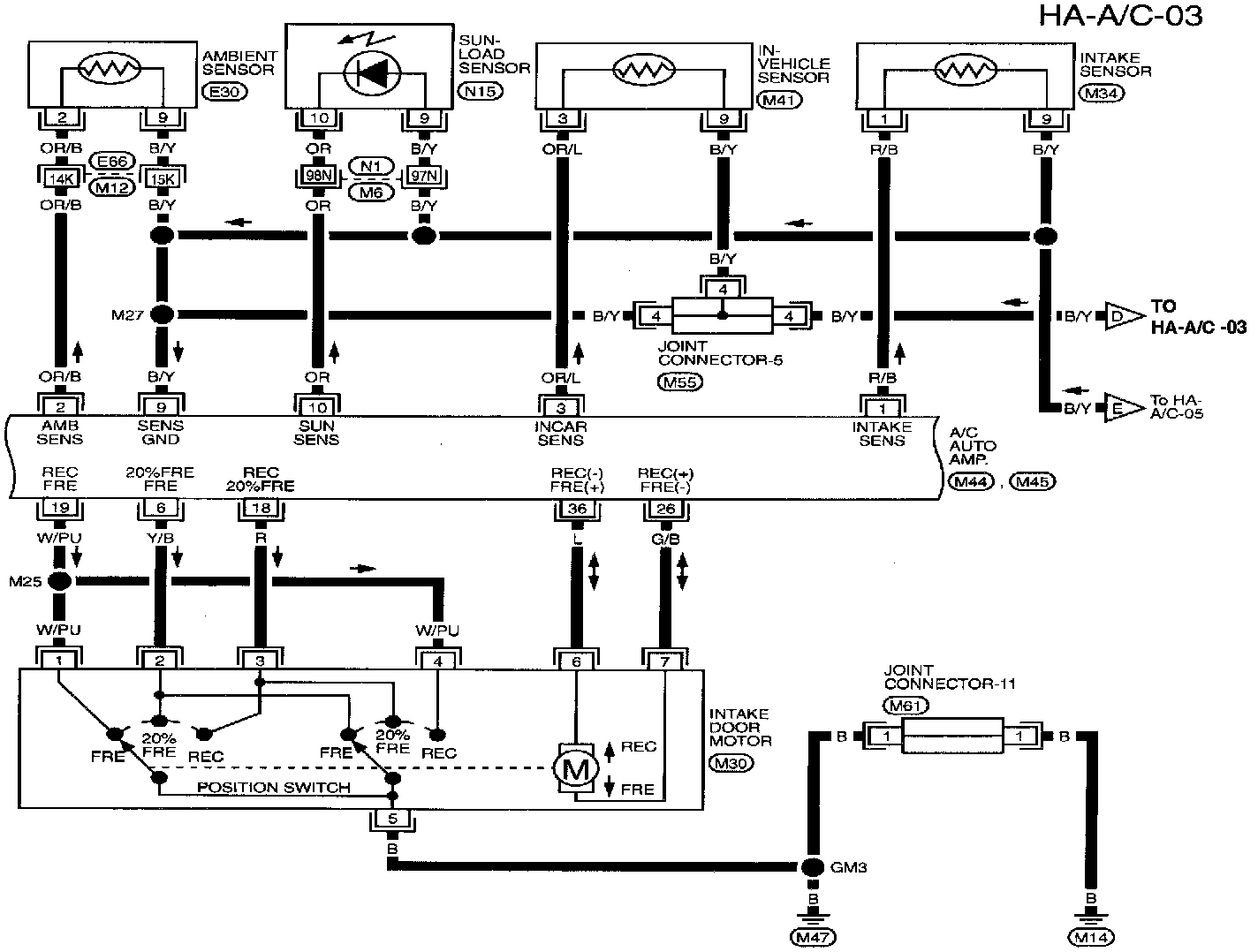

A/C Auto AMP
Ambient Sensor
In Vehicle Sensor
Intake Door Motor
Intake Sensor
Joint Connector 5, 11
Sun Load Sensor




(Part 4 of 9)

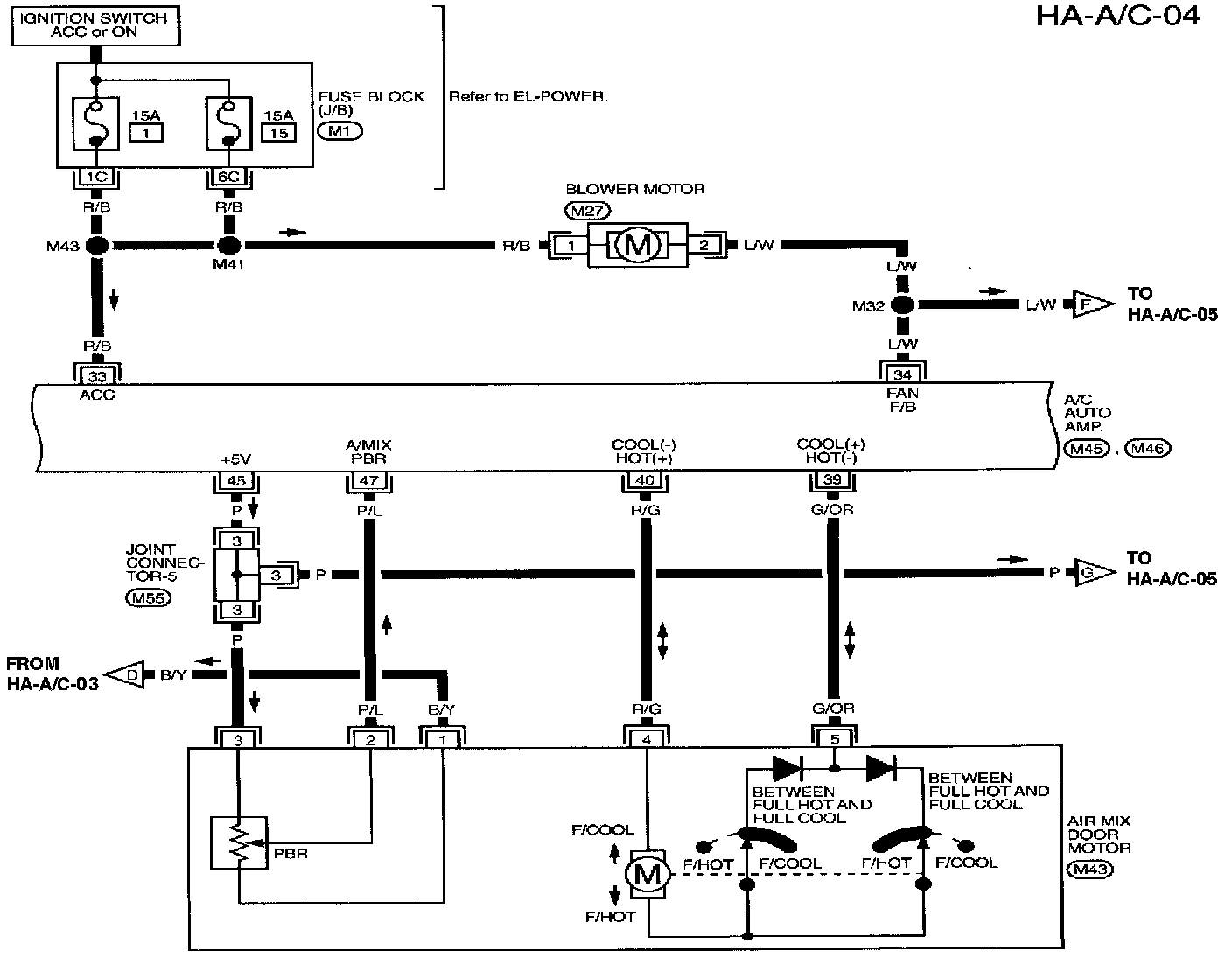

A/C Auto AMP
Air Mix Door Motor
Blower Motor
Fuse Block (J/B)
Joint Connector 5




(Part 5 of 9)

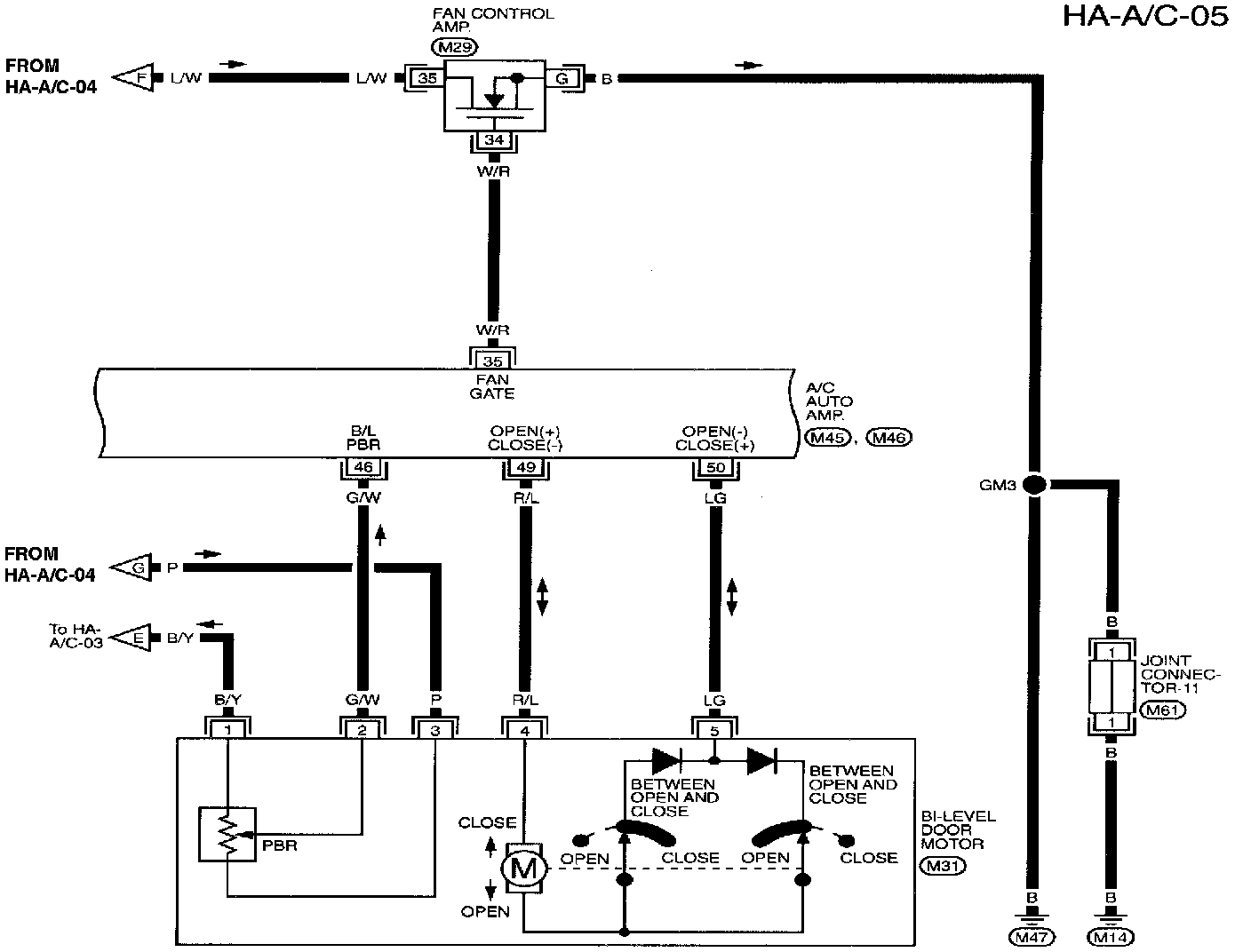

A/C Auto AMP
Bi-Level Door Motor
Fan Control AMP
Joint Connector 11




(Part 6 of 9)
A/C Auto AMP
A/C Control Unit
Body Control Module
Fuse Block (J/B)
Joint Connector 11




(Part 7 of 9)

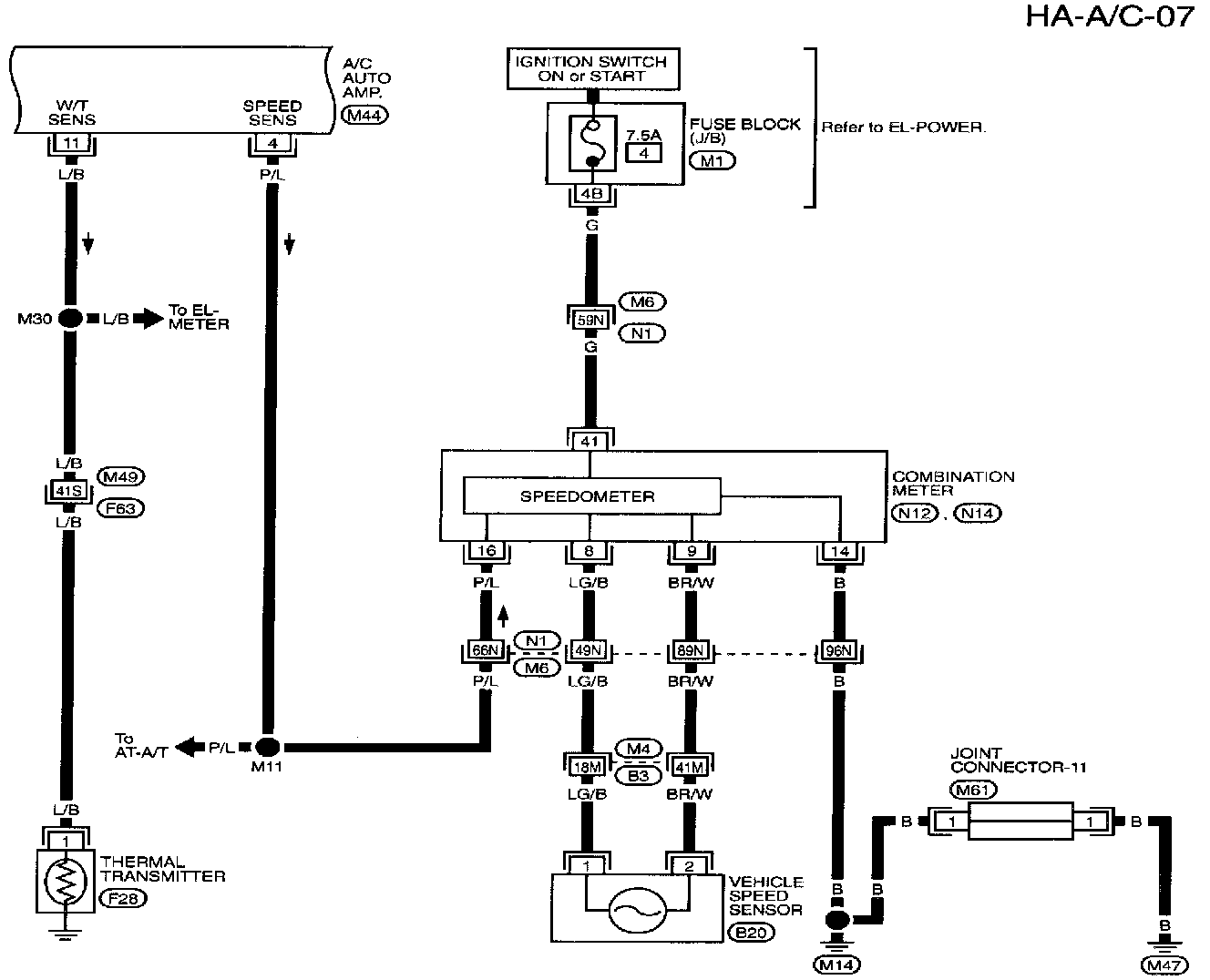

A/C Auto AMP
Combination Meter
Fuse Block (J/B)
Joint Connector 11
Thermal Transmitter
Vehicle Speed Sensor




(Part 8 of 9)
A/C Auto AMP
Air Conditioner Relay
Battery
Compressor
Engine Control Module
Joint Connector 14
Triple Pressure Switch

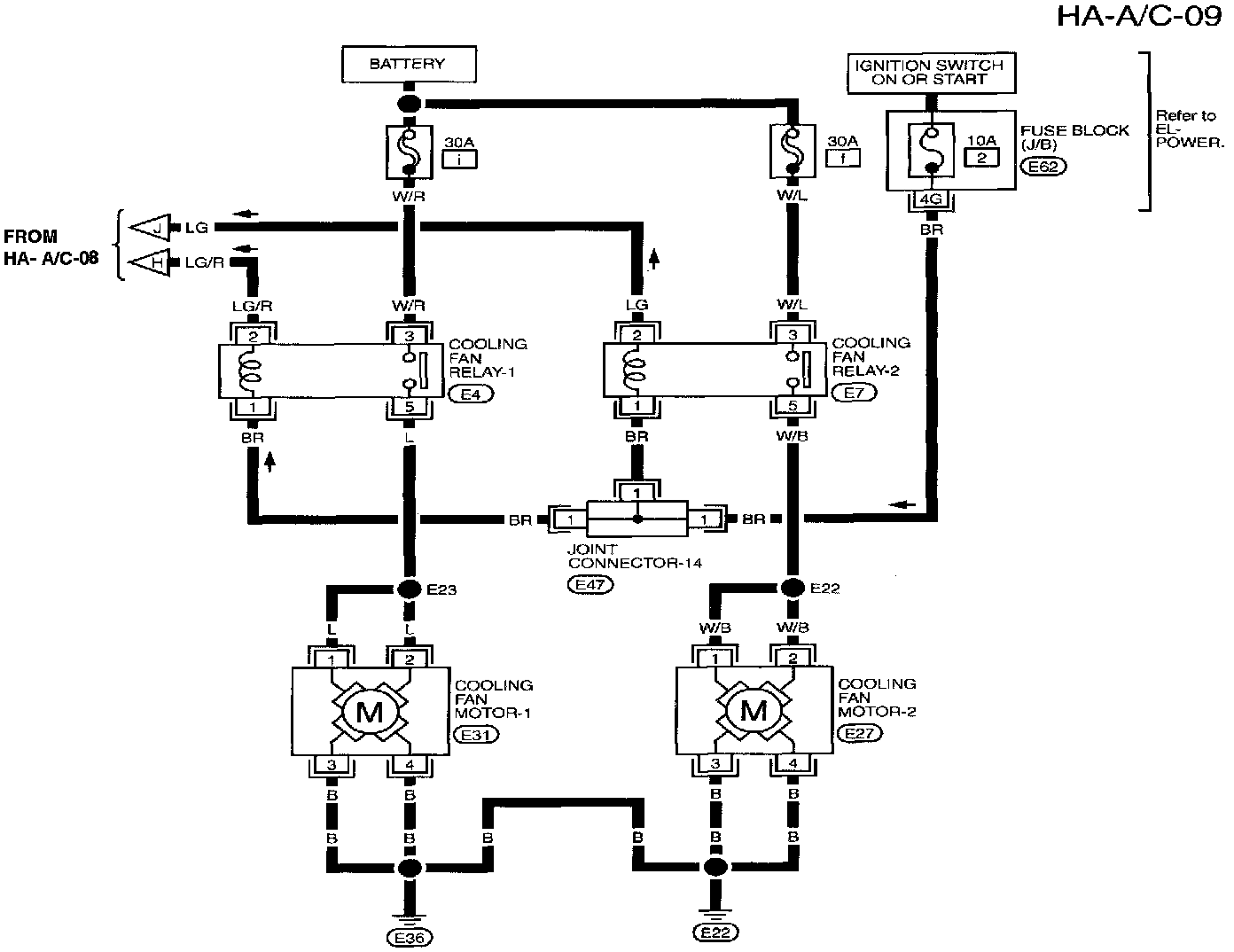

(Part 9 of 9)
Battery
Cooling Fan Motor
Cooling Fan Relay
Fuse Block (J/B)
Joint Connector 14































Circuit Connectors





B3, E66, M4, M6, M12, N1 - Body, Engine, Instrument, Main Harness - Terminal Arrangement





F69, M22 - Electrical Units - Terminal Arrangement





F63, M49 - Super Multiple Junction - Terminal Arrangement





E62, M1 - Fuse Block Junction Box - Terminal Arrangement
