Audible Warning Device

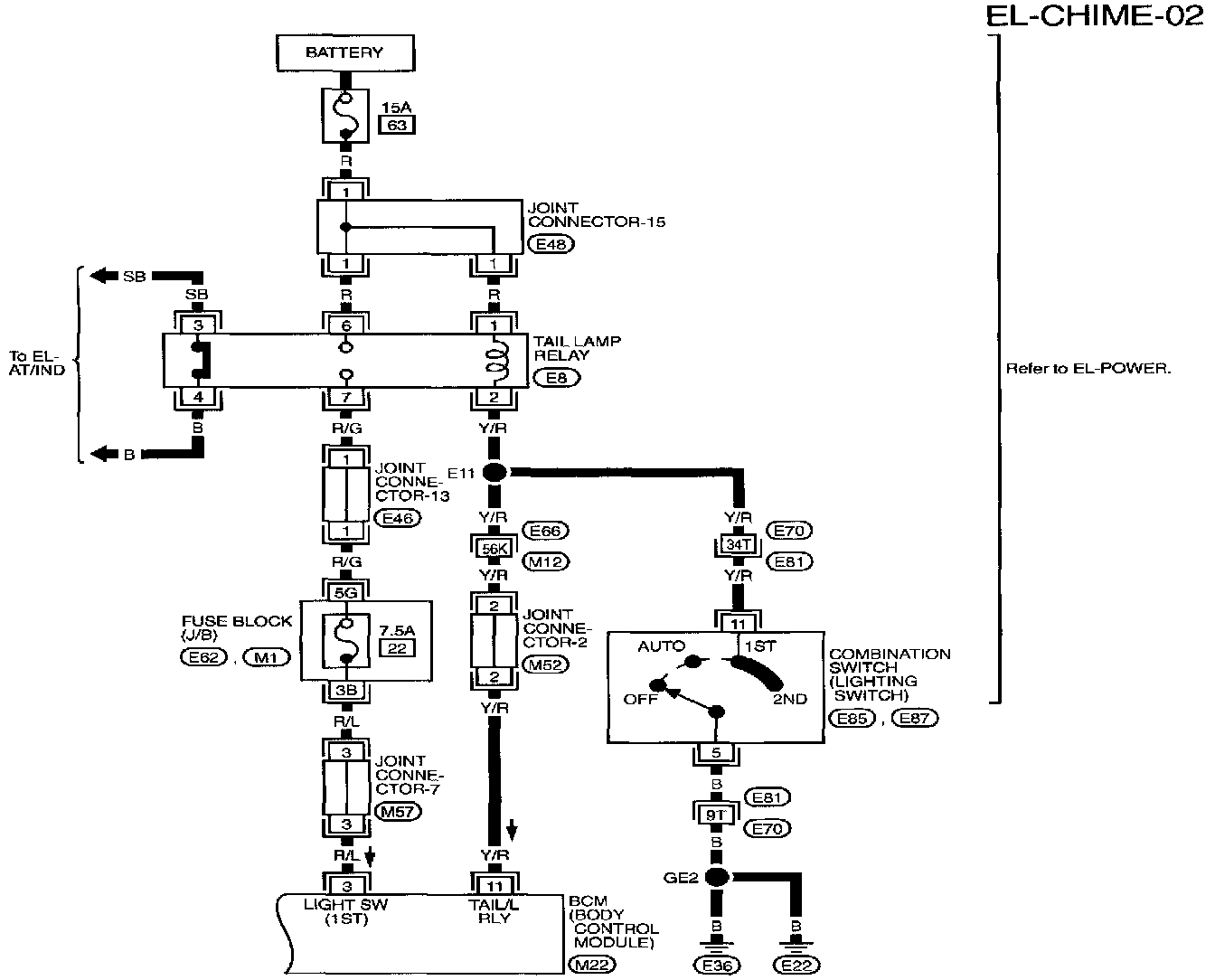

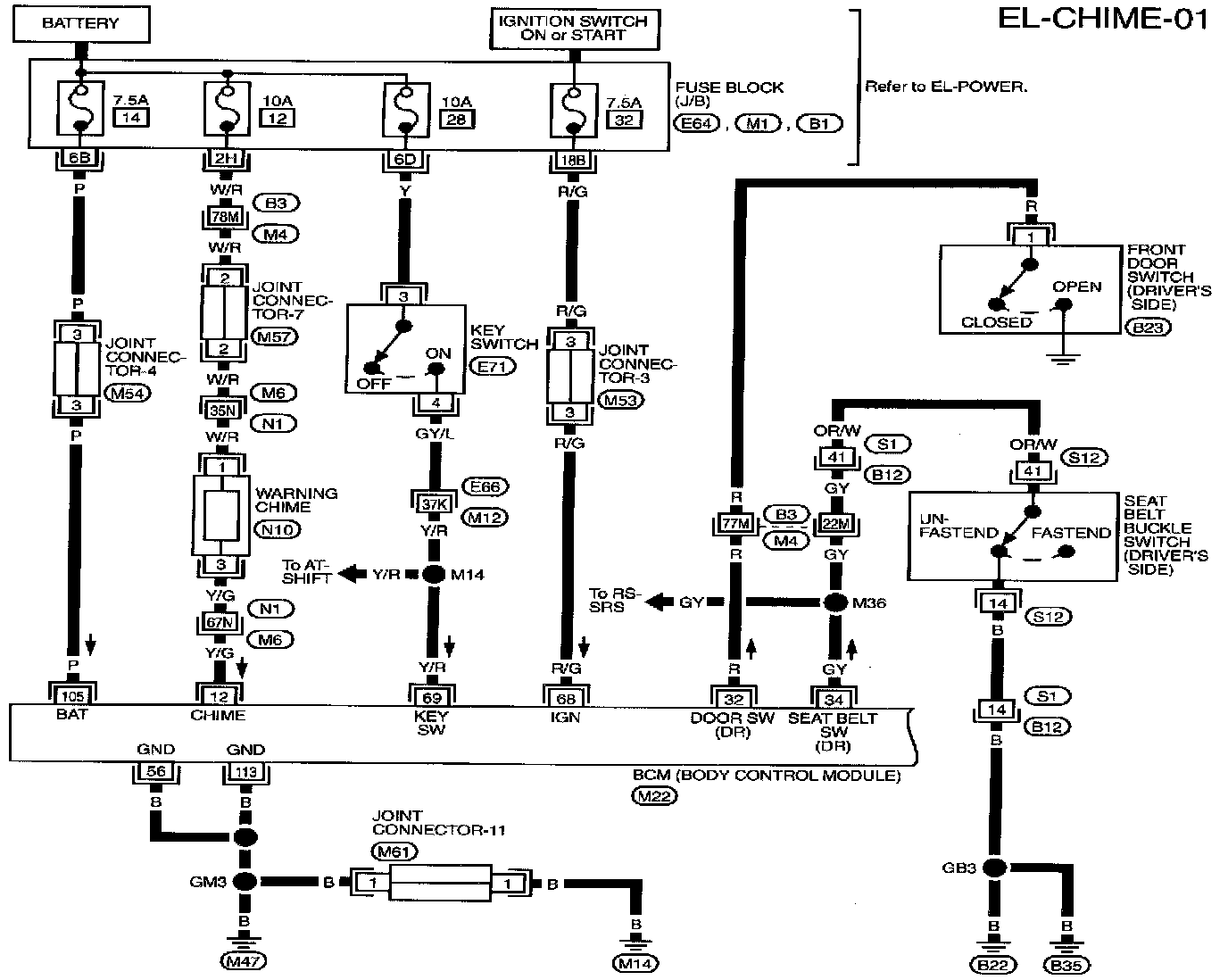

Circuit Diagrams

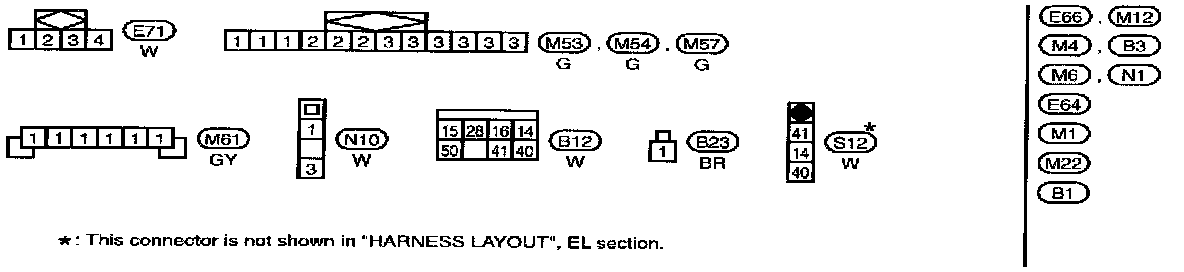

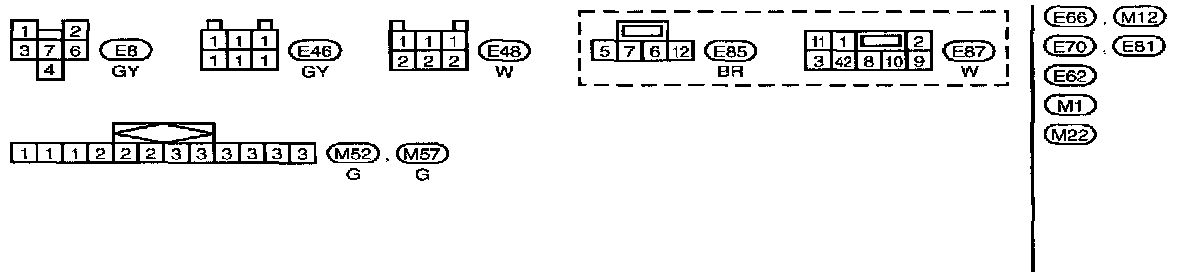

Circuit Connectors
B3, E66, M4, M6, M12, N1 - Body, Engine, Instrument, Main Harness - Terminal Arrangement
M22 - Electrical Units - Terminal Arrangement
E70, E81 - Super Multiple Junction - Terminal Arrangement
B1, E62, E64, M1 - Fuse Block Junction Box - Terminal Arrangement
