Instrument Cluster / Carrier

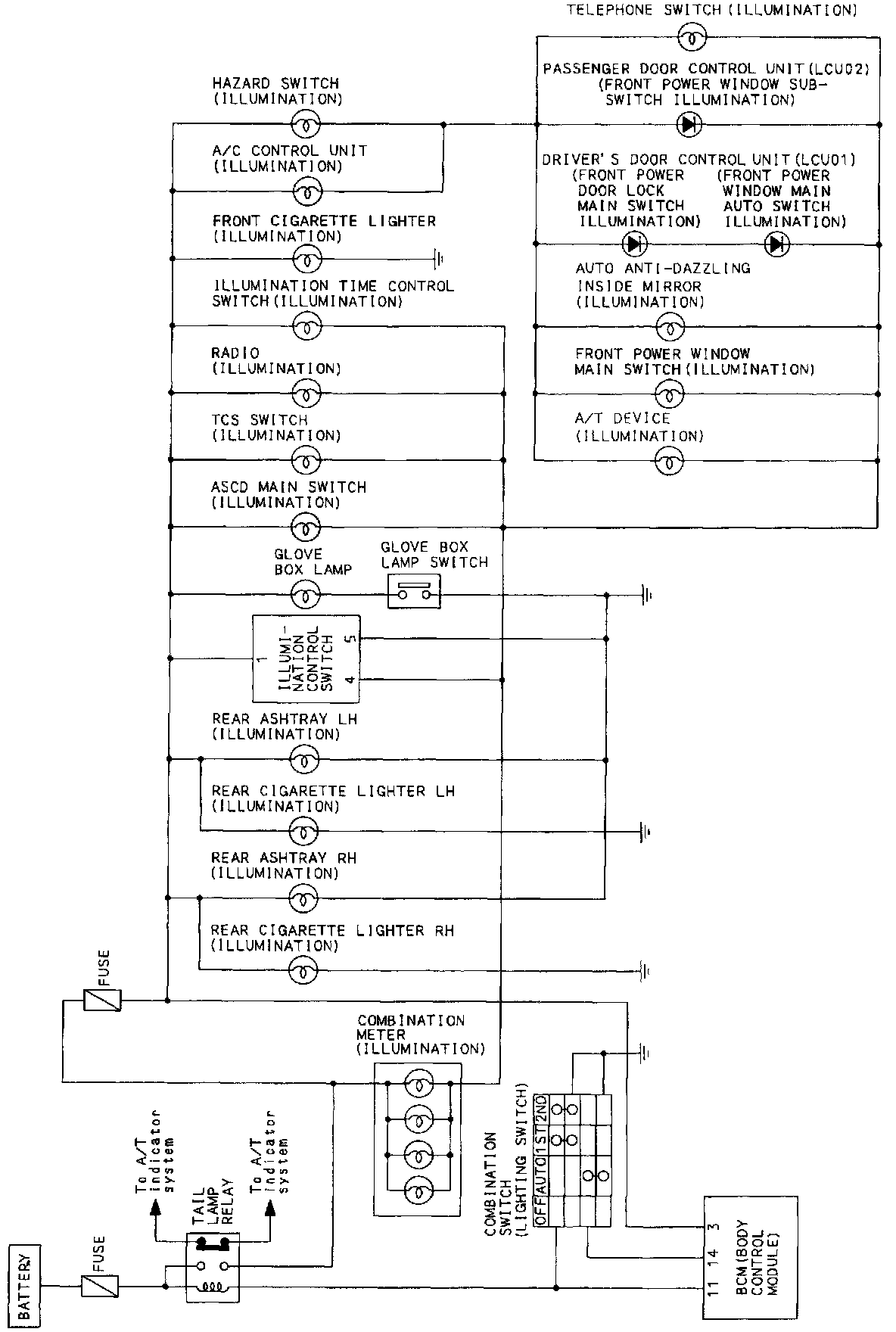

Schematic





(Part 1 Of 6)
Body Control Module
Combination Meter (Illumination)
Joint Connector 13, 15
Tail Lamp Relay





(Part 2 Of 6)

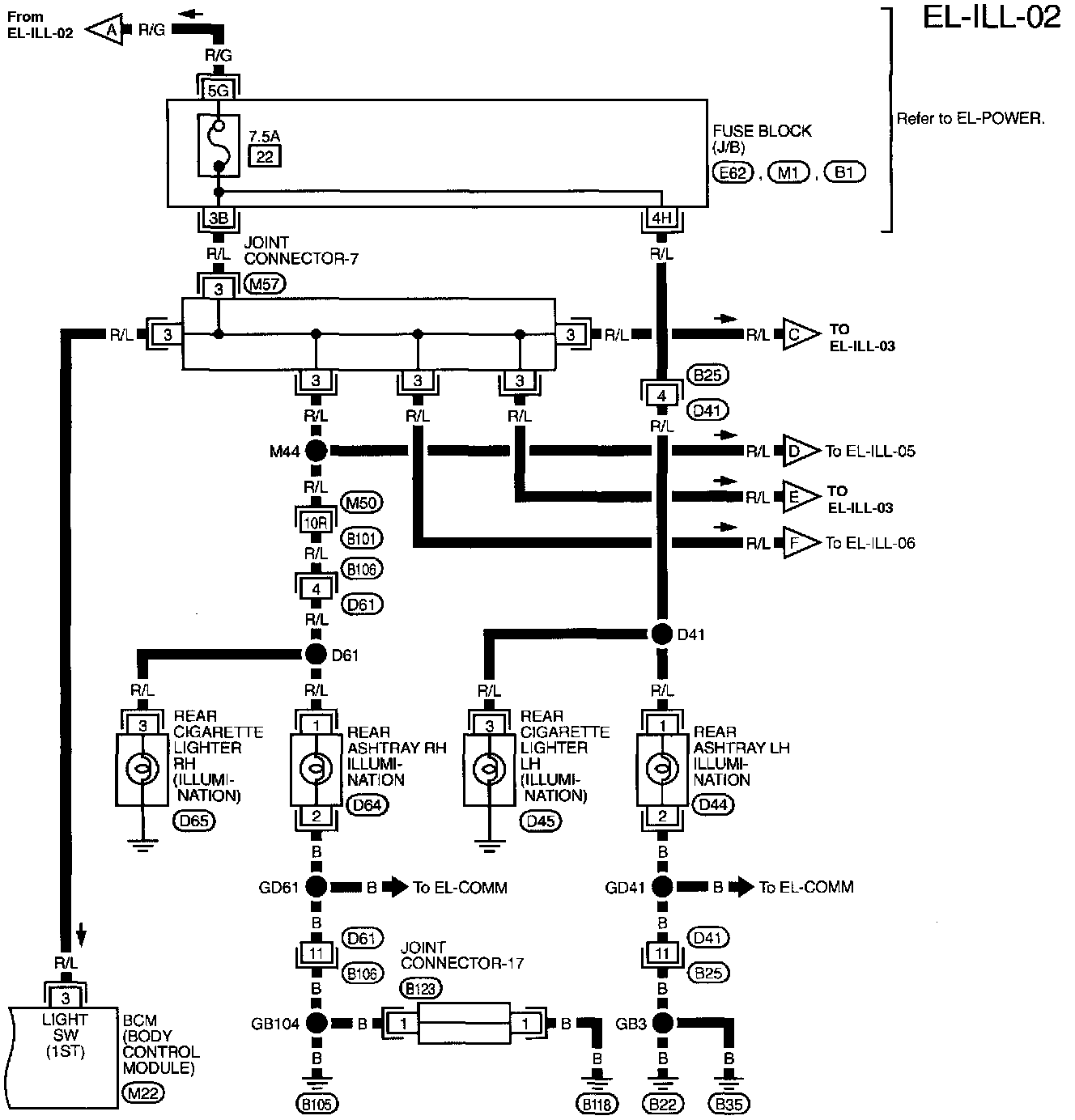

Body Control Module
Fuse Block (J/B)
Joint Connector 7, 17
Rear Cigarette Lighter
Rear Ashtray Illumination





(Part 3 Of 6)
ASCD Main Switch
Glove Box Lamp
Glove Box Lamp Switch
Illumination Control Switch
Joint Connector 11
TCS Switch





(Part 4 of 6)
A/C Control Unit
Front Cigarette Lighter
Hazard Switch
Illumination Time Control Switch

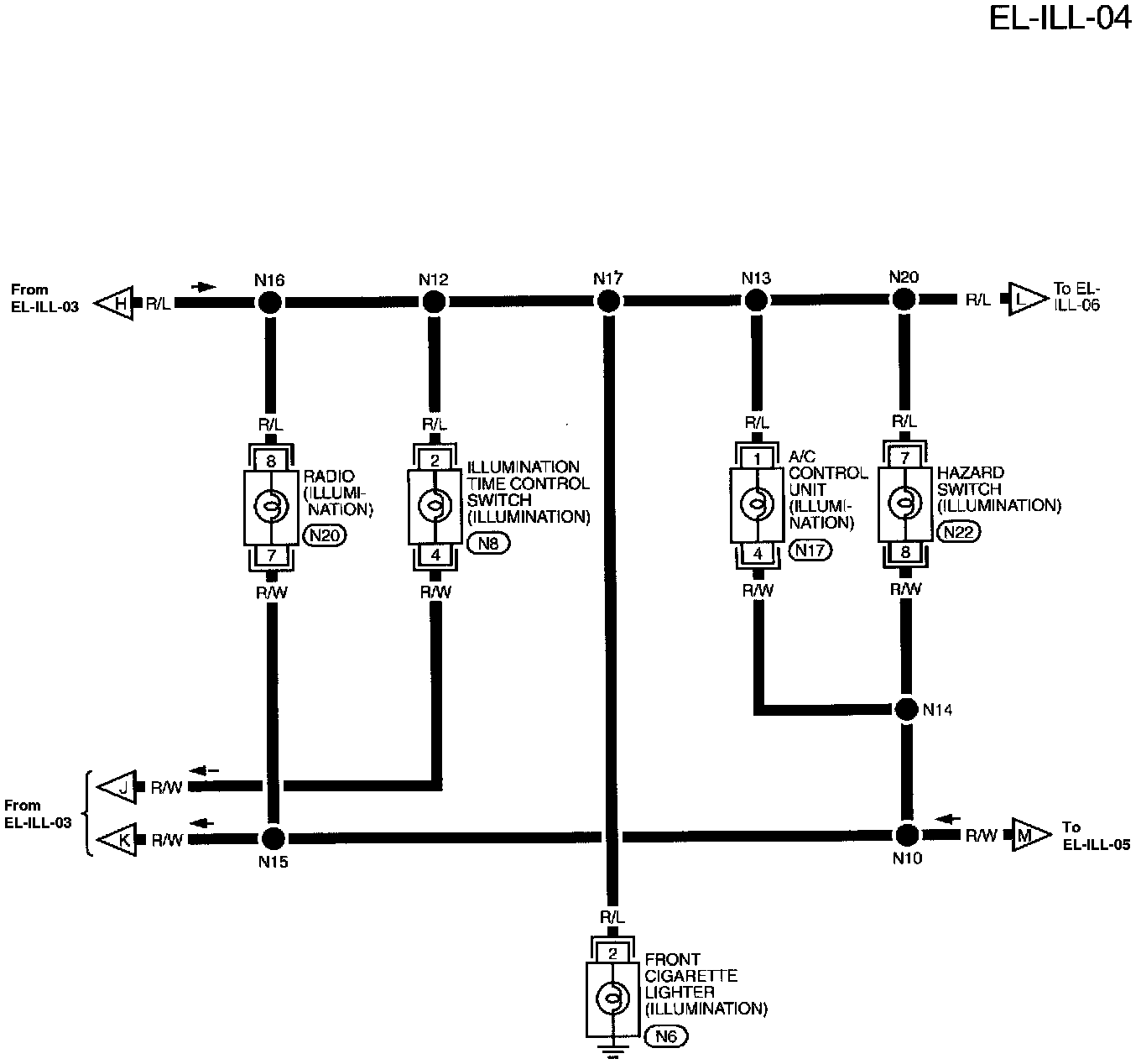

Radio





(Part 5 of 6)
A/T Device
Auto Anti-Dazzling Inside Mirror
Front Power Window Main Switch





(Part 6 of 6)
Driver's Door Control Unit
Passenger Door Control Unit
Telephone Switch






















Circuit Connectors







D1, D21, E66, M6, M11, M12, M48, N1 - Body, Engine, Instrument, Main Harness - Terminal Arrangement







B101, E70, E81, M50 - Super Multiple Junction - Terminal Arrangement







M22 - Electrical Units - Terminal Arrangement







E62, M1 - Fuse Block Junction Box - Terminal Arrangement
