A/T Control

Overall System Circuit Diagram





(Part 1 of 6)
Battery
Diode
Fuse Block (J/B)
Inhibitor Switch
Transmission Control Module

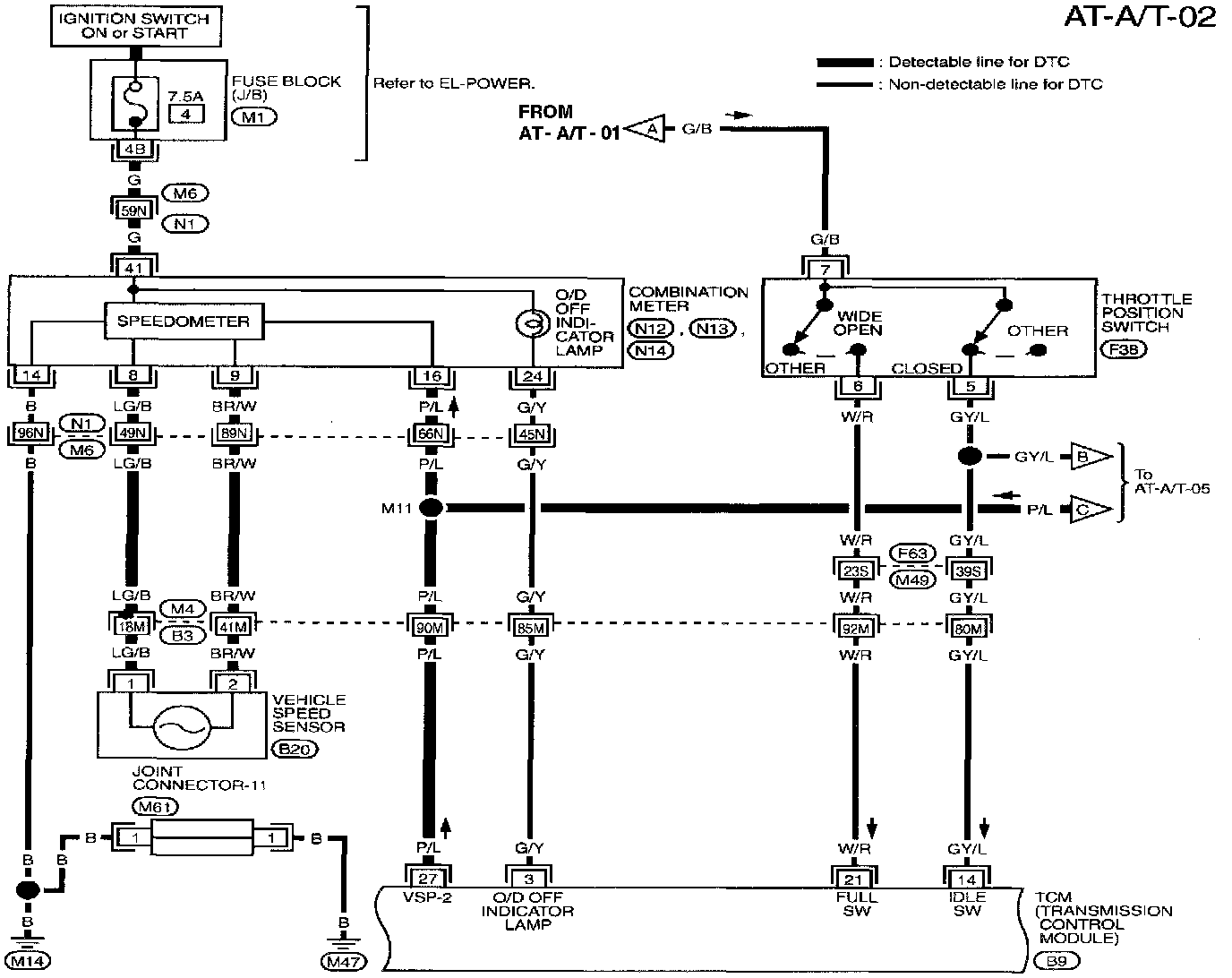

(Part 2 of 6)
Combination Meter
Fuse Block (J/B)
Joint Connector 11
Transmission Control Module
Throttle Position Switch
Vehicle Speed Sensor




(Part 3 of 6)
Engine Control Module
Joint Connector 16
Revolution Sensor
Transmission Control Module
Throttle Position Sensor
Turbine Revolution Sensor




(Part 4 of 6)
ASCD Control Unit
A/T Device
Data Link Connector for Consult
Joint Connector 2, 6, 8, 11
Transmission Control Module




(Part 5 of 6)

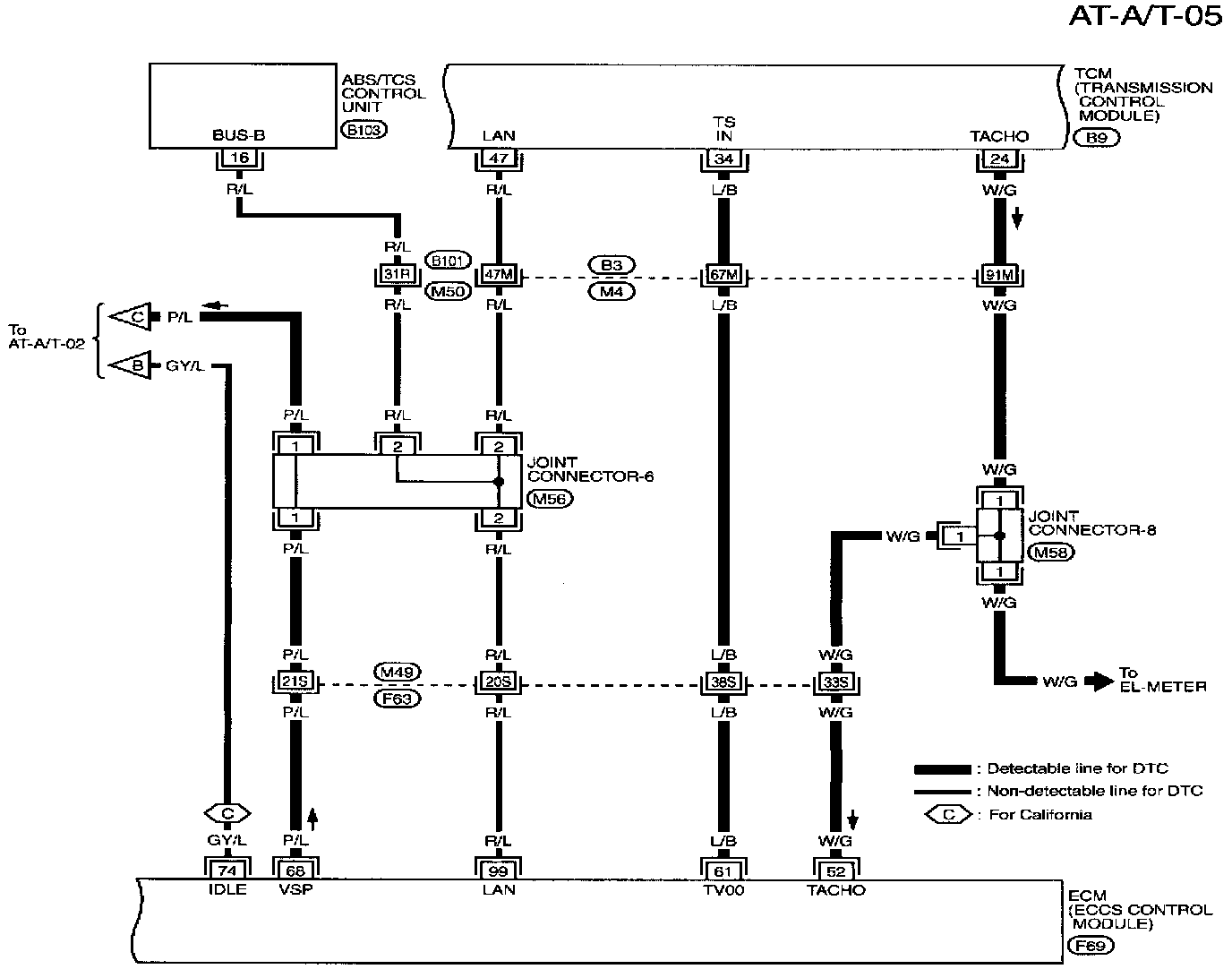

ABS/TCS Control Unit
Engine Control Module
Joint Connector 6, 8
Transmission Control Module

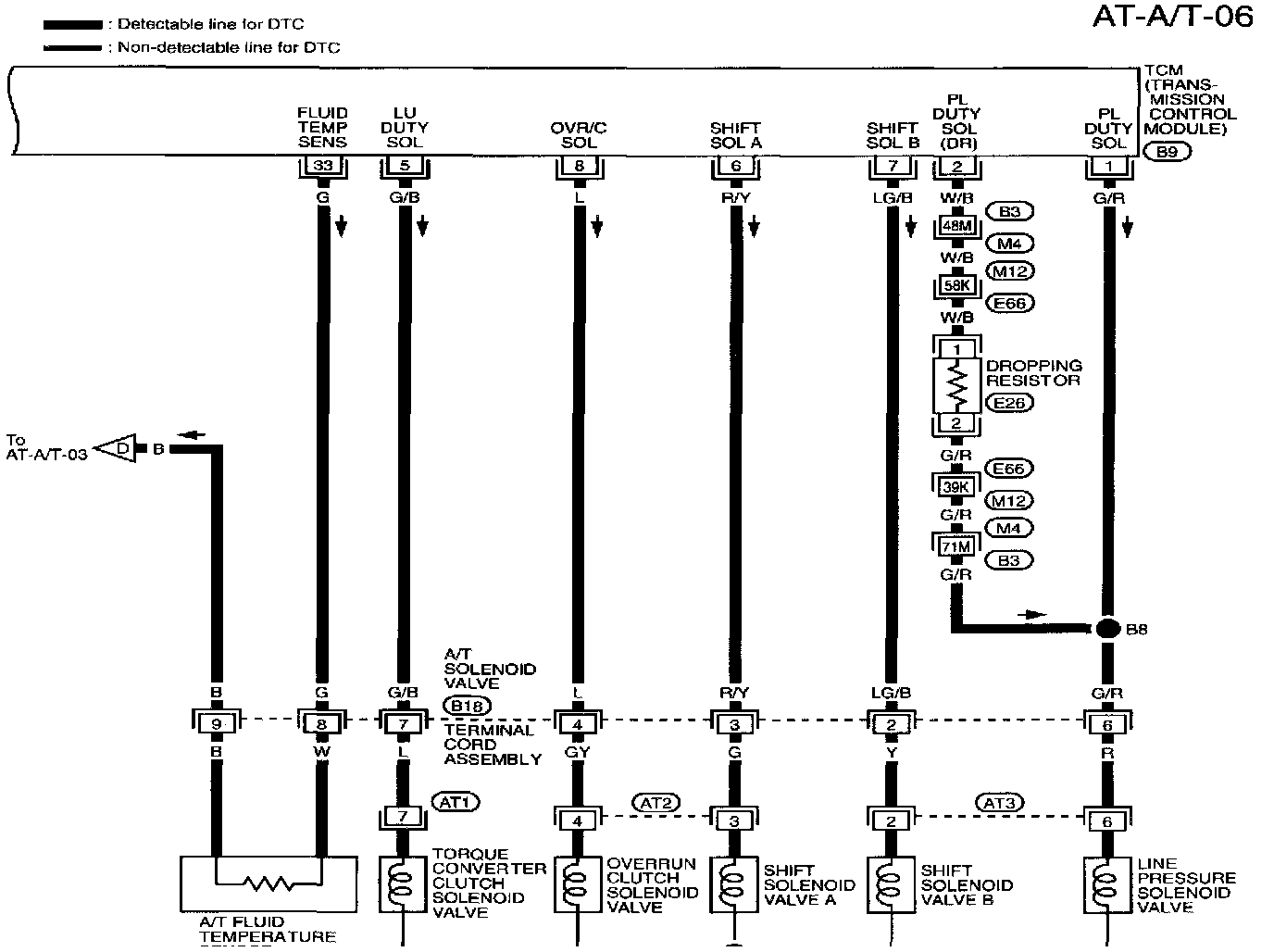

(Part 6 of 6)
A/T Fluid Temperature Sensor
Dropping Resistor
Line Pressure Solenoid Valve
Overrun Clutch Solenoid Valve
Shift Solenoid
Transmission Control Module
Torque Converter Clutch Solenoid Valve


Circuit Diagrams




















Circuit Connectors






B3, E66, M4, M6, M12, N1 - Body, Engine, Instrument, Main Harness - Terminal Arrangement





F69 - Electrical Units - Terminal Arrangement





B101, F63, M49, M50 - Super Multiple Junction - Terminal Arrangement





B1, M1 - Fuse Block Junction Box - Terminal Arrangement
