Wiper and Washer Systems

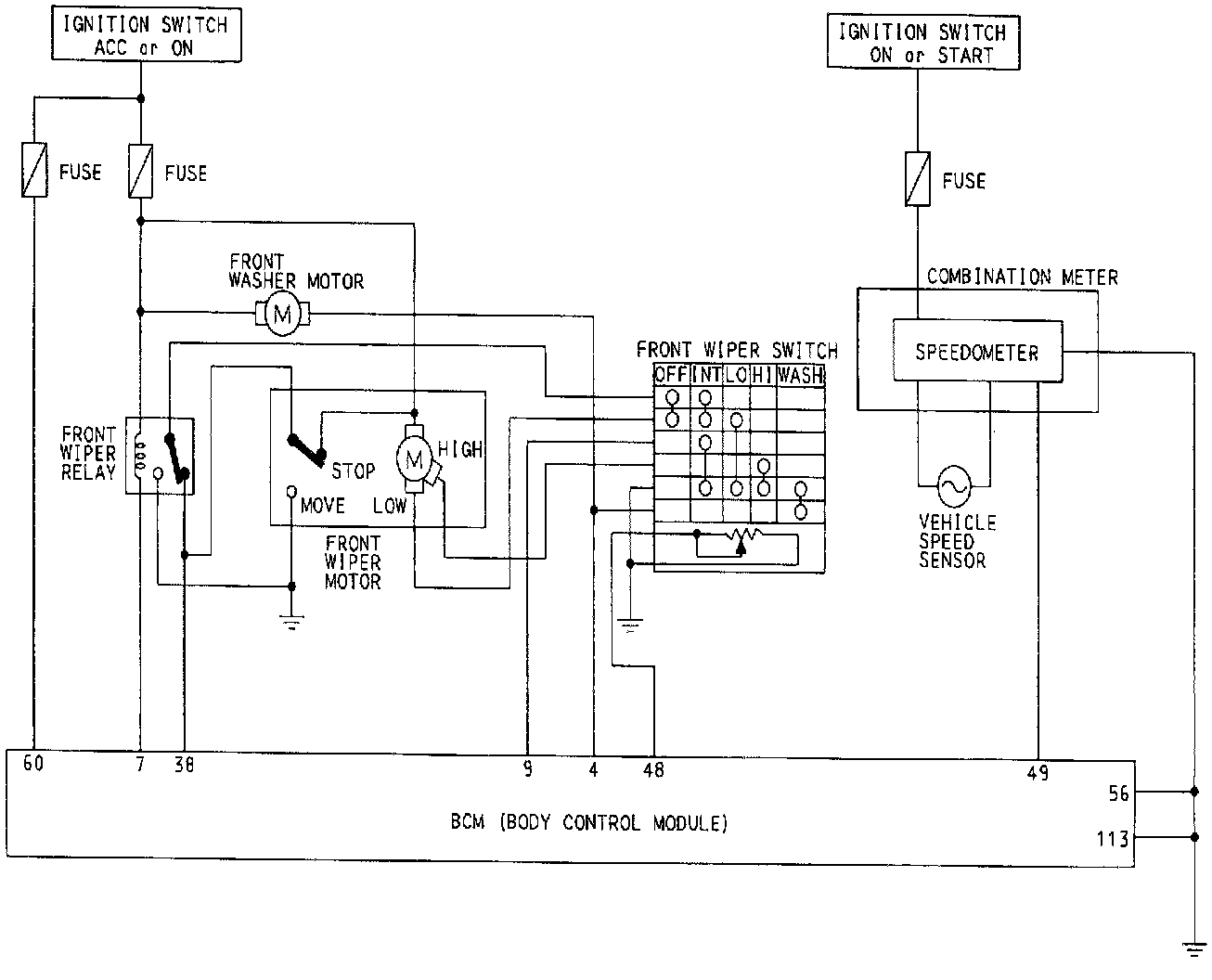

Schematic

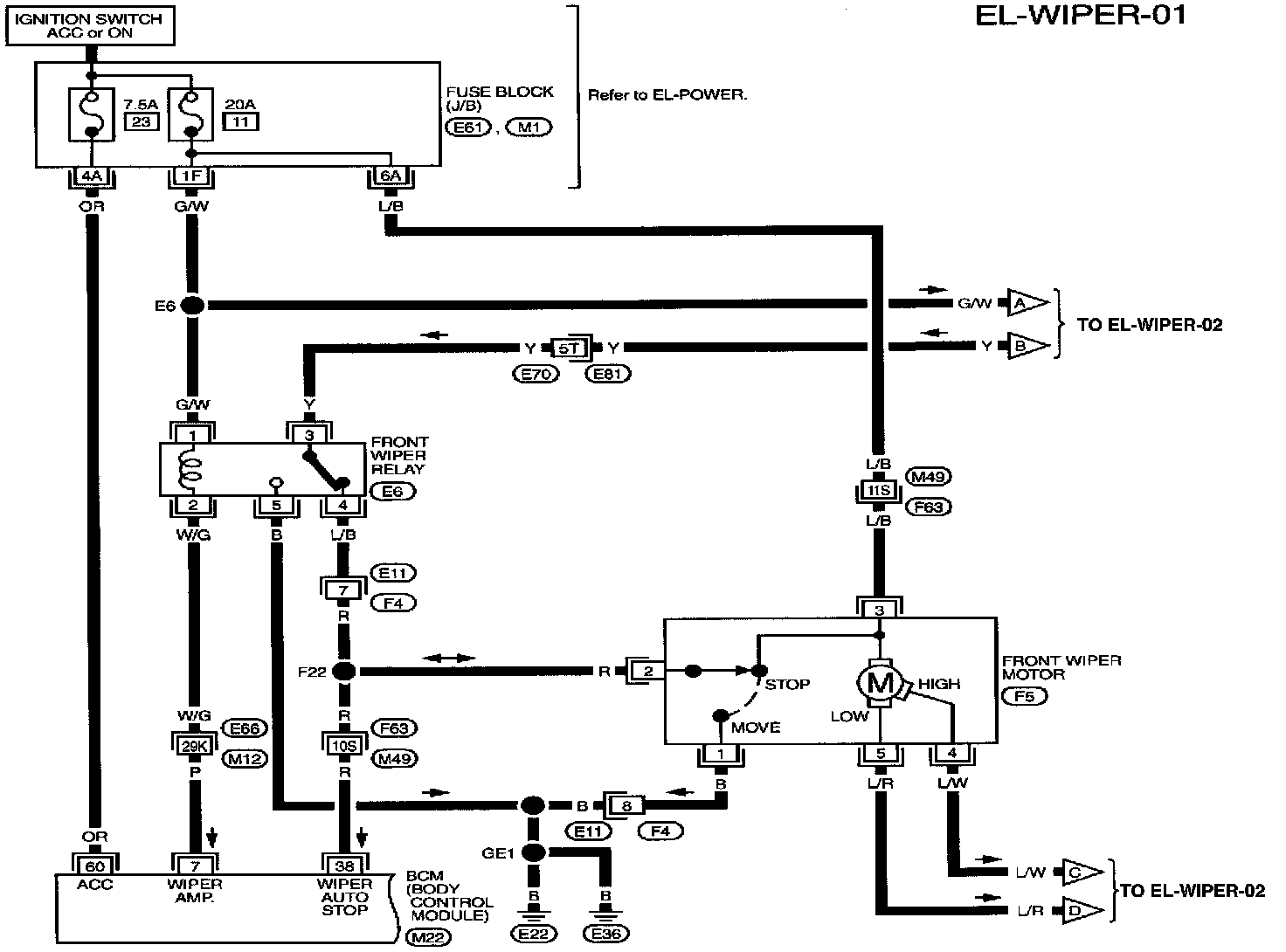

(Part 1 of 3)
Body Control Module
Front Wiper Motor
Front Wiper Relay
Fuse Block (J/B)

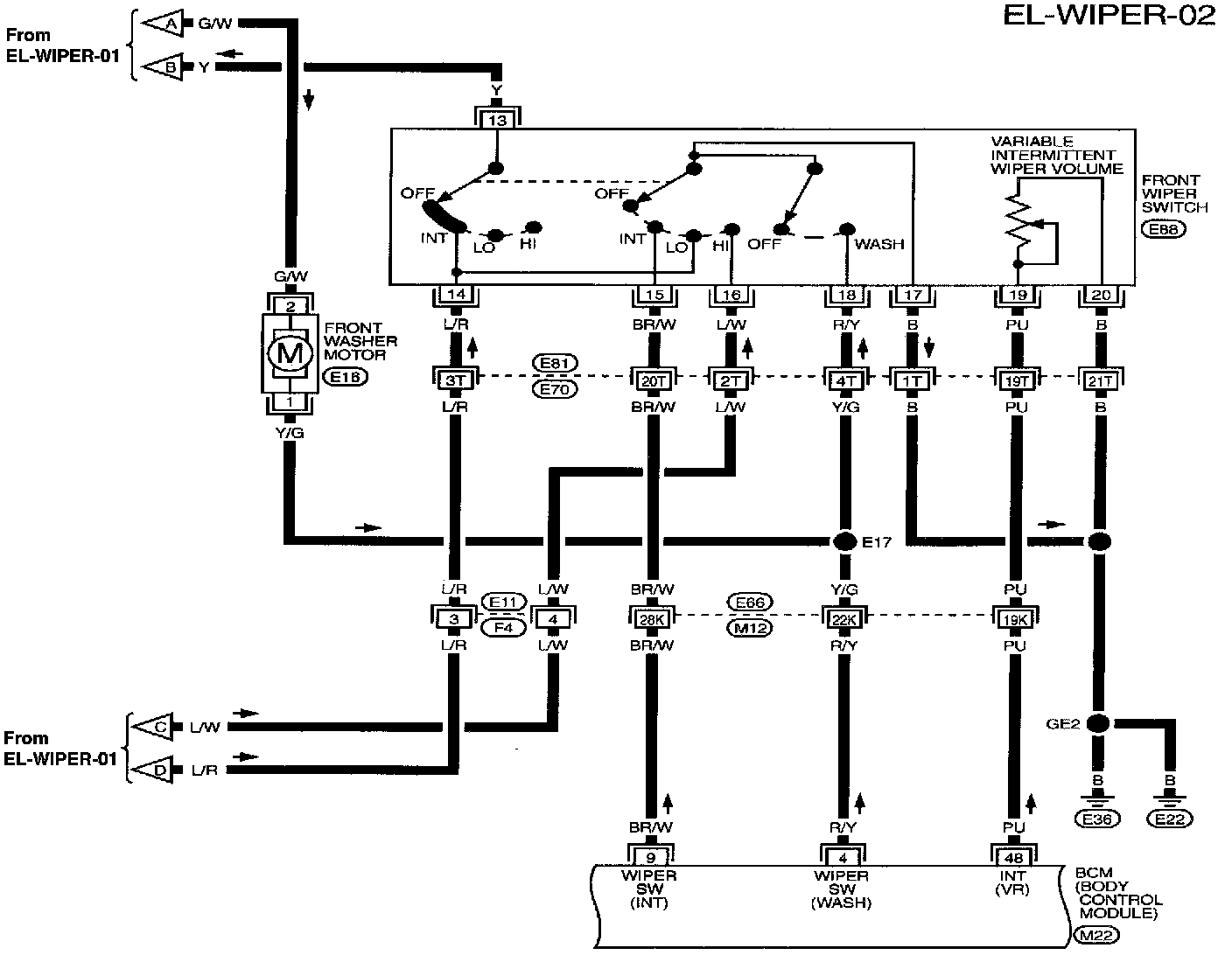

(Part 2 of 3)
Body Control Module
Front Washer Motor
Front Wiper Switch

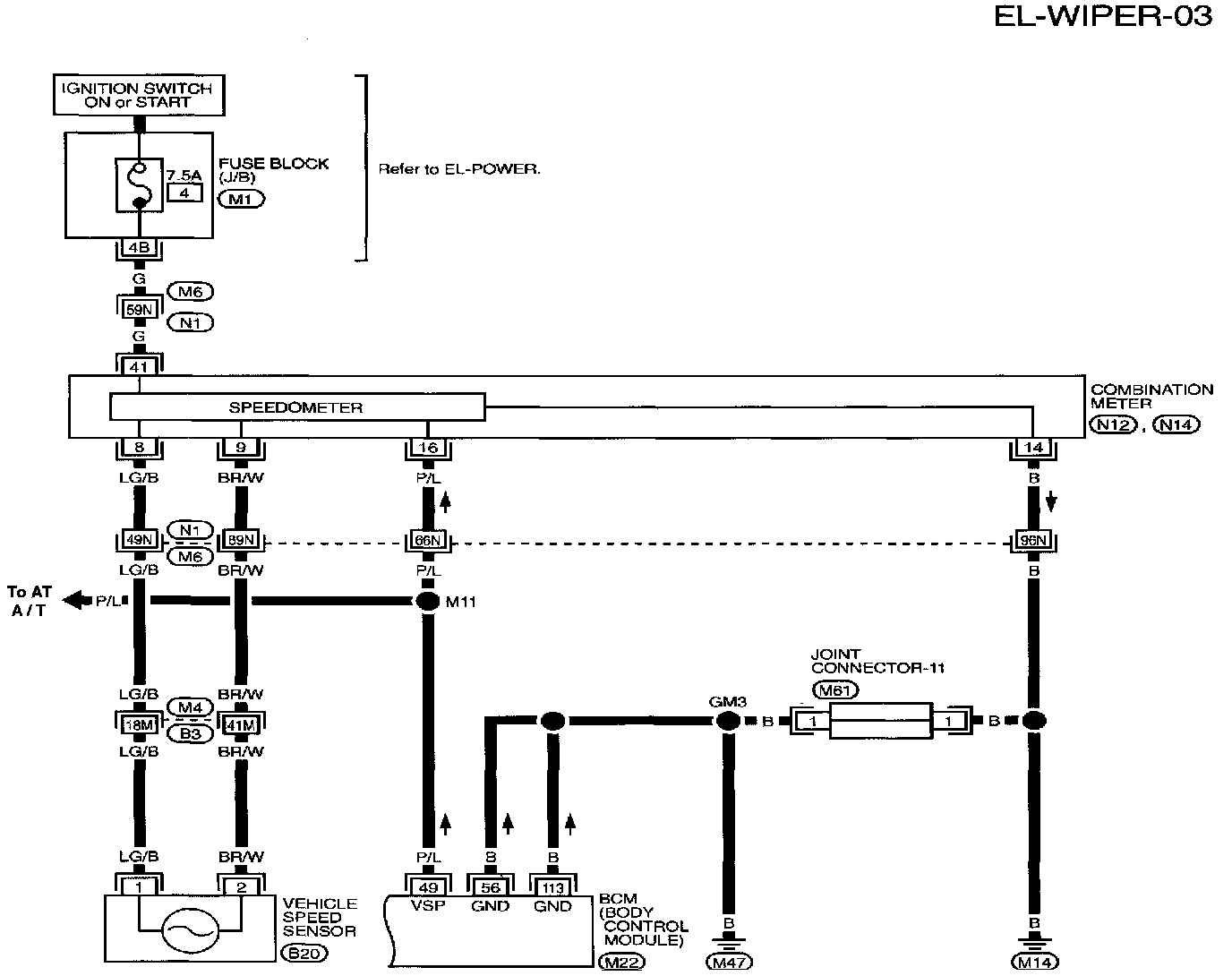

(Part 3 of 3)
Body Control Module
Combination Meter
Fuse Block(J/B)
Joint Connector 11
Vehicle Speed Sensor












Circuit Connectors







B3, E66, M4, M6, M12, N1 - Body, Engine, Instrument, Main Harness - Terminal Arrangement







M22 - Electrical Units - Terminal Arrangement







E70, E81, F63, M49 - Super Multiple Junction - Terminal Arrangement







E61, M1 - Fuse Block Junction Box - Terminal Arrangement
