Blend Door

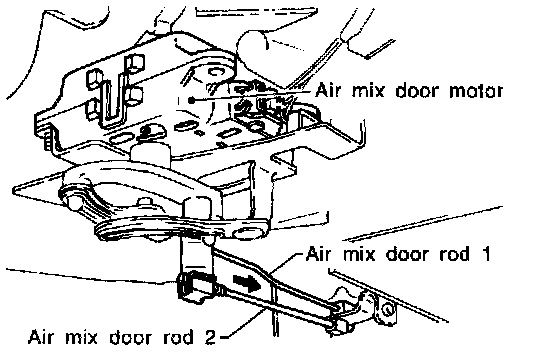

1. Install air mix door motor to heater unit and connect it to body harness.
2. Set up code No.41 in Self-diagnosis STEP 4.
3. Move air mix door lever by hand and hold it at full cold position.
4. Attach air mix door rod 1 to rod holder.
5. Push air mix door rod 2 in arrow direction.
6. Check air mix door operates properly when changing code No.41 to 48 by pushing (DEF) switch.
