Pinout Values and Diagnostic Parameters

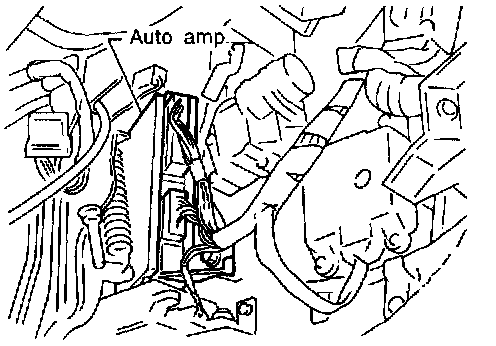

INSPECTION OF AUTO AMP.




^ Measure voltage between each terminal and body ground by following "AUTO AMR INSPECTION TABLE".

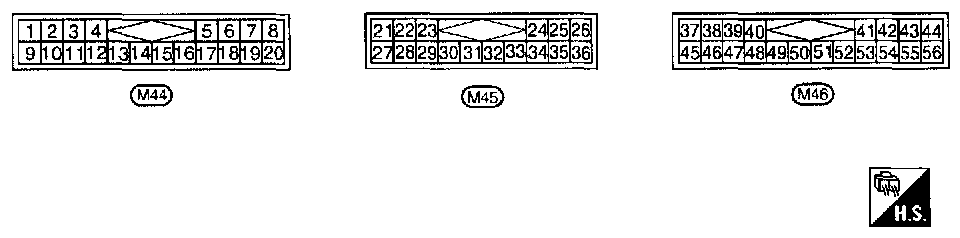

^ Pin connector terminal layout

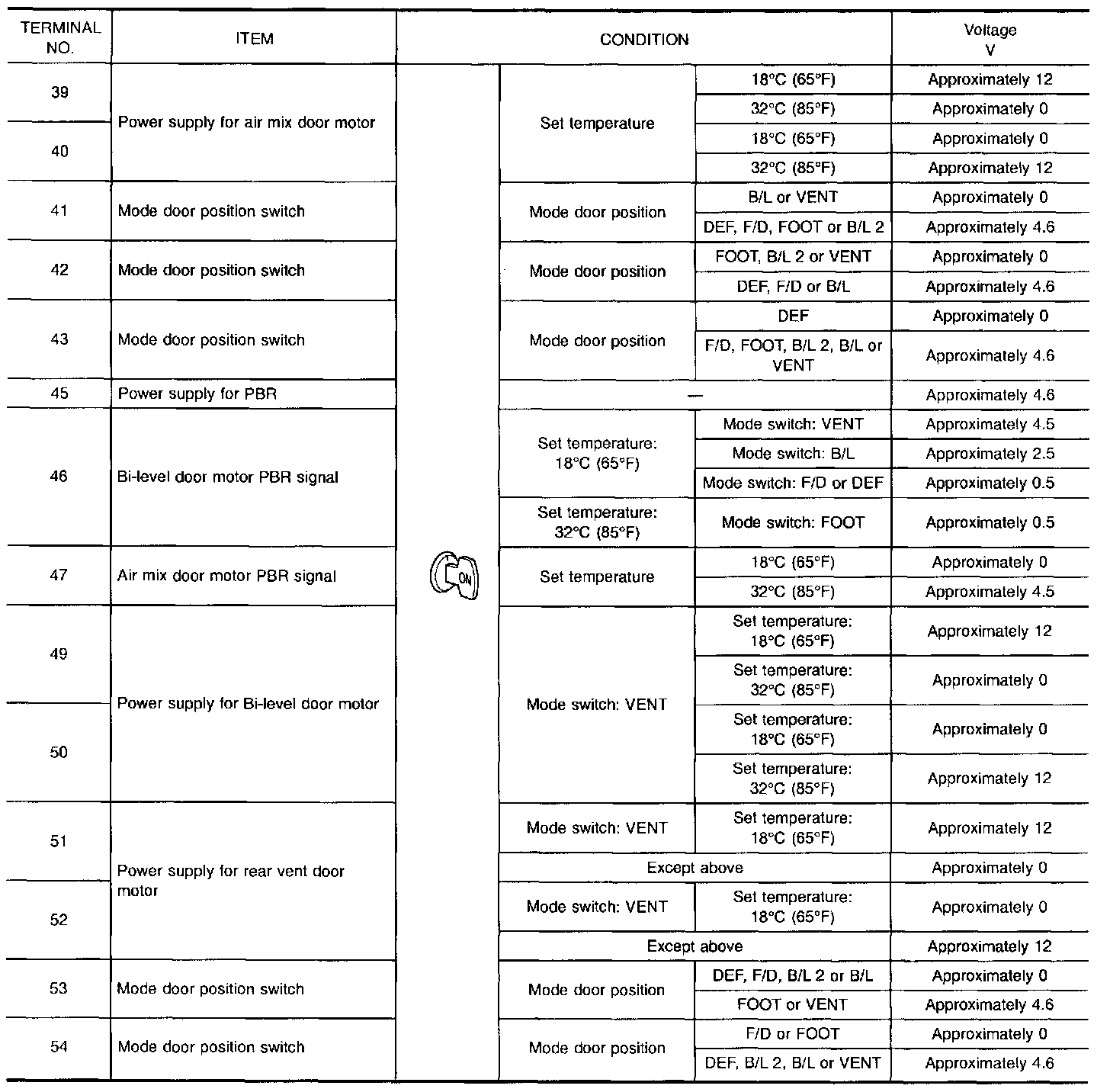

AUTO AMP. INSPECTION TABLE
