Scan Tool Testing

1. Turn ignition switch "OFF".
2. Connect "CONSULT" to data link connector.







3. Turn ignition switch "ON".

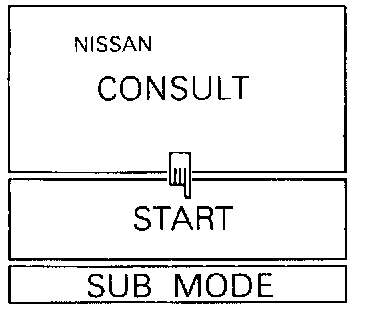

4. Touch "START".







5. Touch "IVMS".







6. Touch "DOOR OPEN WARNING".

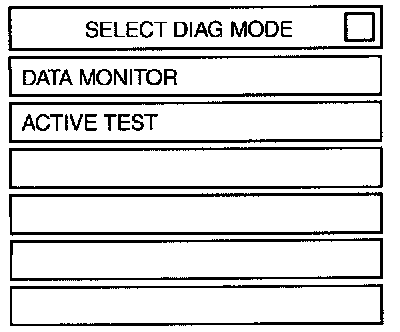

^ DATA MONITOR and ACTIVE TEST are available for door open warning lamp.







WORK FLOW


NOTE:
^ When LCU connectors are disconnected for more than 1 minute such as during trouble diagnoses, the "disconnected" data will be memorized by the BCM. (While BCM memorizes the "disconnected" data, IVMS communication diagnosis of CONSULT will display "PAST NO RESPONSE".) Therefore, after reconnecting the LCU connectors, erase the memory.
^ To erase the memory, perform the procedure below.
Erase the memory with CONSULT or turn the ignition switch to "OFF" position and remove 7.5 A fuse [No. [14] located in the fuse block (J/B)].







Diagnostic Procedure Symptom: Door warning lamp is not operating correctly







Trouble Diagnoses/Stop and Tail Lamp Sensor







Stop and Tail Lamp Sensor Inspection Table

NOTE: The system senses bulb burnout only when the stop lamp switch is depressed for stop lamps or tail lamp relay is energized for tail lamps.
