Fog/Driving Lamp: Service and Repair

Replacement







^ Each switch can be replaced without removing combination switch base.







^ To remove combination switch base, remove base attaching screws.

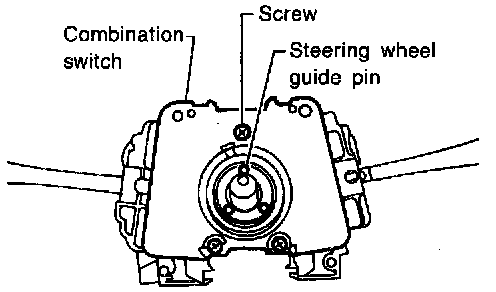

^ Before installing steering wheel, align the steering wheel guide pins with the screws which secure the combination switch, as shown in the figure.
