Electrical Diagrams

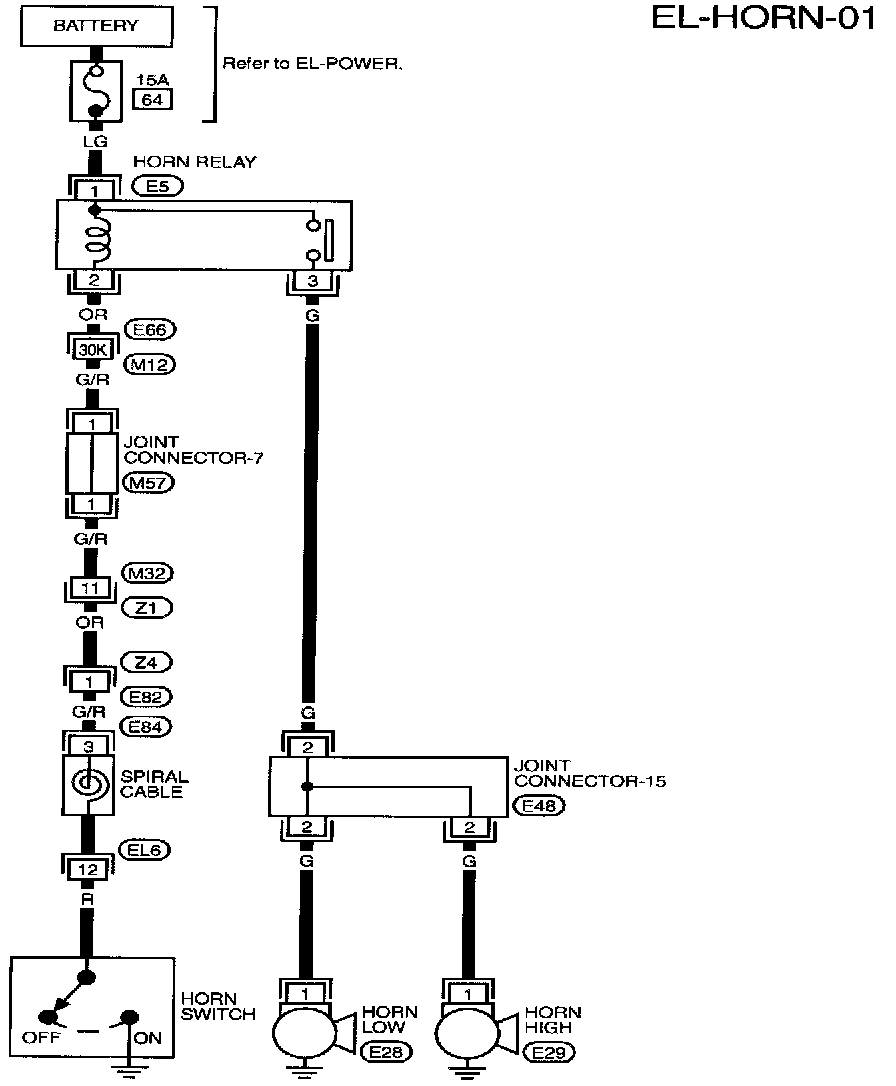

Circuit Diagram







Circuit Connectors







E66, M12 - Body, Engine, Instrument, Main Harness - Terminal Arrangement
