Multiple Junction Connector: Service and Repair

SUPER MULTIPLE JUNCTION (SMJ)

Installation

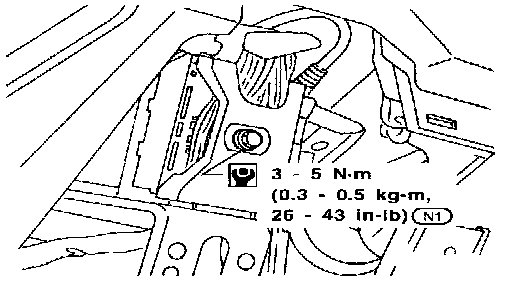

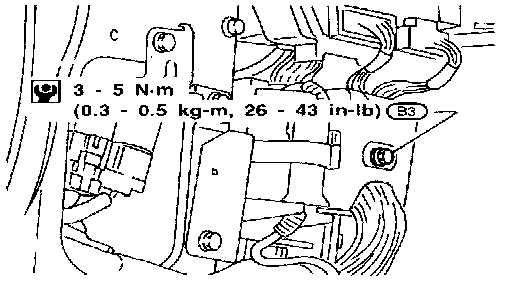

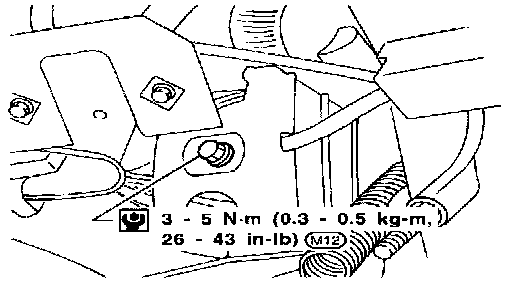

To install SMJ, tighten bolts until orange "full-tight" mark appears and then retighten to specified torque as required.
3 - 5 N.m
(0.3 - 0.5 kg-m, 26 - 43 in-lb)

CAUTION: Do not overtighten bolts, otherwise, they may be damaged.

Grommet





A grommet of the shape shown above is used for engine room harness through hole and engine control harness.

CAUTION: Do not use old inner protector after removal; replace with new one.
