Lean Side

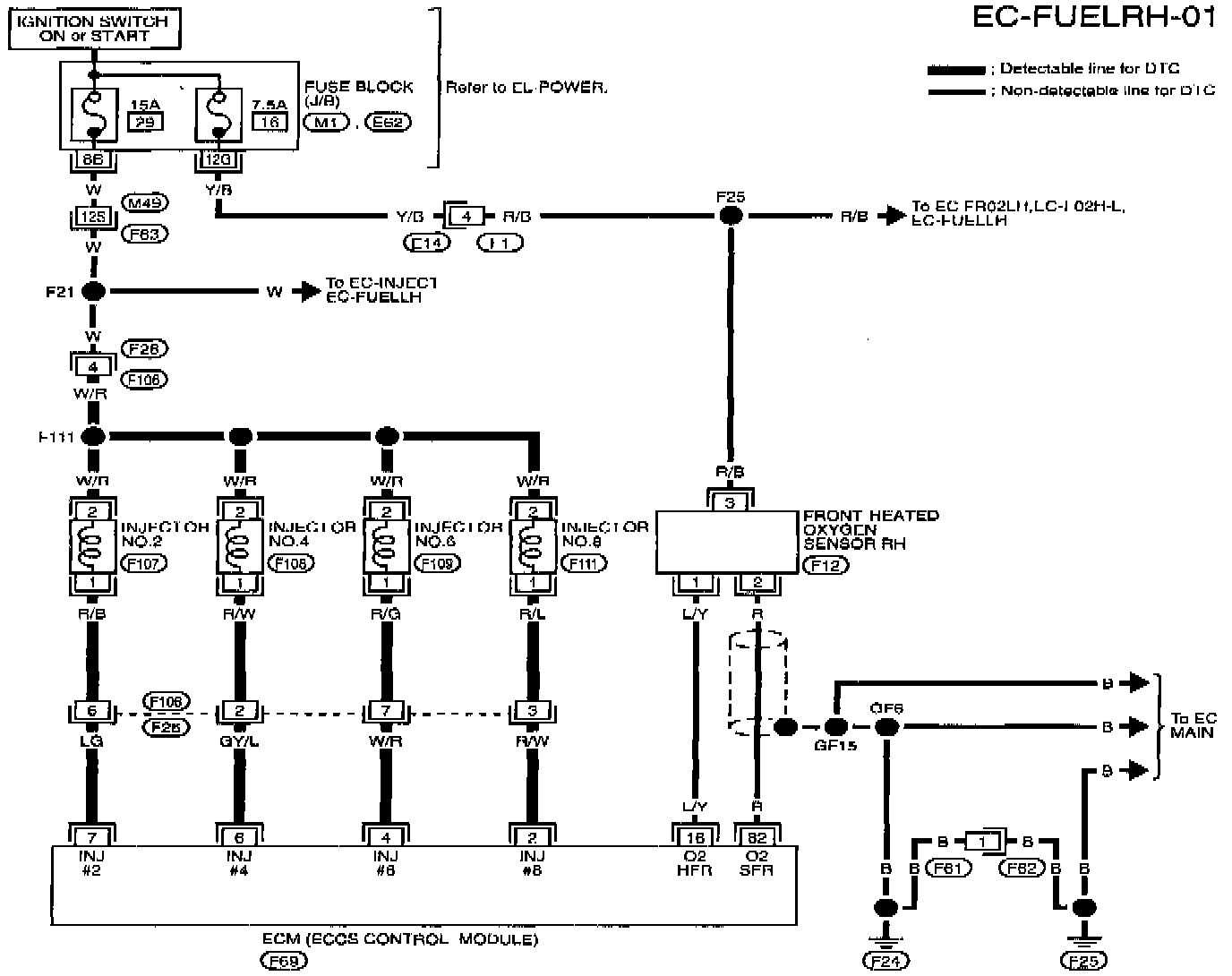

Circuit Diagram

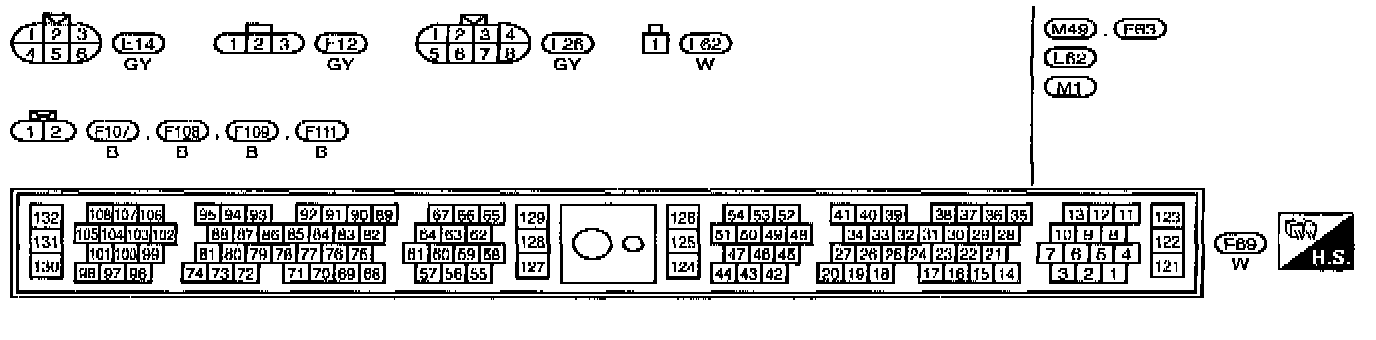

Circuit Connectors

F63, M49 - Super Multiple Junction - Terminal Arrangement

E62, M1 - Fuse Block Junction Box - Terminal Arrangement
