Electrical Diagrams

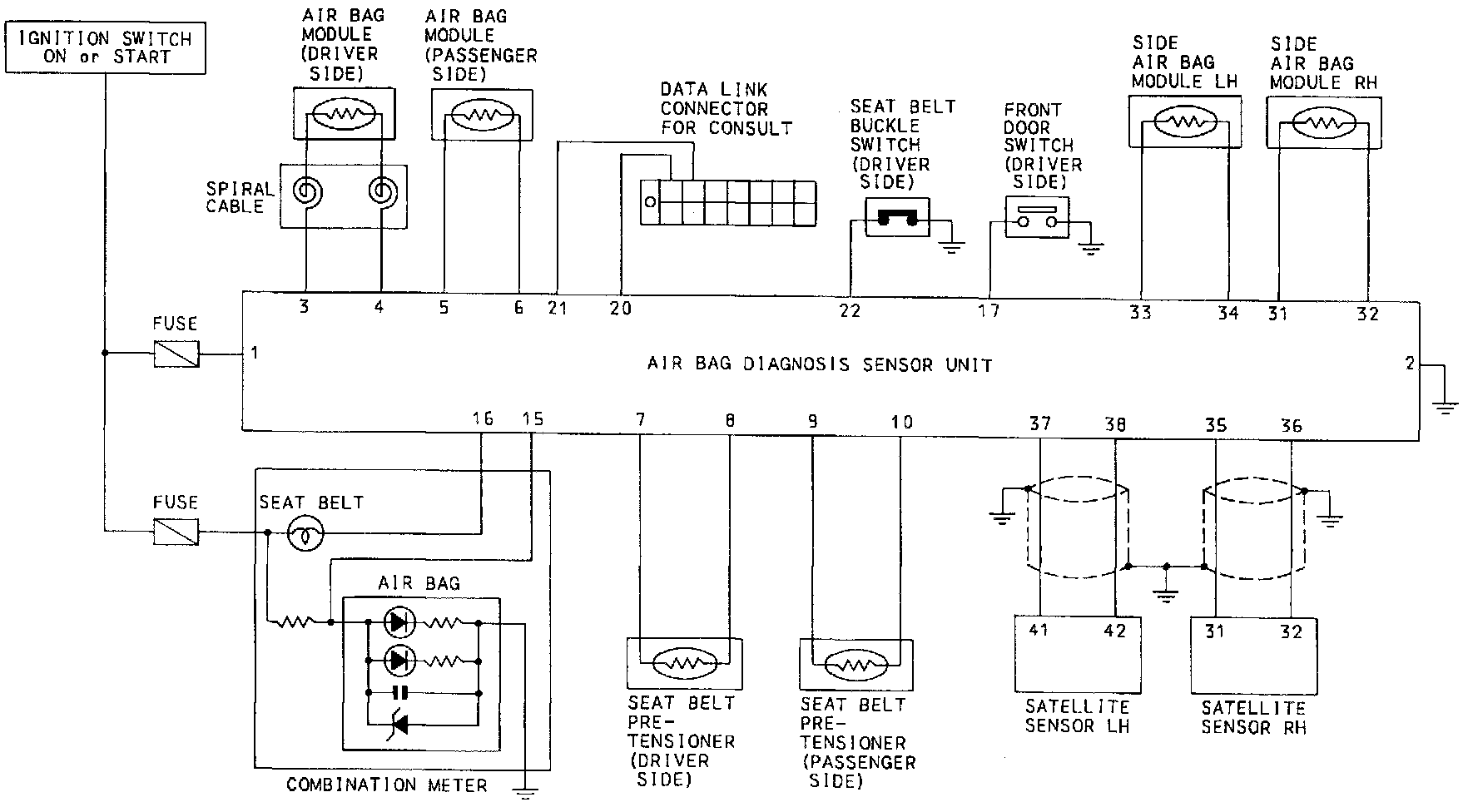

Schematic

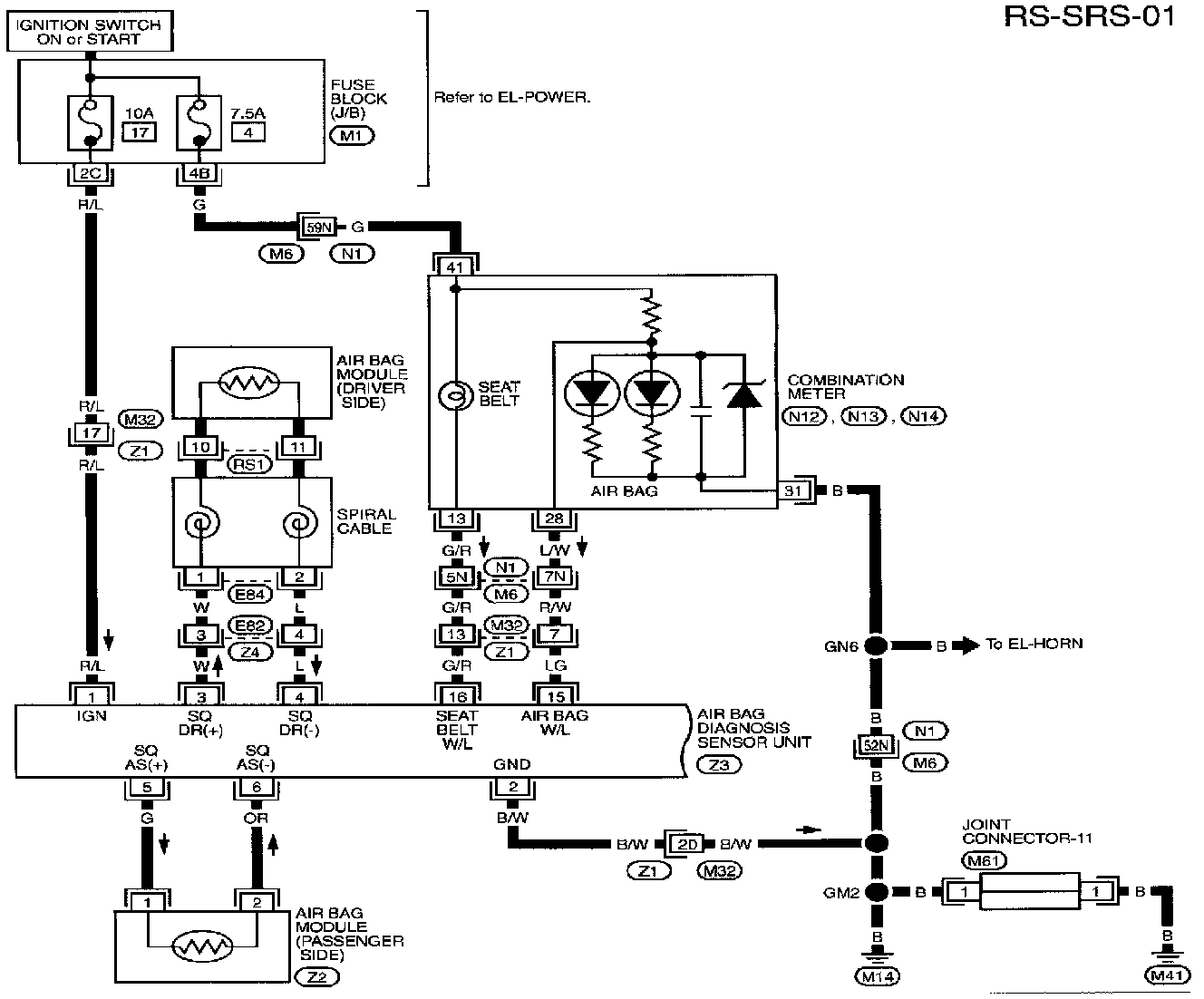

(Part 1 of 3)
Air Bag Module
Air Bag Diagnosis Sensor Unit
Combination Meter
Fuse Block (J/B)
Joint Connector 11
Spiral Cable

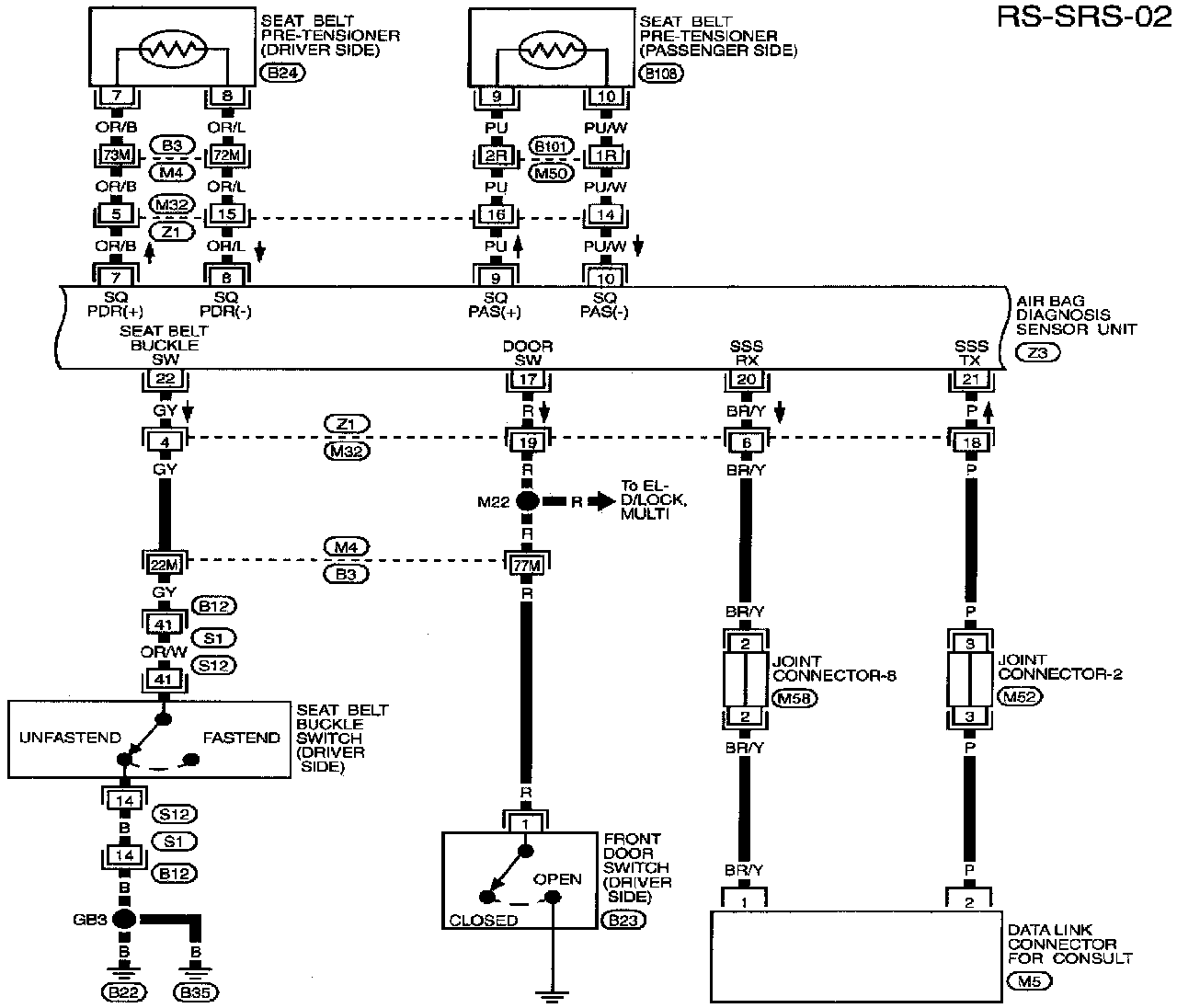

(Part 2 of 3)
Air Bag Diagnosis Sensor Unit
Data Link Connector
Front Door Switch
Joint Connector 2, 8
Seat Belt Buckle Switch
Seat Belt Pre-Tensioner




(Part 3 of 3)
Air Bag Diagnosis Sensor Unit
Side Air Bag Module
Satellite Sensor












Circuit Connectors





B3, M4, M6, N1 - Body, Engine, Instrument, Main Harness - Terminal Arrangement





B101, M50 - Super Multiple Junction - Terminal Arrangement





M1 - Fuse Block Junction Box - Terminal Arrangement
