Oil Pan, Engine

NOTE:
- Wait at least 30 minutes before refilling engine oil.

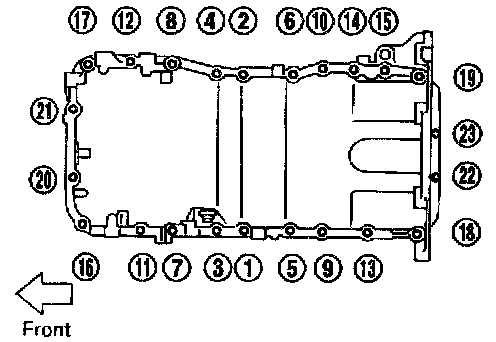

- Tighten bolts in numerical order as shown in the image.

a. Tighten bolts [(1) - (21)] to 16 to 19 Nm (1.6 to 1.9 kg-m, 12 to 14 ft. lbs.).
b. Tighten bolts [(22) - (23)] to 6.4 to 7.4 Nm (0.65 to 0.75 kg-m, 56.4 to 65.1 inch lbs.).
