Electrical Diagrams

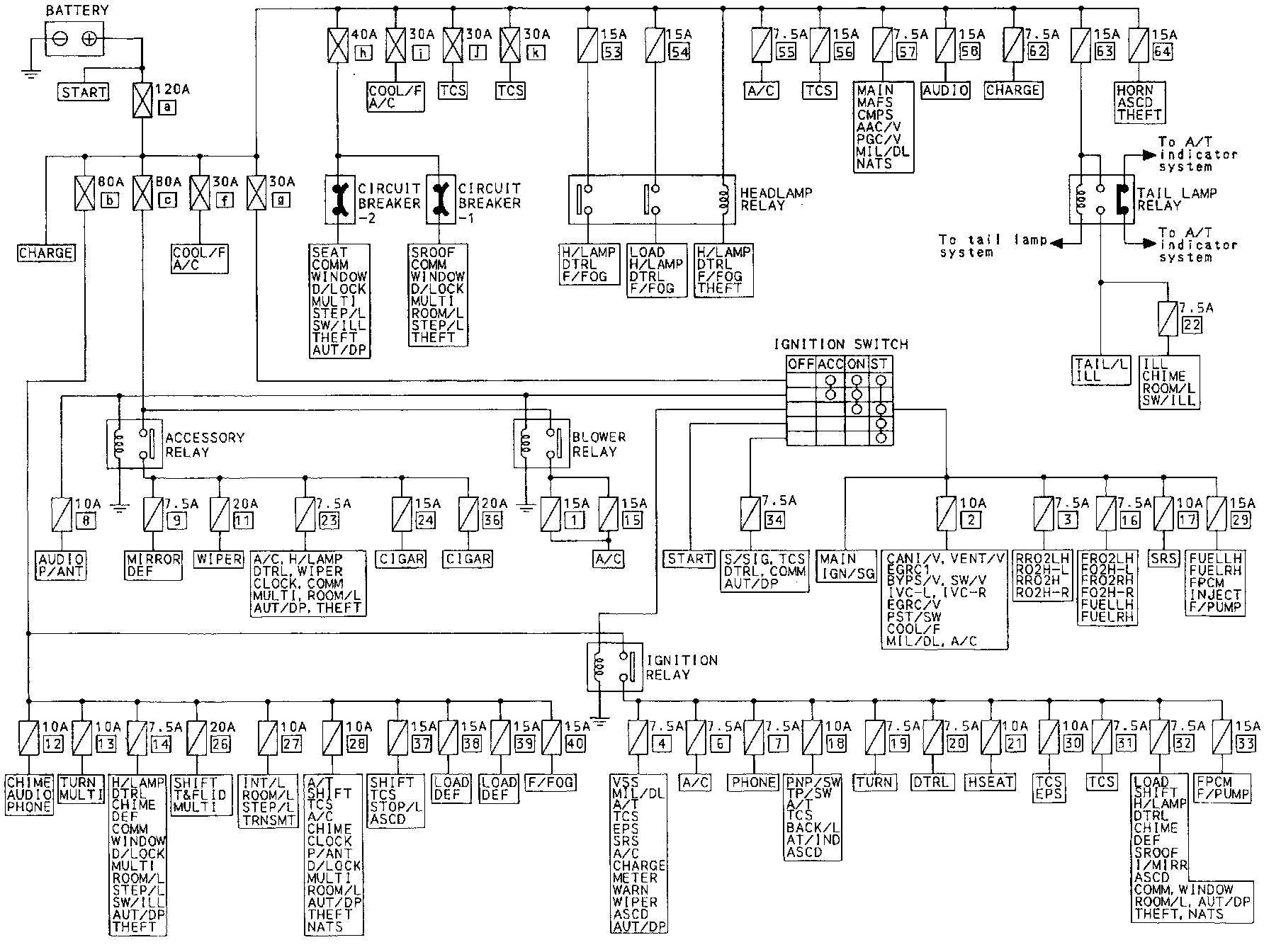

Schematic

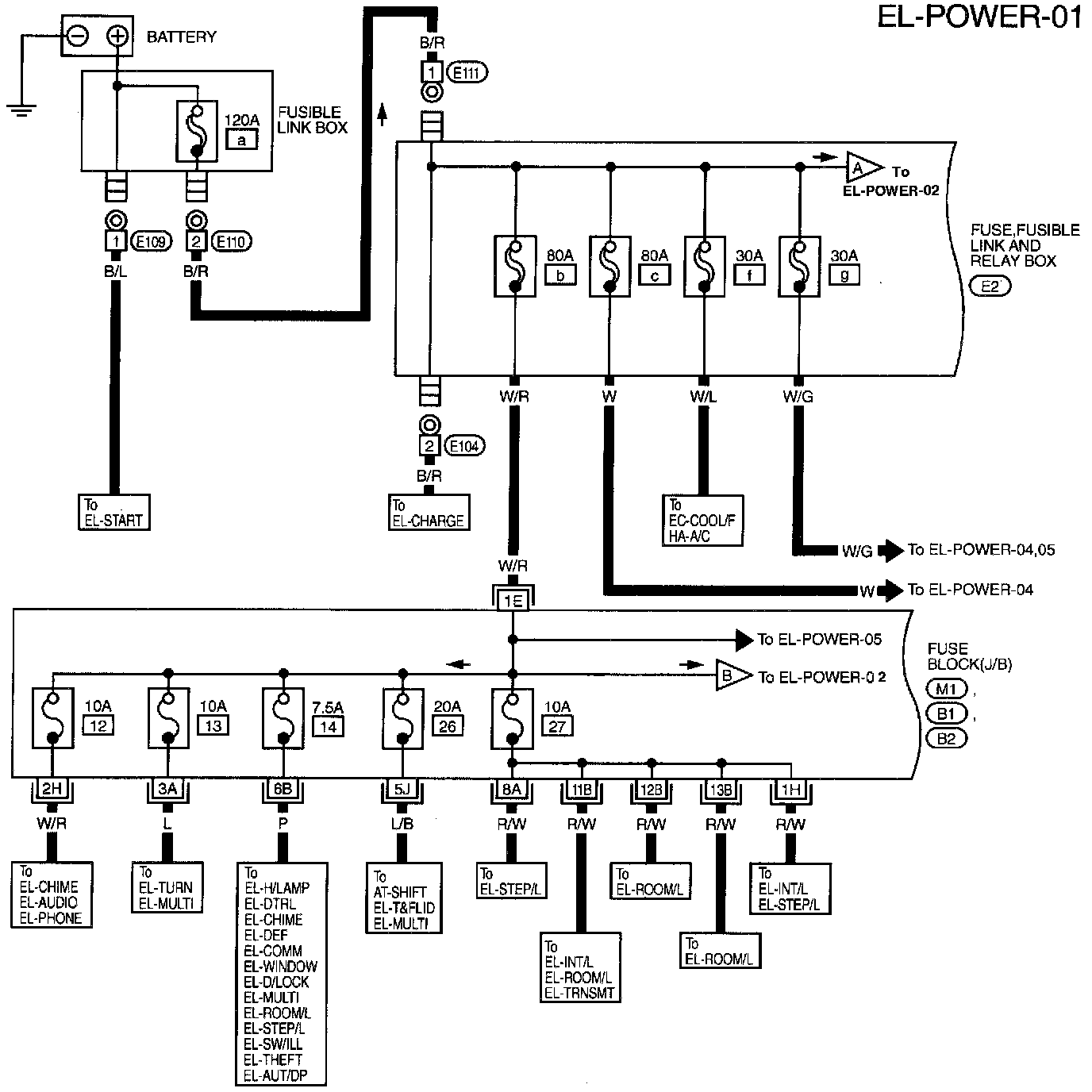

Battery Power Supply - Ignition SW. In Any Position




(Part 1 Of 3)
Fuse Block (J/B)
Fuse and Fusible Link and Relay Box

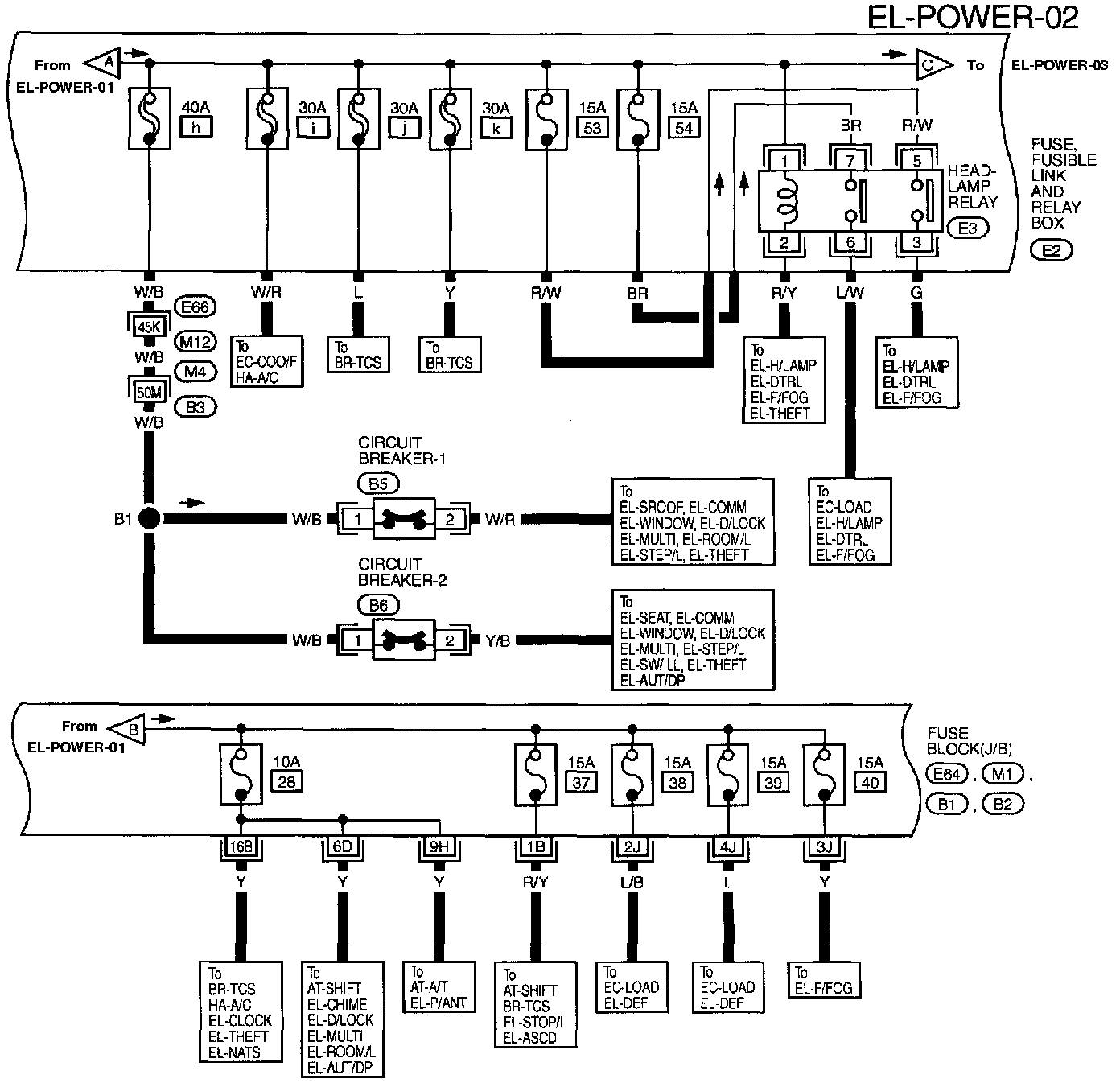

(Part 2 Of 3)
Fuse Block (J/B)
Fuse and Fusible Link and Relay Box




(Part 3 Of 3)
Fuse Block (J/B)
Fuse and Fusible Link and Relay Box
Tail Lamp Relay












Circuit Connectors

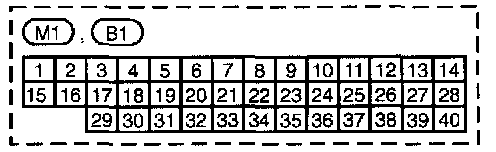

B1, B2, M1, E64 - Fuse Block Junction Box - Terminal Arrangement




B3, E66, M4, M12 - Body, Engine, Instrument, Main Harness - Terminal Arrangement

Accessory Power Supply - Ignition SW. In "ACC" and "ON"






Circuit Diagrams





Circuit Connectors

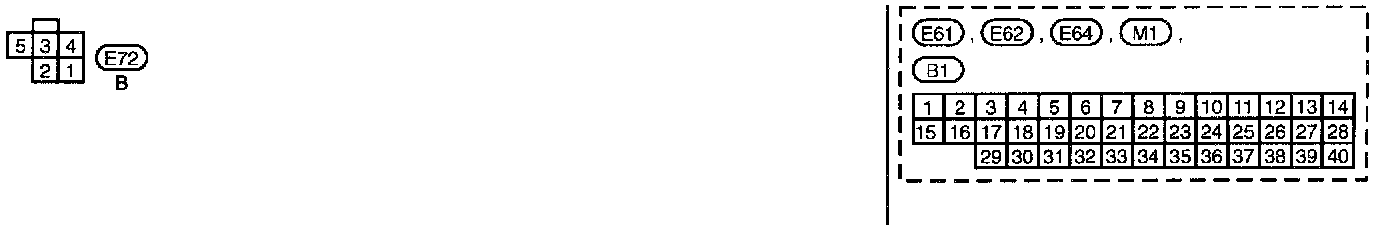

B2, E61, E63, M1 - Fuse Block Junction Box - Terminal Arrangement

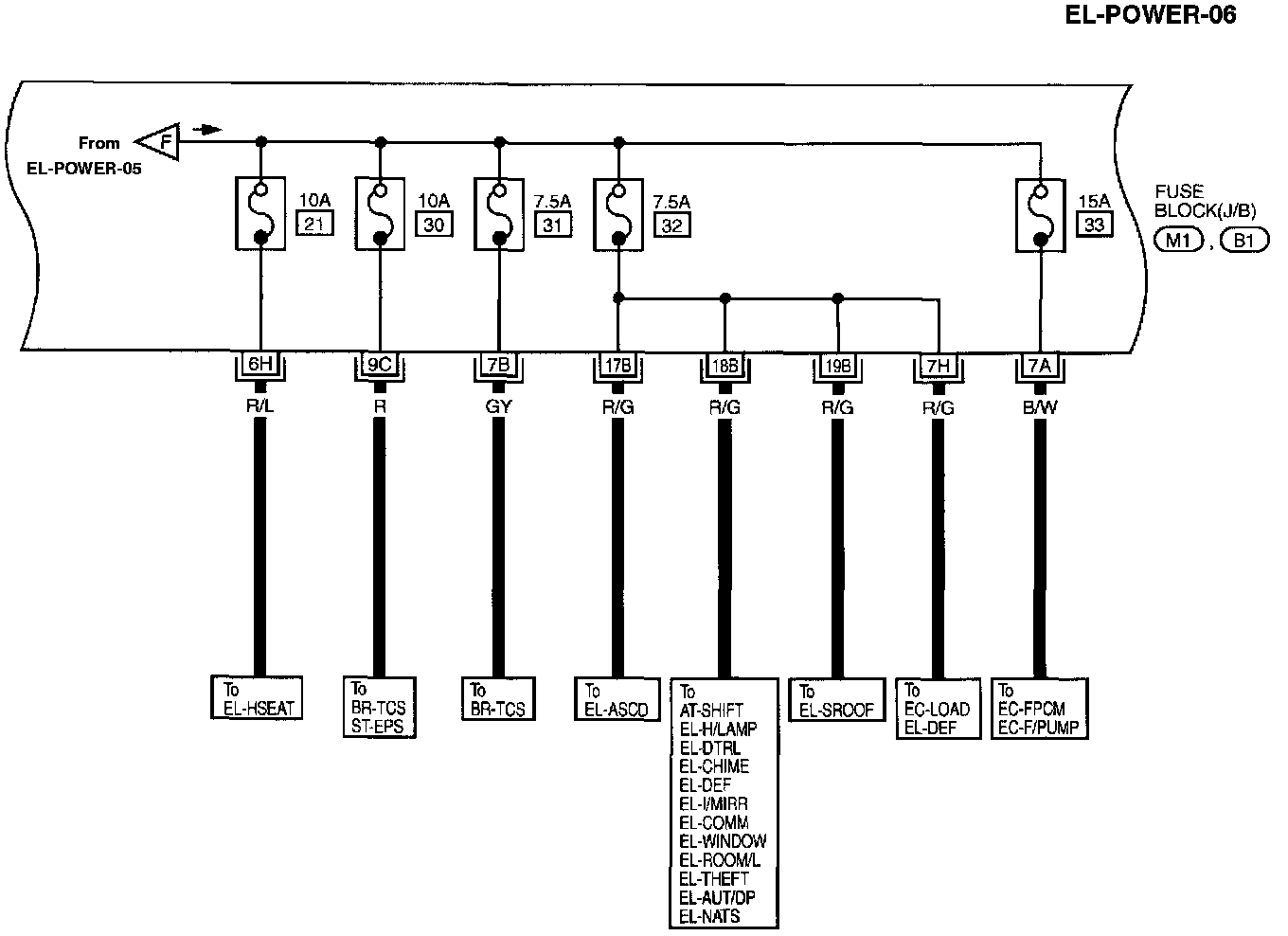

Ignition Power Supply - Ignition SW. In "ON" and/or "START"




(Part 1 Of 3)
Fuse Block (J/B)
Ignition Switch




(Part 2 Of 3)
Fuse Block (J/B)




(Part 3 Of 3)
Fuse Block (J/B)
Ignition Switch












Circuit Connectors

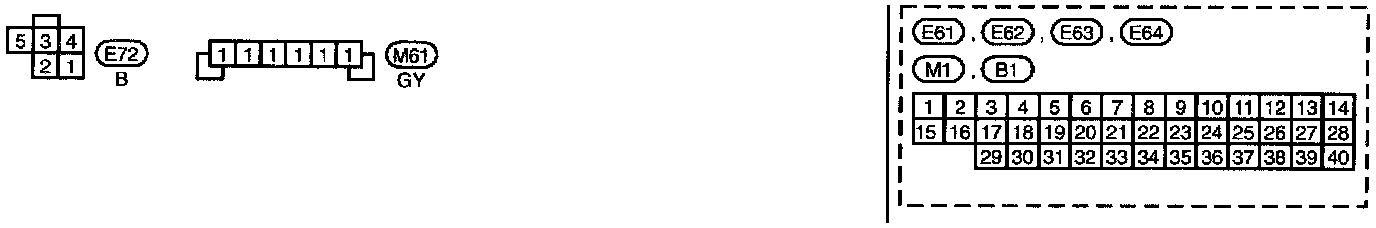

B1, E61, E62, E63, E64, M1 - Fuse Block Junction Box - Terminal Arrangement
