Power and Ground Distribution: Locations

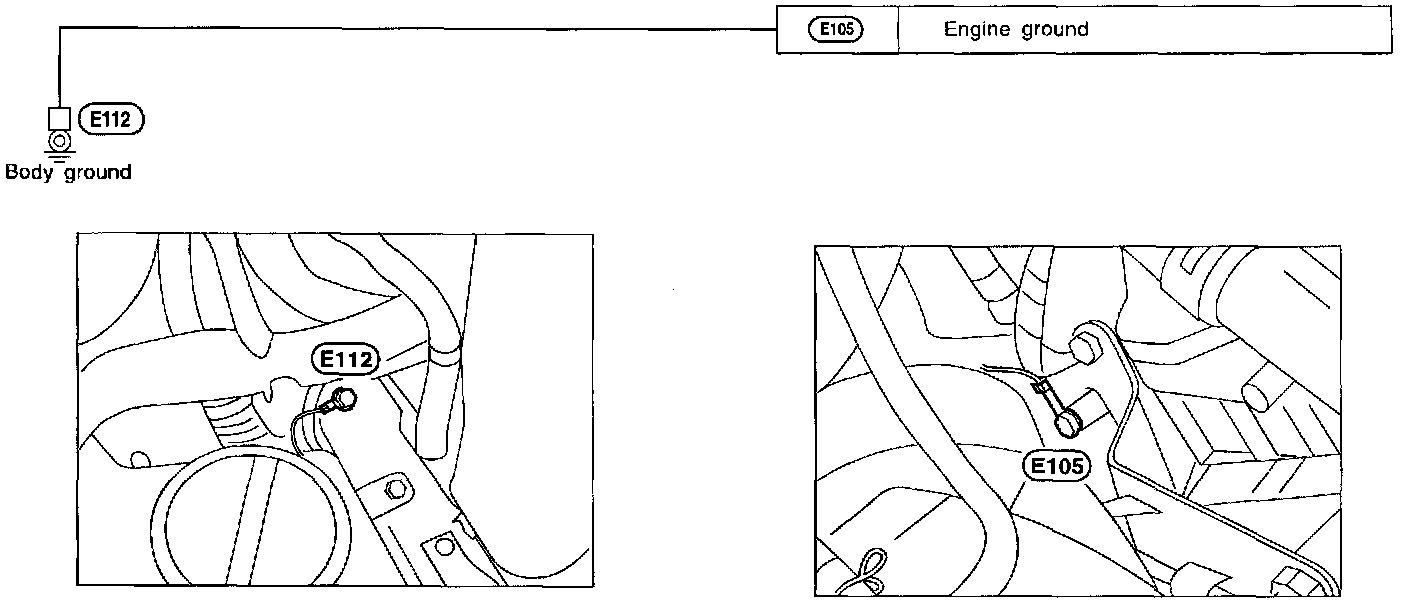

Engine Room Harness

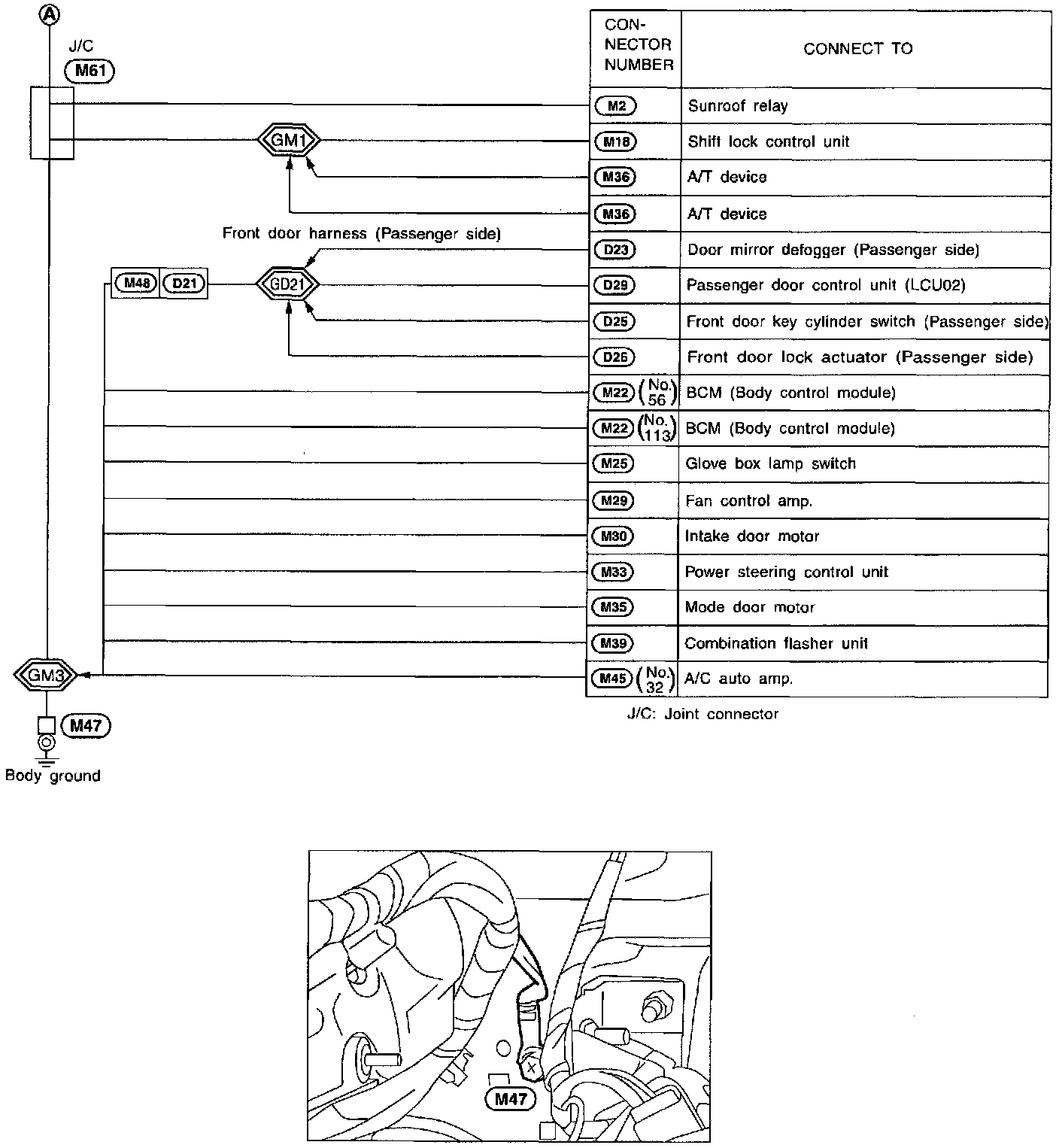

Main Harness

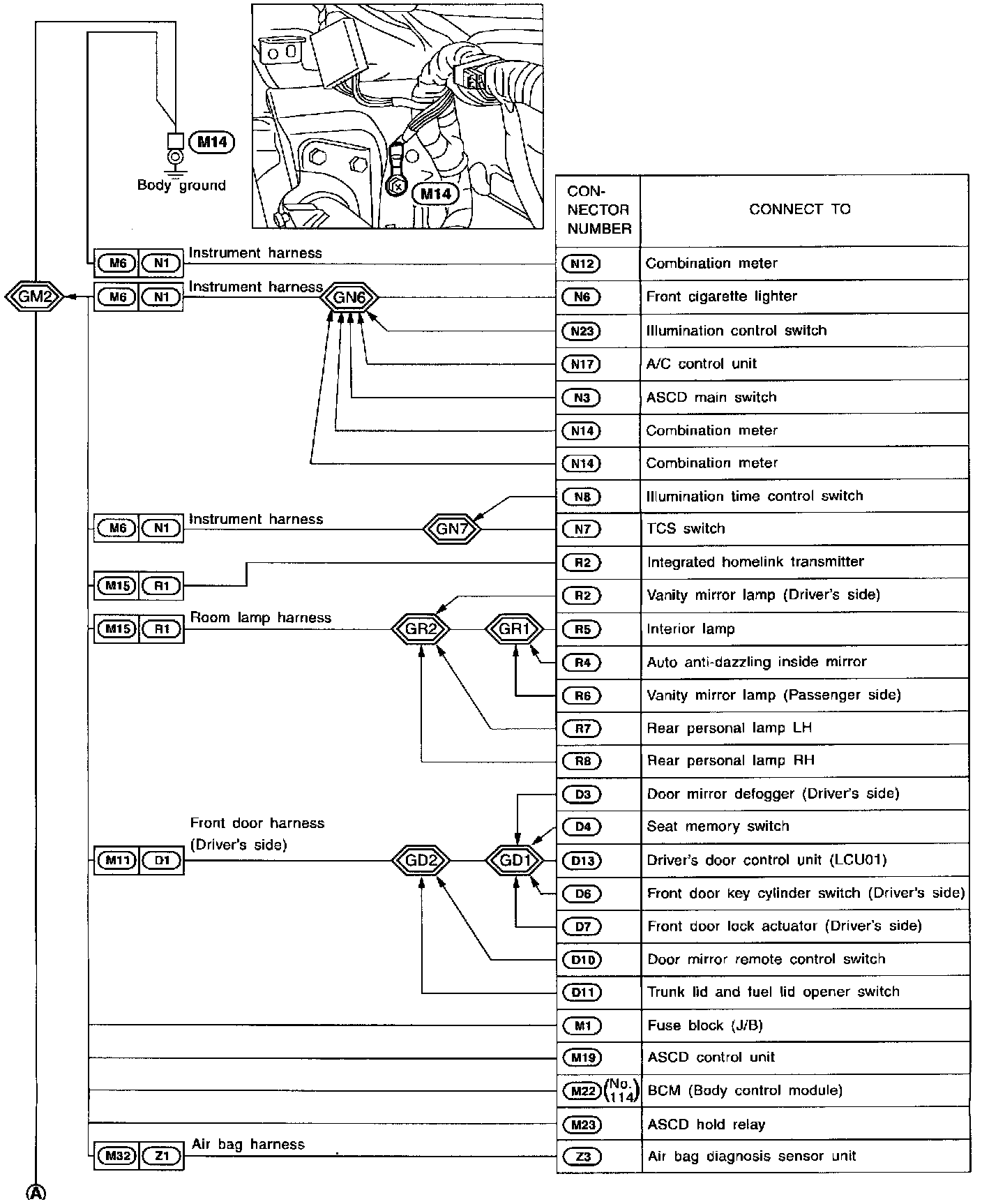

Main Harness

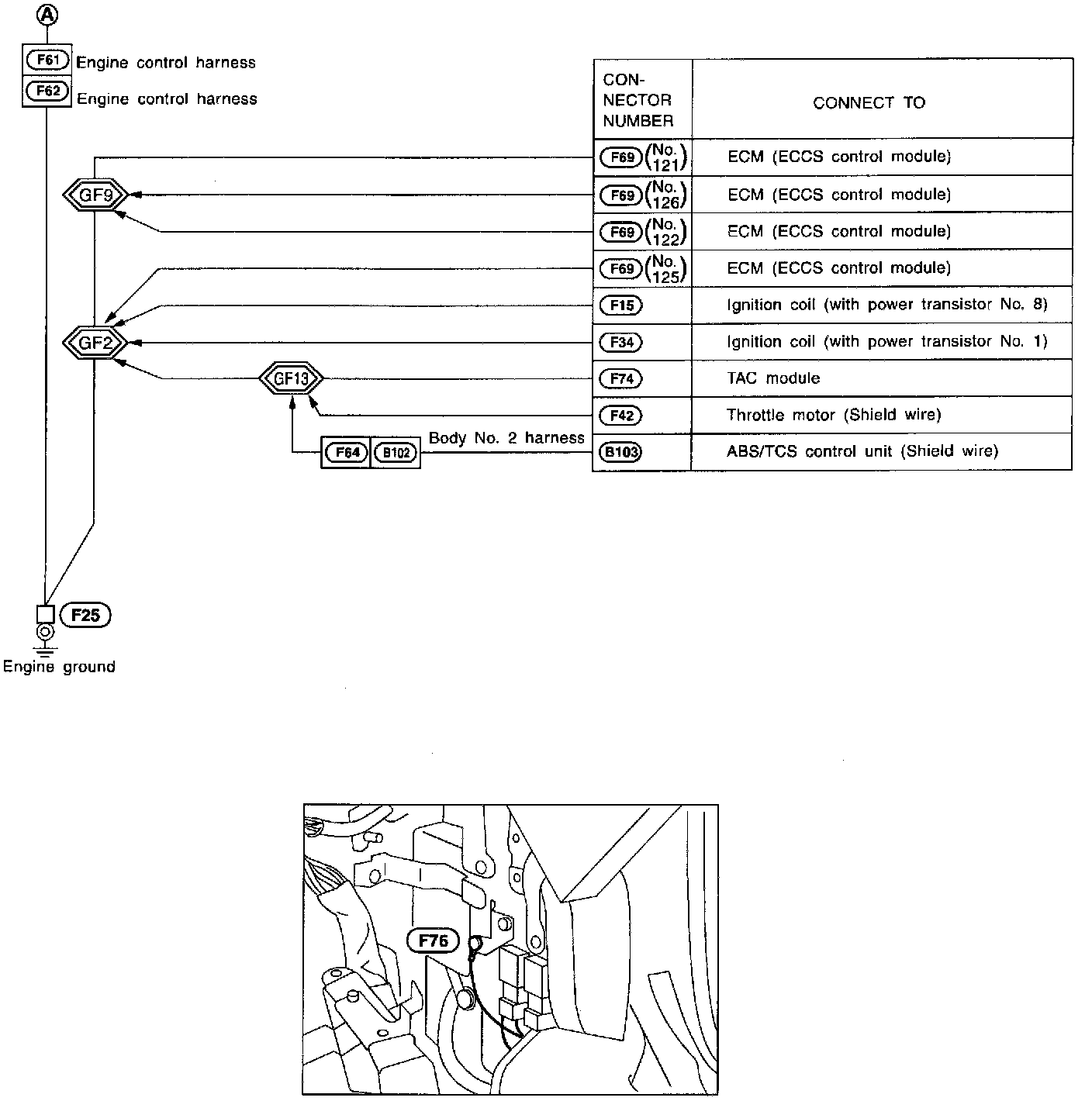

Engine Control Harness







Engine Control Harness







Engine Control Harness







Engine Harness







Body Harness







Body No.2 Harness
