Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1998
>>
Q45 V8-4130cc 4.1L DOHC MFI (VH41)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Description and Operation
>>
Control Valve

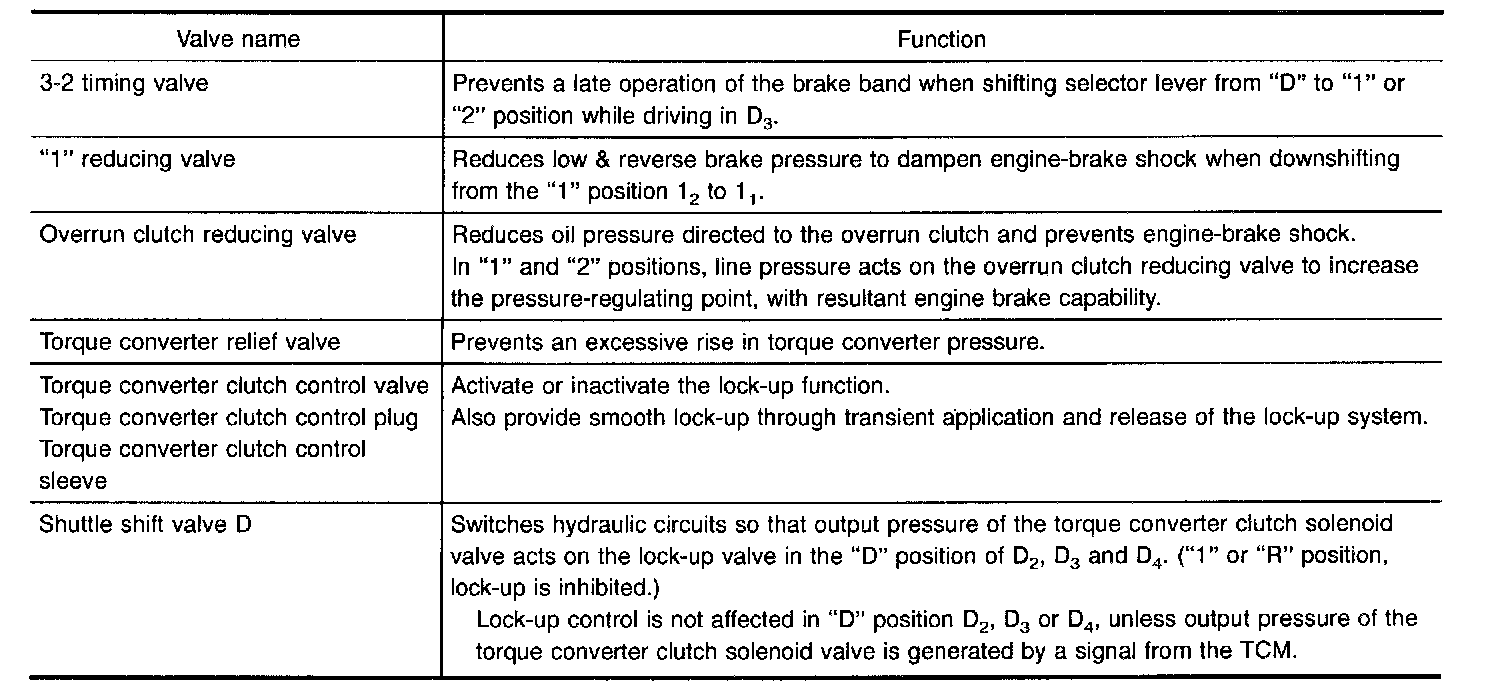

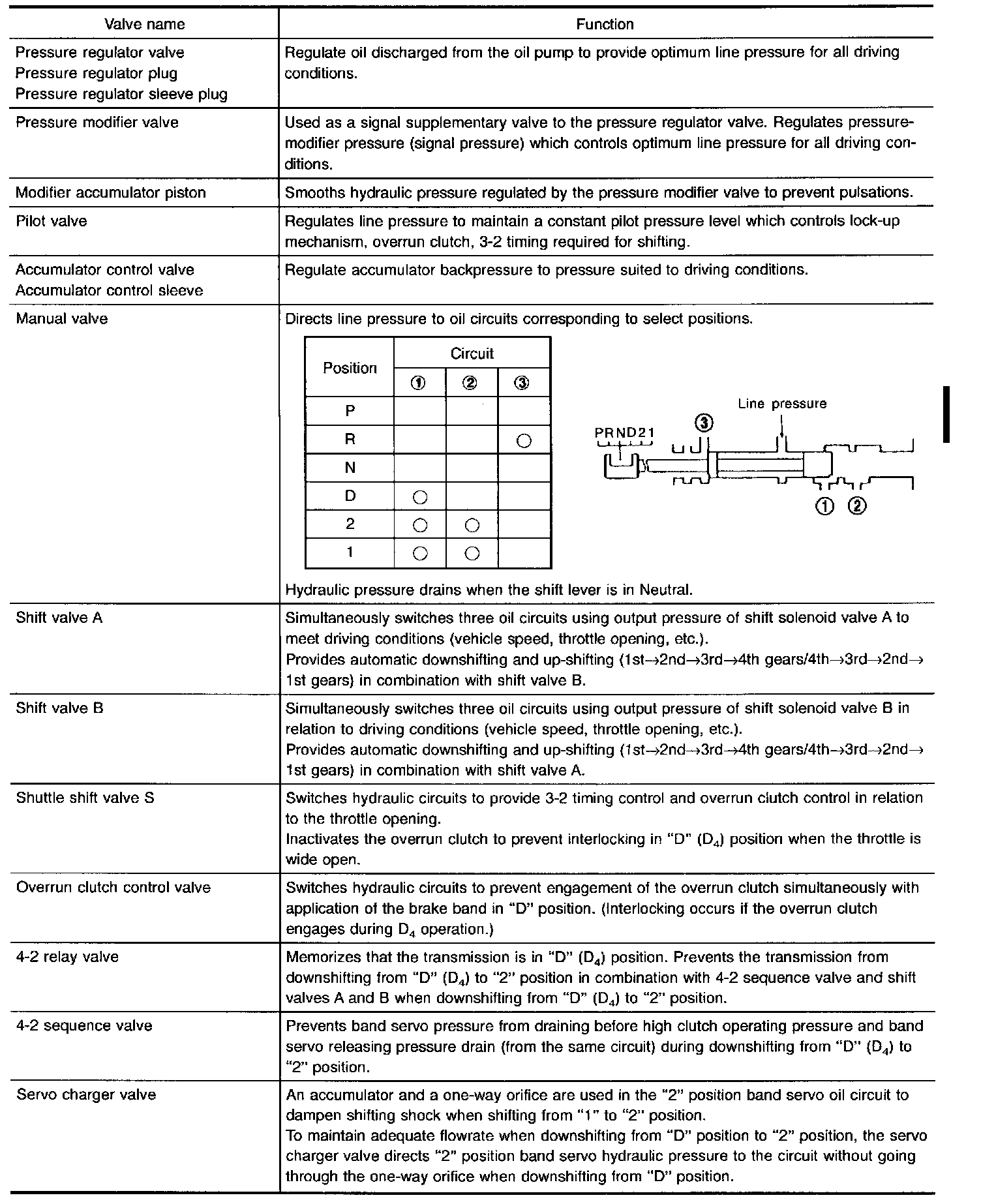

Control Valve
Page 1 Of 2:
Page 2 Of 2:
