Power Window-IVMS

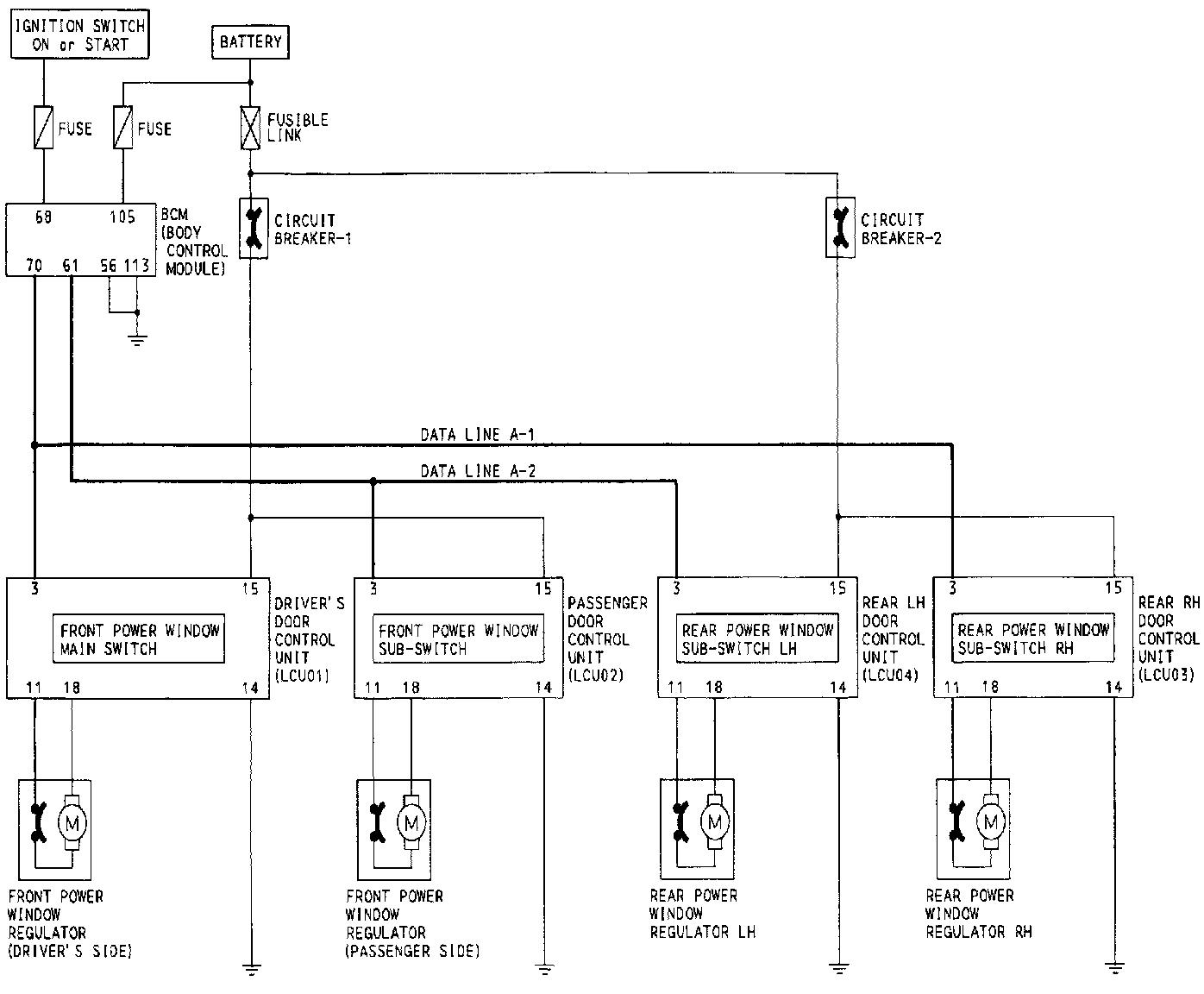

Schematic

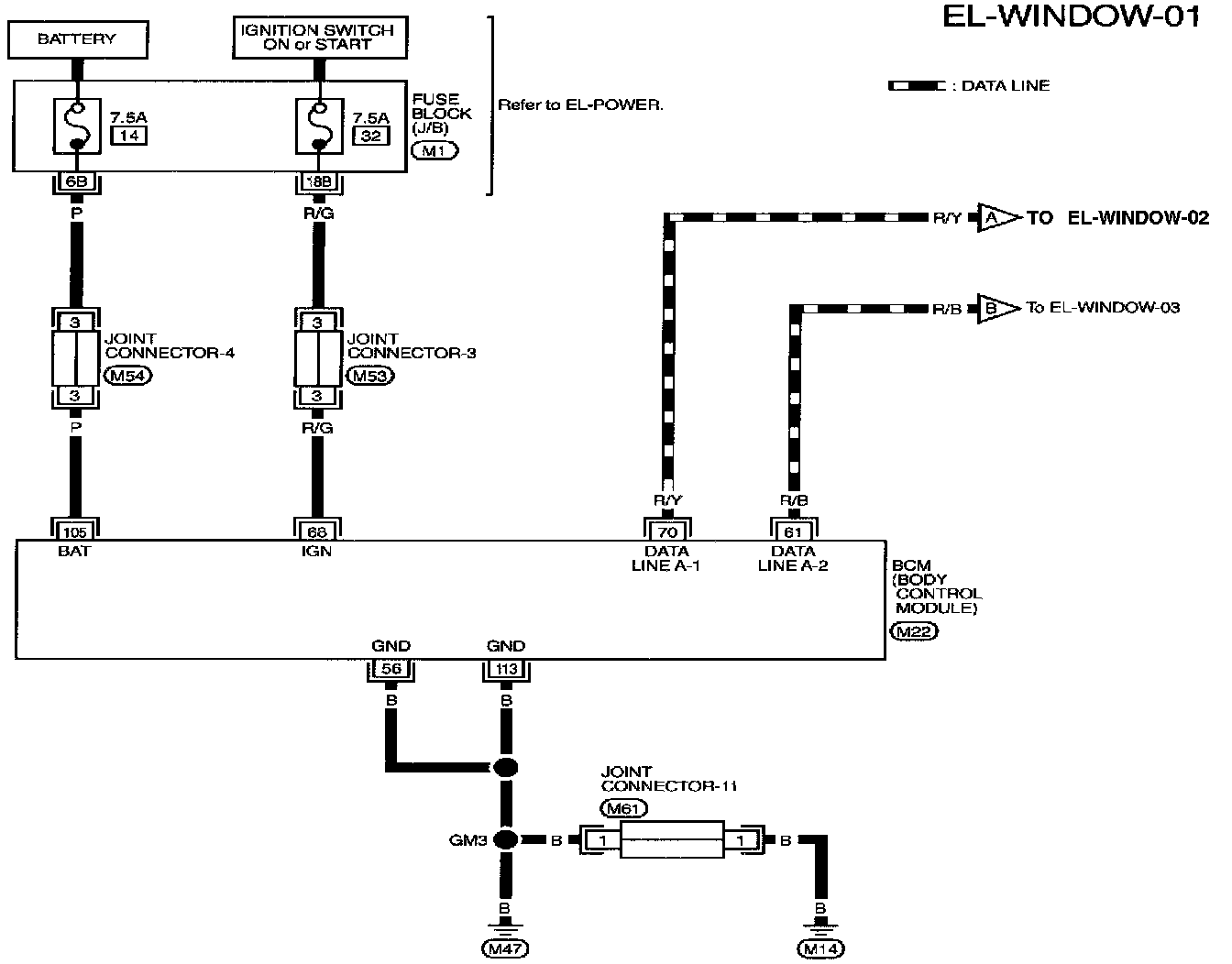

(Part 1 of 4)
Body Control Module
Fuse Block (J/B)
Joint Connector 3, 4, 11

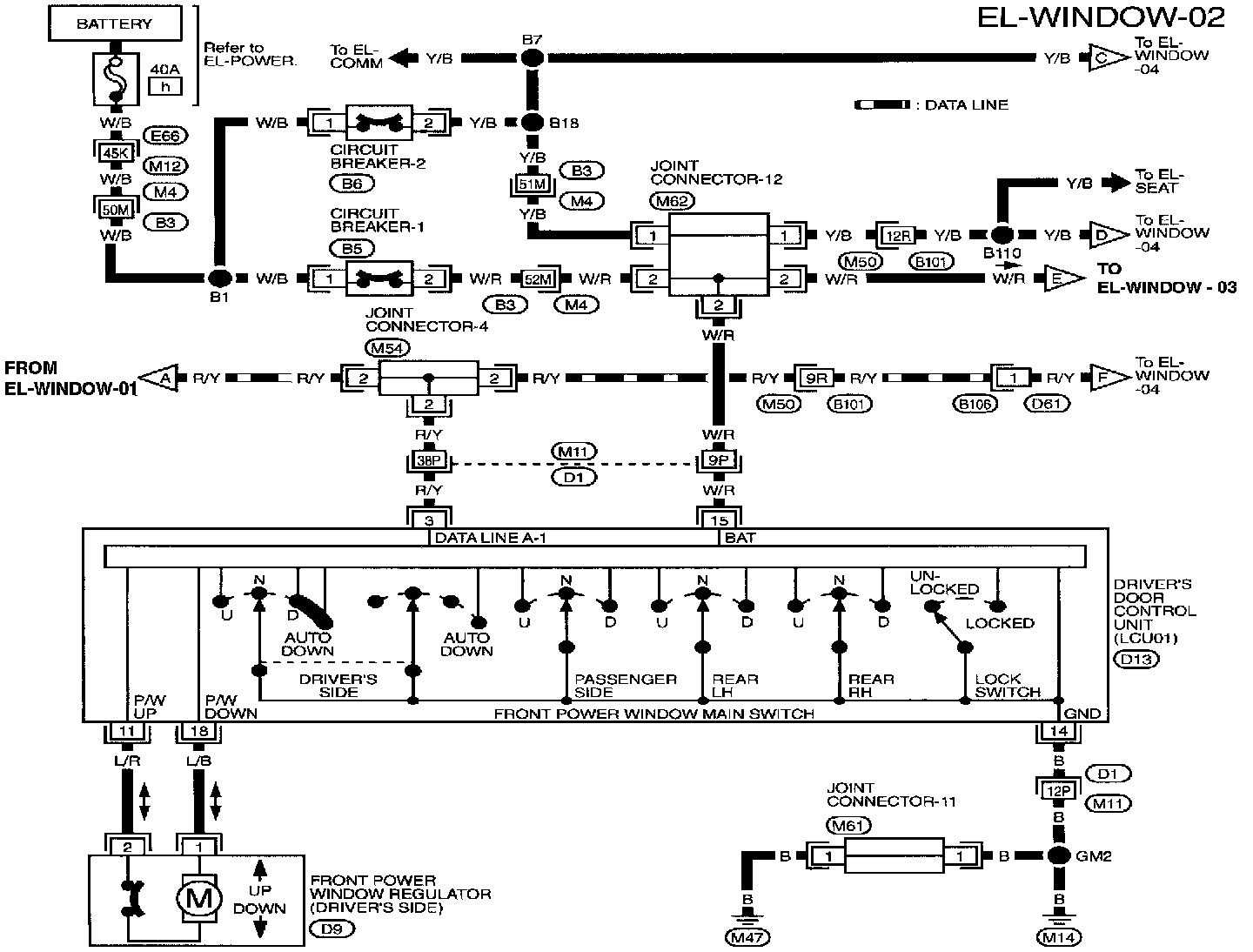

(Part 2 of 4)
Battery
Driver's Door Control Unit
Front Power Window Regulator
Joint Connector 4, 11, 12




(Part 3 of 4)
Front Power Window Regulator
Joint Connector 11
Passenger Door Control Unit

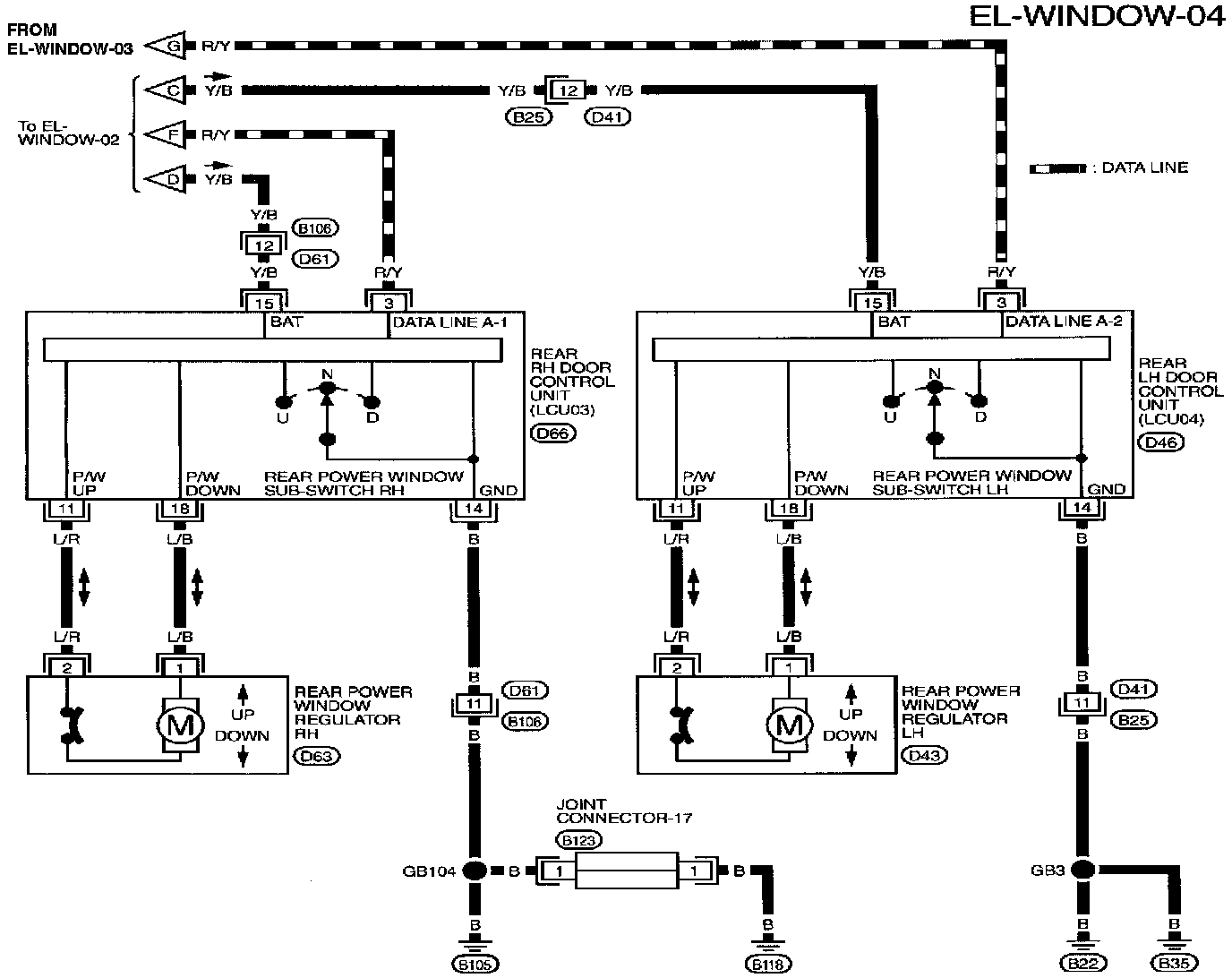

(Part 4 of 4)
Joint Connector 17
Rear Door Control Unit
Rear Power Window Regulator

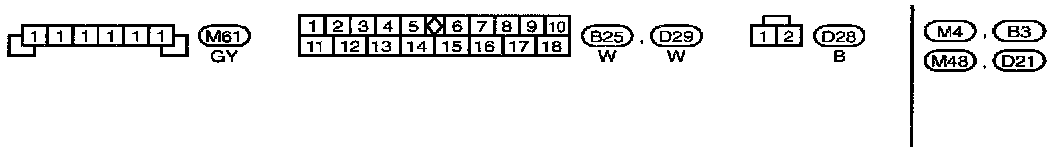

Circuit Connectors





B3, D1, D21, E66, M4, M11, M12, M48 - Body, Engine, Instrument, Main Harness - Terminal Arrangement





M22 - Electrical Units - Terminal Arrangement





B101, M50 - Super Multiple Junction - Terminal Arrangement





M1 - Fuse Block Junction Box - Terminal Arrangement
