Interior Illumination Control-Ivms

1. Turn ignition switch "OFF".
2. Connect "CONSULT" to the data link connector.




3. Turn ignition switch "ON".
4. Touch "START".




5. Touch "IVMS".




6. Touch "INTERIOR ILLUMINATION".




^ DATA MONITOR and ACTIVE TEST are available for the interior illumination.

Trouble Diagnosis








WORK FLOW

NOTE:
^ When LCU connectors are disconnected for more than 1 minute such as during trouble diagnoses, the "disconnected" data will be memorized by the BCM. (While BCM memorizes the "disconnected" data, IVMS communication diagnosis of CONSULT will display "PAST NO RESPONSE".) Therefore, after reconnecting the LCU connectors, erase the memory.
^ To erase the memory perform the procedure below.
Erase the memory with CONSULT or turn the ignition switch to "OFF" position and remove 7.5 A fuse [No [14] located in the fuse block (J/B)].





DOOR UNLOCK SENSOR CHECK (DRIVER SIDE)





DOOR SWITCH CHECK





LIGHTING SWITCH (1ST) CHECK





KEY SWITCH (INSERT) CHECK





IGNITION KEY SWITCH (ACC AND IGN) INPUT SIGNAL CHECK





INTERIOR LAMP AND PERSONAL LAMP SWITCH CHECK

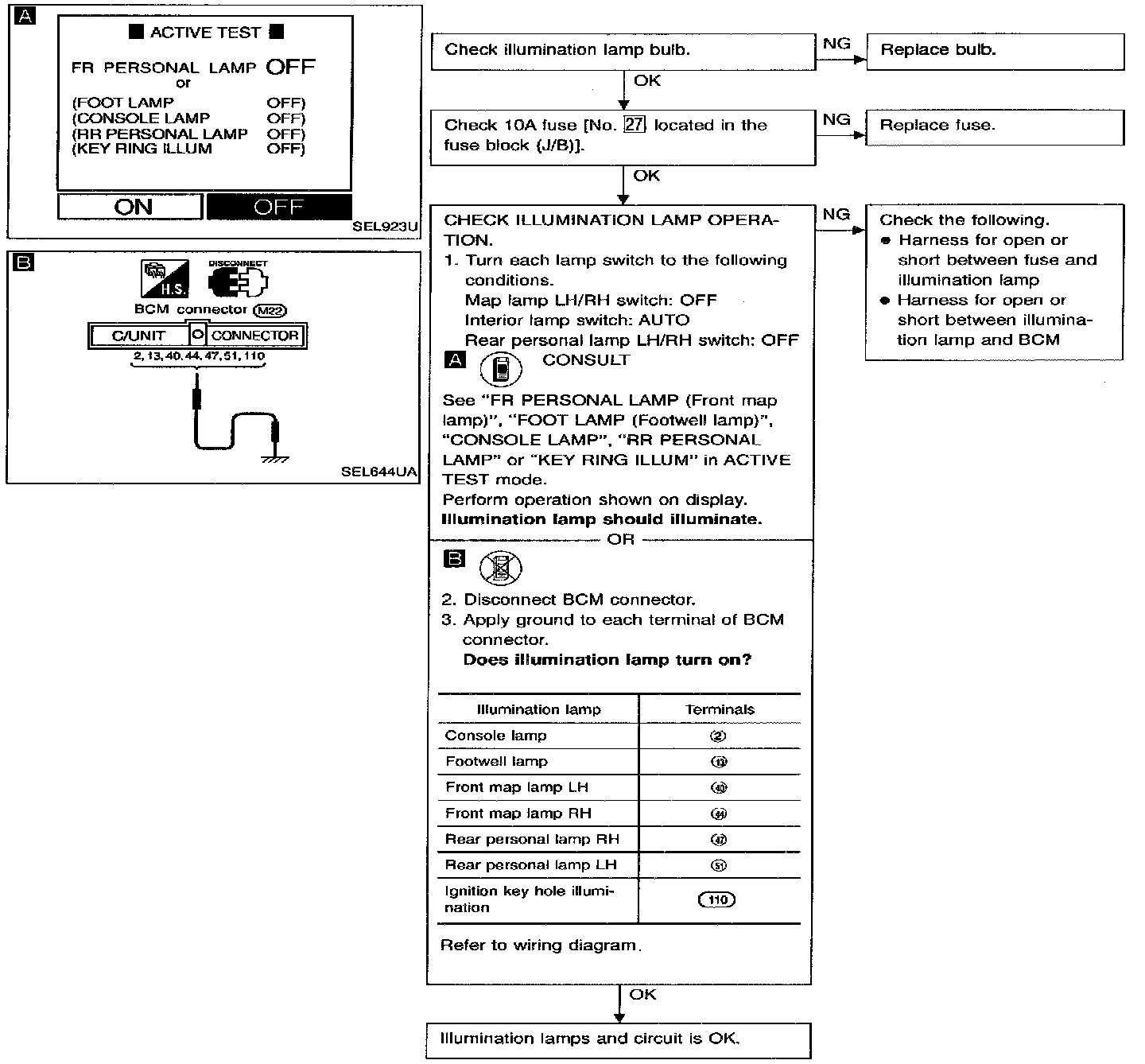

ILLUMINATION LAMP CHECK
