Headlamp: Testing and Inspection

For USA

1. Turn ignition switch "OFF".

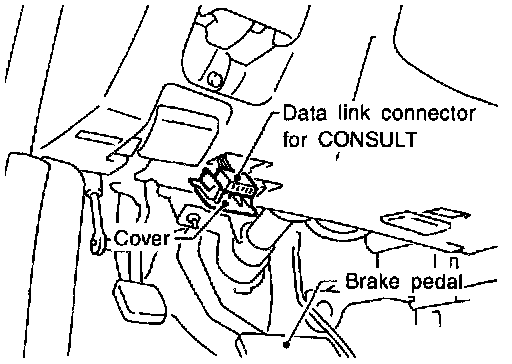

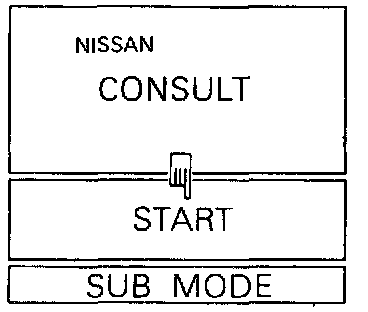

2. Connect "CONSULT" to data link connector.

3. Turn ignition switch "ON".
4. Touch "START".

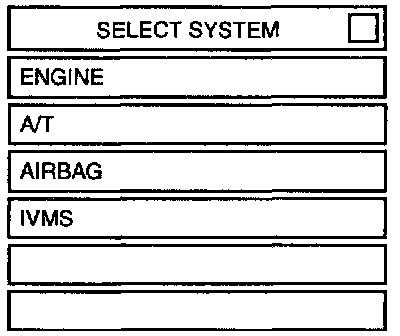

5. Touch "IVMS".

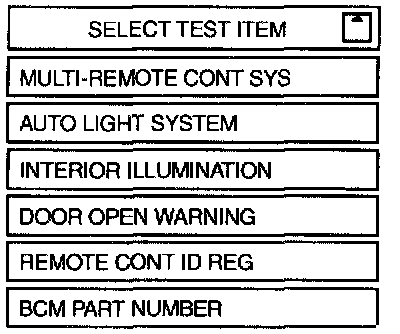

6. Touch "AUTO LIGHT SYSTEM".

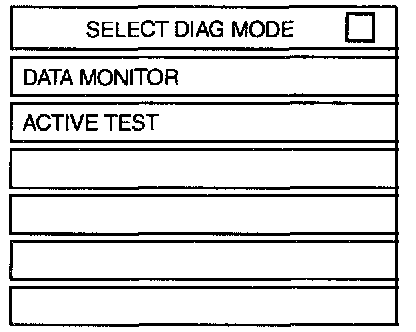

^ DATA MONITOR and ACTIVE TEST are available for the auto light.

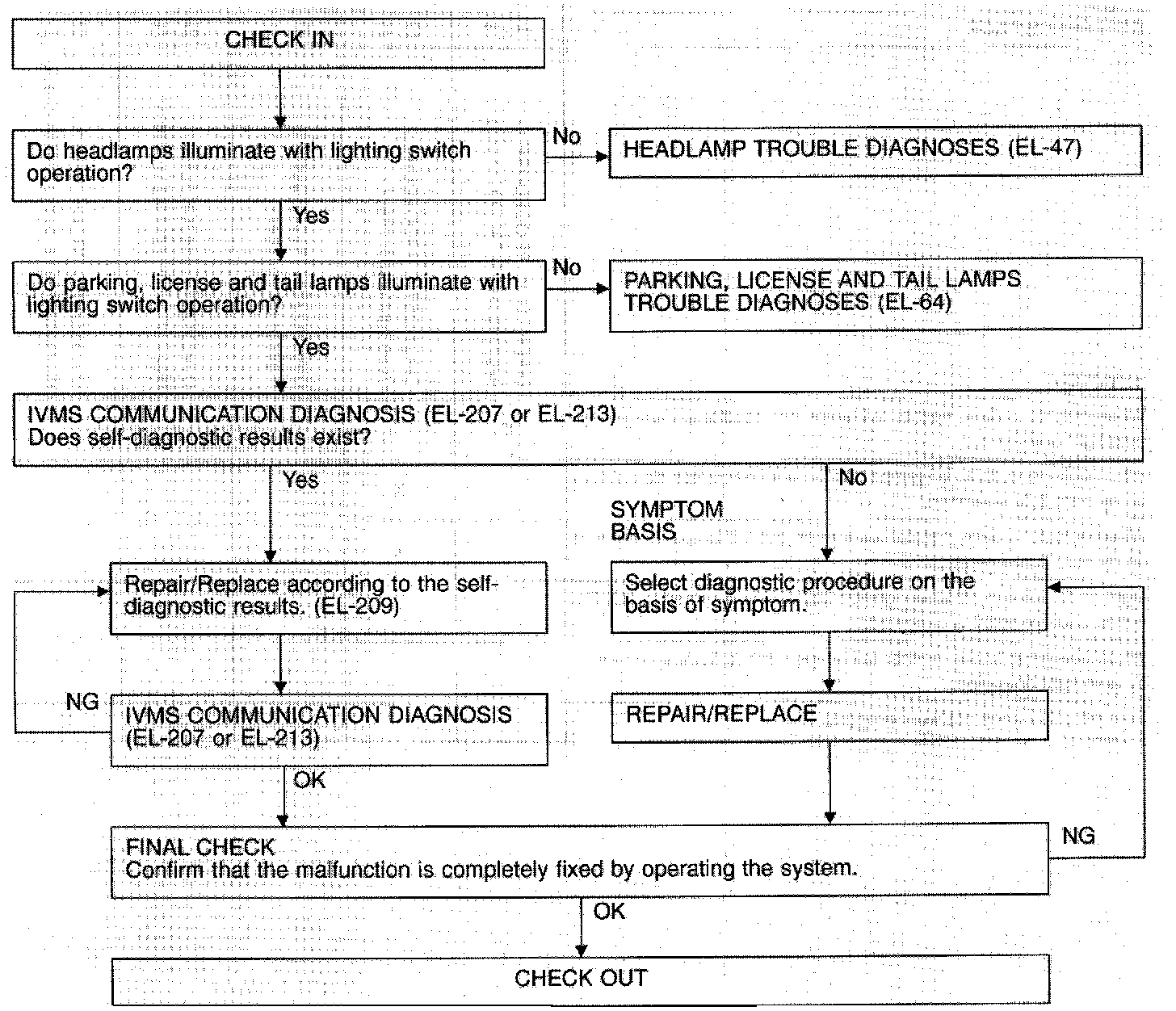

WORK FLOW

NOTE:
^ When LCU connectors are disconnected for more than 1 minute such as during trouble diagnoses, the "disconnected" data will be memorized by the BCM. (While BCM memorizes the "disconnected" data, IVMS communication diagnosis of CONSULT will display "PAST NO RESPONSE".) Therefore, after reconnecting the LCU connectors, erase the memory.
^ To erase the memory, perform the procedure below.
Erase the memory with CONSULT (Refer to EL-207.) or turn the ignition switch to "OFF" position and remove 7.5 A fuse [No. [14] located in the fuse block (J/B)].

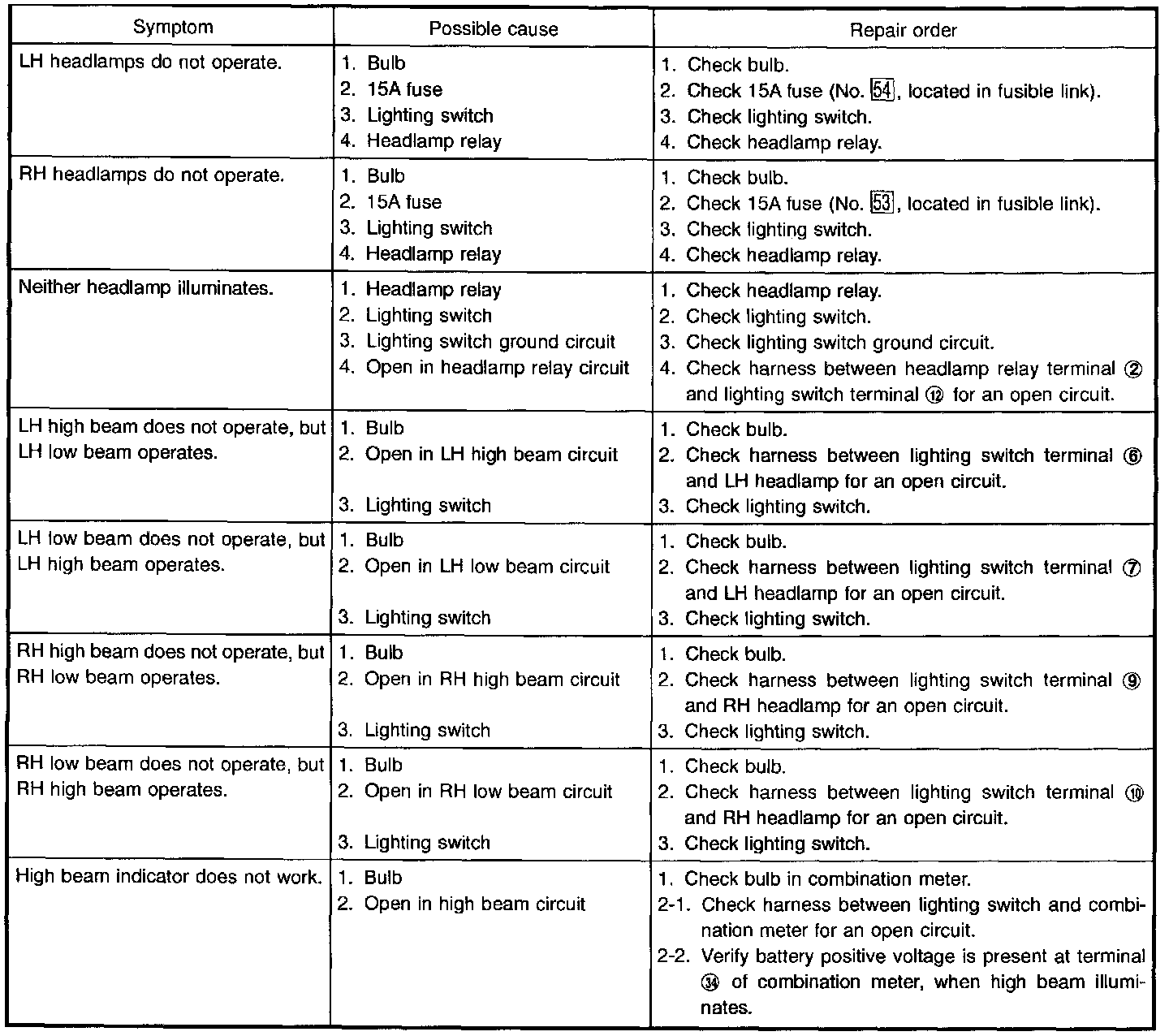

Symptom Chart

Diagnostic Procedure 1 (Lighting switch (Auto) check)

Diagnostic Procedure 2 (Auto light output check)

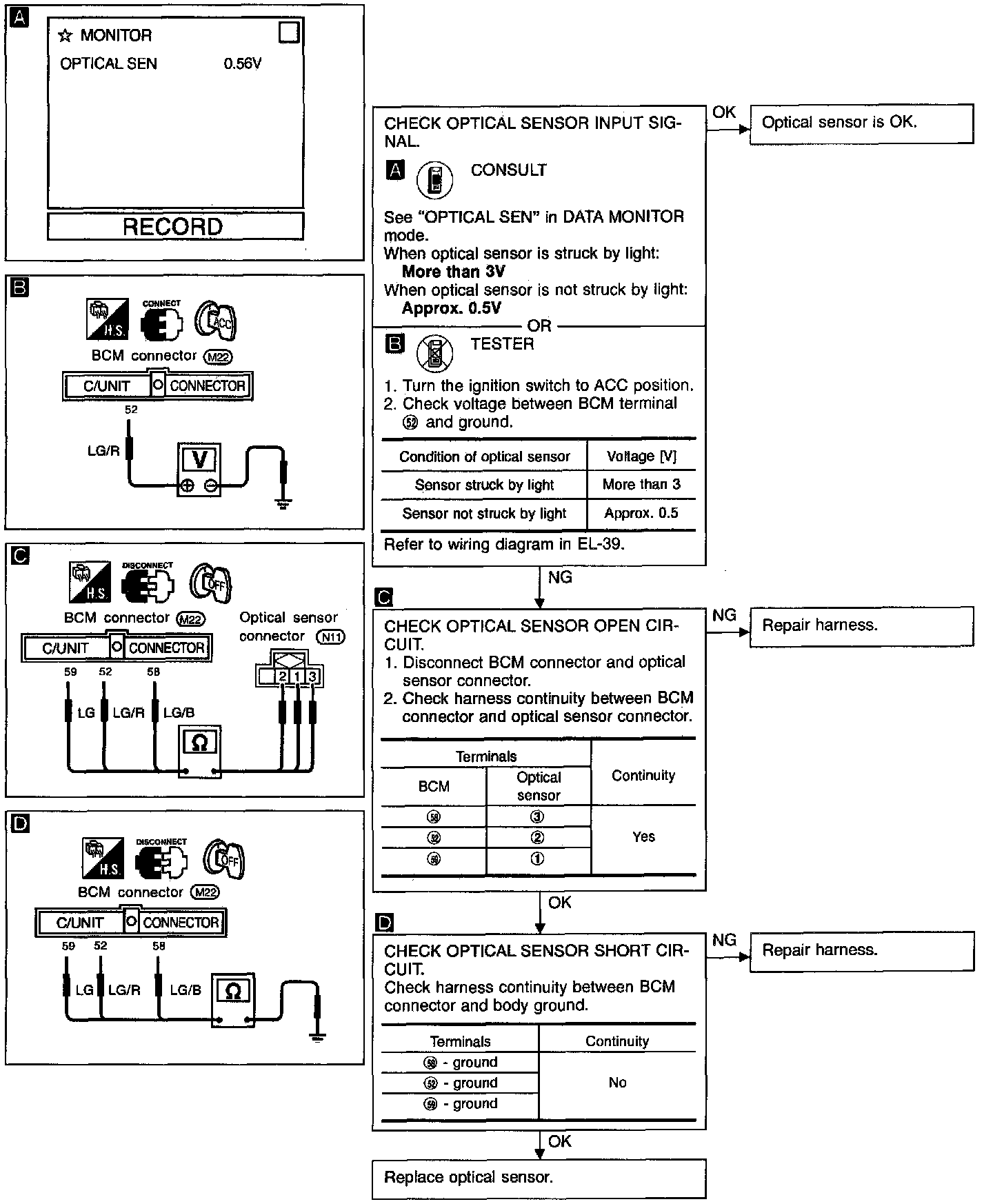

Diagnostic Procedure 3 (Optical sensor check)

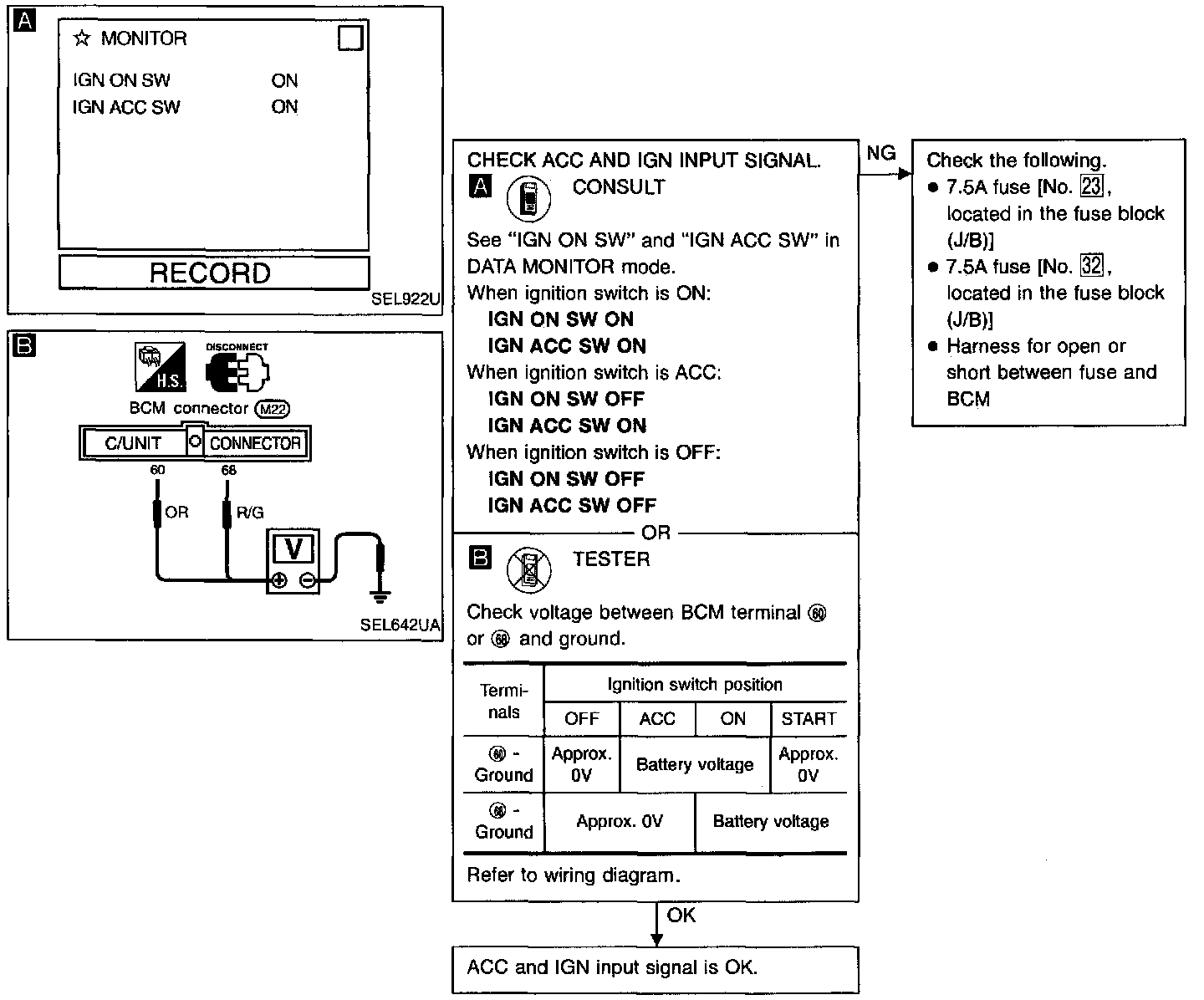

Diagnostic Procedure 4 (ACC and IGN input signal check)

Diagnostic Procedure 5 (Illumination time control switch check)

Trouble Diagnoses

For Canada

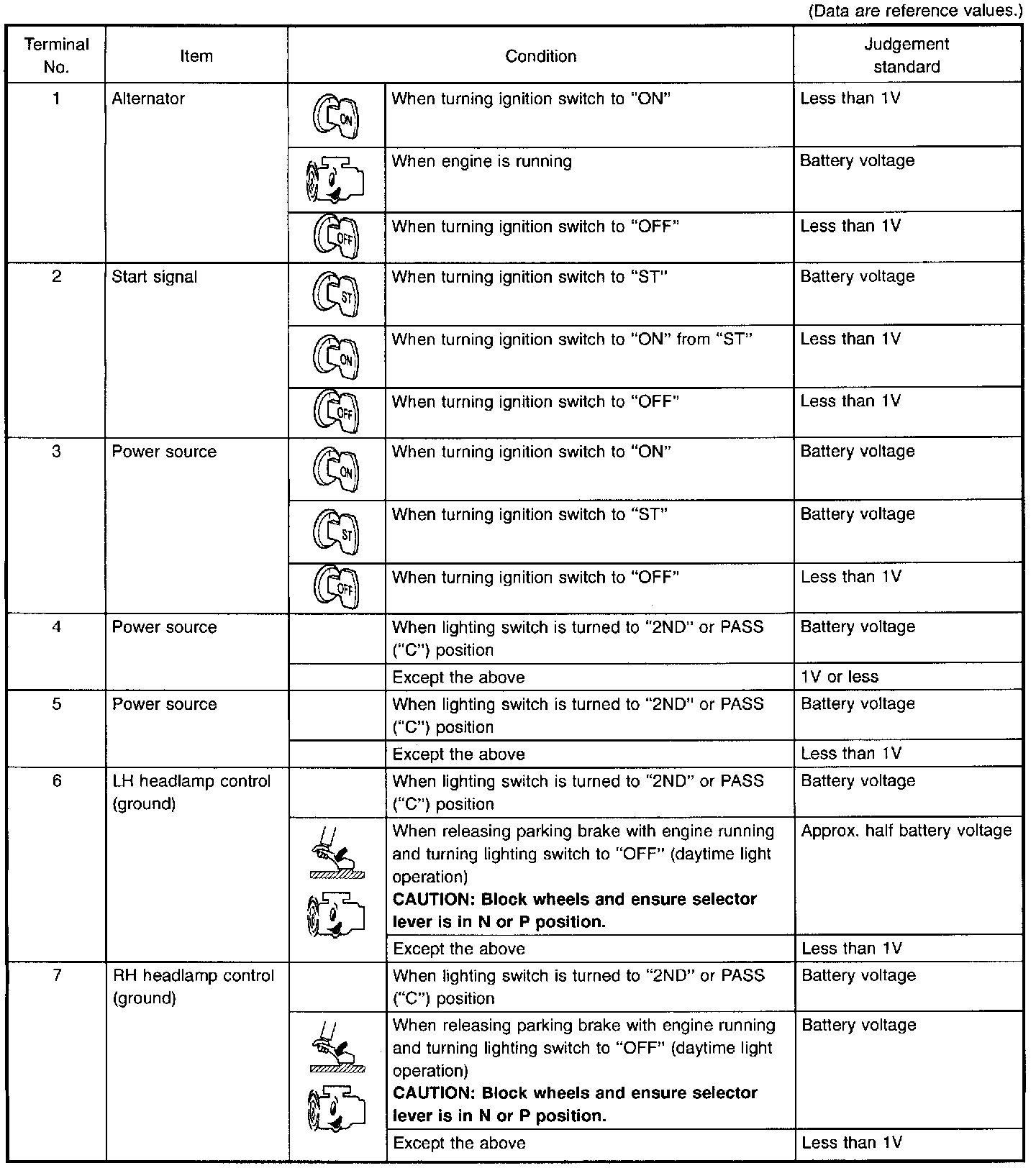

Trouble Diagnoses Daytime Light Control Unit Inspection Table
