Fast Idle Cam (FIC) Inspection and Adjustment

1. Remove throttle body from engine.
2. Wait for at least 3 hours.
(This step is necessary to bring the temperature of the thermoelement to the room temperature.







3. Measure thermo-element stroke (L) and room temperature.

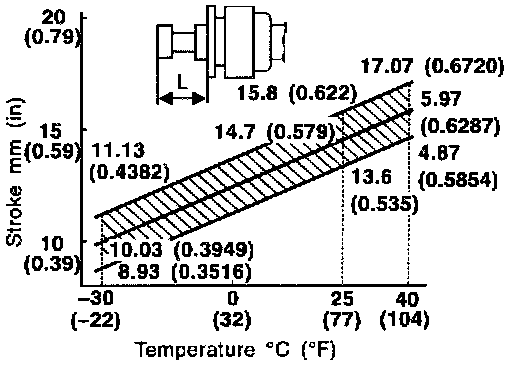

4. Check thermo-element stroke (L) as shown in the figure.

CAUTION: Do not adjust (TAS).

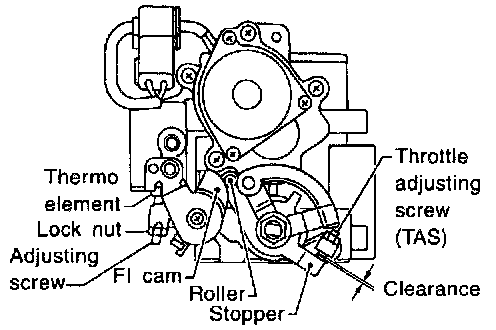

5. Measure clearance between stopper and throttle adjusting screw (TAS) as shown in the figure. If out of specification, adjust the clearance using adjusting screw.

CAUTION: Do not adjust throttle adjusting screw (TAS).

6. After adjustment, tighten lock nut of adjusting screw.

:1.5 - 2.0 N.m (0.15 - 0.2 kg-m, 13.0 - 17.4 in-lb)

7. Reinstall throttle body.
8. After warming up engine, check that there is a clearance between FI cam and roller.
