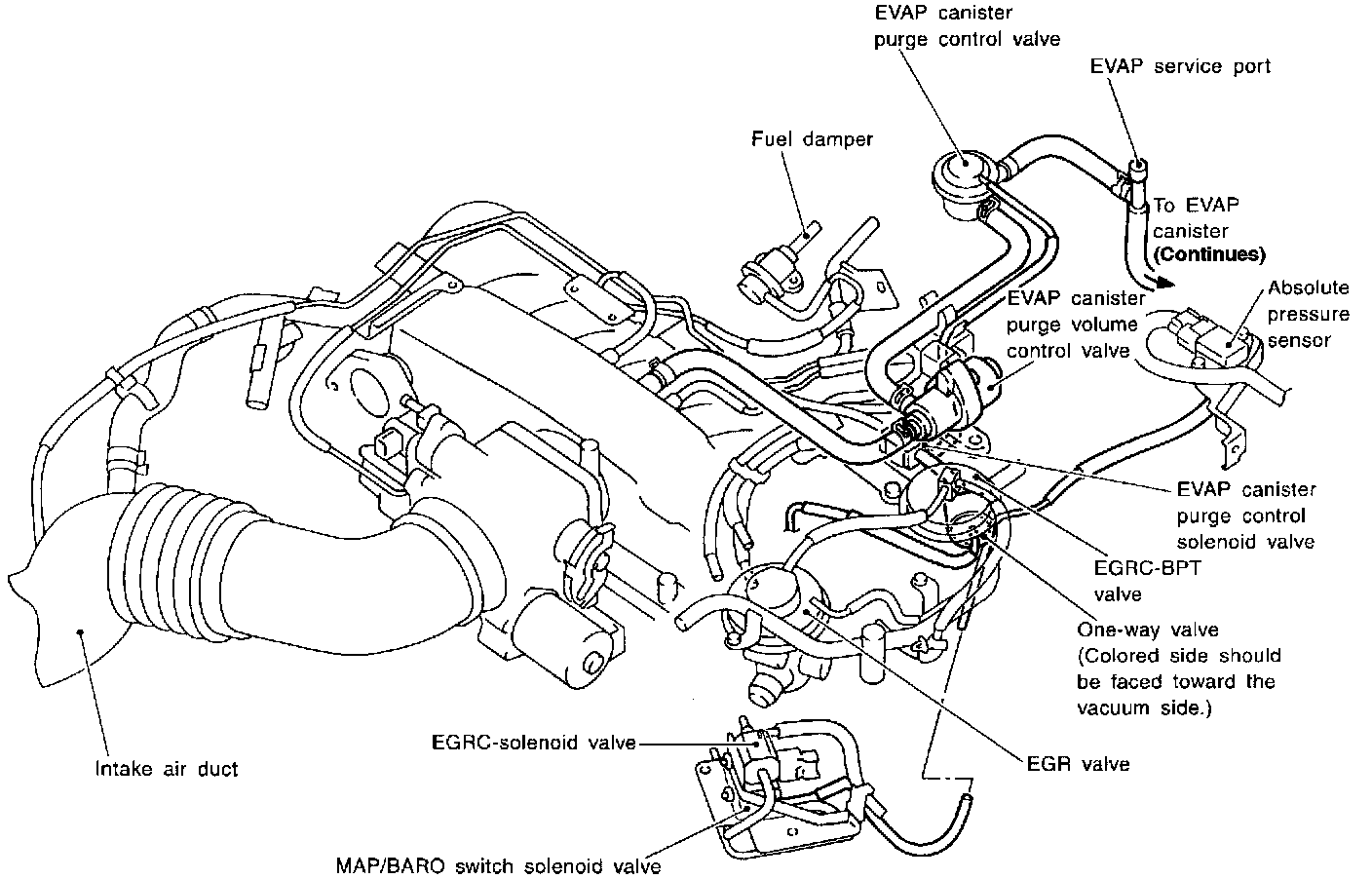

Vacuum and Vapor Hose Diagrams
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.
