Antitheft and Alarm Systems

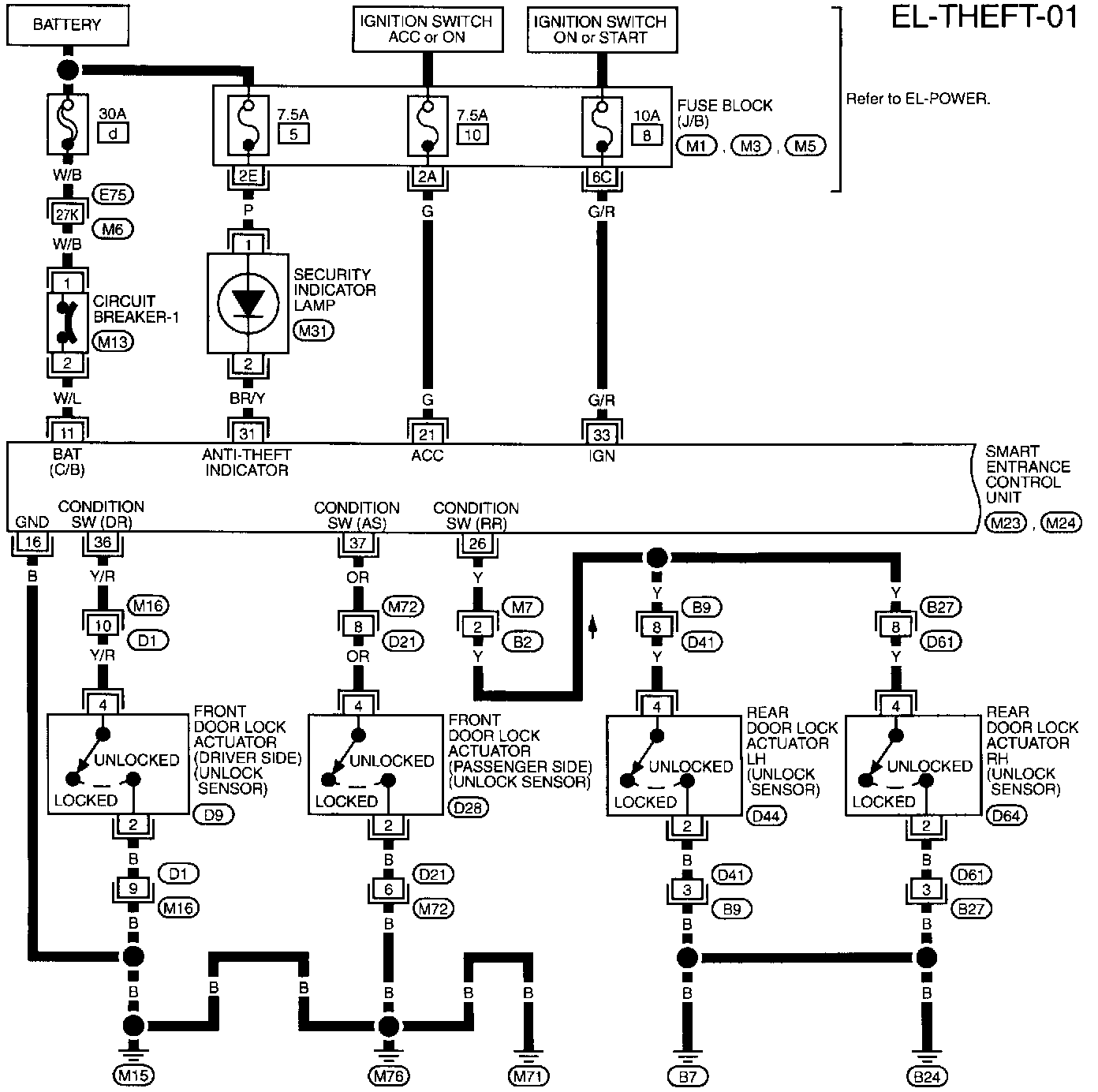

Circuit Schematic




(Part 1 of 4)
Circuit Breaker-1
Front Door Lock Actuator (Driver Side Unlock Sensor)
Front Door Lock Actuator (Passenger Side Unlock Sensor)
Fuse Block (J/B)
Rear Door Lock Actuator LH (Unlock Sensor)
Rear Door Lock Actuator RH (Unlock Sensor)
Security Indicator Lamp
Smart Entrance Control Unit
- Anti-Theft Indicator
- Condition SW




(Part 2 of 4)
Front Door Switch (Driver Side)
Front Door Switch (Passenger Side)
Hood Switch
Rear Door Switch LH
Rear Door Switch RH
Smart Entrance Control Unit
- Door SW
- Hood SW
- Trunk SW
Trunk Room Lamp Switch




(Part 3 of 4)
Front Door Key Cylinder Switch (Driver Side)
Front Door Key Cylinder Switch (Passenger Side)
Fuse Block (J/B)
Smart Entrance Control Unit
- Key Cylinder SW
- Trunk Key SW
Theft Warning Relay
Trunk Lid Key Cylinder Switch (Unlock Switch)




(Part 4 of 4)
Daytime Light Control Unit
Diode
Headlamp LH
Headlamp RH
Horn High
Horn Low
Horn High Relay
Horn Low Relay
Smart Entrance Control Unit
Theft Warning Lamp Relay

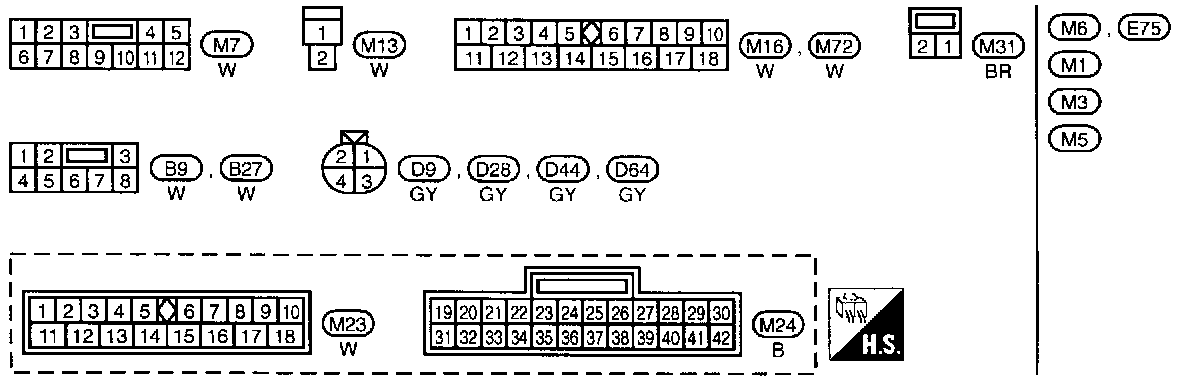

Circuit Connectors





M1, M3, M5, E72 Fuse Block-Junction Box (J/B) Terminal Arrangement

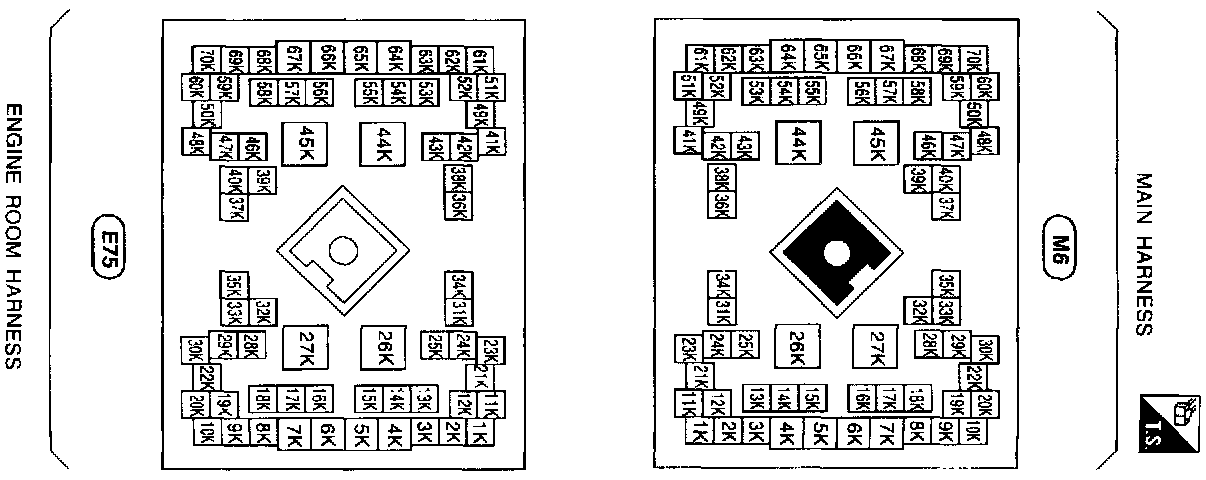

M6, E75 Super Multiple Junction (SMJ) Terminal Arrangement
