Shift Indicator - A/T

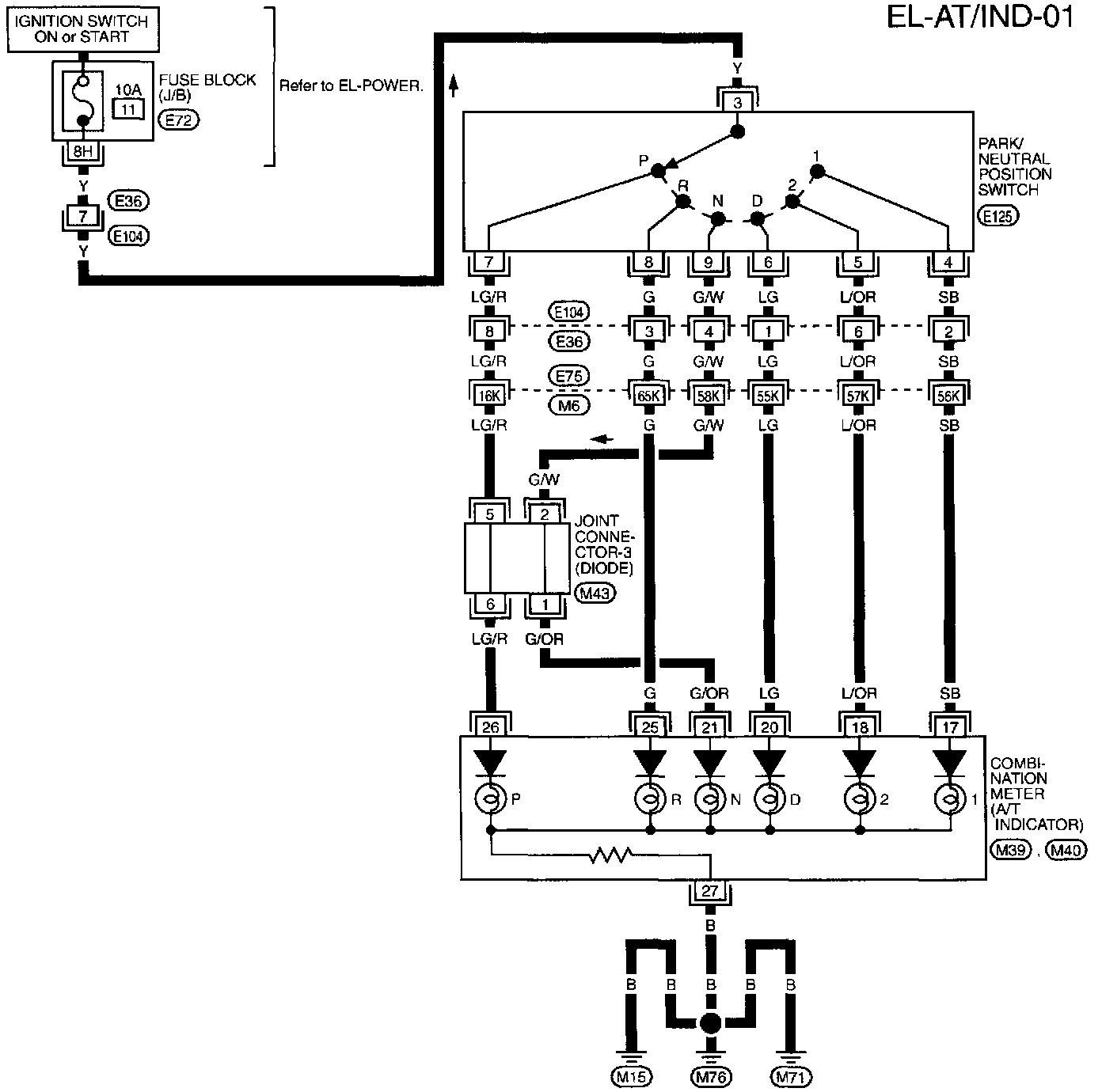

Circuit Diagrams





Circuit Connectors





E72 Fuse Block-Junction Box (J/B) Terminal Arrangement





M6, E75 Super Multiple Junction (SMJ) Terminal Arrangement
