Power Locks

Circuit Schematic




(Part 1 of 3)
Circuit Breaker-1
Front Door Switch (Driver Side)
Front Door Switch (Passenger Side)
Fuse Block (J/B)
Key Switch
Power Window Main Switch (Door Lock and Unlock Switch)
Smart Entrance Control Unit
- Central SW
- Door SW
- Key SW

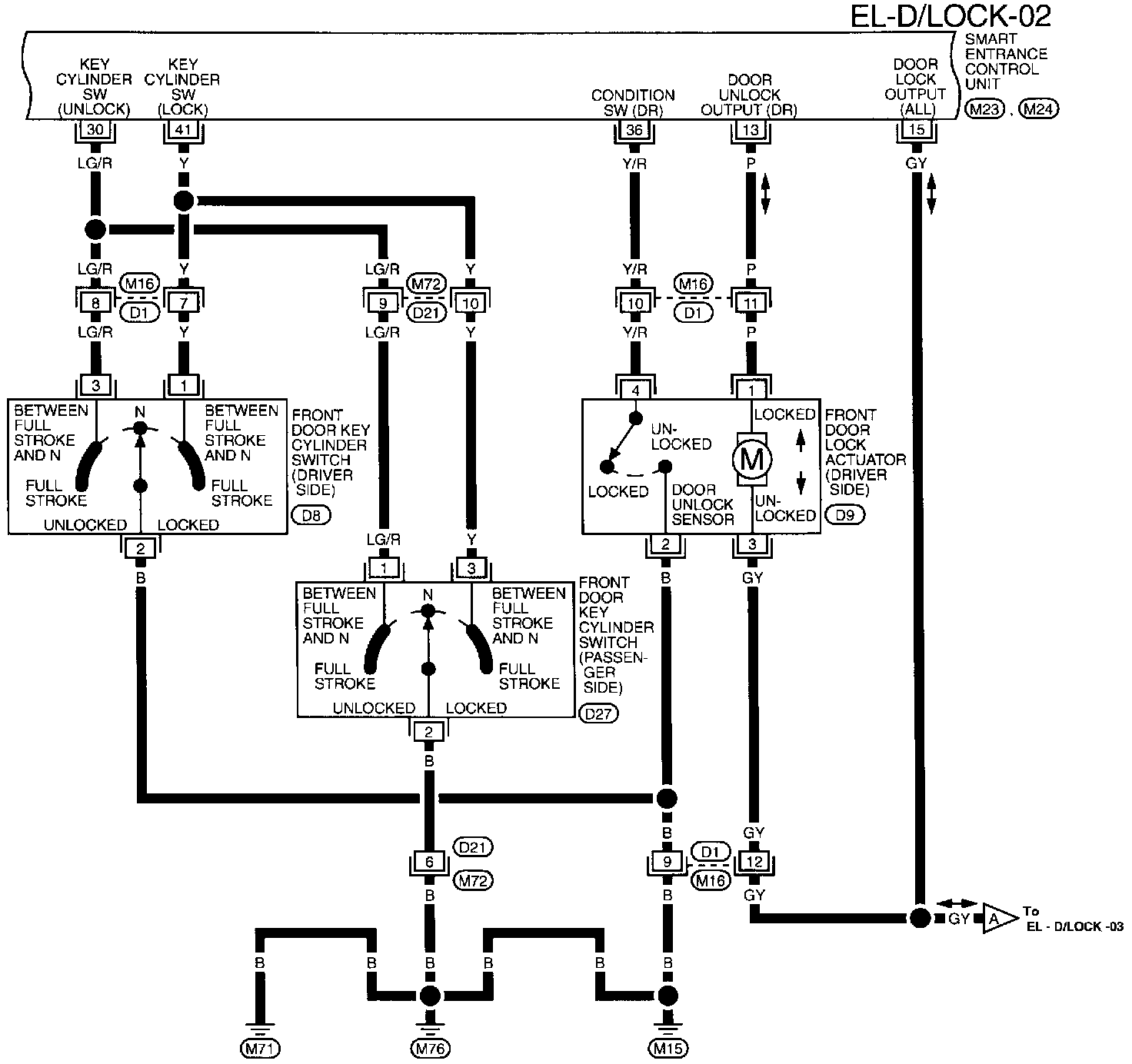

(Part 2 of 3)
Front Door Key Cylinder Switch (Driver Side)
Front Door Key Cylinder Switch (Passenger Side)
Front Door Lock Actuator (Driver Side)
- Door Unlock Sensor
Smart Entrance Control Unit
- Condition SW
- Key Cylinder SW

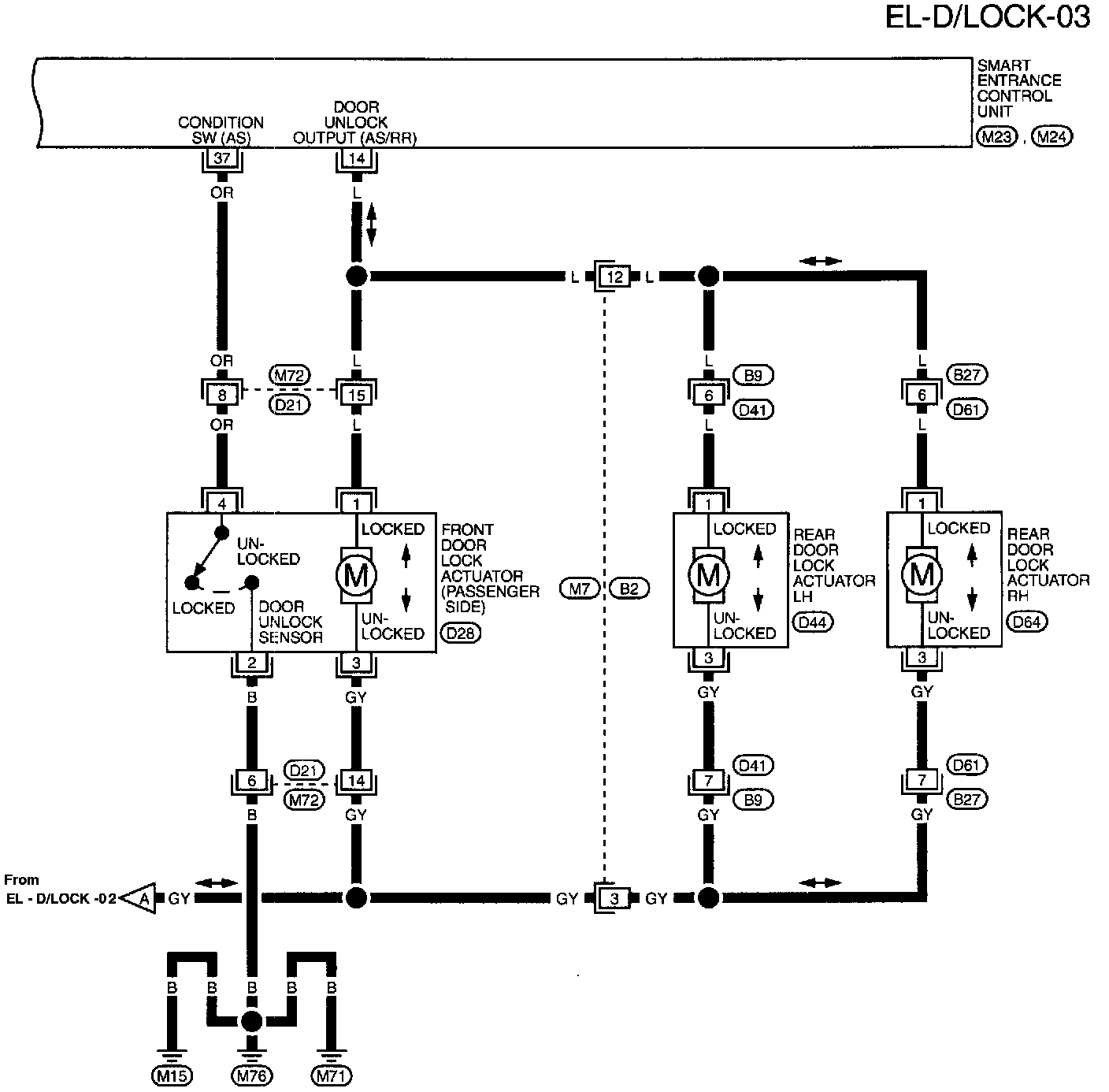

(Part 3 of 3)
Front Door Lock Actuator (Passenger Side)
Rear Door Lock Actuator LH
Rear Door Lock Actuator RH
Smart Entrance Control Unit
- Condition SW











Circuit Connectors





E72 Fuse Block-Junction Box (J/B) Terminal Arrangement





M6, E75 Super Multiple Junction (SMJ) Terminal Arrangement
