Radio/Stereo

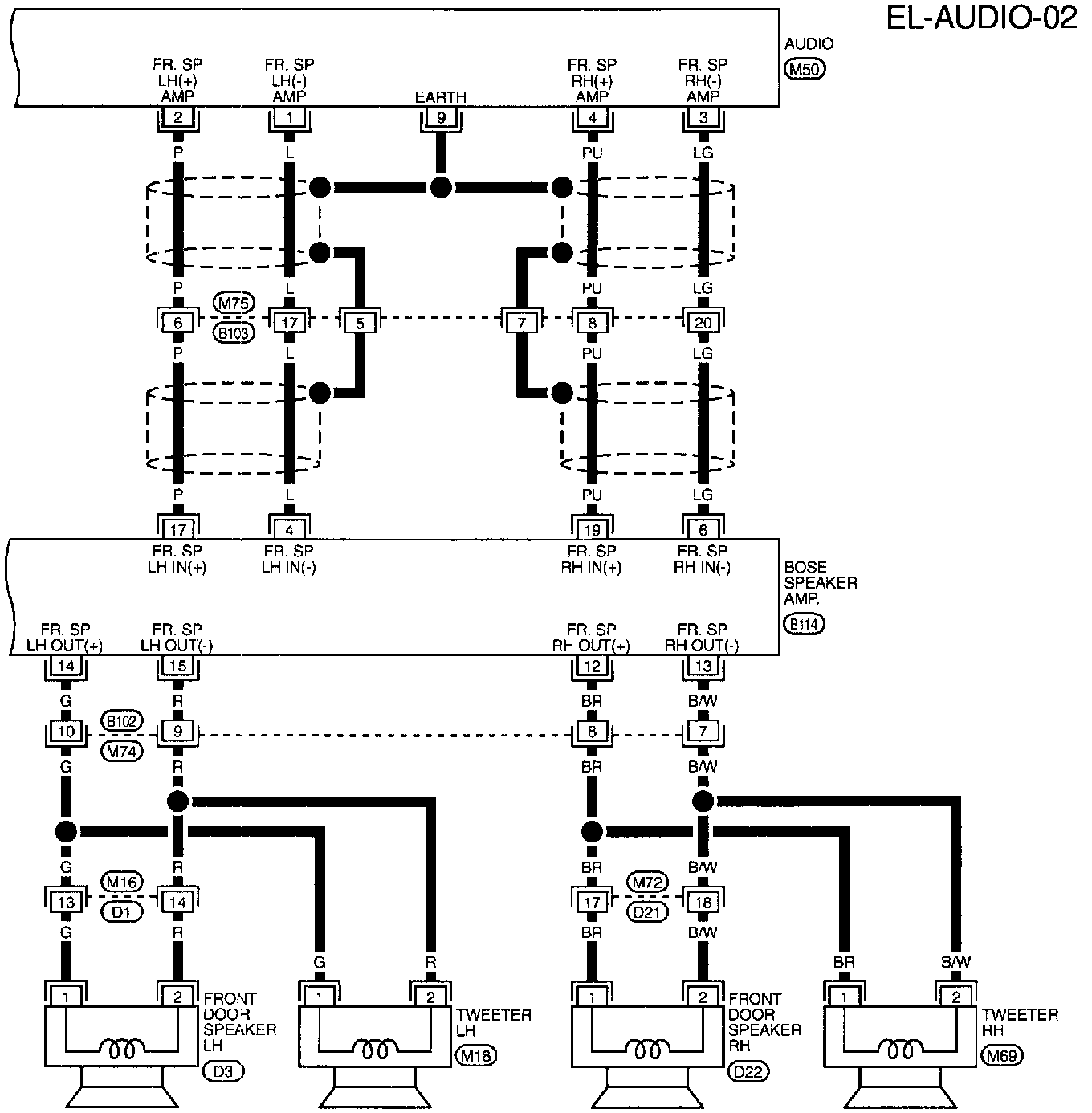

Circuit Diagrams

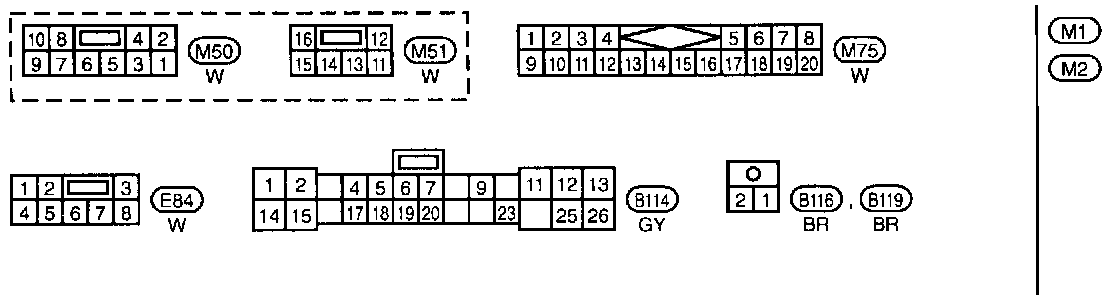

Circuit Connectors





M1, M2 Fuse Block-Junction Box (J/B) Terminal Arrangement
