Heated Seat

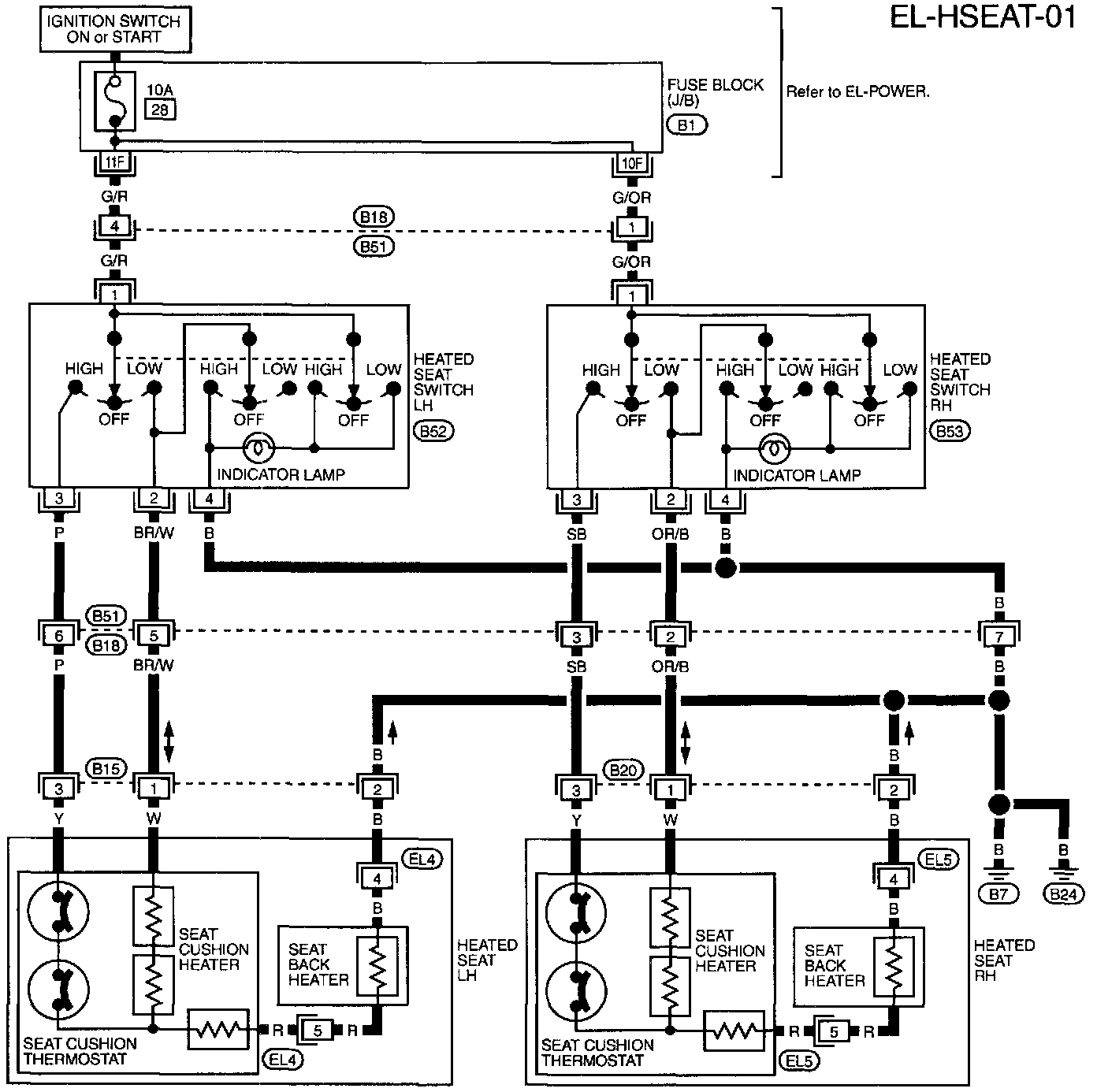

Circuit Diagrams

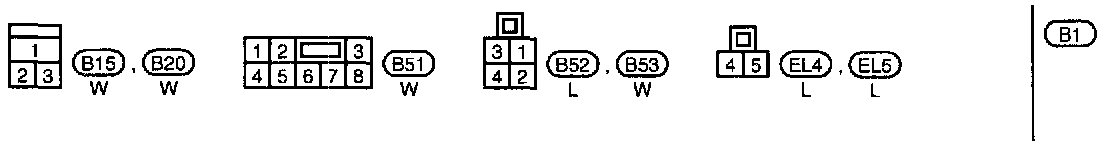

Circuit Connectors





B1 Fuse Block-Junction Box (J/B) Terminal Arrangement
