Home >> Infiniti >> 1999 >> G20t L4-2.0L (SR20DE) >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Powertrain Management >> Computers and Control Systems

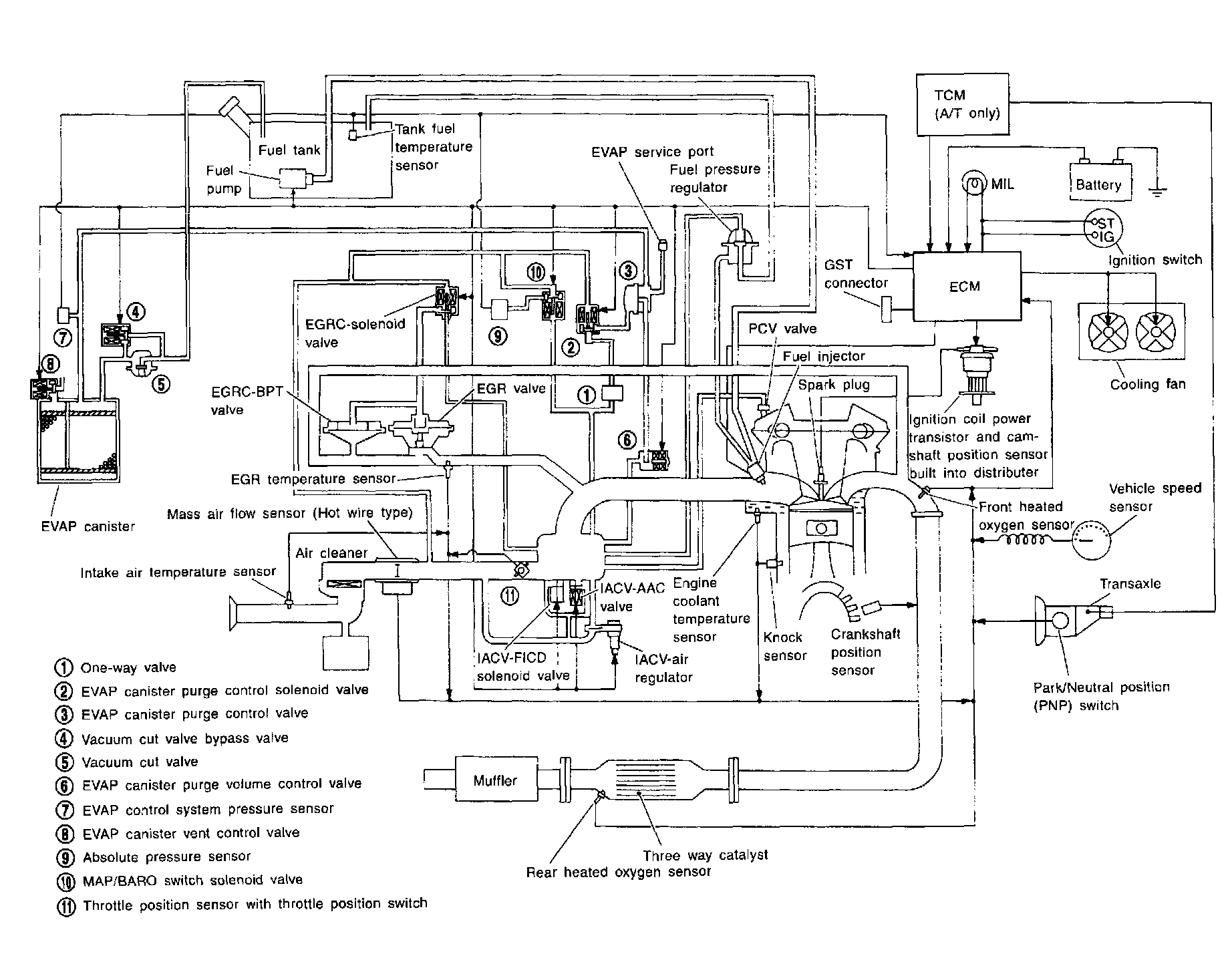

Computers and Control Systems




Part 1 of 2




Part 2 of 2
