Automatic Air Conditioner Diagrams

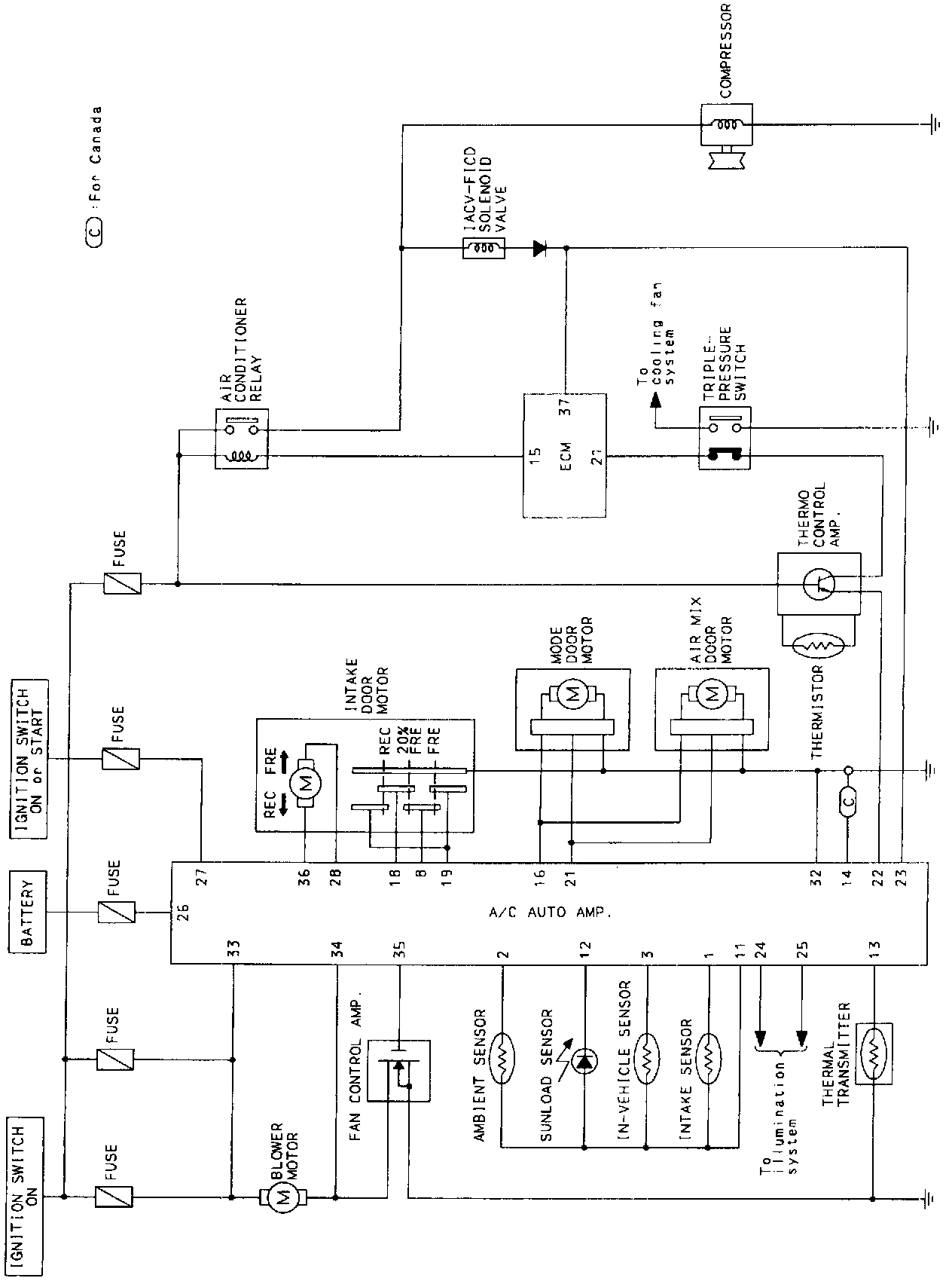

Circuit Schematic

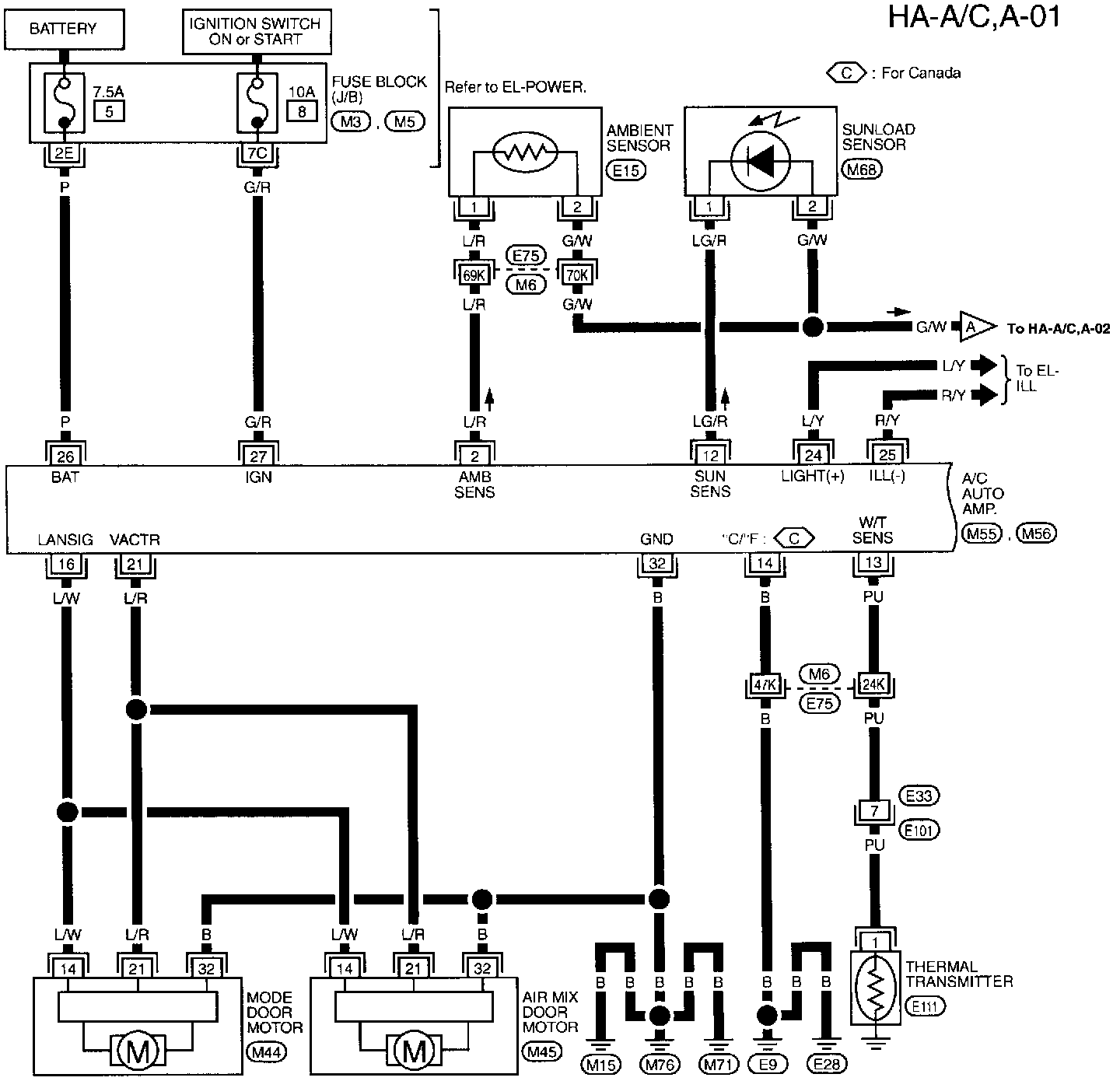

(Part 1 of 3)
A/C Auto Temp.
Air Mix Door Motor
Ambient Sensor
Fuse Block (J/B)
Mode Door Motor
Sunload Sensor
Thermal Transmitter





(Part 2 of 3)
A/C Auto Temp.
Blower Motor
Fan Control Amp.
Fuse Block (J/B)
Intake Door Motor
Intake Sensor
In-Vehicle Sensor

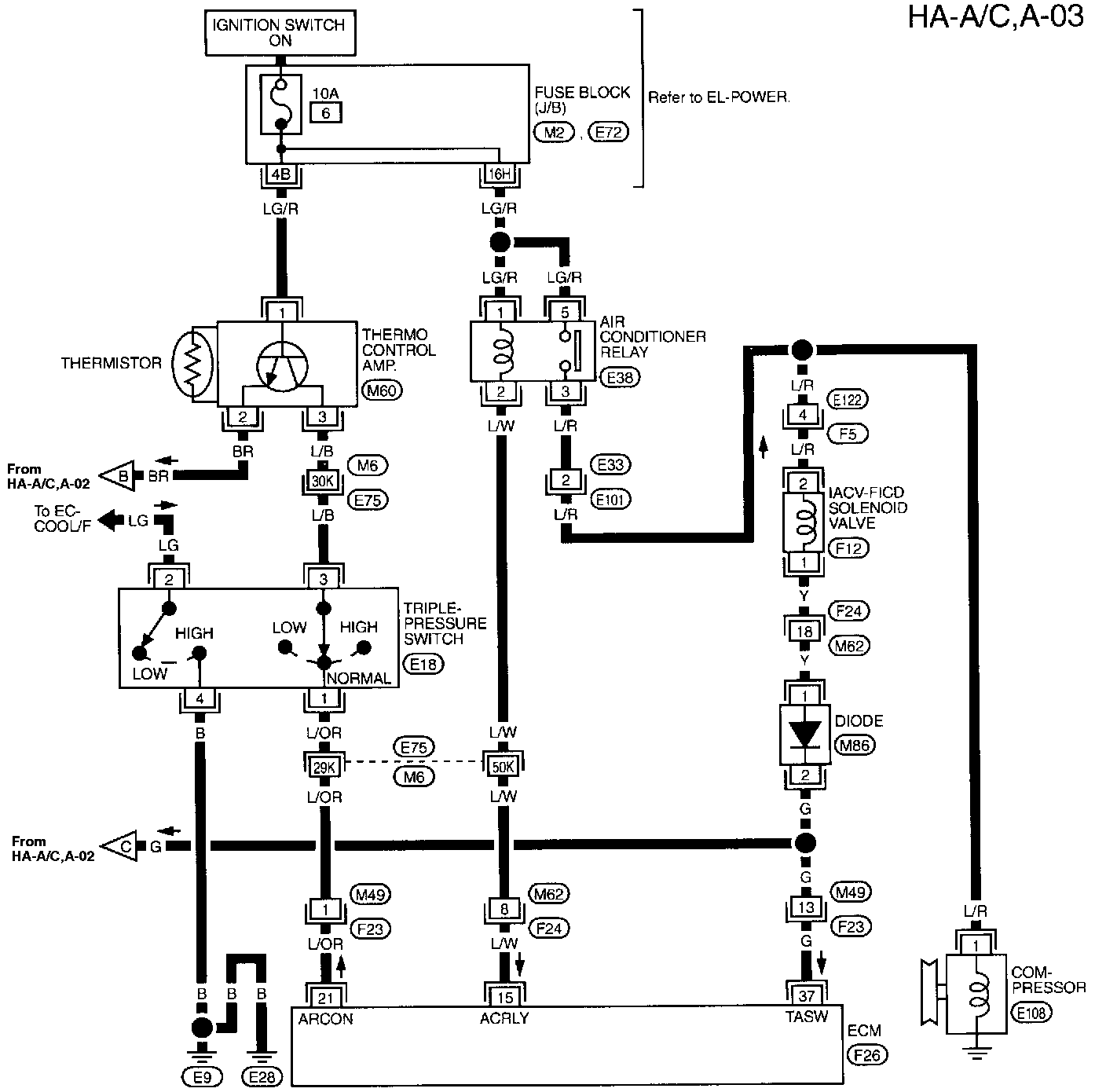

(Part 3 of 3)
Air Conditioner Relay
Compressor
Diode
ECM
Fuse Block (J/B)
IACV-FICD Solenoid Valve
Thermo Control Amp.
Triple Pressure Switch

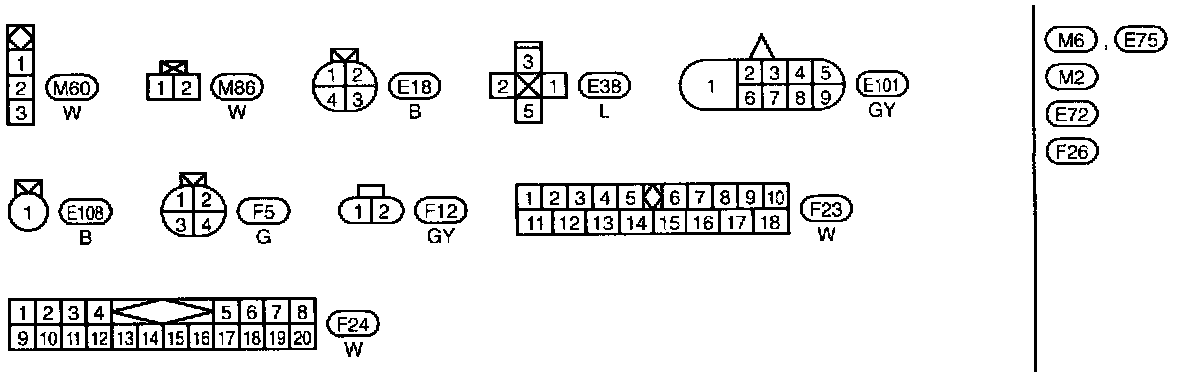

Circuit Connectors





M2, M3, M5, E72 Fuse Block-Junction Box (J/B) Terminal Arrangement





M6, E75 Super Multiple Junction (SMJ) Terminal Arrangement





F26 Electrical Units Terminal Arrangements
