Warning Lamps

Circuit Schematic

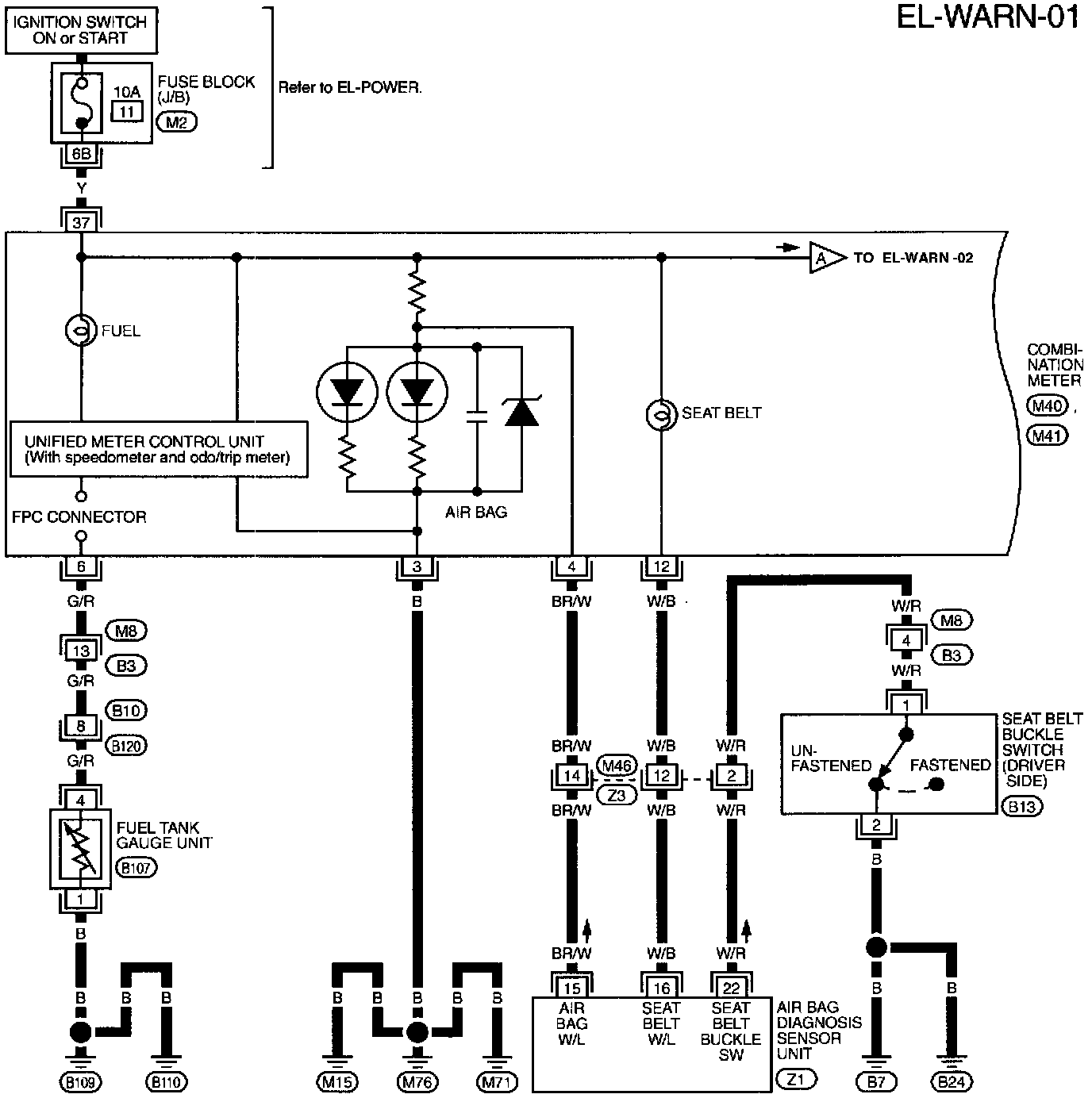

(Part 1 of 4)
Air Bag Diagnosis Sensor Unit
- Air Bag
- Seat Belt Buckle SW
Combination Meter
- Air Bag
- FPC Connector
- Seat Belt
Fuel Tank Gauge Unit
Fuse Block (J/B)
Seat Belt Buckle Switch (Driver Side)

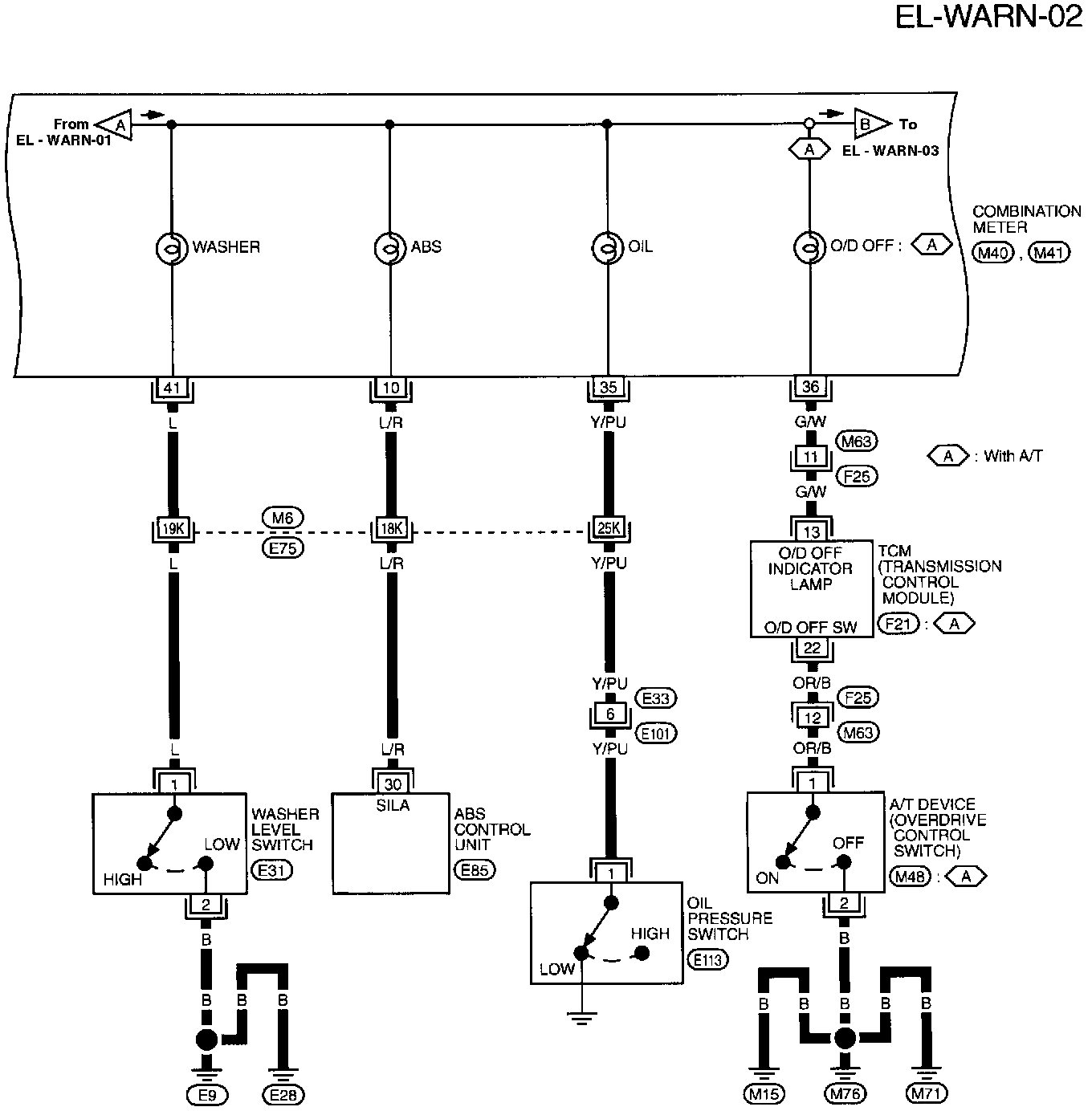

(Part 2 of 4)
ABS Control Unit
A/T Device (Overdrive Control Switch)
Combination Meter
Oil Pressure Switch
TCM (Transmission Control Module)
- O/D OFF Indicator Lamp
Washer Level Switch





(Part 3 of 4)
Alternator
Brake Fluid Level Switch
Combination Meter
- Malfunction Indicator Lamp
Diode
ECM
Parking Brake Switch

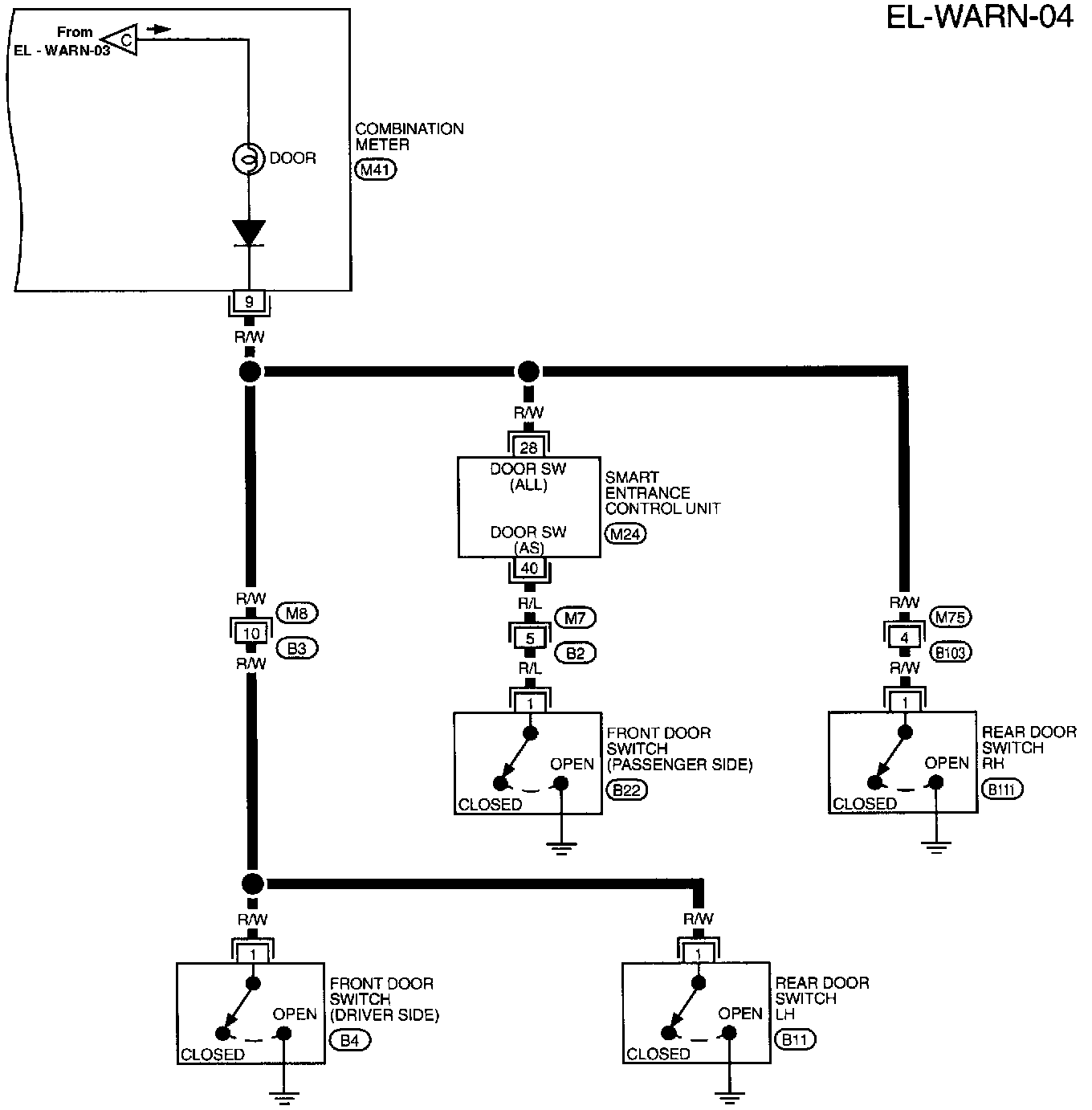

(Part 4 of 4)
Combination Meter
Front Door Switch (Driver Side)
Front Door Switch (Passenger Side)
Rear Door Switch LH
Rear Door Switch RH
Smart Entrance Control Unit
- Door SW














Circuit Connectors





M2 Fuse Block-Junction Box (J/B) Terminal Arrangement





M6, E75 Super Multiple Junction (SMJ) Terminal Arrangement





F26, E85 Electrical Units Terminal Arrangements
