Electrical Diagrams

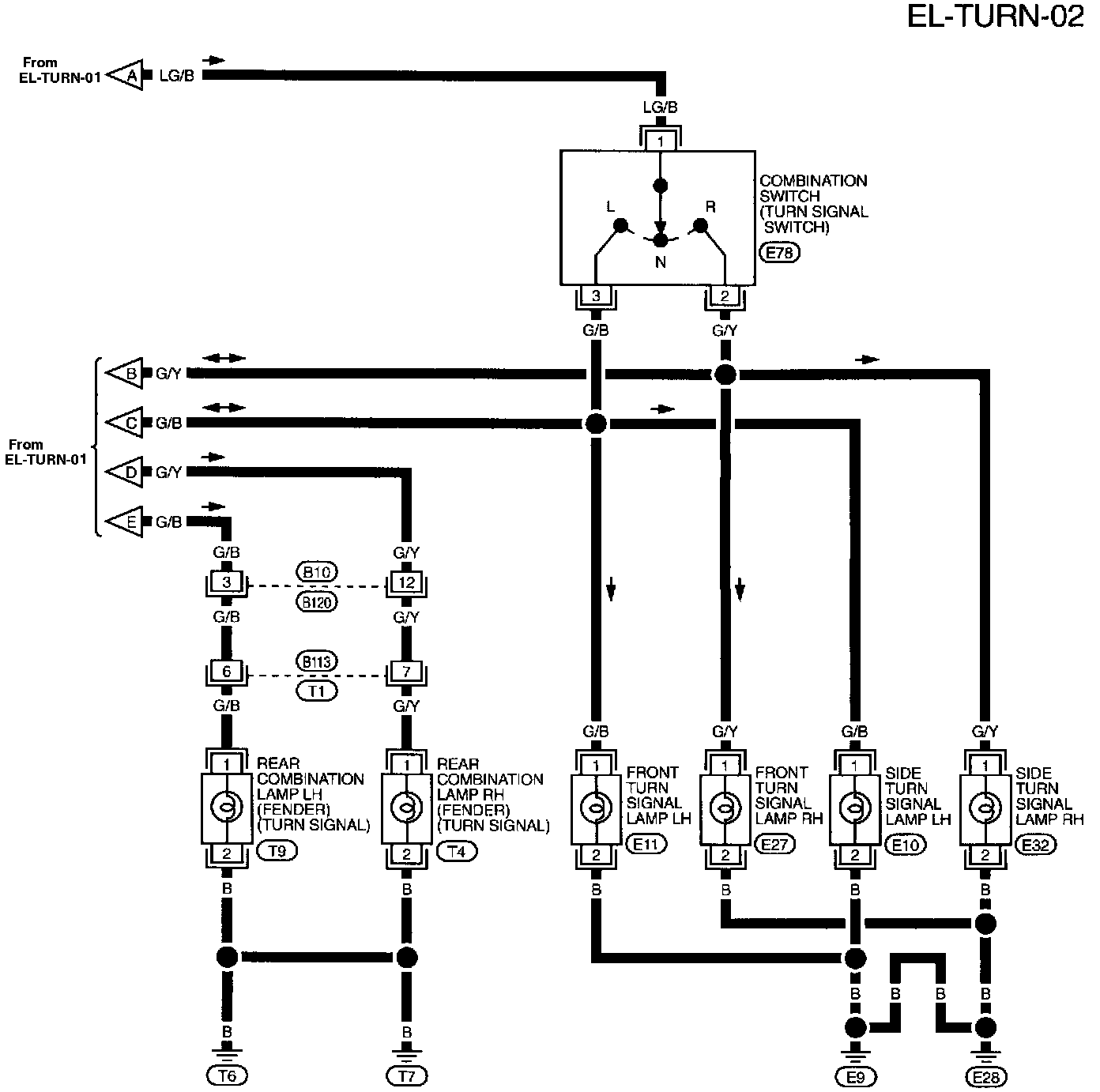

Circuit Diagrams








Circuit Connectors





M2, M4 Fuse Block-Junction Box (J/B) Terminal Arrangement





M6, E75 Super Multiple Junction (SMJ) Terminal Arrangement
