Main Power Supply and Ground Circuit
WIRING DIAGRAM
TCM

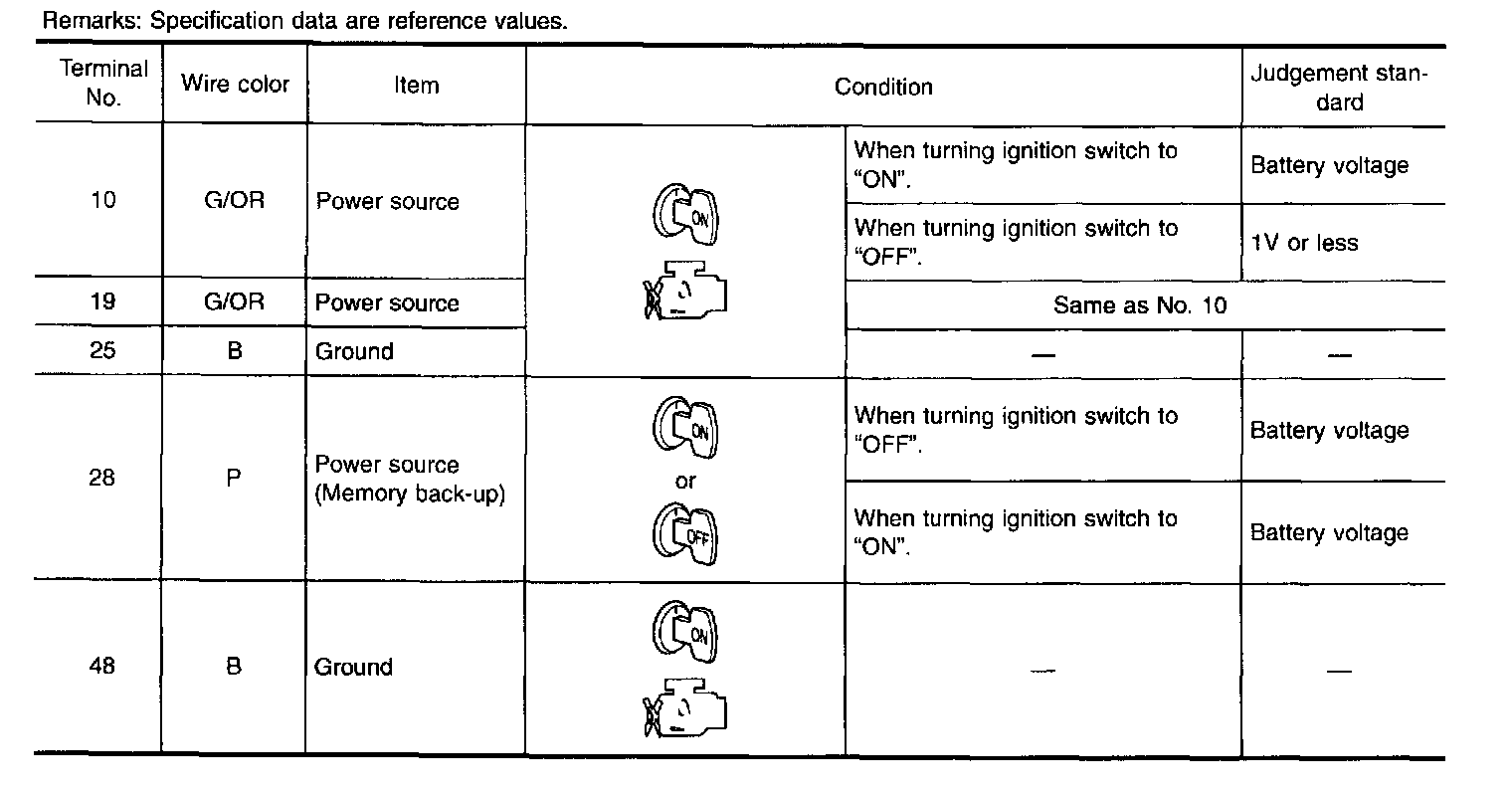

TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
