Electrical Diagrams

Circuit Schematic

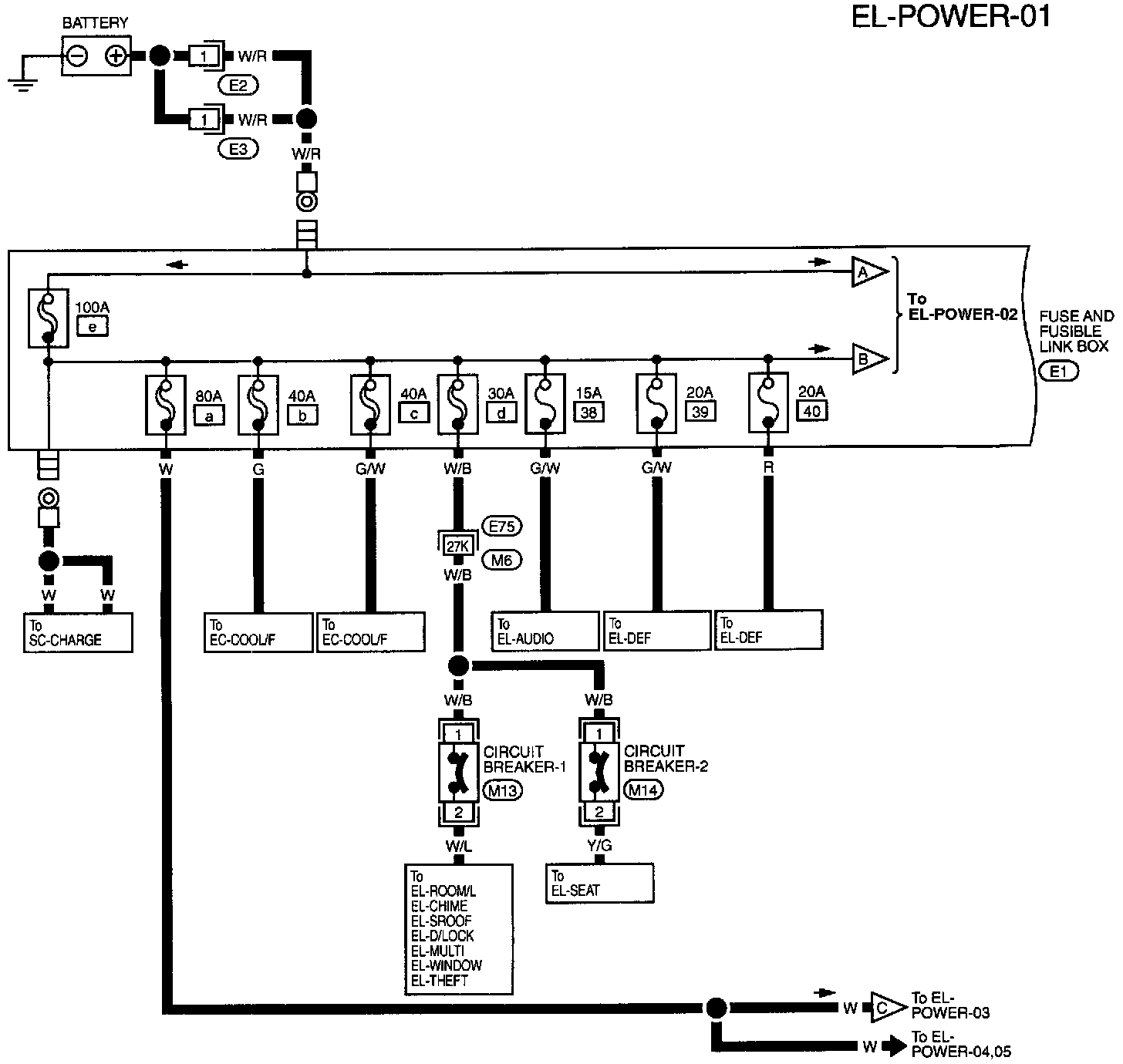

(Battery Power Supply - Ignition SW. In Any Position) (Part 1 of 7)
Battery
Circuit Breaker-1, 2
Fuse and Fusible Link Box

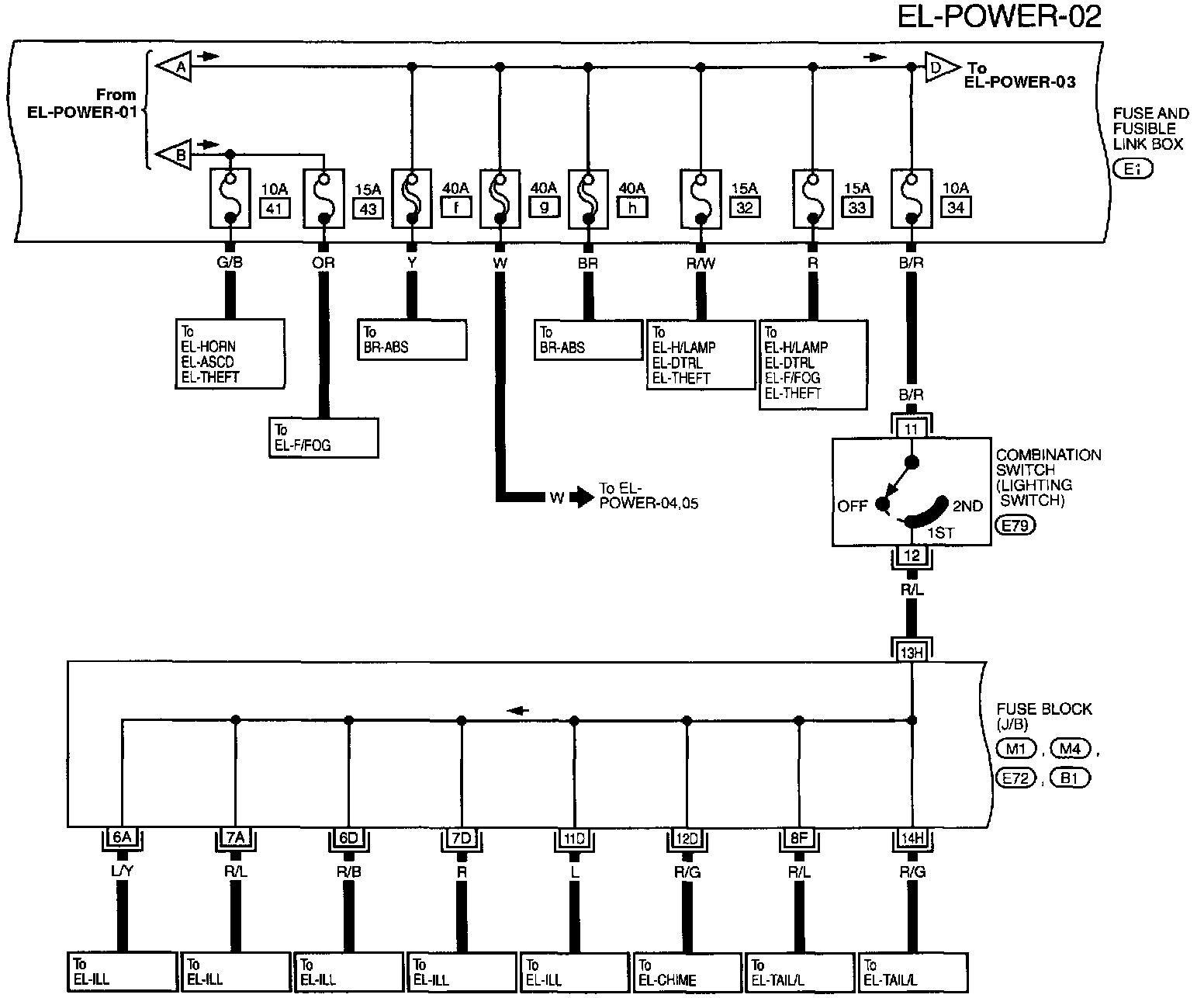

(Battery Power Supply - Ignition SW. In Any Position) (Part 2 of 7)
Combination Switch (Lighting Switch)
Fuse Block (J/B)
Fuse and Fusible Link Box

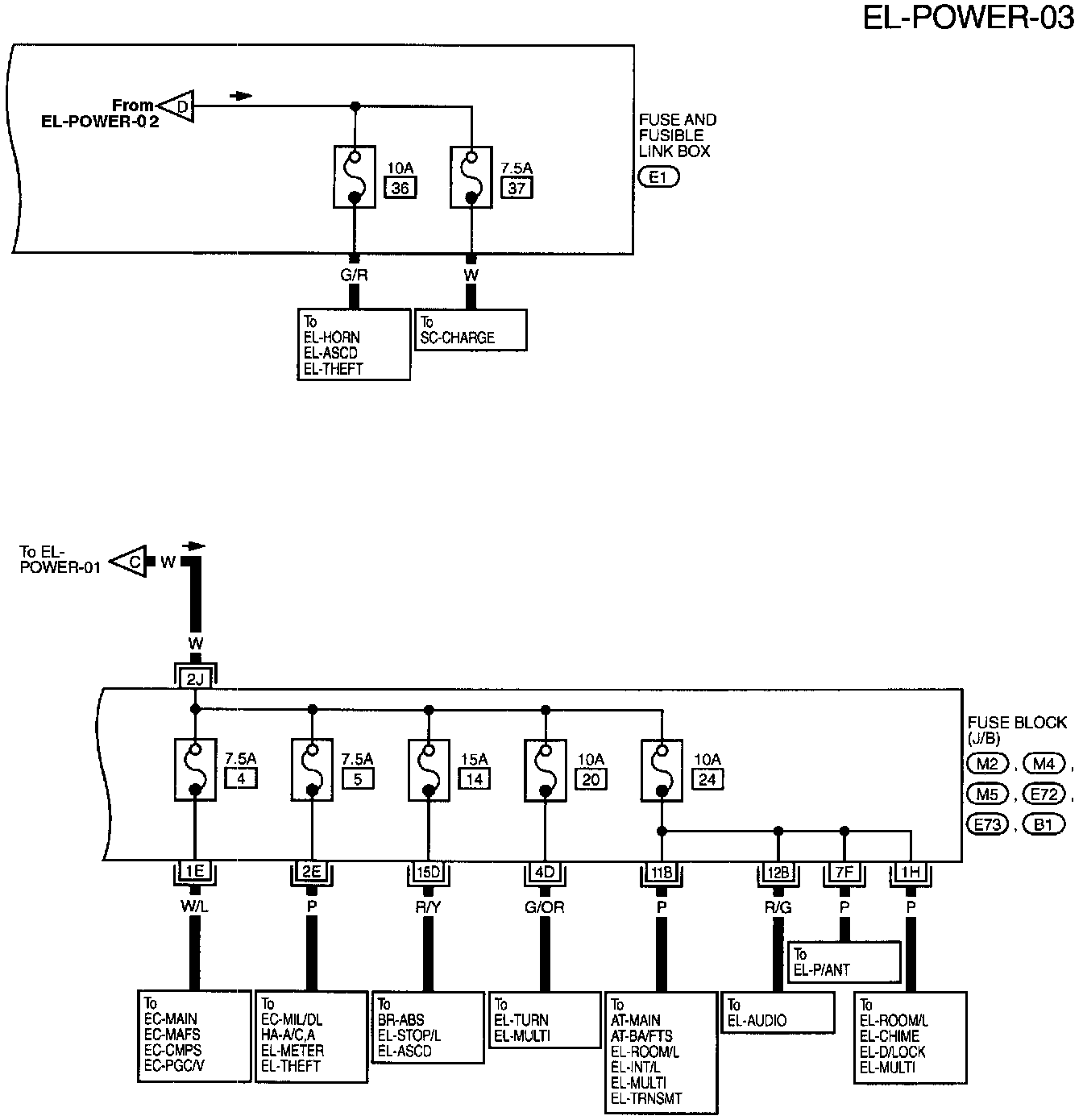

(Battery Power Supply - Ignition SW. In Any Position) (Part 3 of 7)
Fuse Block (J/B)
Fuse and Fusible Link Box

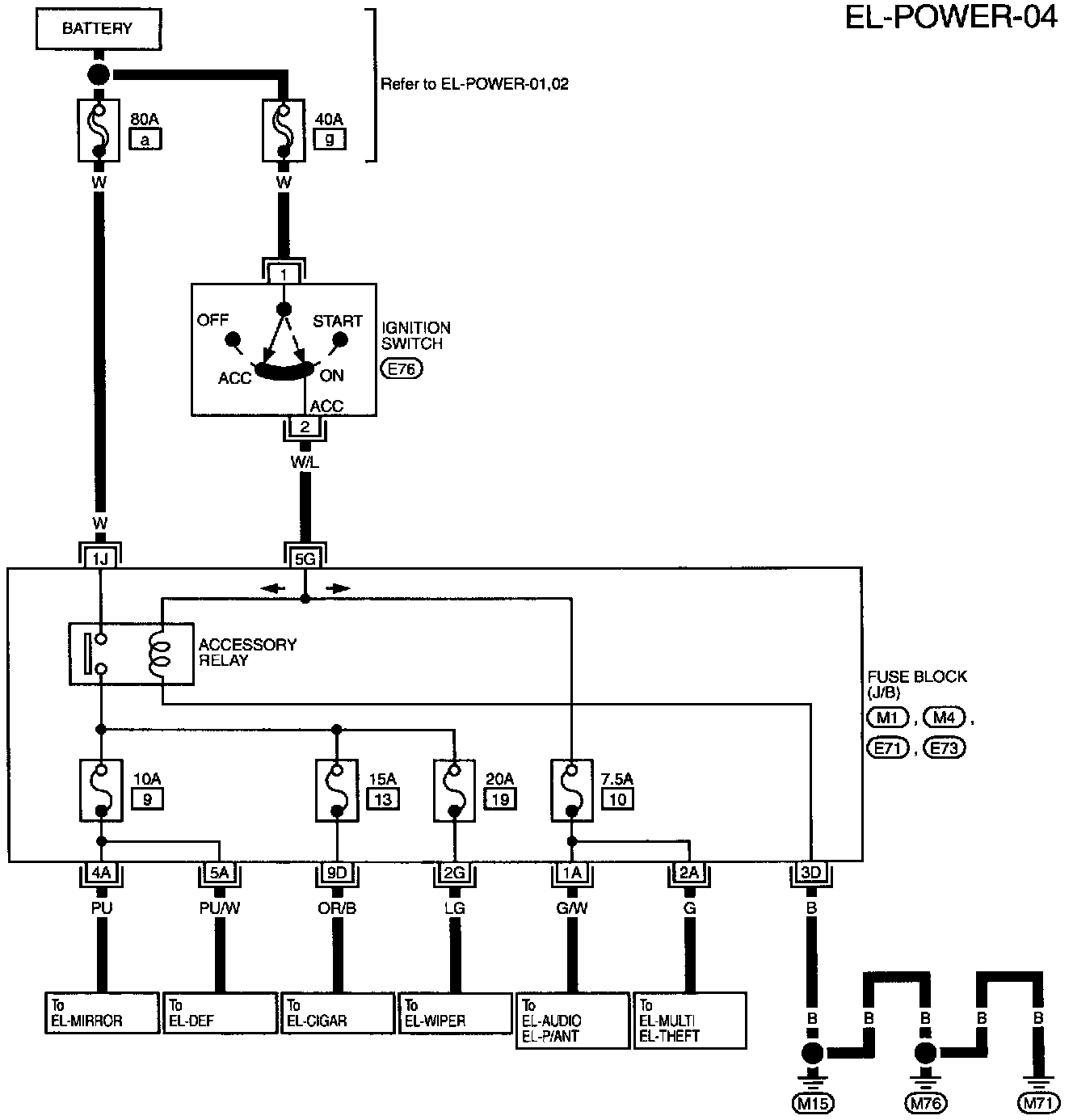

(Accessory Power Supply - Ignition SW. In "ACC" or "ON") (Part 4 of 7)
Fuse Block (J/B)
- Accessory Relay
Ignition Switch

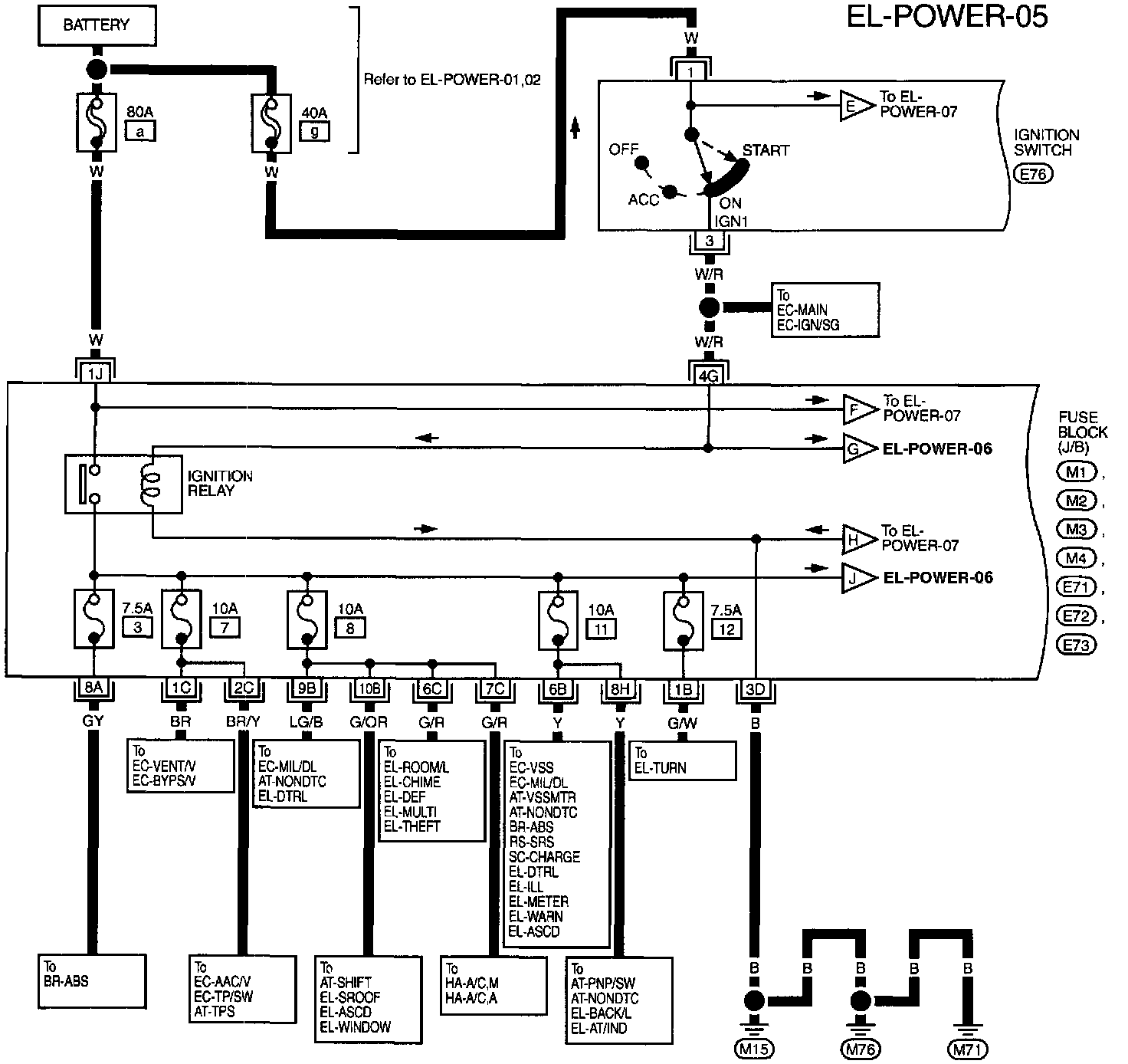

(Ignition Power Supply - Ignition SW. In "ON" and/or "START") (Part 5 of 7)
Fuse Block (J/B)
- Ignition Relay
Ignition Switch

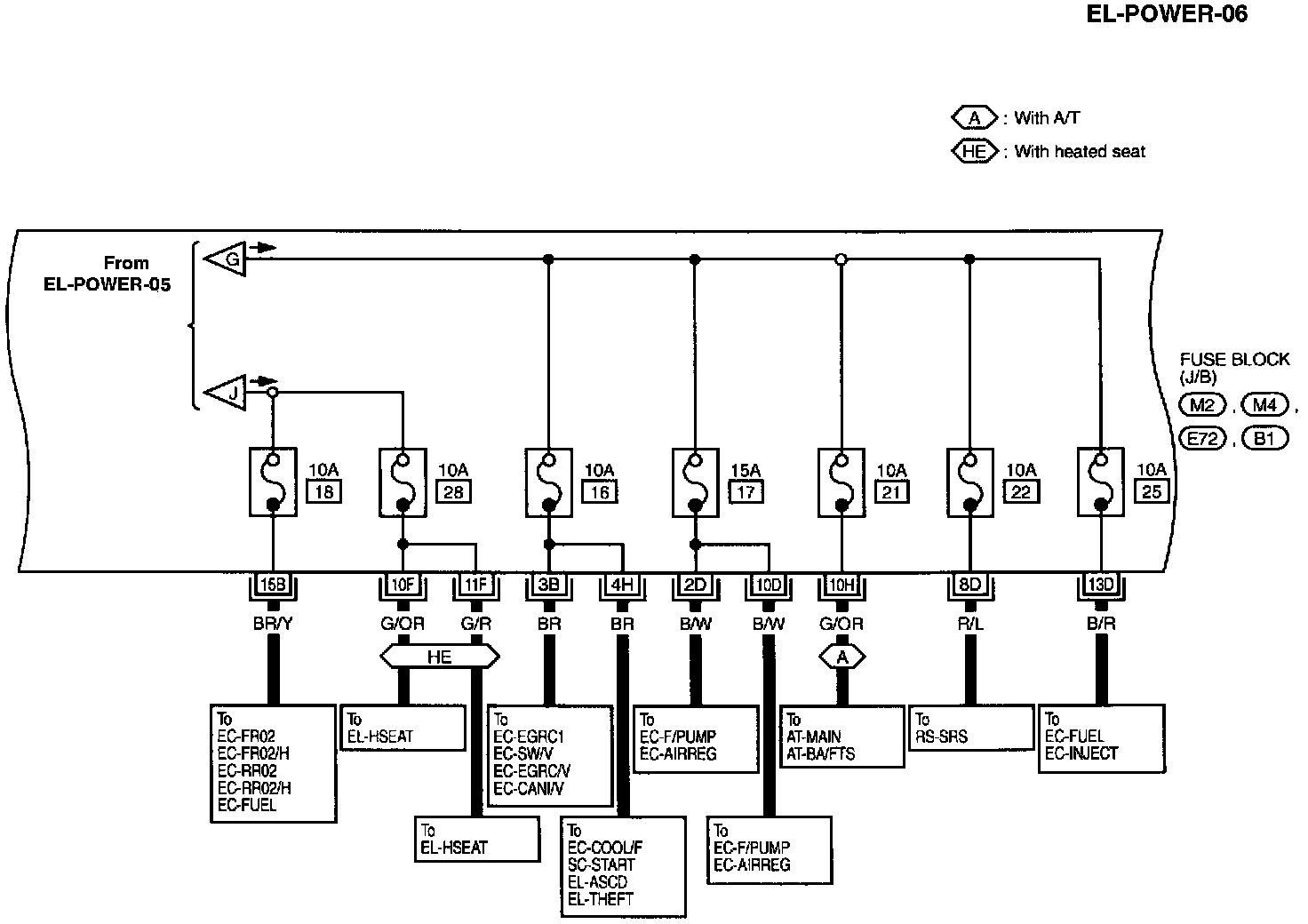

(Ignition Power Supply - Ignition SW. In "ON" and/or "START") (Part 6 of 7)
Fuse Block (J/B)

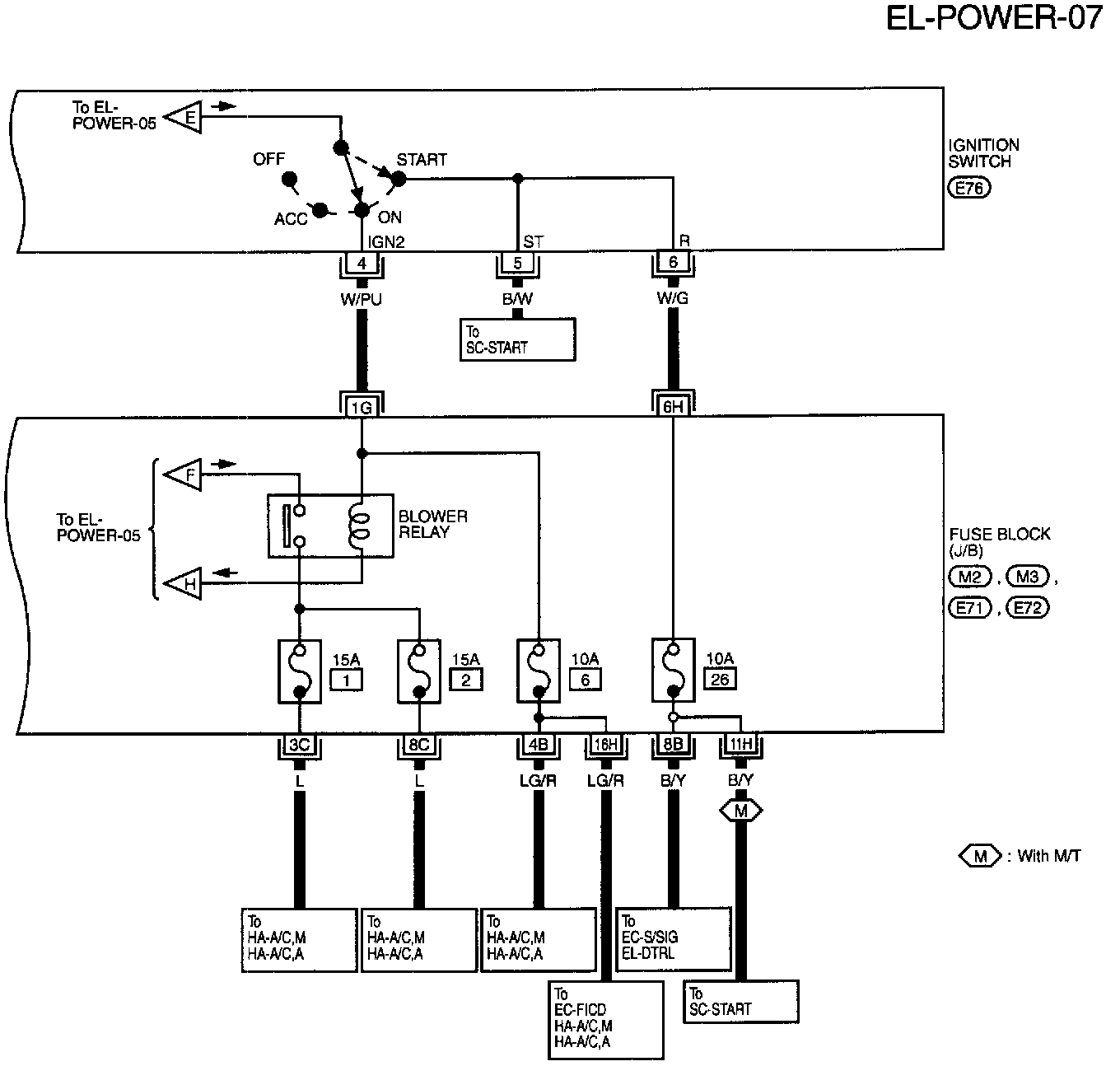

(Ignition Power Supply - Ignition SW. In "ON" and/or "START") (Part 7 of 7)
Fuse Block (J/B)
- Blower Relay
Ignition Switch























Circuit Connectors

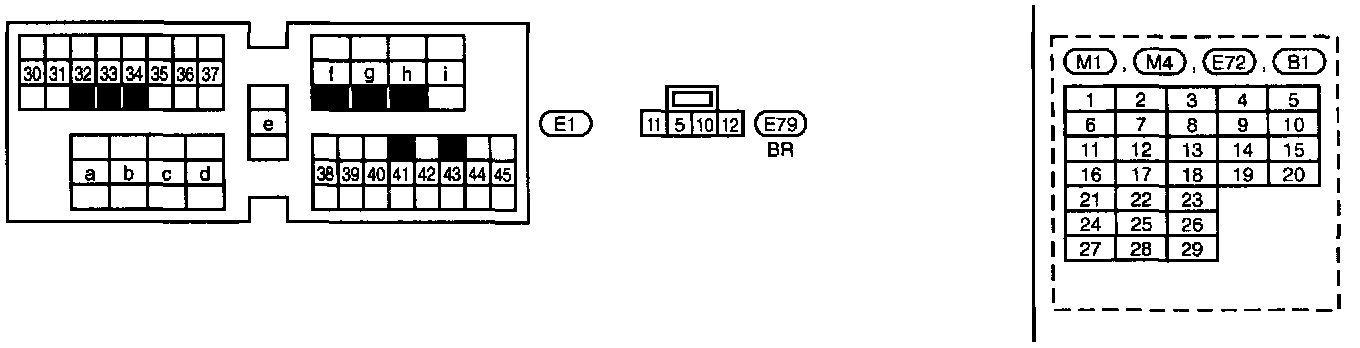

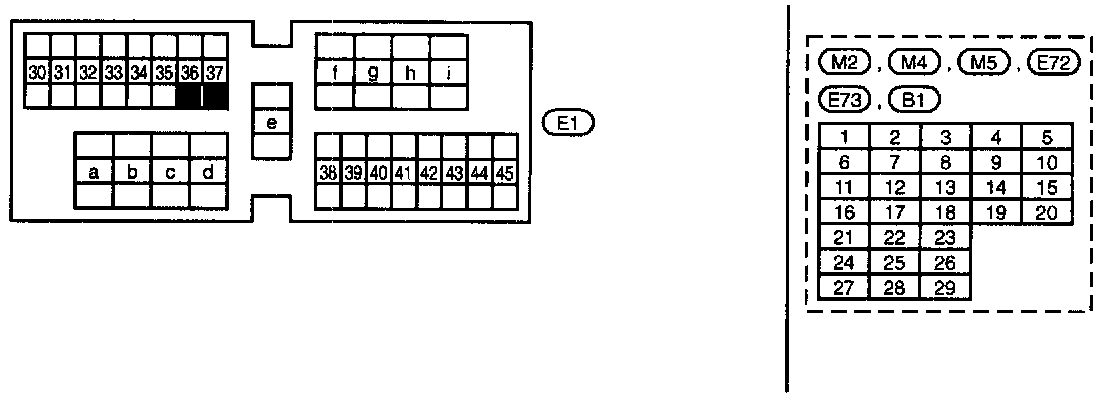

M1, M2, M3, M4, M5, M6, B1, E71, E72, E73, E75 Super Multiple Junction (SMJ) Terminal Arrangement

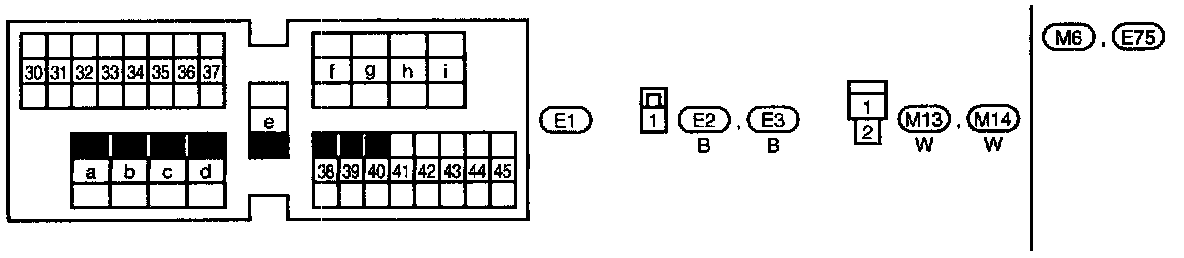

M6, E75 Super Multiple Junction (SMJ) Terminal Arrangement
