Selectable Parts
Clutch and Brakes
REVERSE CLUTCH
HIGH CLUTCH
FORWARD CLUTCH
OVERRUN CLUTCH
LOW & REVERSE BRAKE
Oil Pump
Final Drive

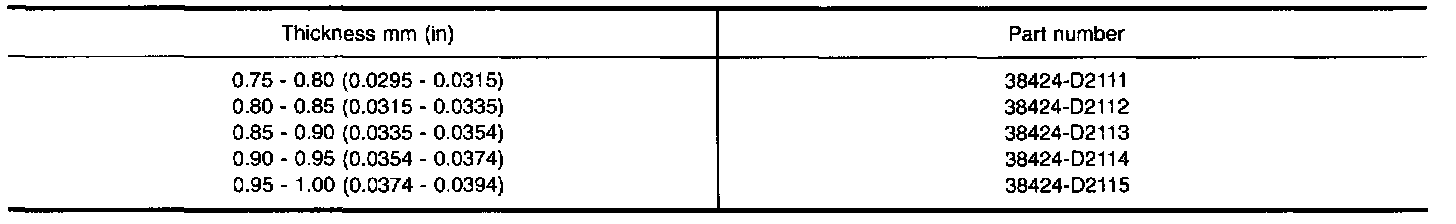

DIFFERENTIAL SIDE GEAR THRUST WASHERS (FOR RE4F03A)

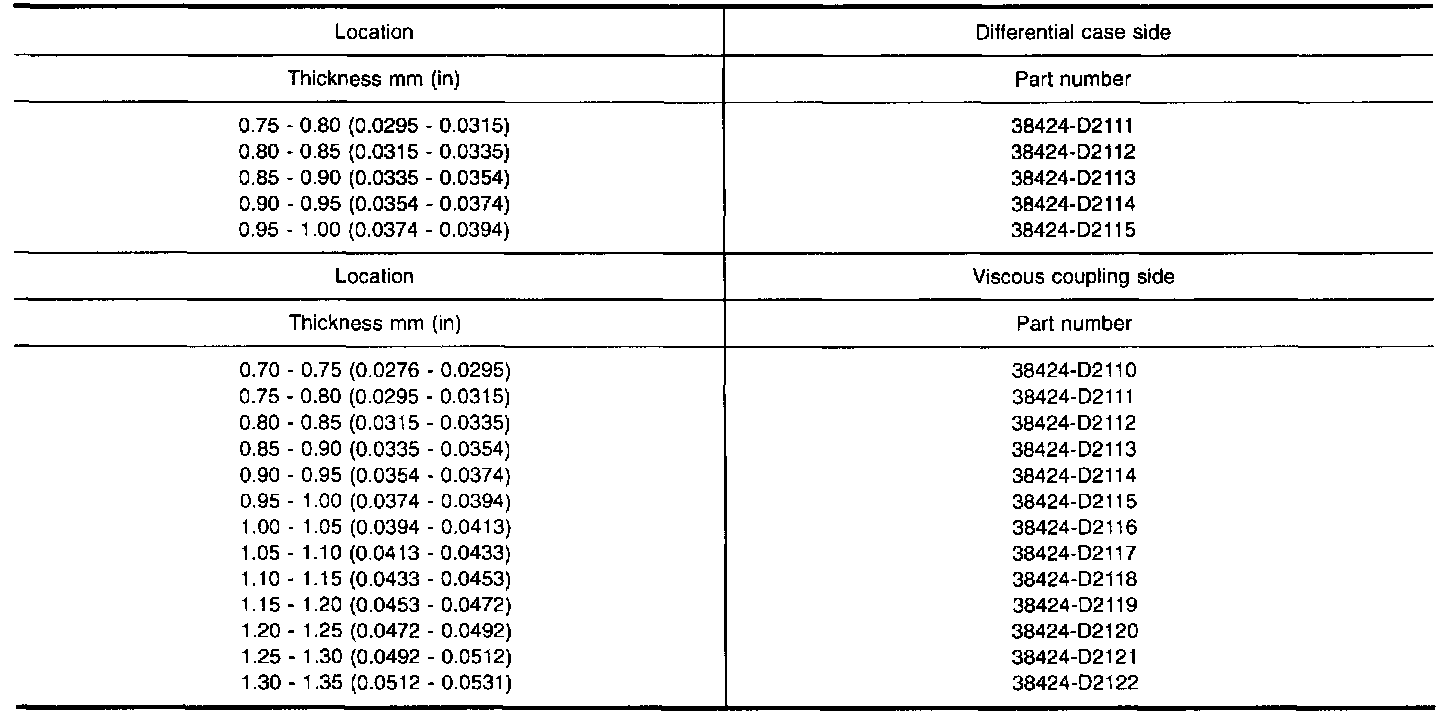

DIFFERENTIAL SIDE GEAR THRUST WASHER (FOR RE4F03V)
DIFFERENTIAL SIDE BEARING ADJUSTING SHIMS (FOR RE4F03A)
DIFFERENTIAL SIDE BEARING ADJUSTING SHIMS (FOR RE4F03V)
TABLE FOR SELECTING DIFFERENTIAL SIDE BEARING ADJUSTING SHIMS (FOR RE4F03A)
TABLE FOR SELECTING DIFFERENTIAL SIDE BEARING ADJUSTING SHIMS (FOR RE4F03V)
Reduction Pinion Gear
REDUCTION PINION GEAR BEARING ADJUSTING SHIMS
TABLE FOR SELECTING REDUCTION PINION GEAR BEARING ADJUSTING SHIM
Output Shaft
OUTPUT SHAFT END PLAY ADJUSTING SHIMS
Total End Play
BEARING RACE FOR ADJUSTING TOTAL END PLAY
Reverse Clutch End Play
THRUST WASHERS FOR ADJUSTING REVERSE CLUTCH END PLAY
