Manual Transmission/Transaxle: Testing and Inspection

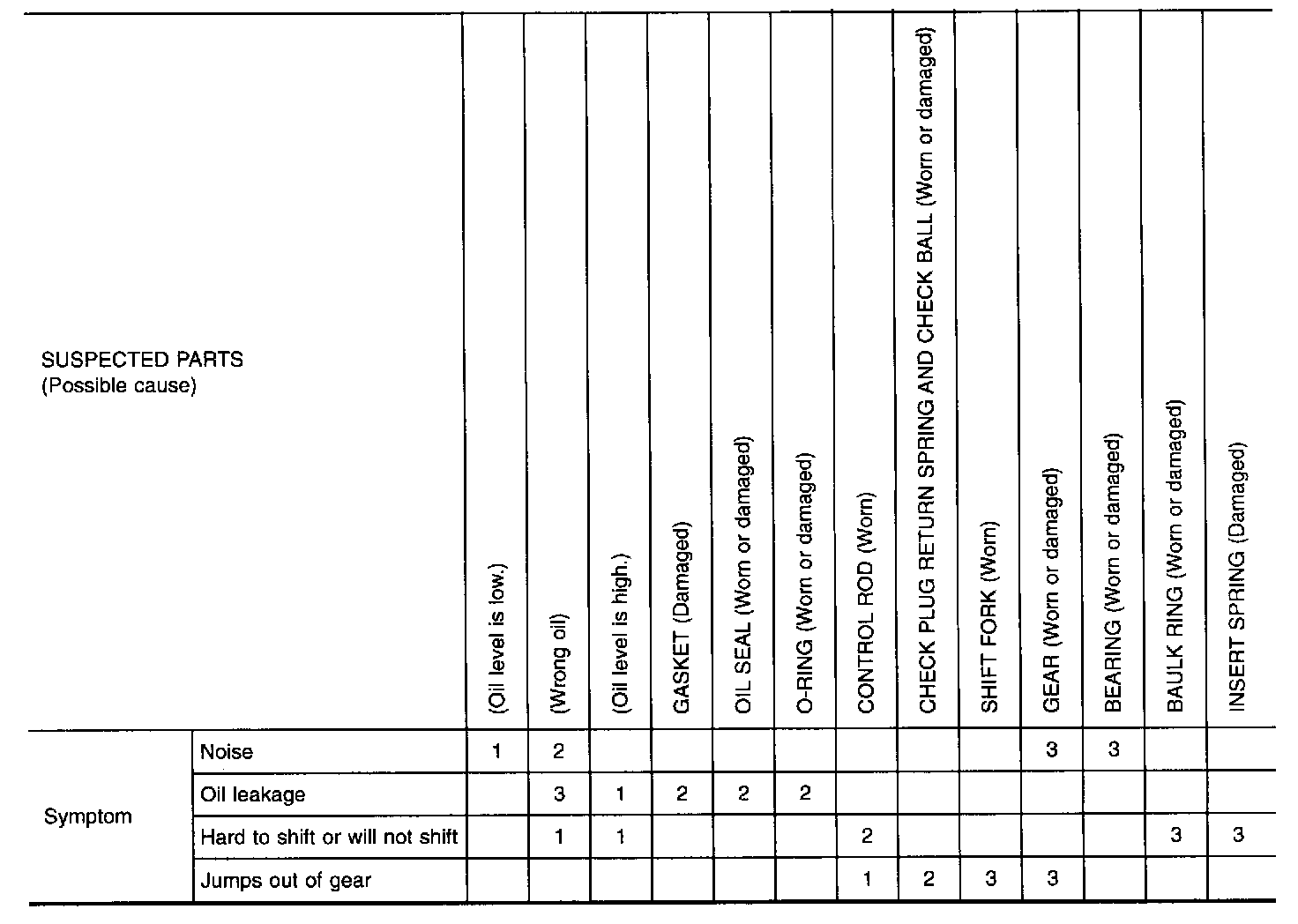

NOISE, VIBRATION AND HARSHNESS (NVH) - Troubleshooting Chart





Use the chart to help you find the cause of the symptom. The numbers Indicate the order of the inspection If necessary repair or replace these parts
