Dome Lamp

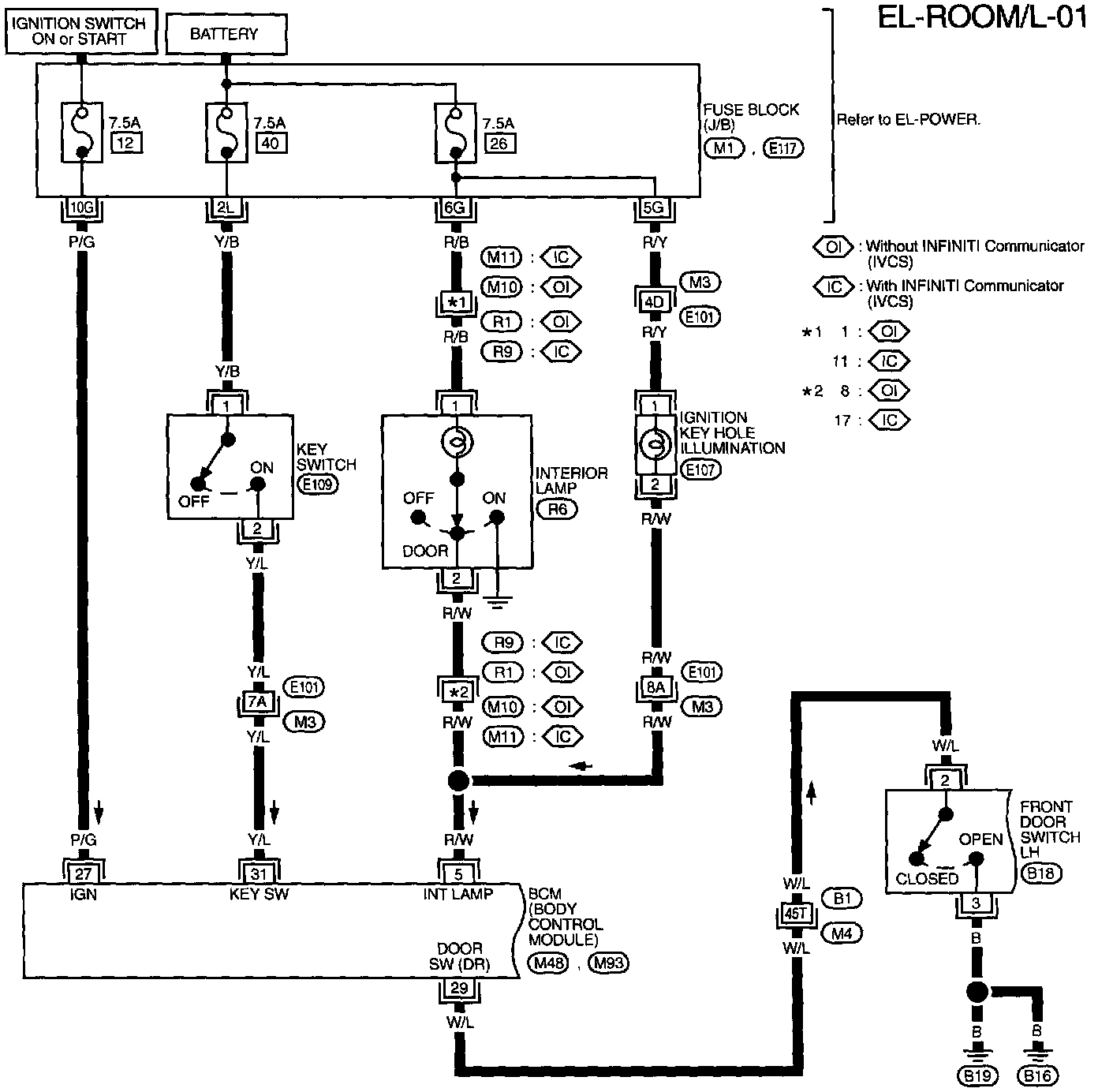

Circuit Diagrams

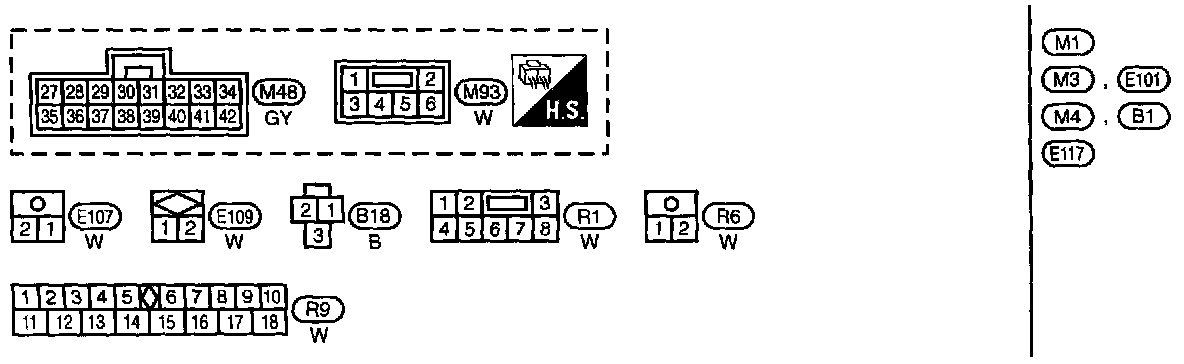

Circuit Connectors





B1, E101, M3, M4 Body, Engine Room, Main Harness Terminal Arrangement





B3, E117, M1 Terminal Arrangement
