Instrument Cluster / Carrier

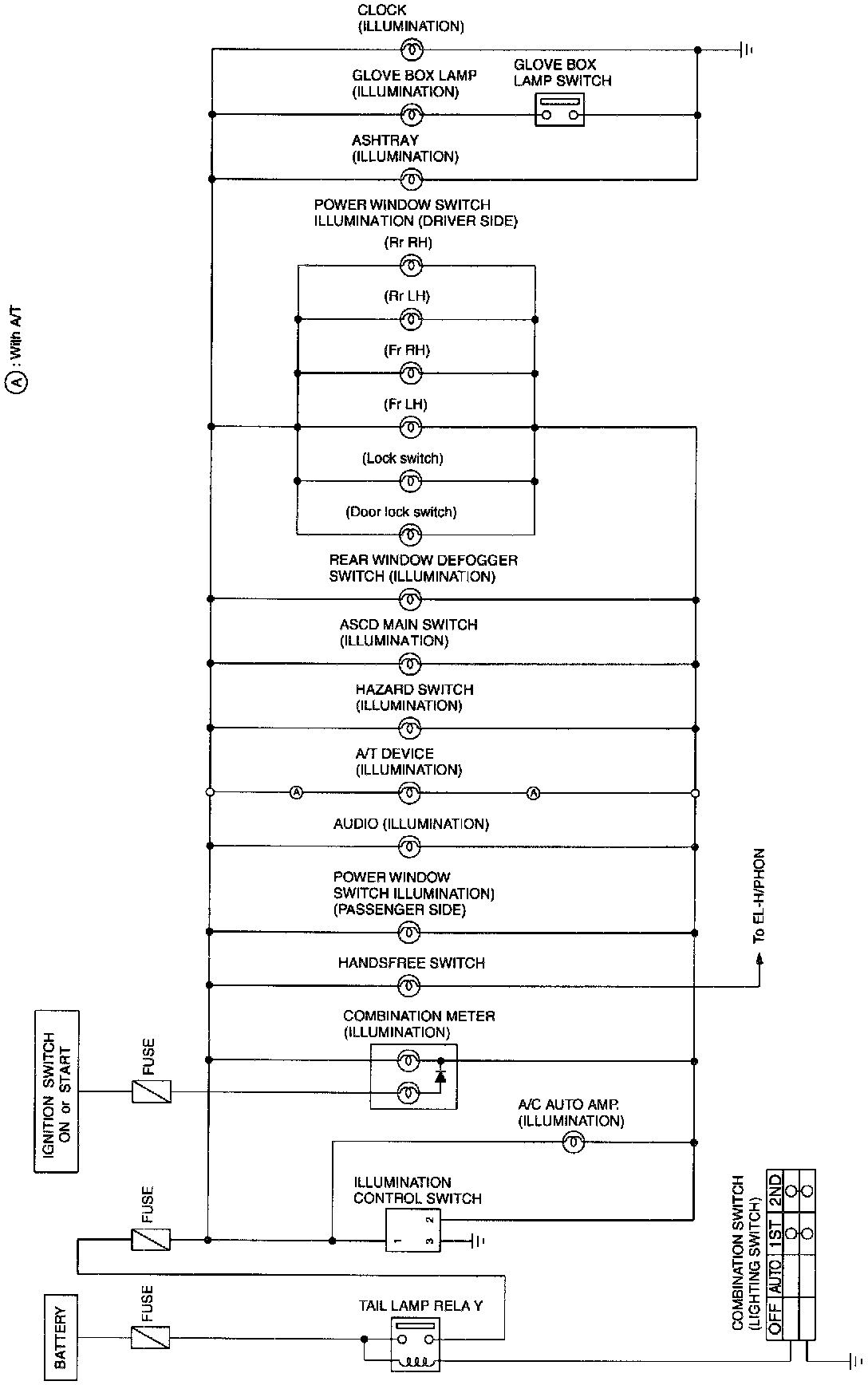

Schematic

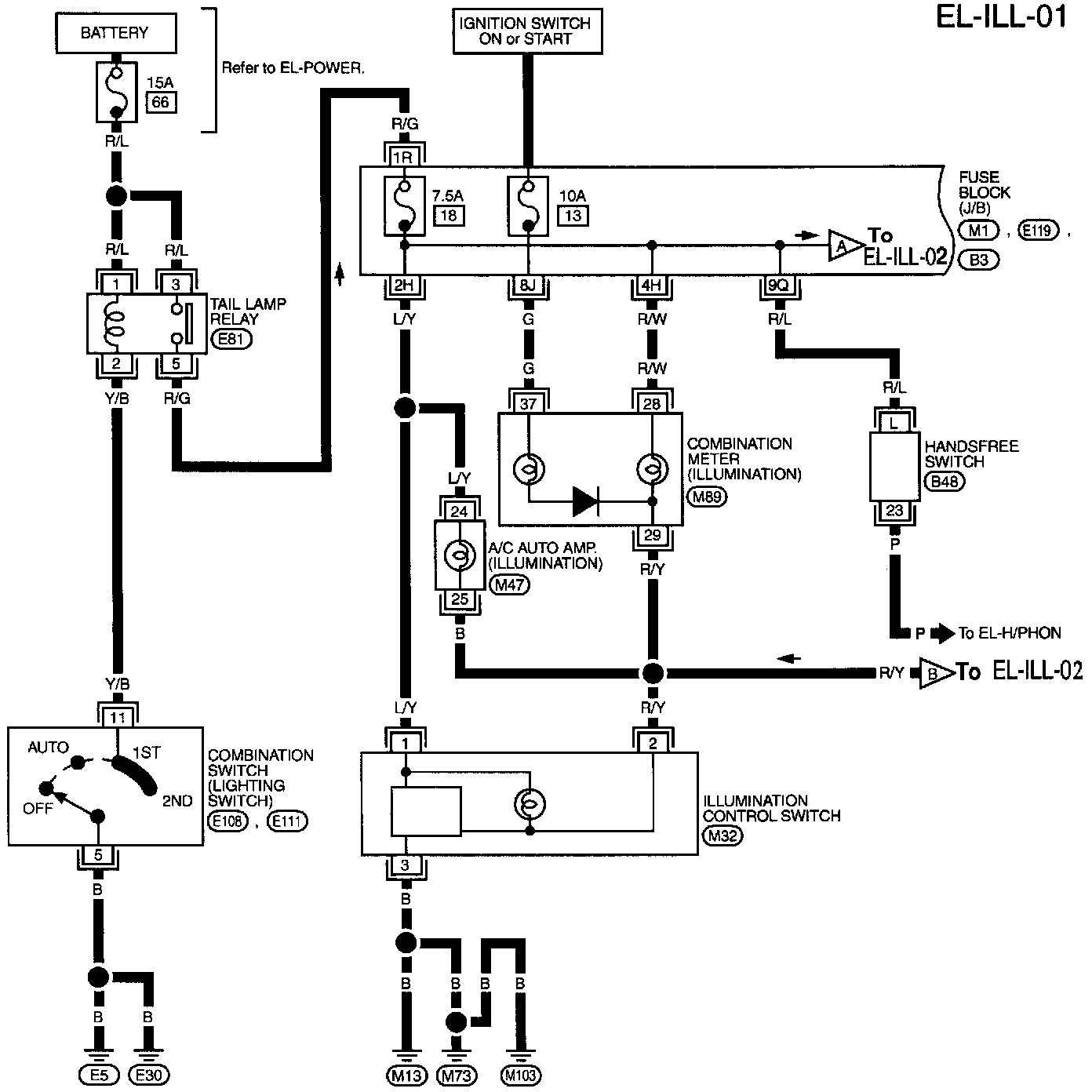

Part 1 Of 4
A/C Auto Amp.
Battery
Combination Meter (Illumination)
Combination Meter (Lighting Switch)
Fuse Block (J/B)
Handsfree Switch
Ignition Switch
Illumination Control Switch
Tail Lamp Relay

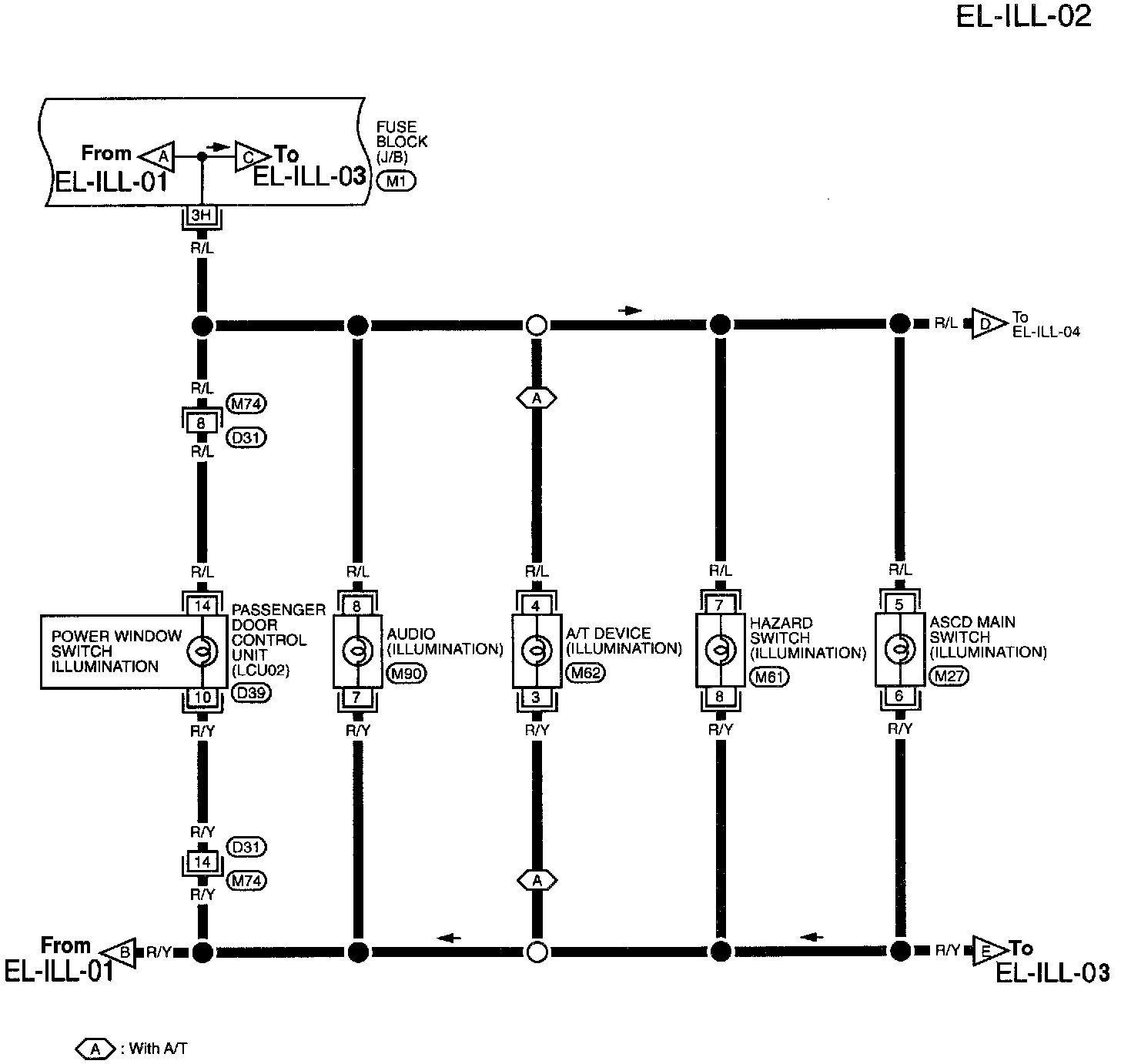

Part 2 Of 4
A/T Device (Illumination)
Audio (Illumination)
ASCD Main Switch (Illumination)
Fuse Block (J/B)
Hazard Switch (Illumination)
Passenger Door Control Unit
Power Window Switch Illumination




Part 3 Of 4
Driver Door Control Unit
- Door Lock Switch
- Power Window Switch Illumination
Fuse Block (J/B)
Rear Window Defogger Switch (Illumination)




Part 4 of 4
Ashtray (Illumination)
Clock (Illumination)
Fuse Block (J/B)
Glove Box Lamp (Illumination)
Glove Box Lamp Switch














Circuit Connectors





M1 Terminal Arrangement





B3, E119 Terminal Arrangement
