EC-Byps/V

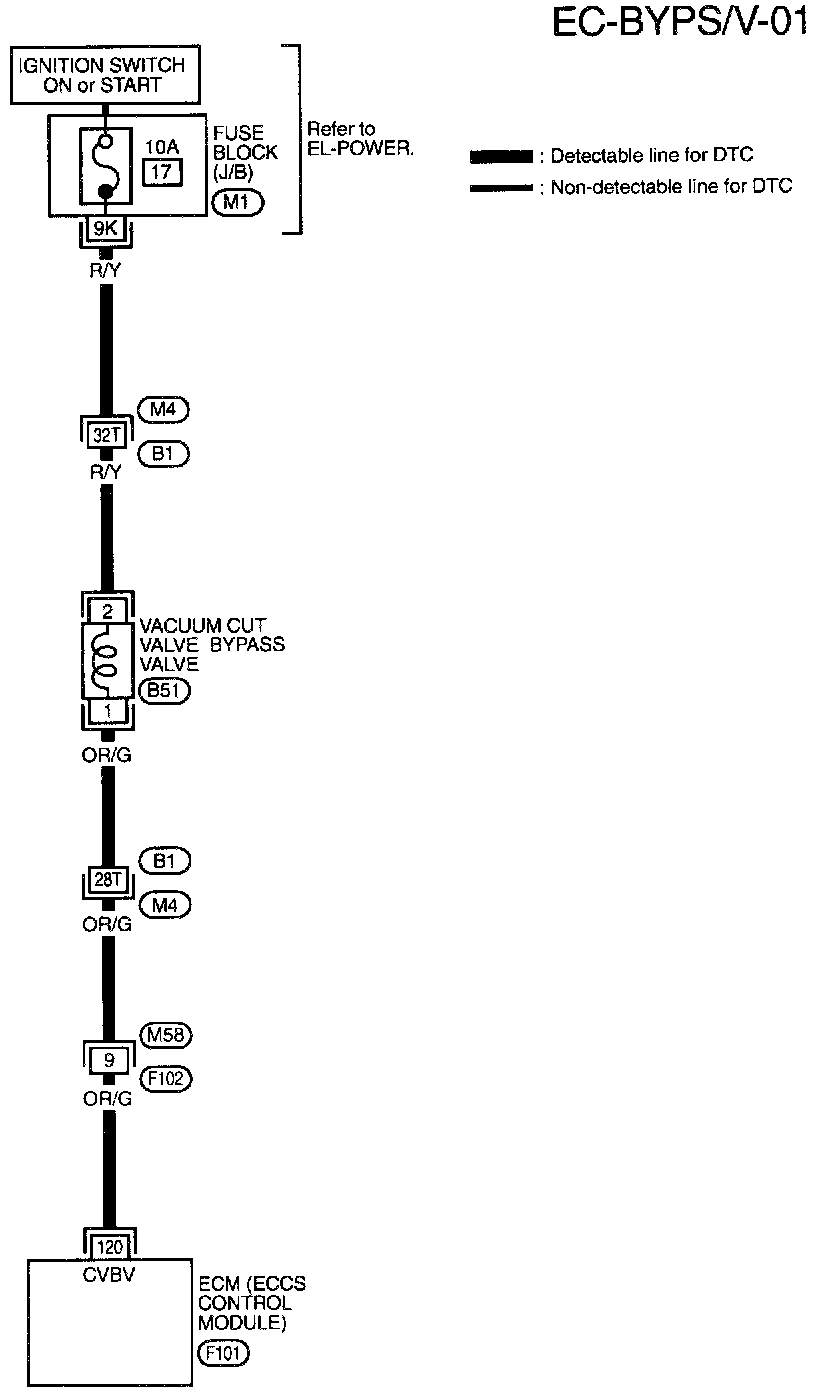

EC-BYPS/V-01





Vacuum Cut Bypass Valve (Circuit) Circuit Connectors





M1 Terminal Arrangement





B1, M4 Body, Main Harness Terminal Arrangement
