Reading and Clearing Diagnostic Trouble Codes

Consult Inspection Procedure




1. Turn ignition switch OFF.
2. Connect "CONSULT" to Data link connector for CONSULT. (Data link connector for CONSULT is located behind the fuse box cover.)




3. Insert NATS program card into CONSULT.
Program card-->NATS-E980U
4. Turn ignition switch ON.
5. Touch "START".




6. Perform each diagnostic test mode according to each service procedure.

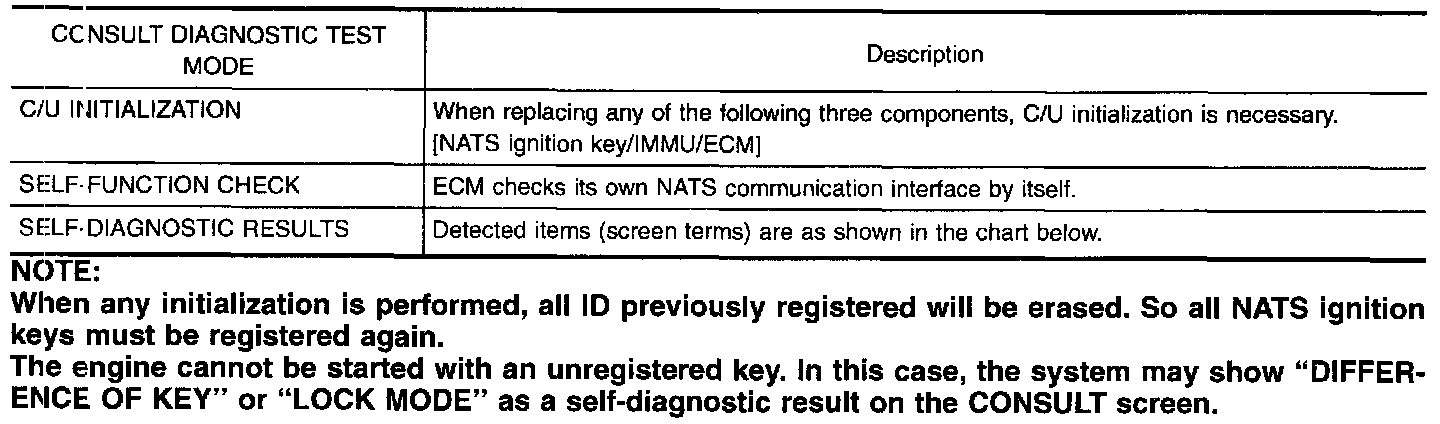

Consult Diagnostic Test Mode Function





How To Read Self-Diagnostic Results





Self-Diagnostic Results Item Chart
