Reading and Clearing Diagnostic Trouble Codes

1. Turn ignition switch OFF.

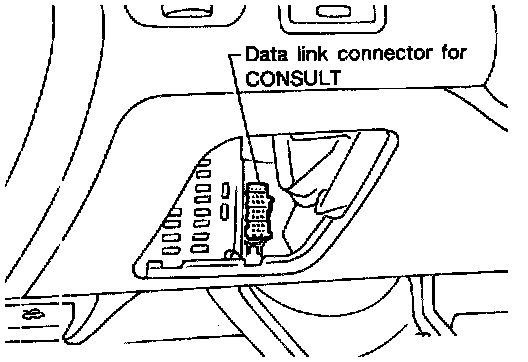

2. Connect "CONSULT" to data link connector.




3. Turn ignition switch ON.
4. Turn Automatic Speed Control Device (ASCD) main switch ON.
5. Touch START (on CONSULT display).

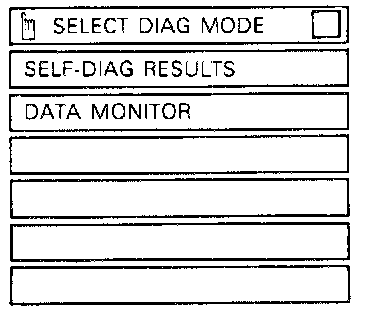

6. Touch ASCD.
7. Touch SELF-DIAG RESULTS.




^ Self-diagnostic results are shown on display.

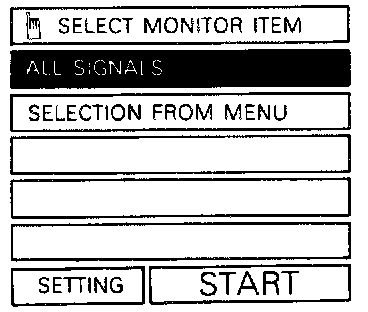

8. Touch DATA MONITOR.




^ Touch START.

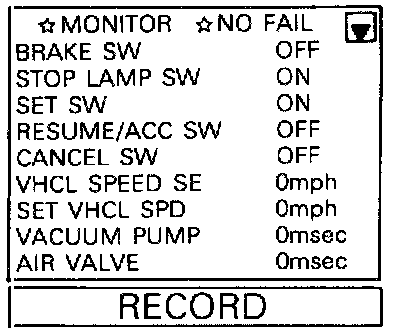

^ Data monitor results are shown on display.





Self-Diagnostic Results

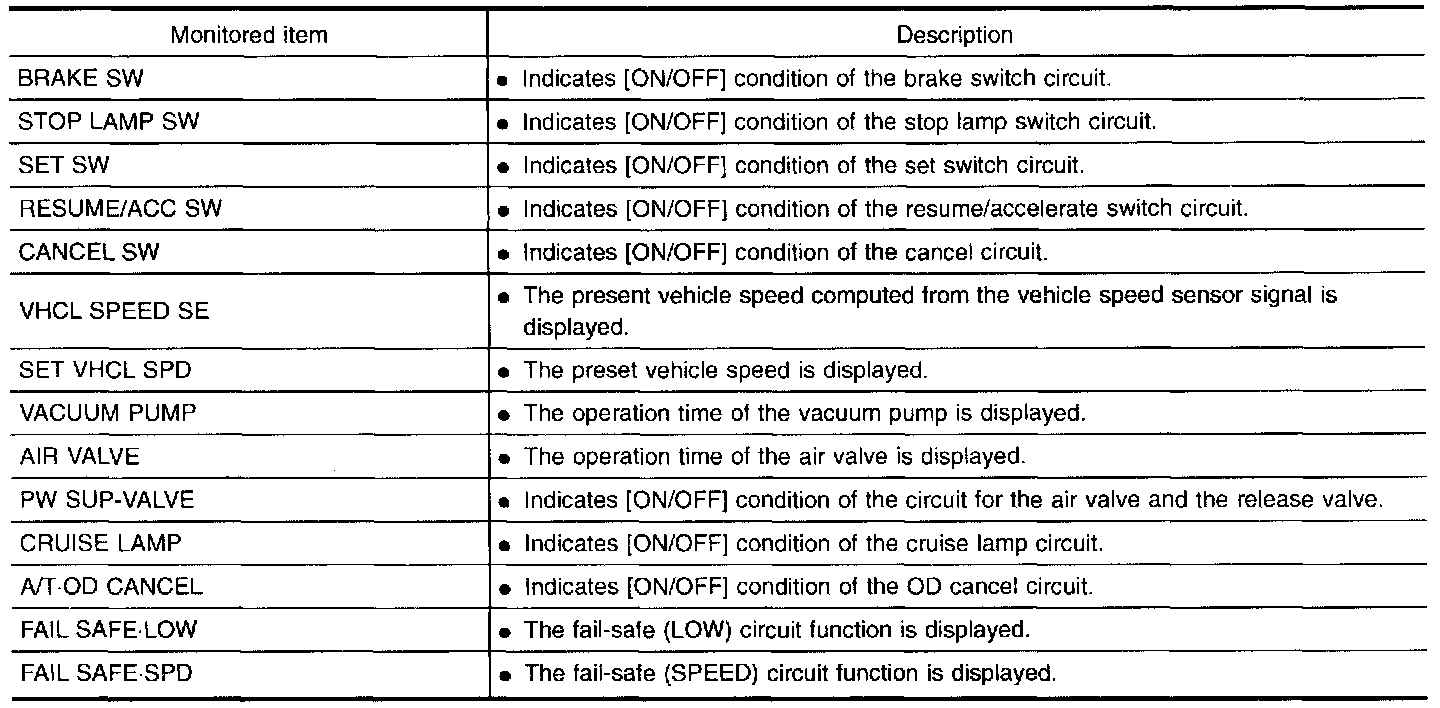

Data Monitor
