ABS/TCS

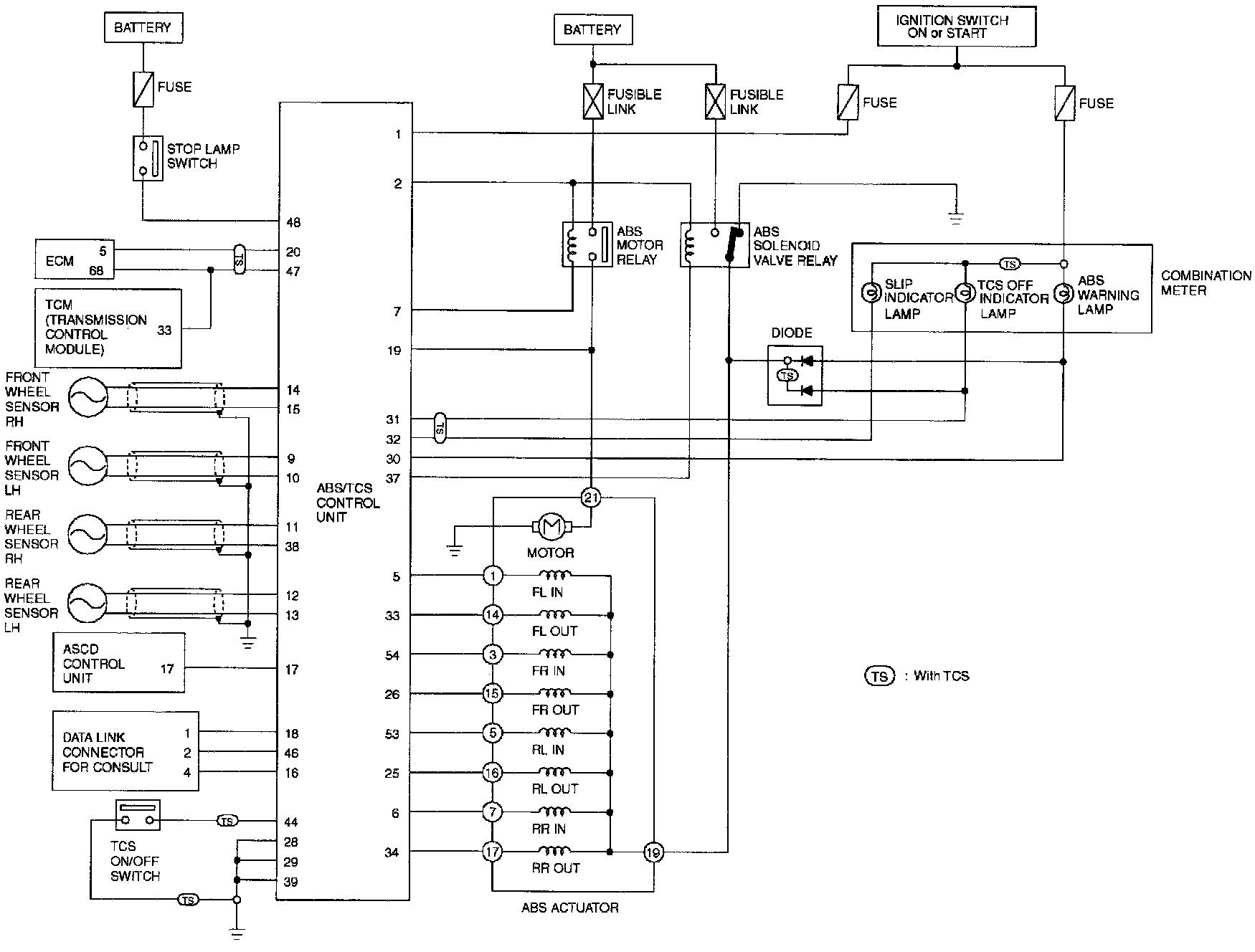

Schematic

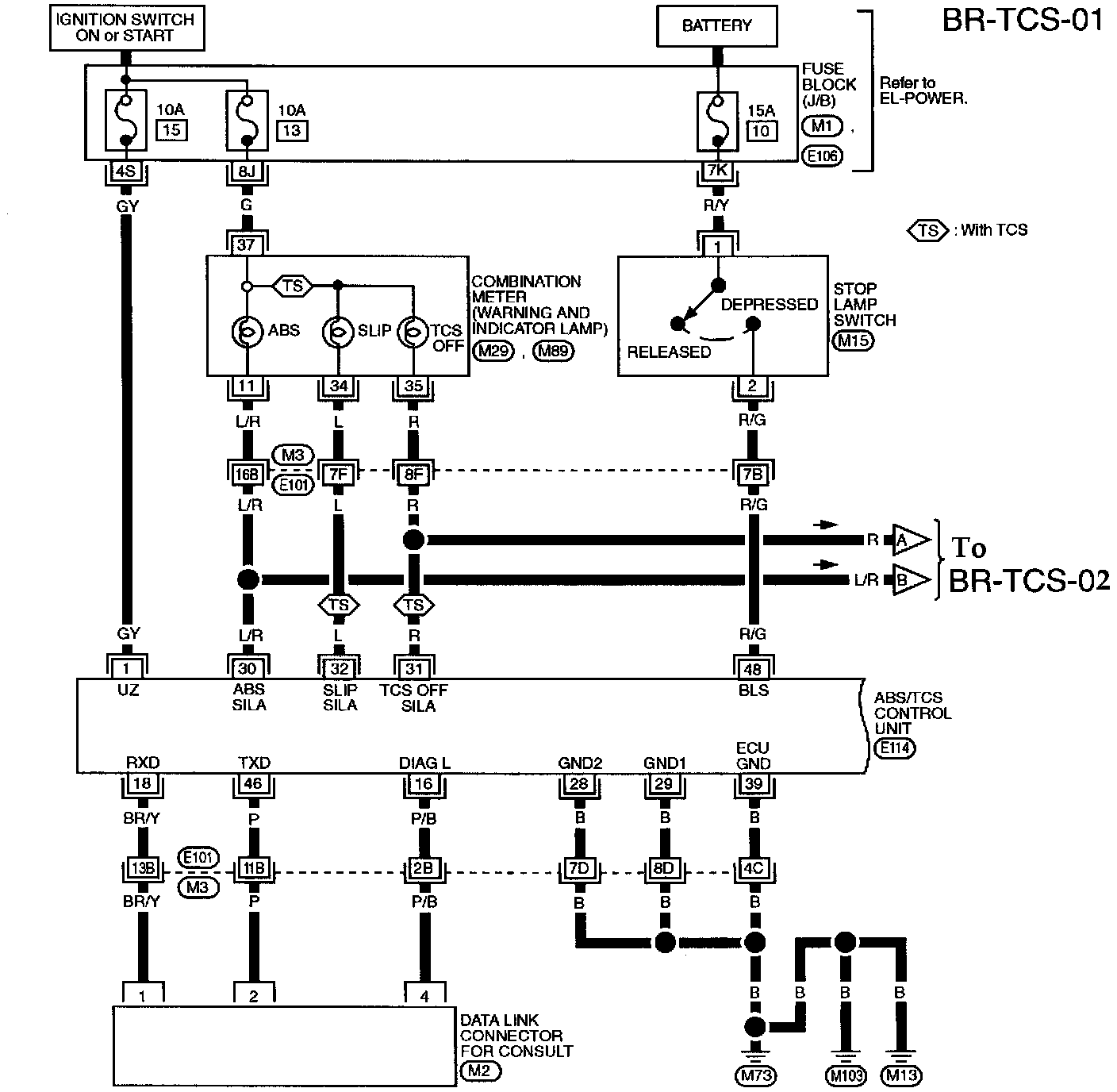

(Part 1 Of 4)
[1][2]ABS/TCS Control Unit
Combination Meter
Data Link Connector
Fuse Block J/B
Stop Lamp Switch

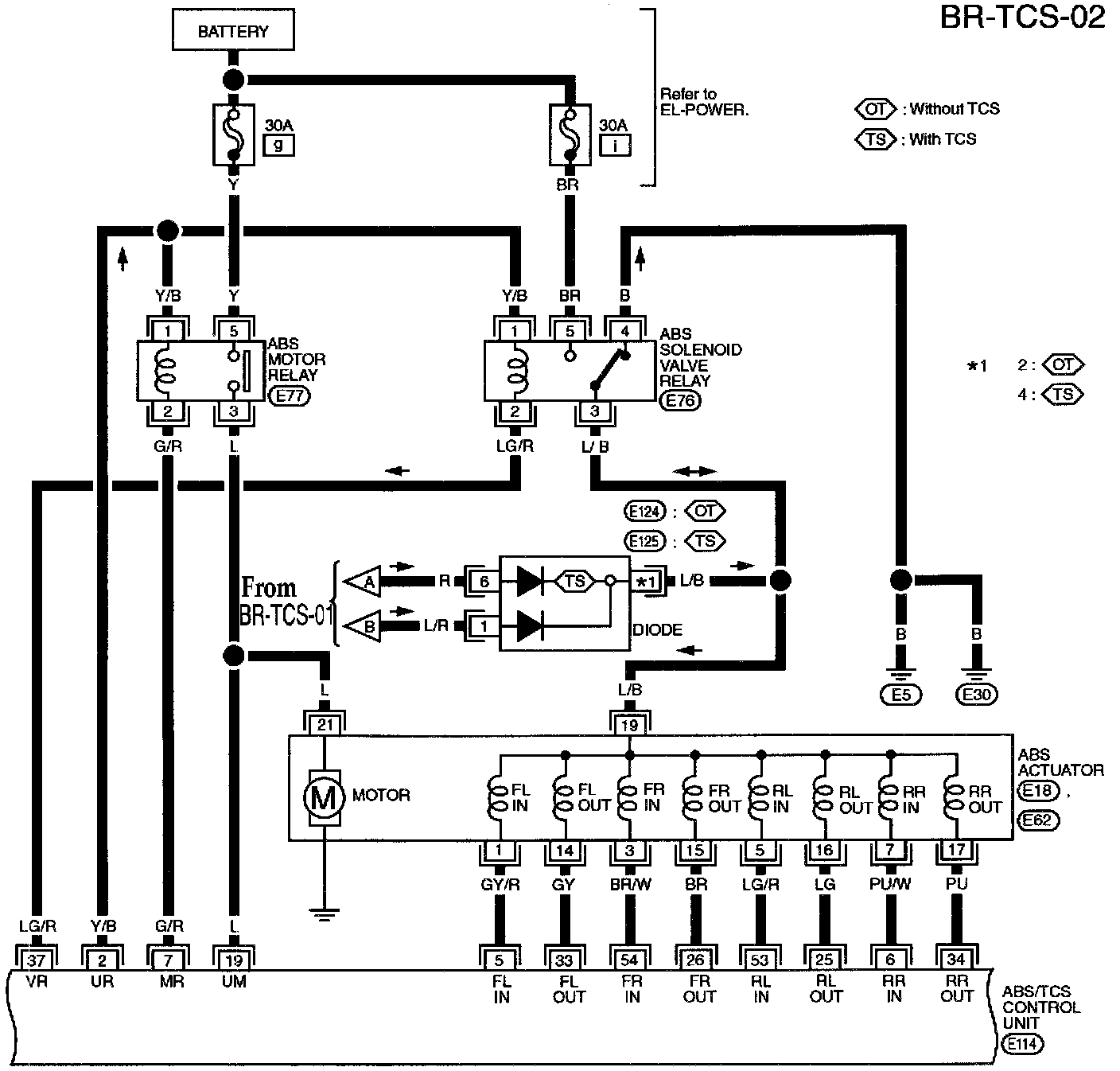

(Part 2 Of 4)
ABS Motor Relay
ABS Solenoid Valve Relay
ABS Actuator
[1][2]ABS/TCS Control Unit

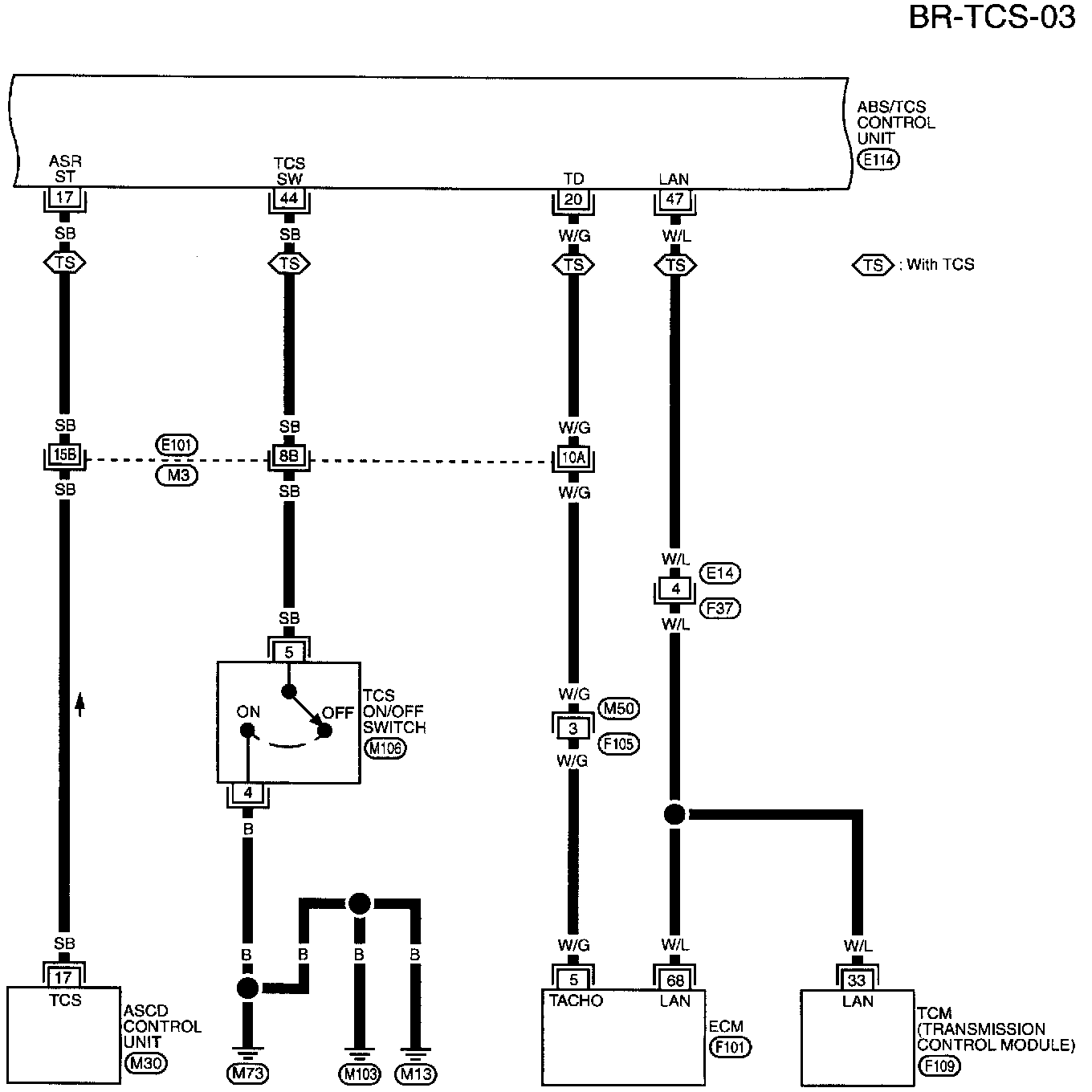

(Part 3 Of 4)
[1][2]ABS/TCS Control Unit
ASCD Control Unit
ECM
TCS On/Off Switch
TCM (Transmission Control Module)

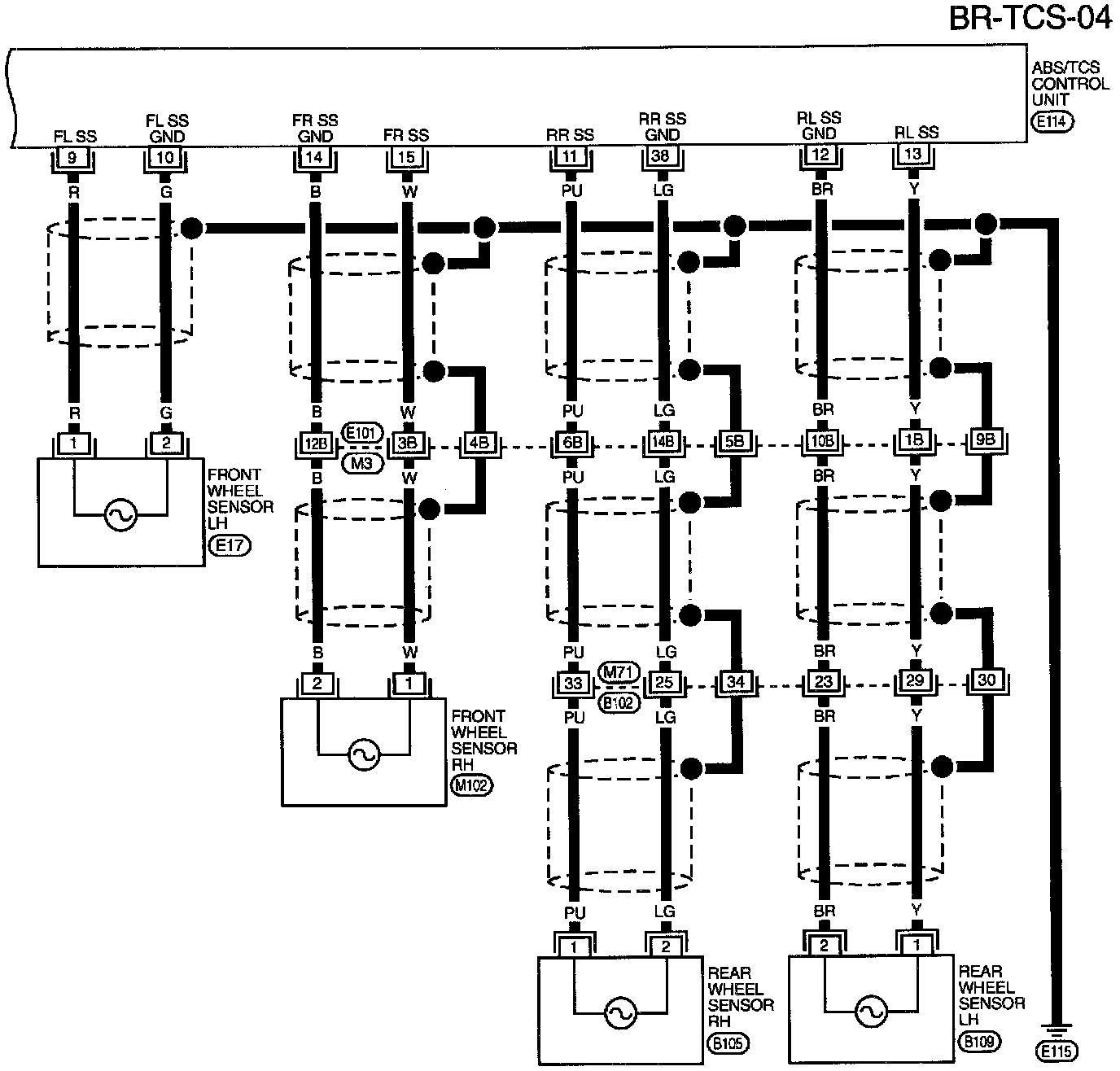

(Part 4 Of 4)
[1][2]ABS/TCS Control Unit
Front Wheel Sensor LH
Front Wheel Sensor RH
Rear Wheel Sensor LH
Rear Wheel Sensor RH














Circuit Connectors





M1 Terminal Arrangement





E101, M3 Body, Engine Room, Main Harness Terminal Arrangement





E106 Terminal Arrangement





F101 Electrical Units - Terminal Arrangements
