Theft Warning System-IVMS

Schematic




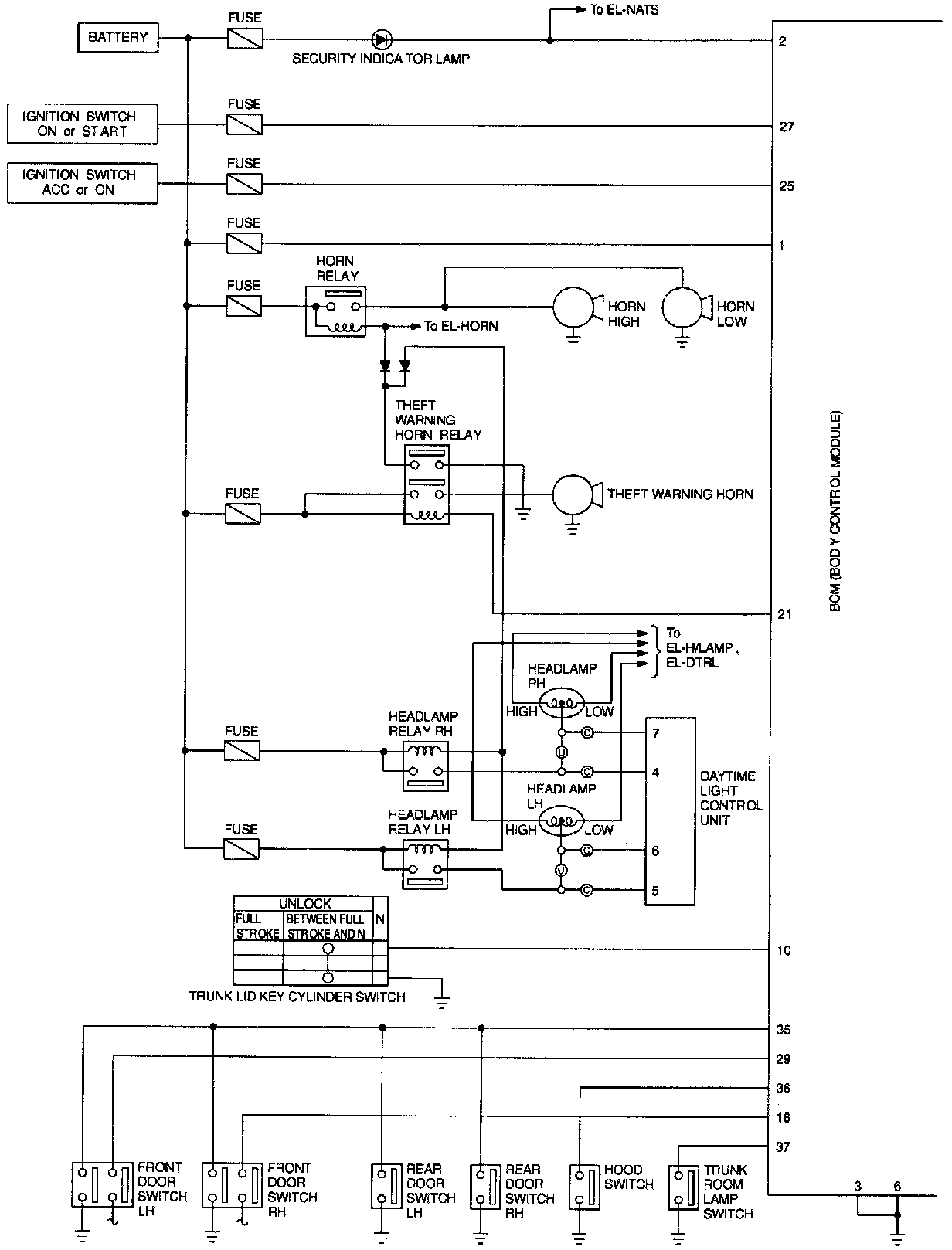

(Part 1 of 6)
Battery
BCM (Body Control Module)
Fuse Block (J/B)
Ignition Switch
Front Door Switch LH
Front Door Switch RH
Rear Door Switch LH
Rear Door Switch RH
Security Indicator Lamp




(Part 2 of 6)
Battery
BCM (Body Control Module)
Fuse Block (J/B)
Horn Low
Horn High
Hood Switch
Horn Relay
Joint Connector-2
Joint Connector-4
Theft Warning Horn
Theft Warning Horn Relay
Trunk Lid Key Cylinder Switch
Trunk Room Lamp Switch

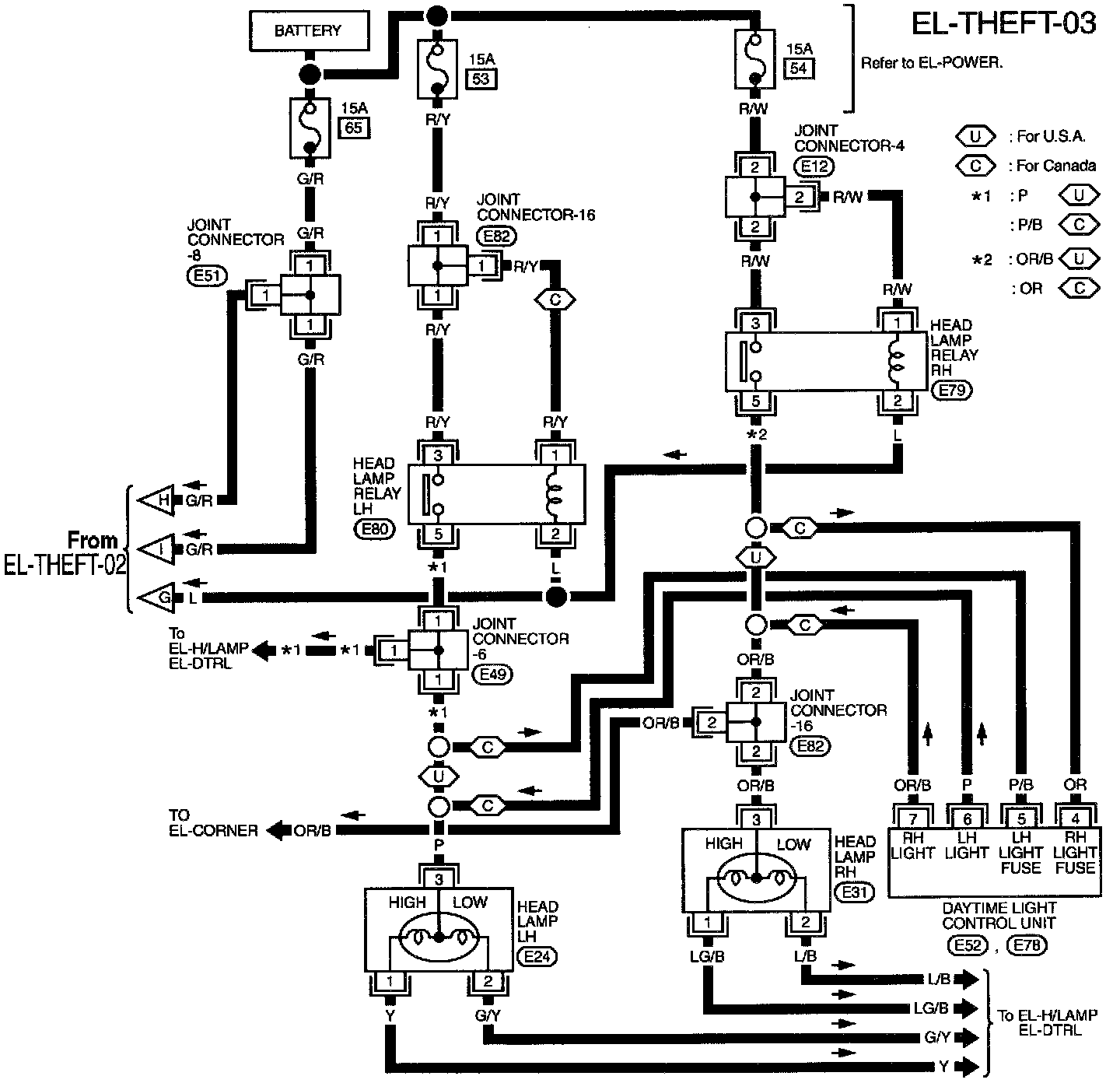

(Part 3 of 6)
Battery
Daytime Light Control Unit
Head Lamp LH
Head Lamp RH
Headlamp Relay LH
Headlamp Relay RH
Joint Connector-4
Joint Connector-8
Joint Connector-16

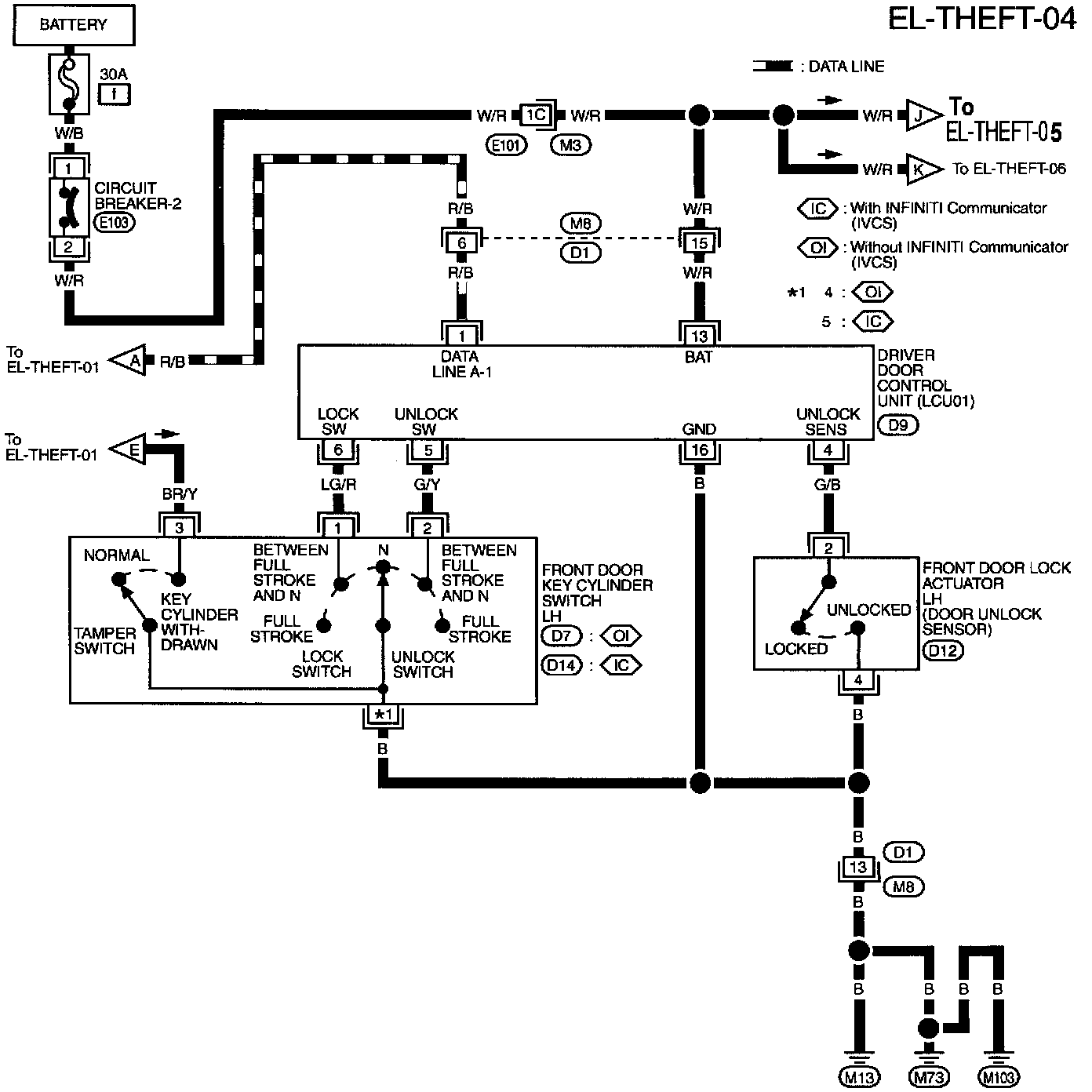

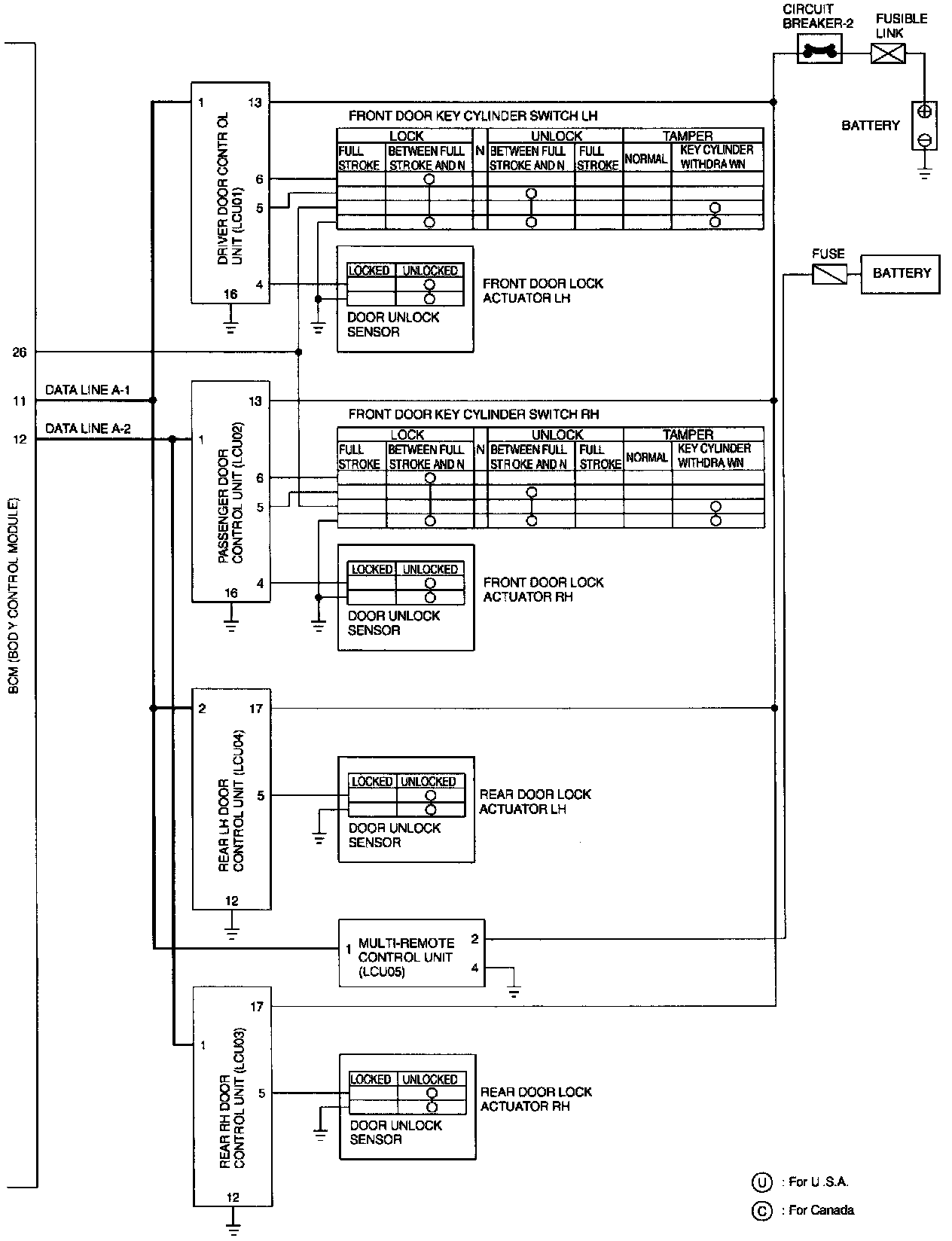

(Part 4 of 6)
Battery
BCM (Body Control Module)
Circuit Breaker-2
Driver Door Control Unit
Front Door Key Cylinder Switch LH (Driver Side)
Front Door Lock Actuator LH (Driver Side)




(Part 5 of 6)
Front Door Key Cylinder Switch RH
Front Door Lock Actuator RH (Door Unlock Sensor)
Passenger Door Control Unit

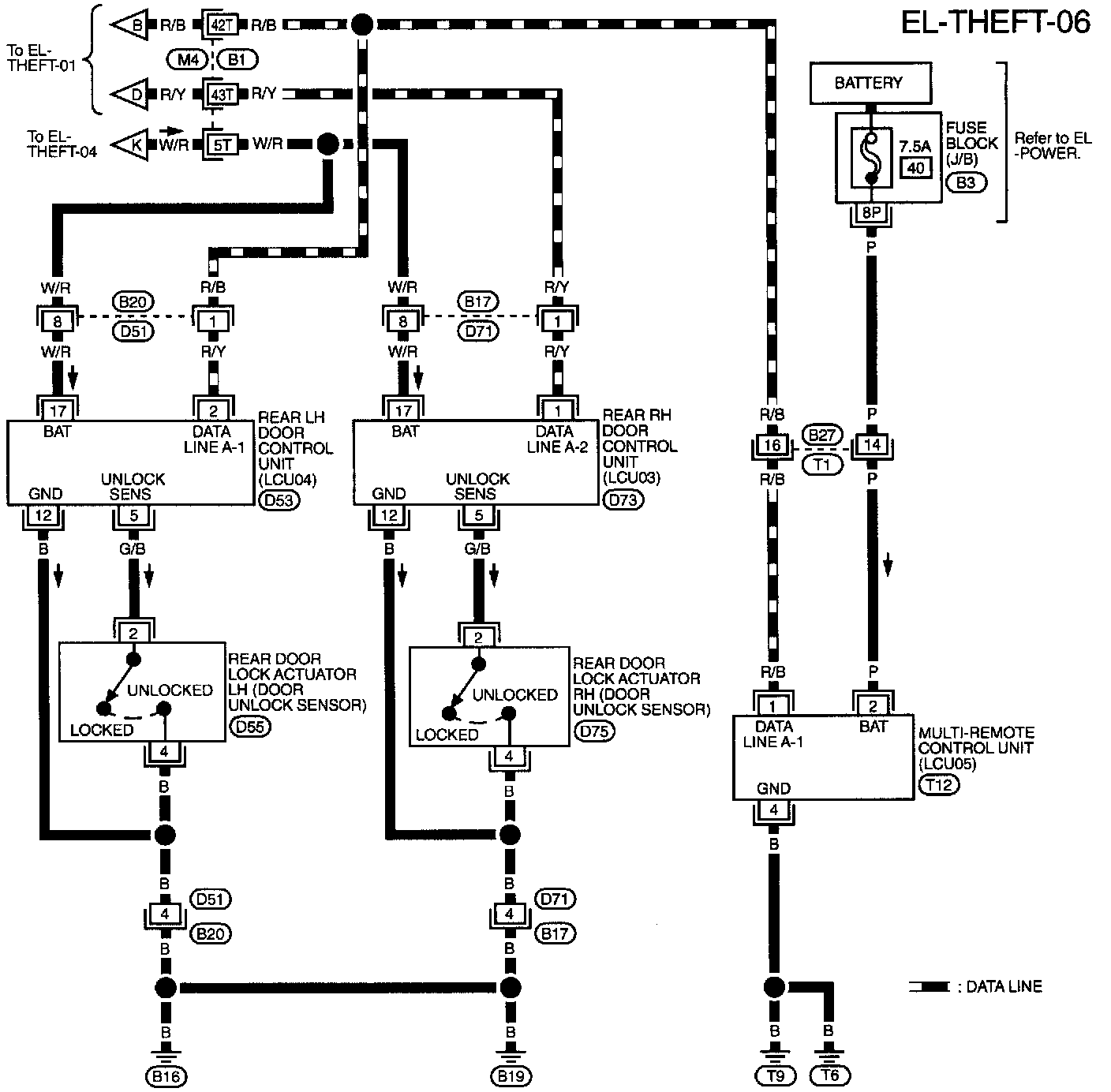

(Part 6 of 6)
Battery
Fuse Block (J/B)
Rear LH Door Control Unit
Rear RH Door Control Unit
Rear Door Lock Actuator LH (Door Unlock Sensor)
Rear Door Lock Actuator RH (Door Unlock Sensor)




















Circuit Connectors





B3, M1 Terminal Arrangement





B1, E101, M3, M4 Body, Engine Room, Main Harness Terminal Arrangement
