Infinity Communication (Ivcs)

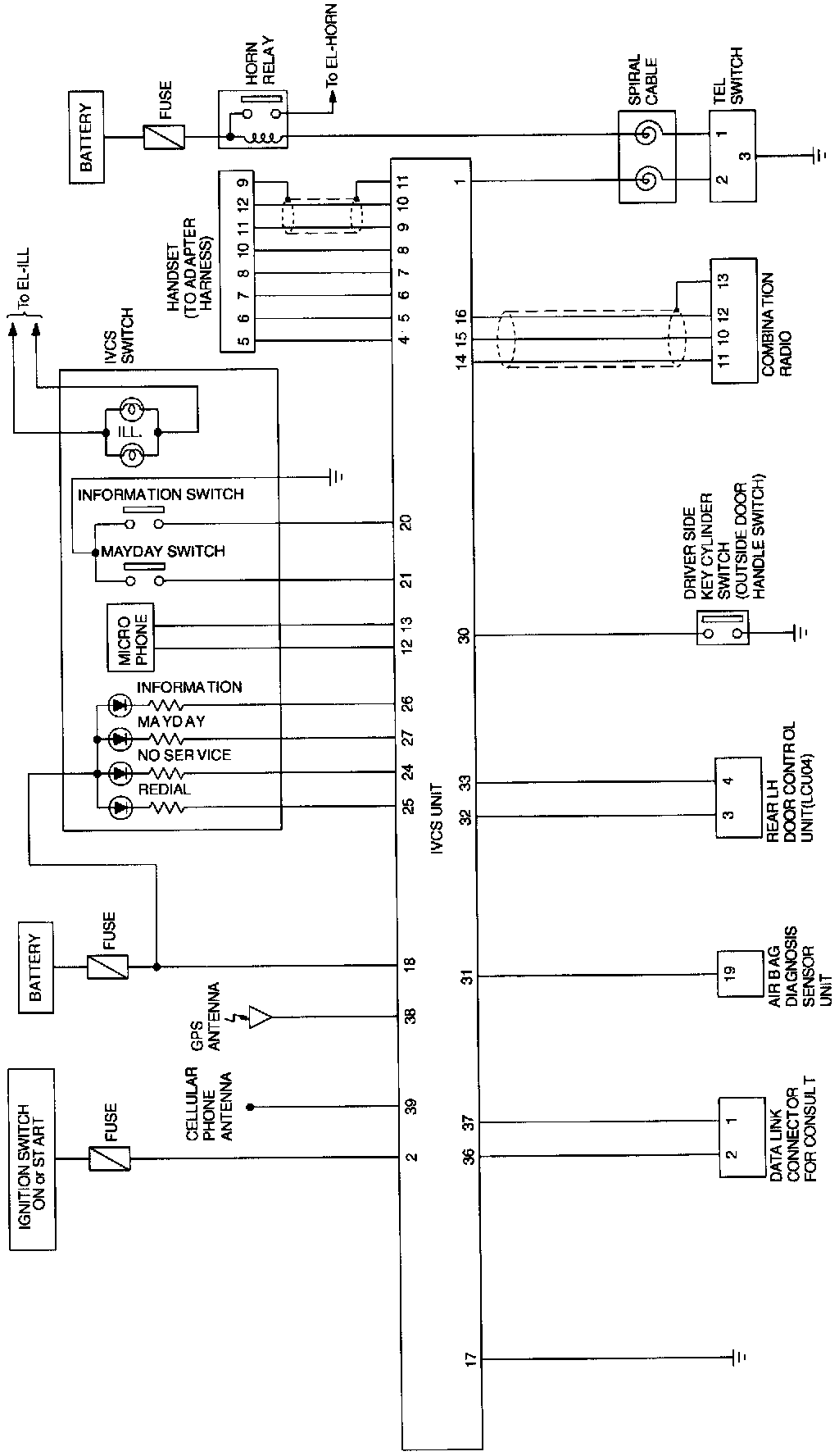

Schematic

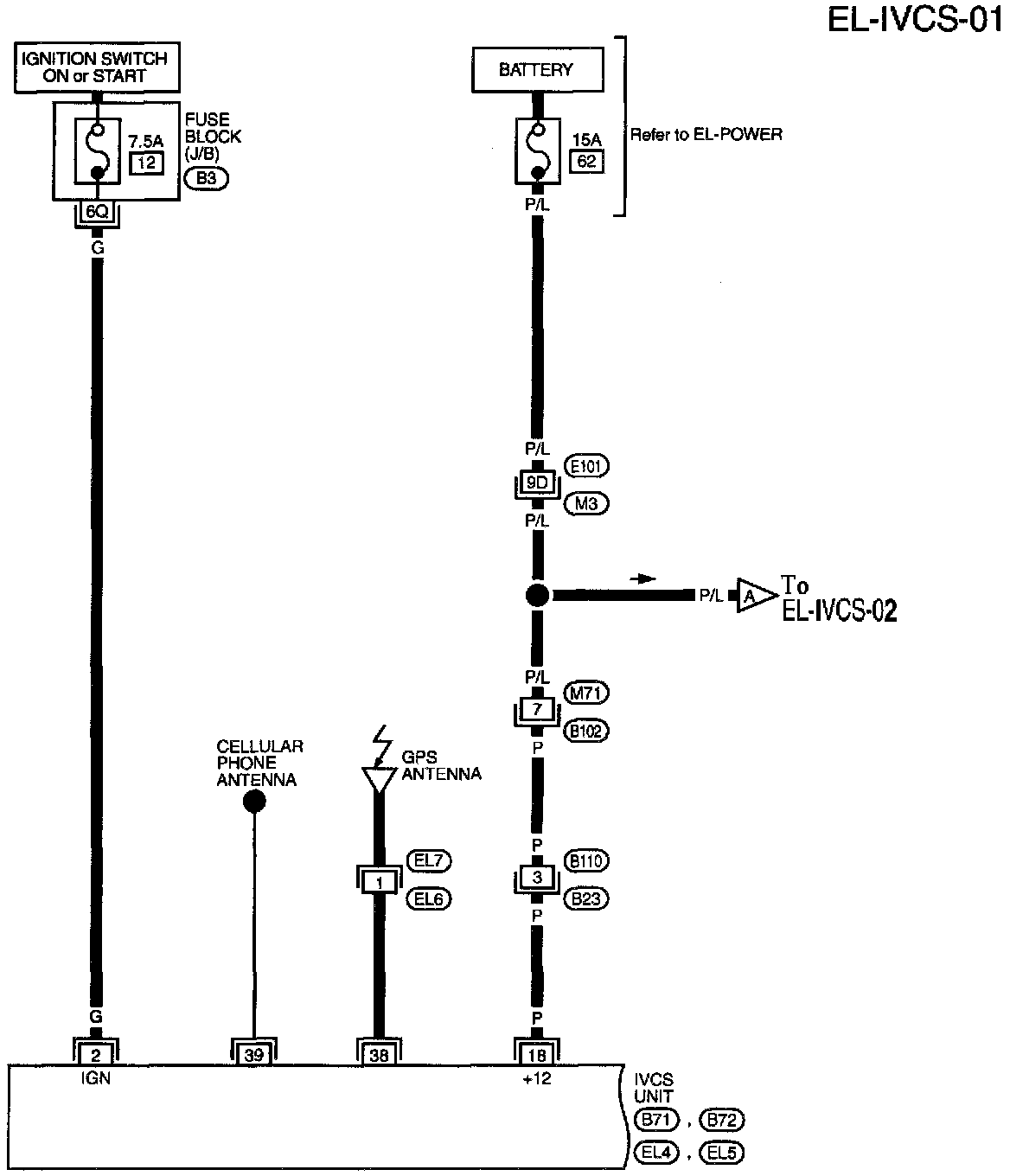

Part 1 Of 4
Cellular Phone Antenna
Fuse Block (J/B)
GPS Antenna
Ignition Switch
IVCS Unit

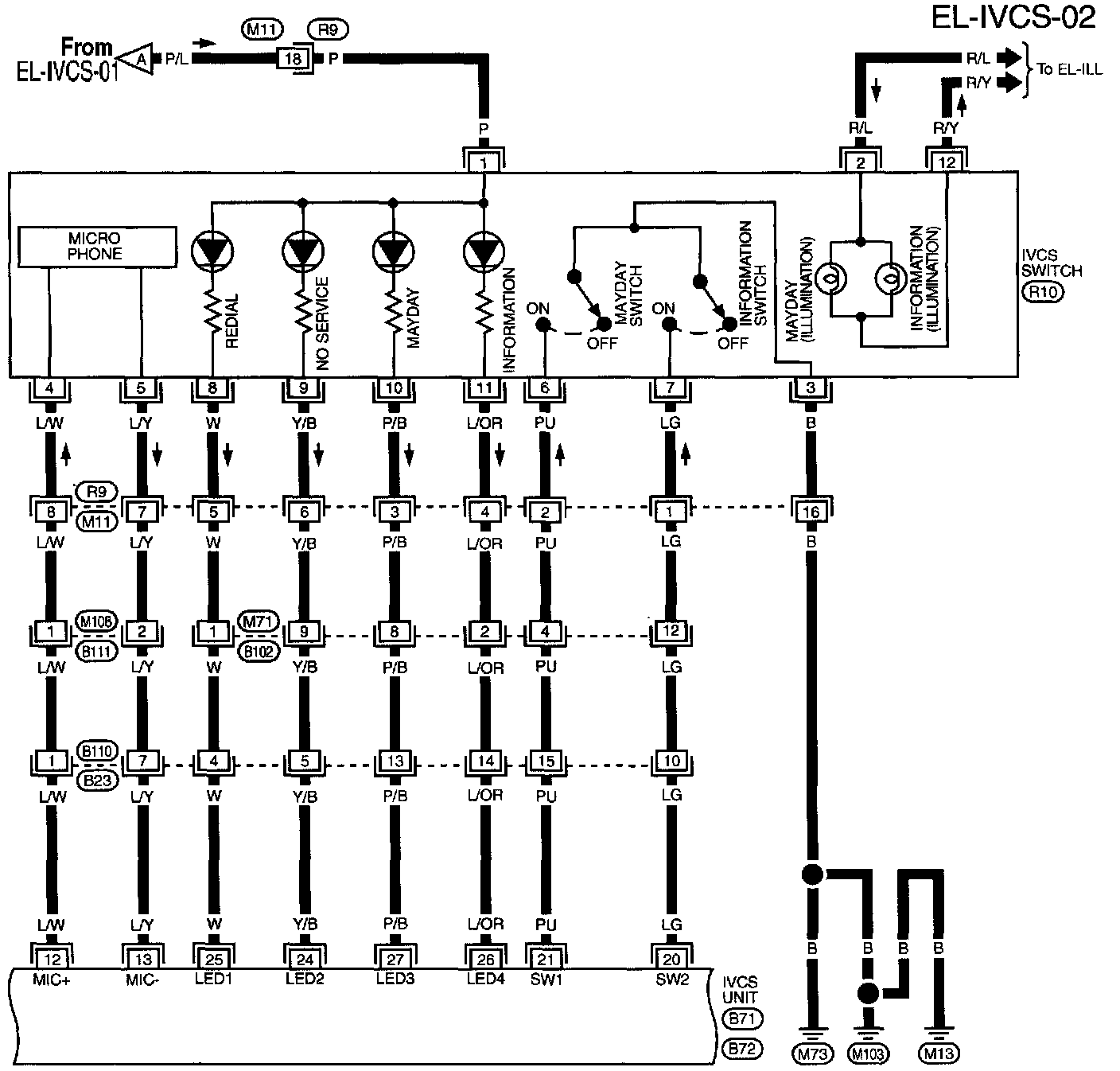

Part 2 Of 4
Ignition Switch
IVCS Unit





Part 3 Of 4
Air Bag Diagnosis Sensor Unit
Combination Radio
Data Link Connector For Consult
Handset
IVCS Unit





Part 4 Of 4
Battery
Driver Side Key Cylinder Switch
Horn Relay
Joint Connector-4
Rear LH Door Control Unit
Spiral Cable
Tel Switch
IVCS Unit














Circuit Connectors

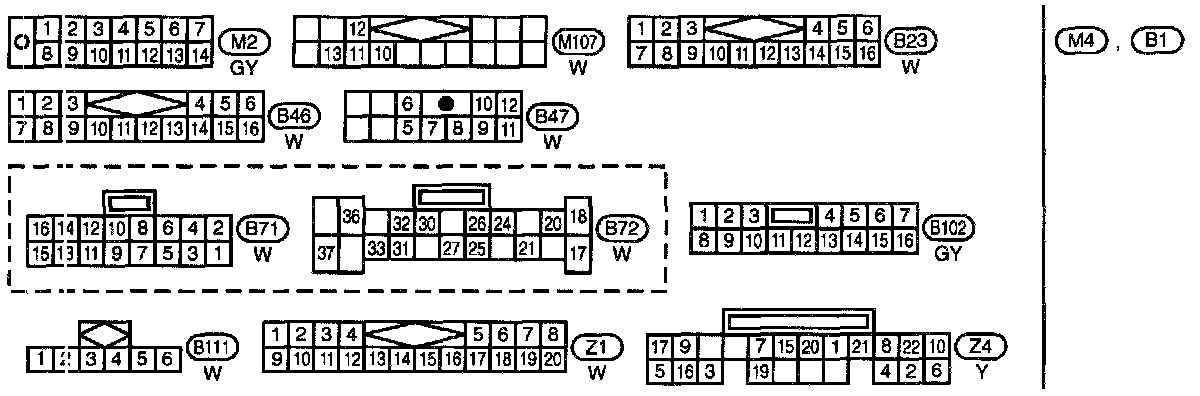

B1, E101, M3, M4 Engine Room, Main Harness Terminal Arrangement





B3, M1 Terminal Arrangement
