Cruise Control

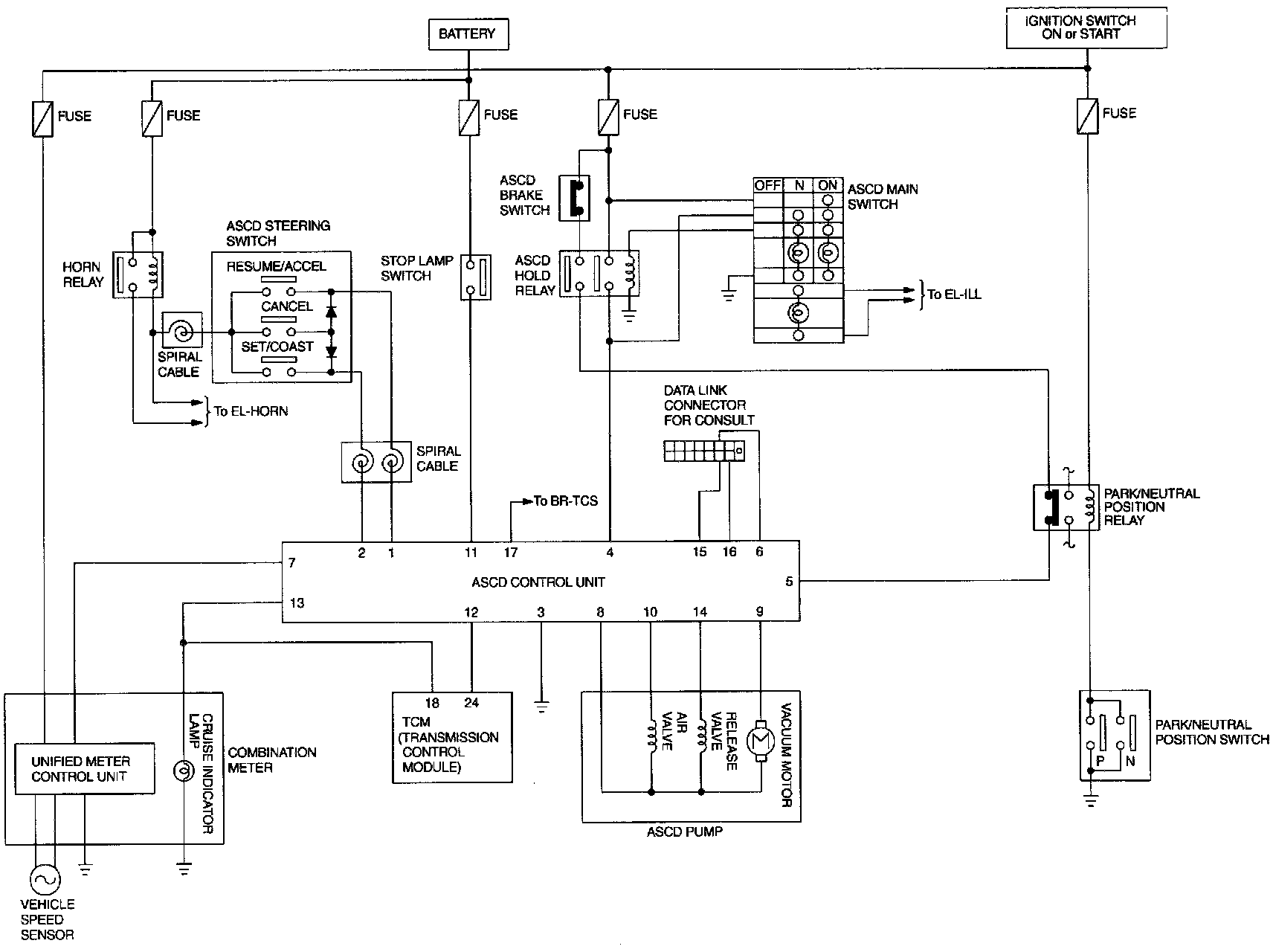

Schematic For M/T Models





Schematic For A/T Models

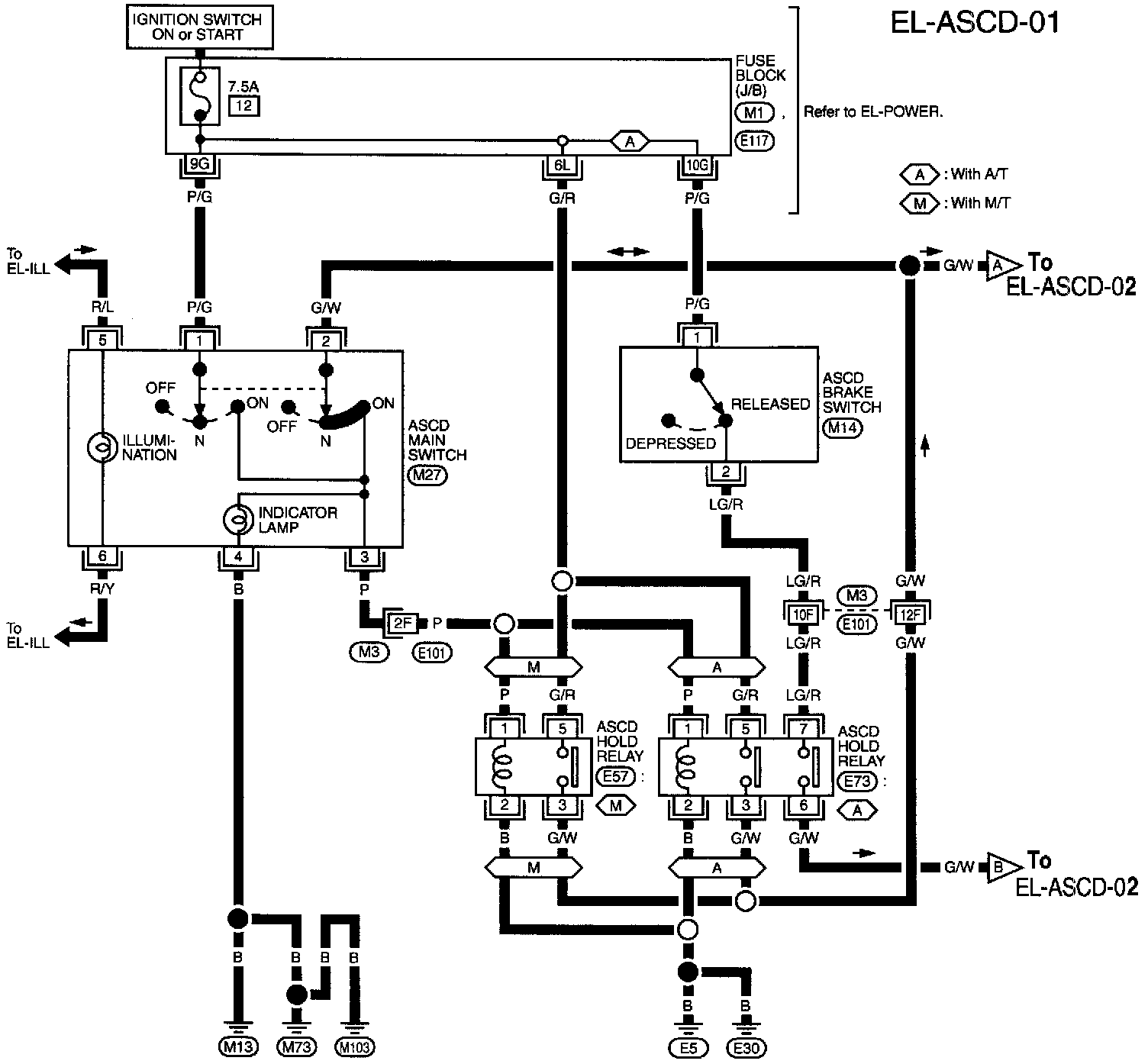

Part 1 Of 5
ASCD Brake Switch
ASCD Hold Relay
ASCD Main Switch
- Illumination
- Indicator Lamp
Fuse Block J/B

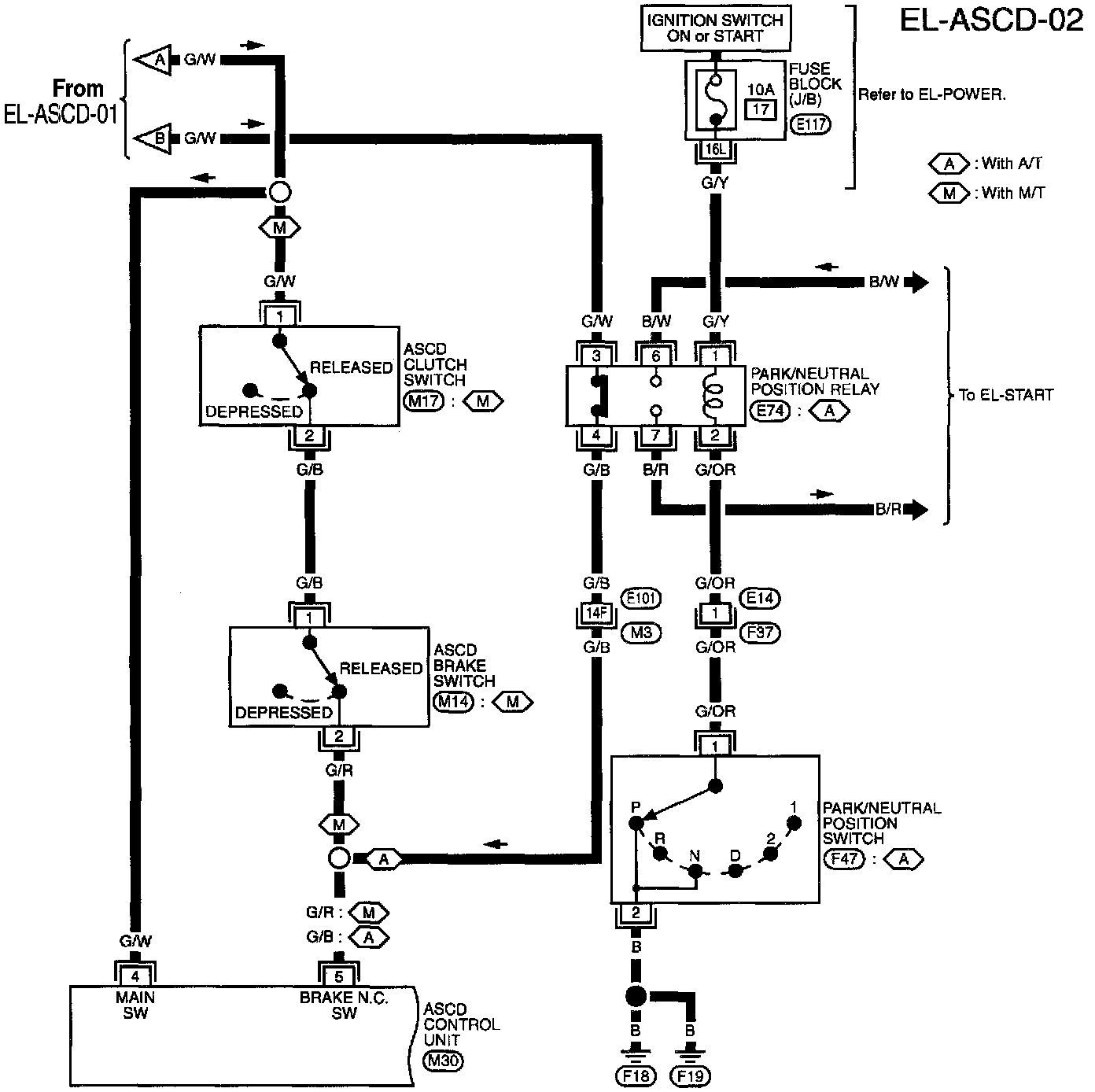

Part 2 Of 5
ASCD Brake Switch
ASCD Clutch Switch
ASCD Control Unit
Fuse Block J/B
Park/Neutral Position Switch
Park/Neutral Position Relay

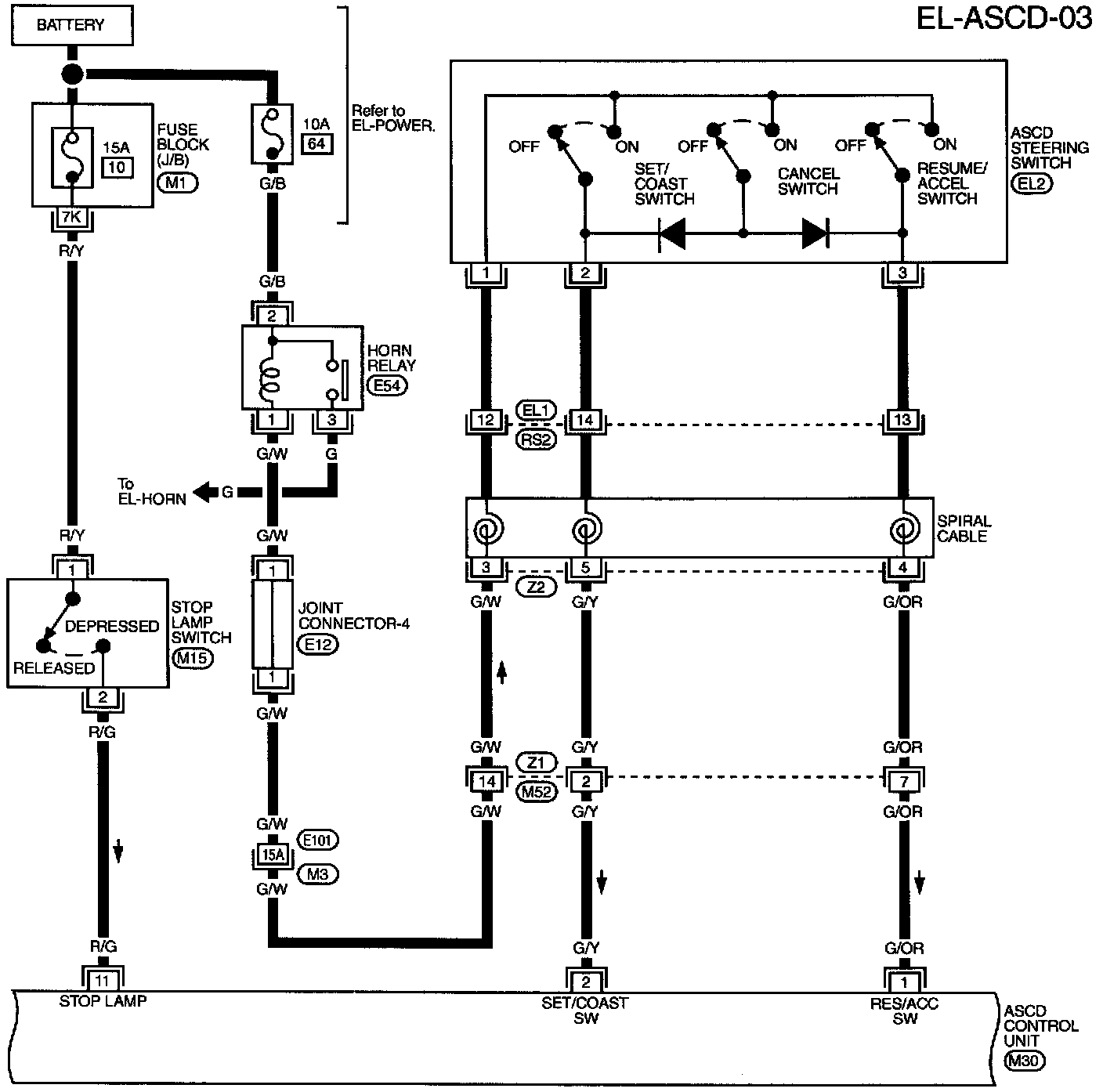

Part 3 Of 5
ASCD Control Unit
ASCD Steering Switch
Fuse Block J/B
Horn Relay
Joint Connector
Spiral Cable
Stop Lamp Switch





Part 4 Of 5
ASCD Control Unit
ASCD Pump
Data Link Connector For Consult

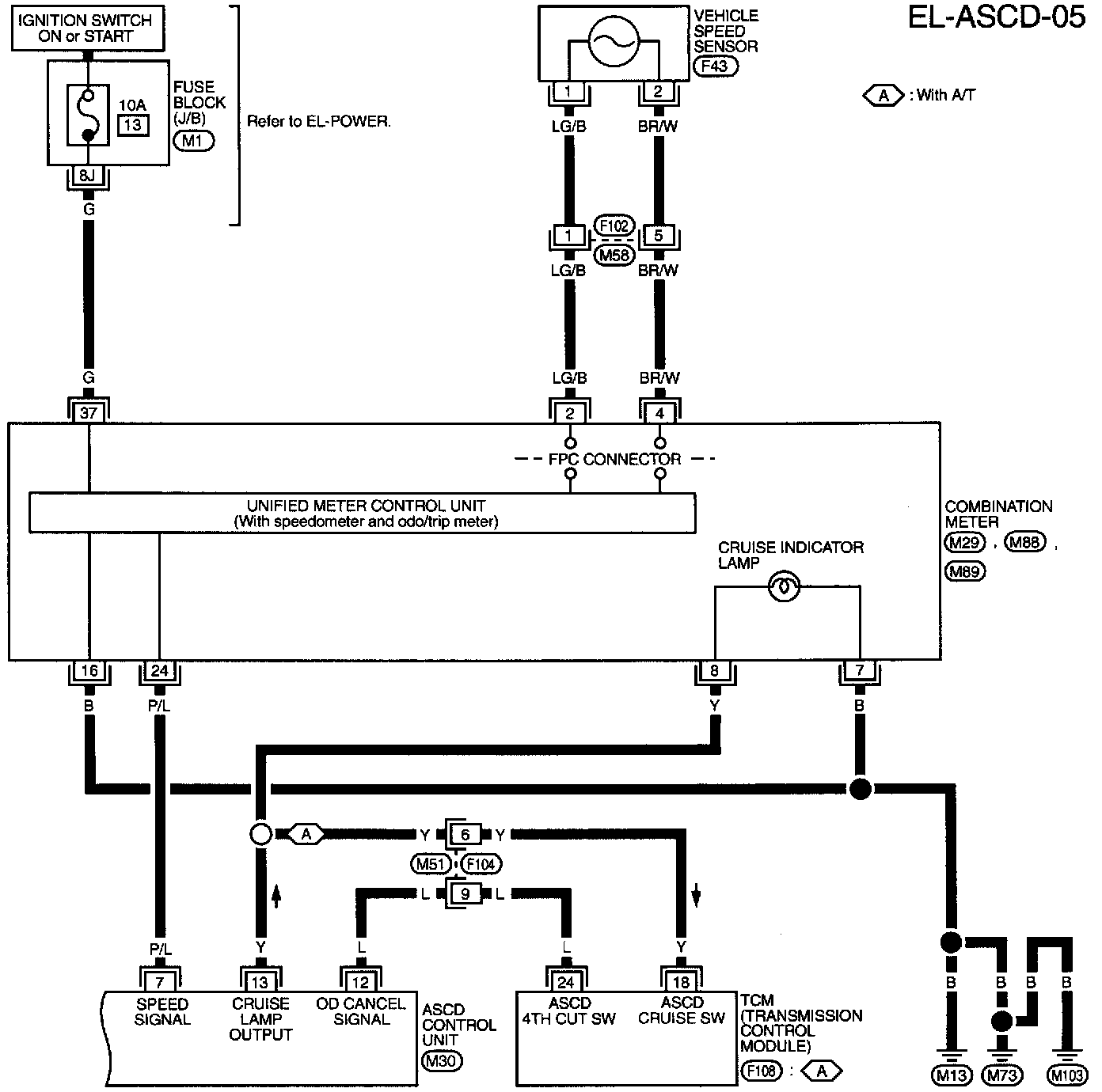

Part 5 Of 5
ASCD Control Unit
Cruise Indicator Lamp
Combination Meter
Fuse Block J/B
TCM (Transmission Control Module)
Vehicle Speed Sensor

















Circuit Connectors





E117, M1 Terminal Arrangement





E101, M3 Engine Room, Main Harness Terminal Arrangement
