Heating and Air Conditioning

Circuit Diagram

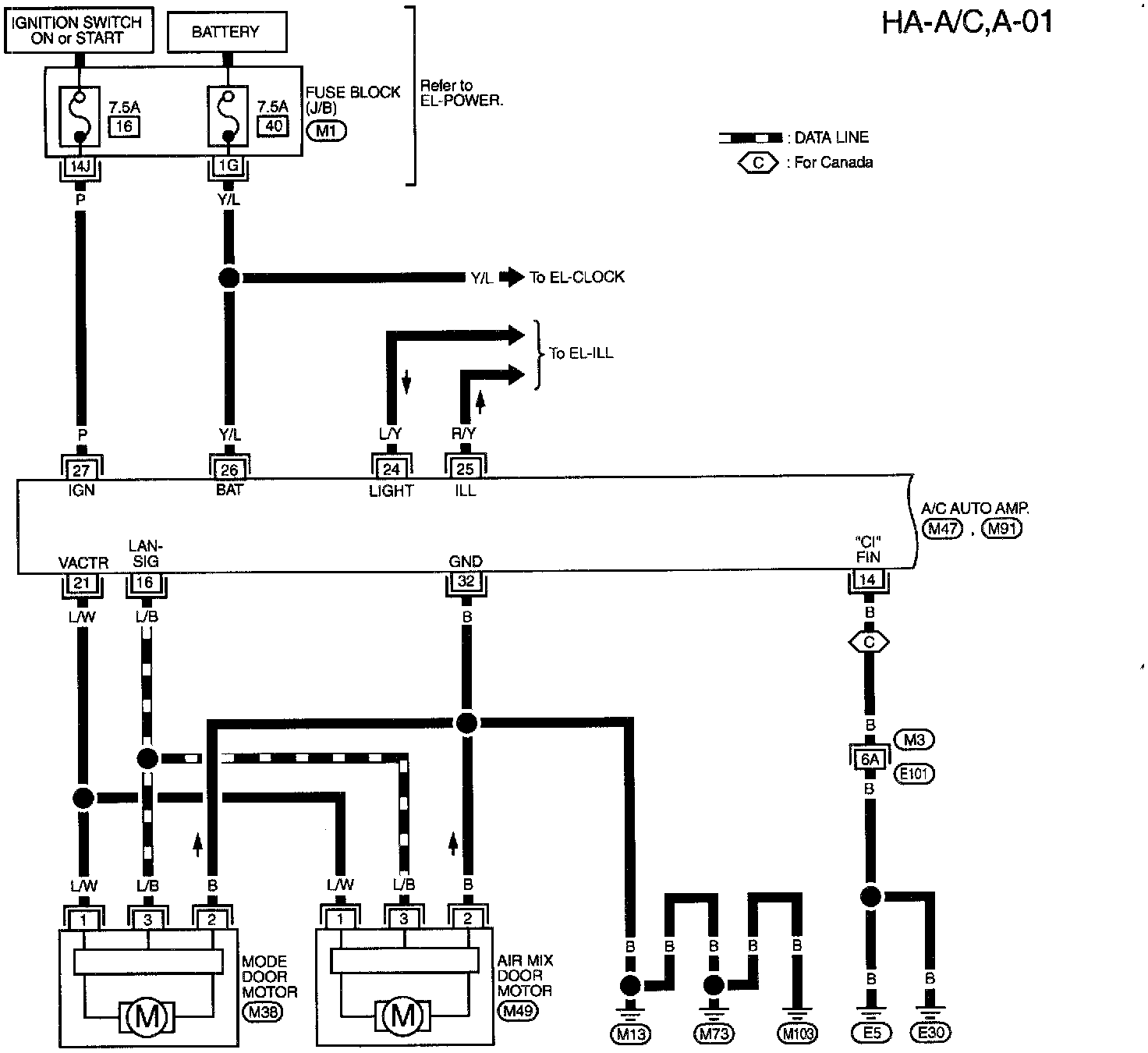

Part 1 Of 3
A/C Auto Amp.
Air Mix Door Motor
Fuse Block (J/B)
Mode Door Motor

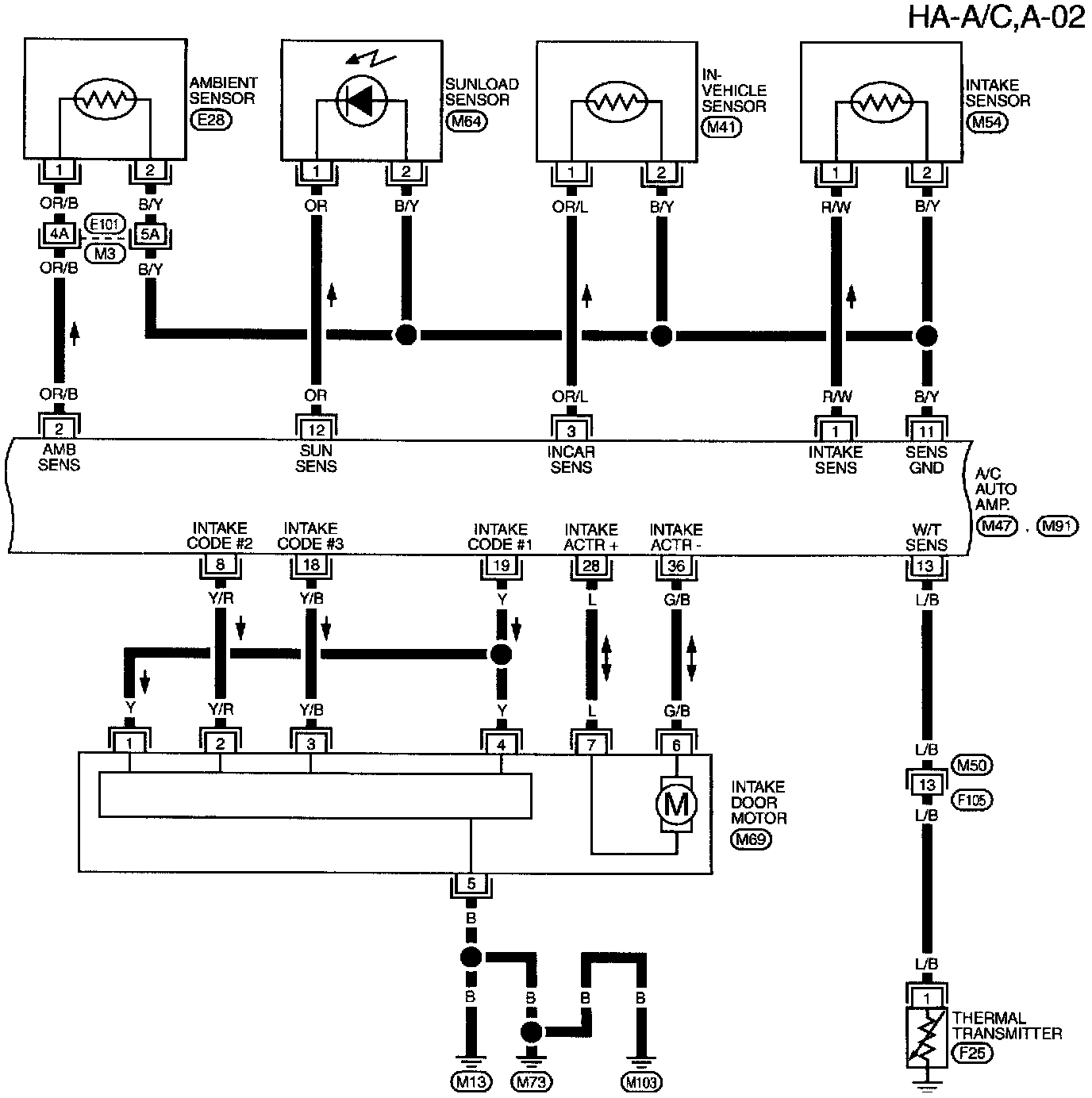

Part 2 Of 3
A/C Auto Amp.
Ambient Sensor
Intake Sensor
In-Vehicle Sensor
Intake Door Motor
Thermal Transmitter

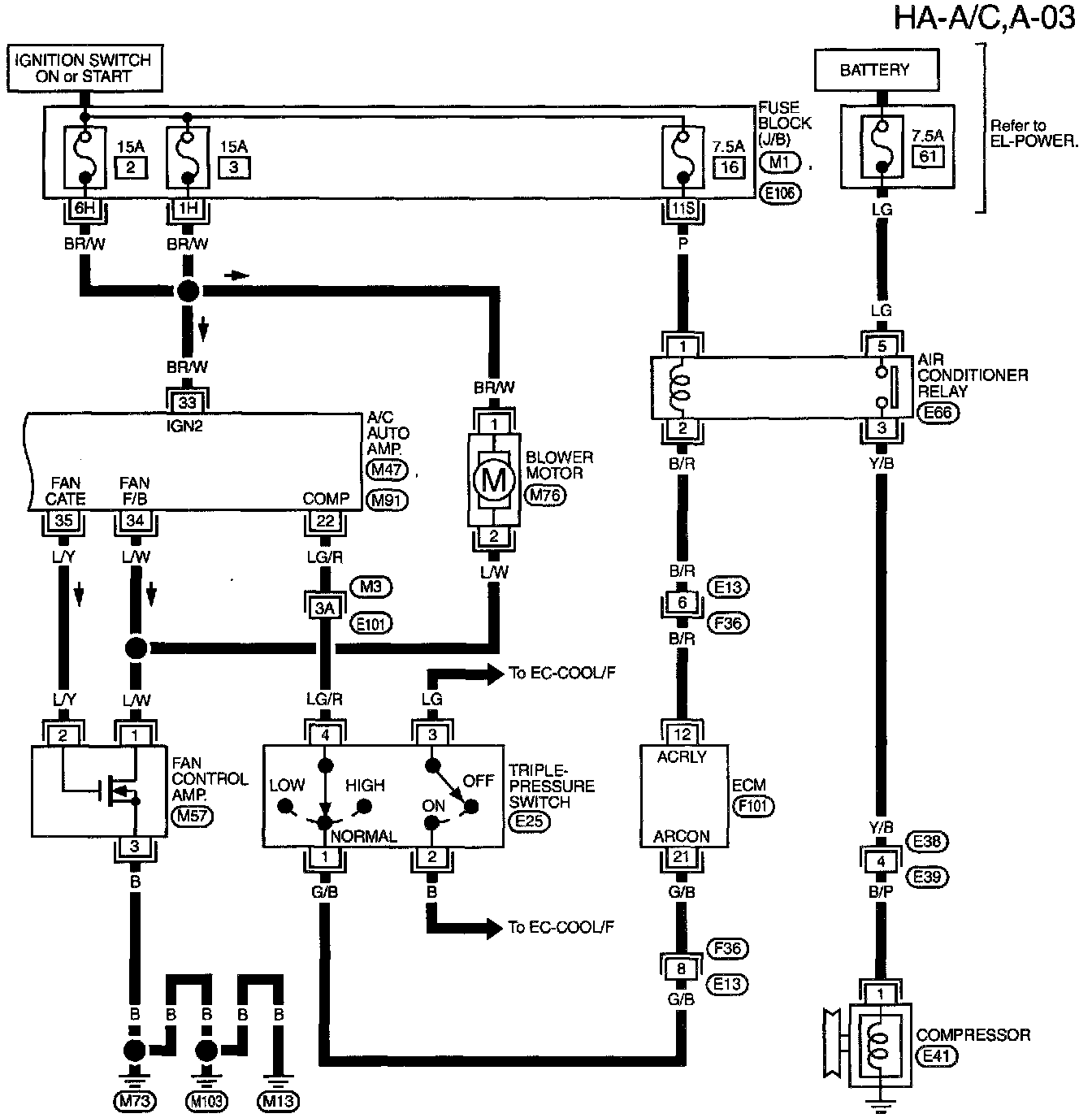

Part 3 Of 3
Air Conditioner Relay
A/C Auto Amp.
Blower Motor
Compressor
Fan Control Amp.
Fuse Block (J/B)
Triple-Pressure Switch











Circuit Connectors





E106, M1 Terminal Arrangement





E101, M3 Engine Room, Main Harness Terminal Arrangement





F101 Electrical Units - Terminal Arrangements
