Auxiliary Air Valve (Idle Speed)

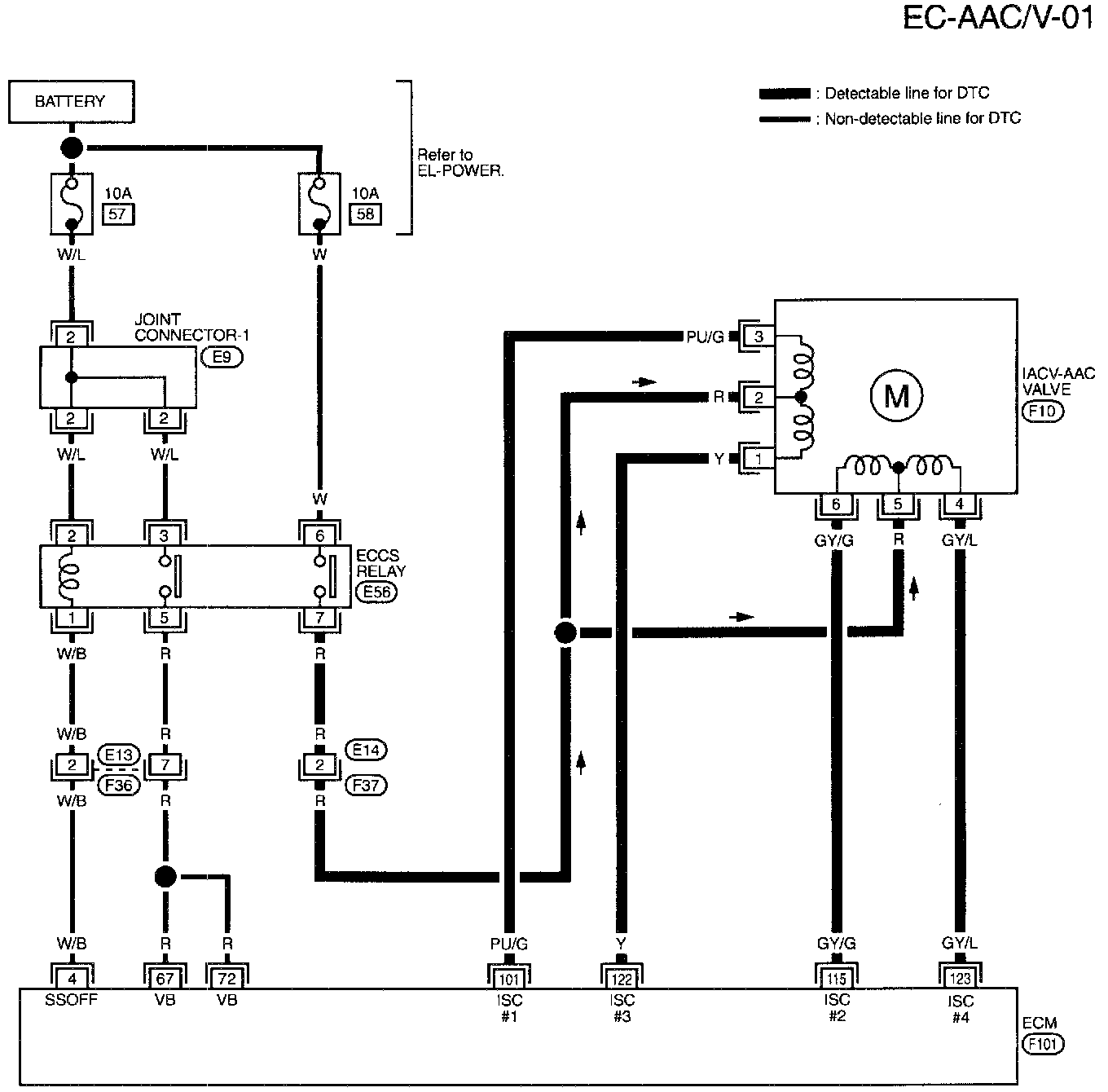

Idle Air Control Valve (IACV)- Auxiliary Air Control (ACC) Valve Circuit Diagram





Idle Air Control Valve (IACV)- Auxiliary Air Control (ACC) Valve Circuit Connectors





Vacuum Cut Valve Bypass Valve (Circuit) Circuit Diagram





Vacuum Cut Valve Bypass Valve (Circuit) Circuit Connectors





B1, M4 Body, Main Harness Terminal Arrangement





M1 Terminal Arrangement
