Crankshaft Position Sensor

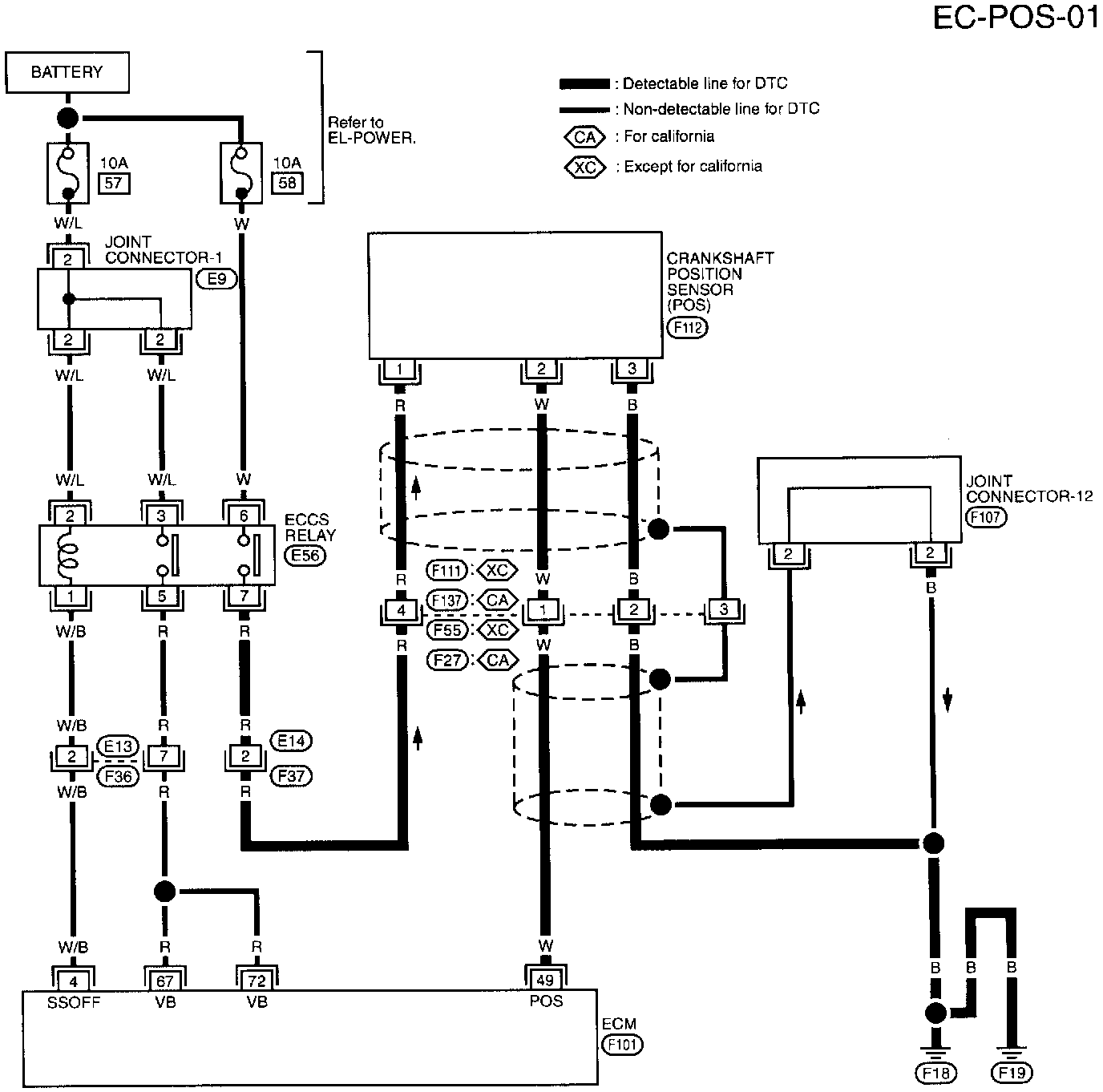

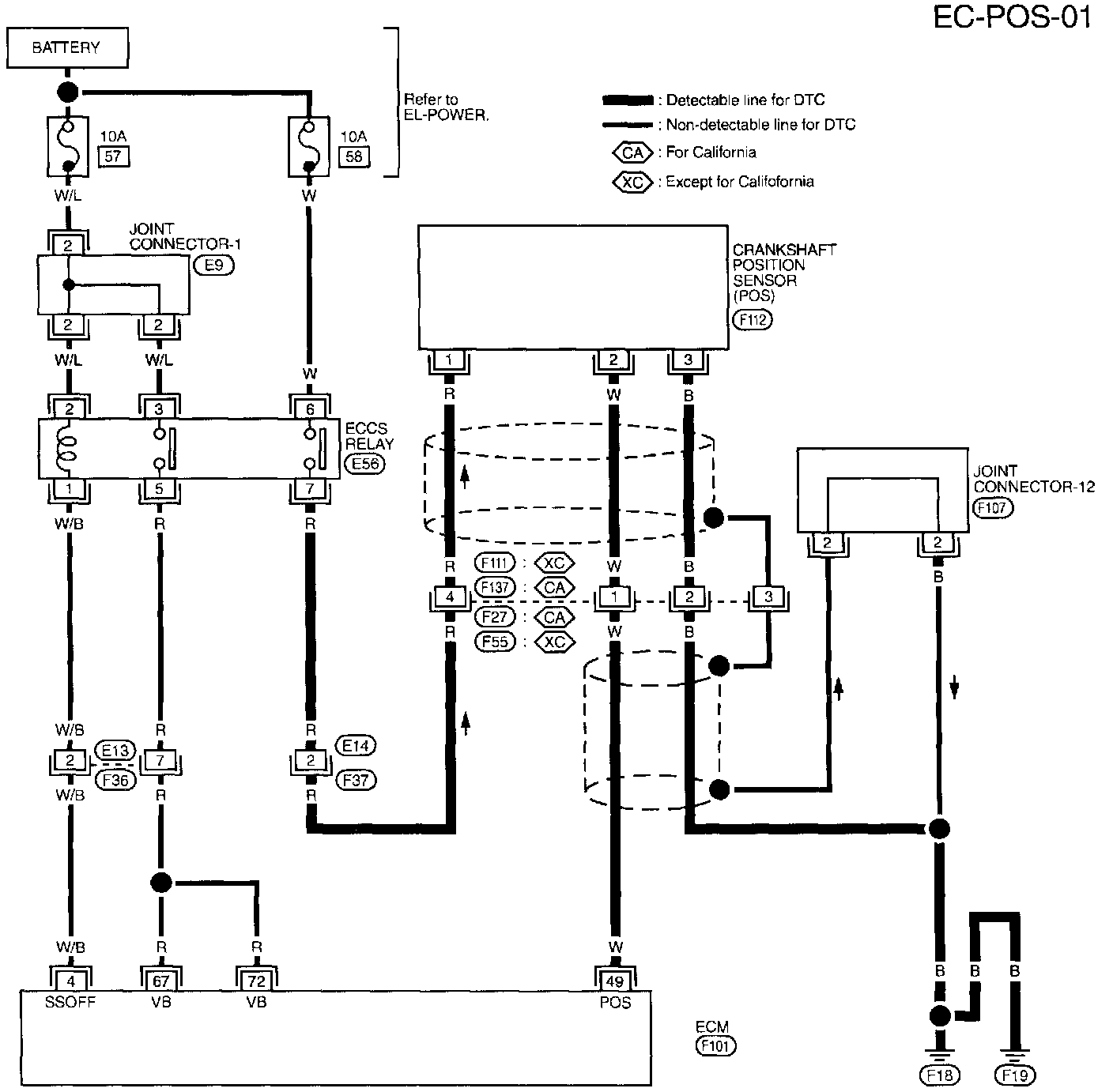

(CKPS) (POS) Circuit Diagram

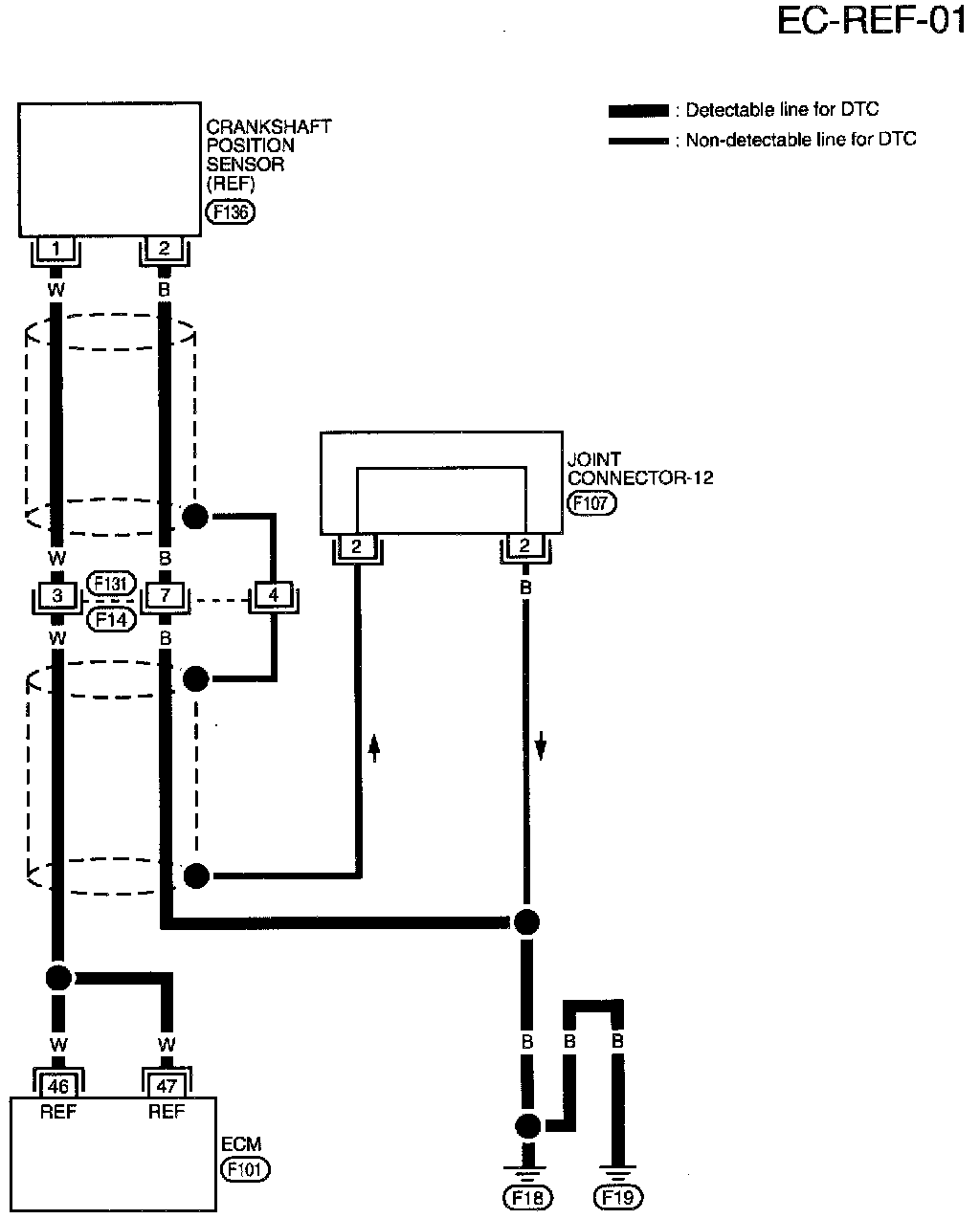

(CKPS) (REF) Circuit Diagram





(CKPS) (REF) (COG) Circuit Diagram





(CKPS) (POS) Circuit Connectors





(CKPS) (REF) Circuit Connectors





(CKPS) (REF) (COG) Circuit Diagram
