Power Window-IVMS

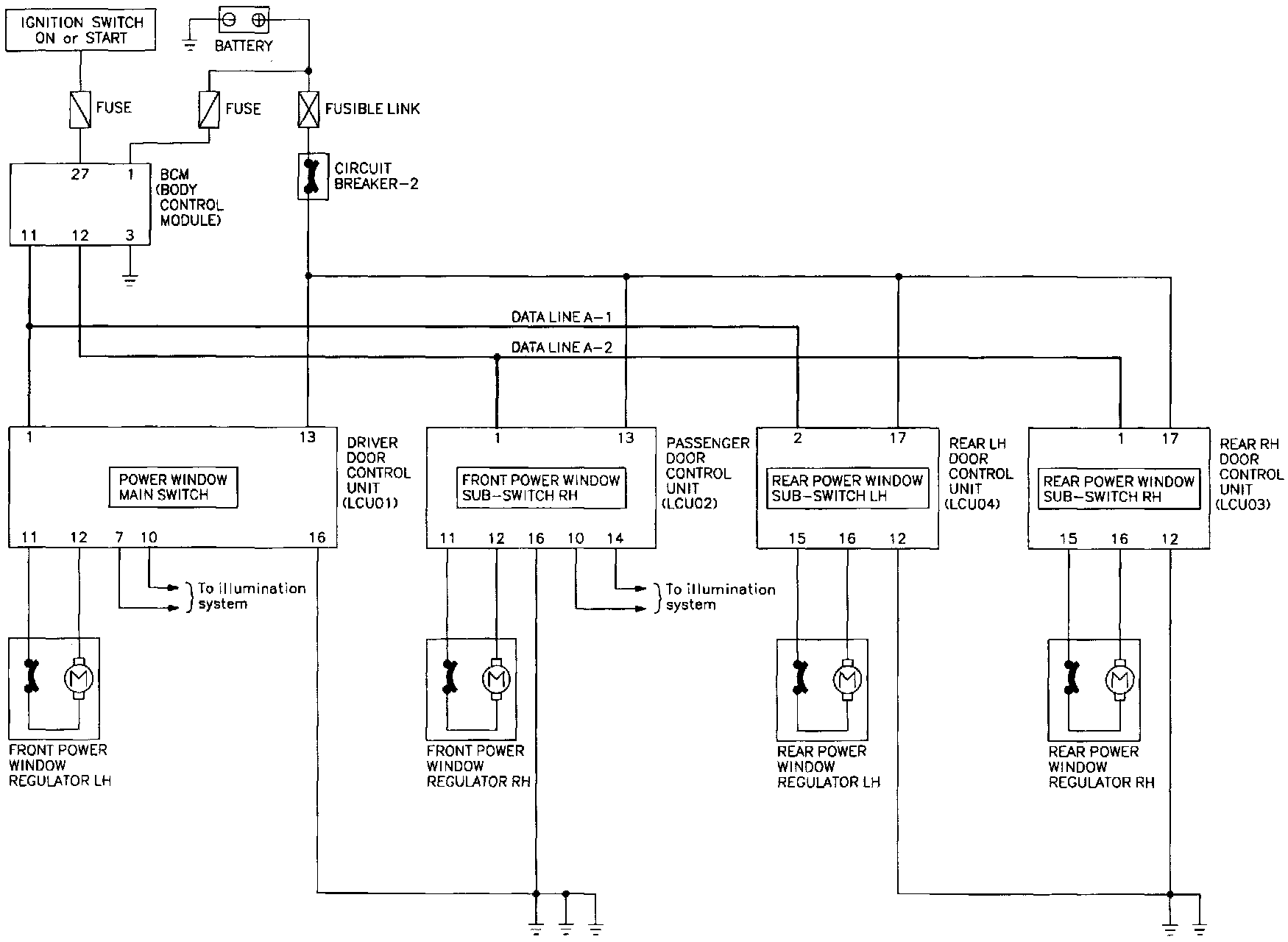

Schematic




(Part 1 of 4)
Battery
Body Control Module
Circuit Breaker-2
Fuse Block (J/B)
Front Door Switch LH
Front Door Switch RH
Ignition Switch

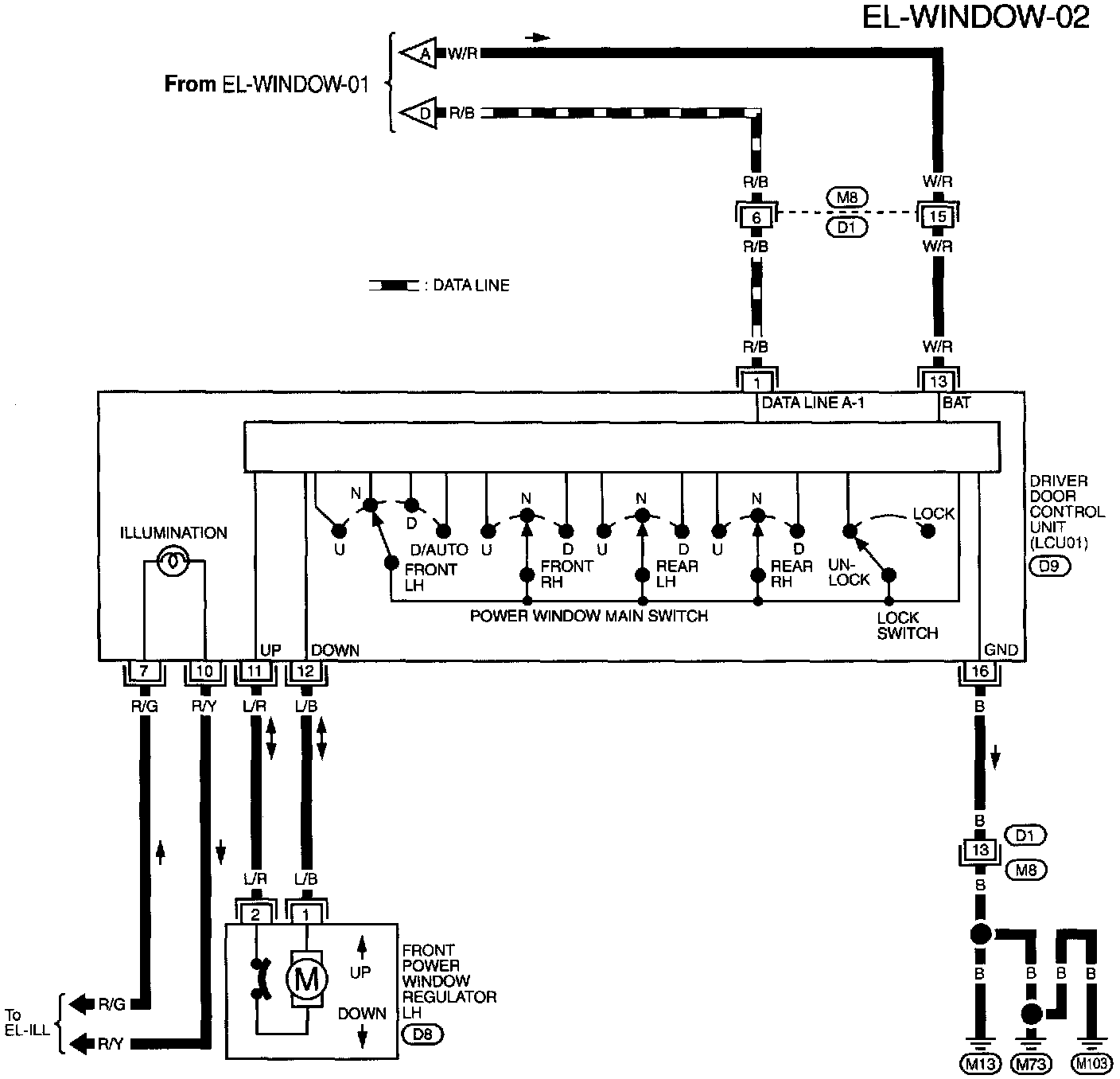

(Part 2 of 4)
Driver's Door Control Unit
- Illumination
- Power Window Main Switch
Front Power Window Regulator LH

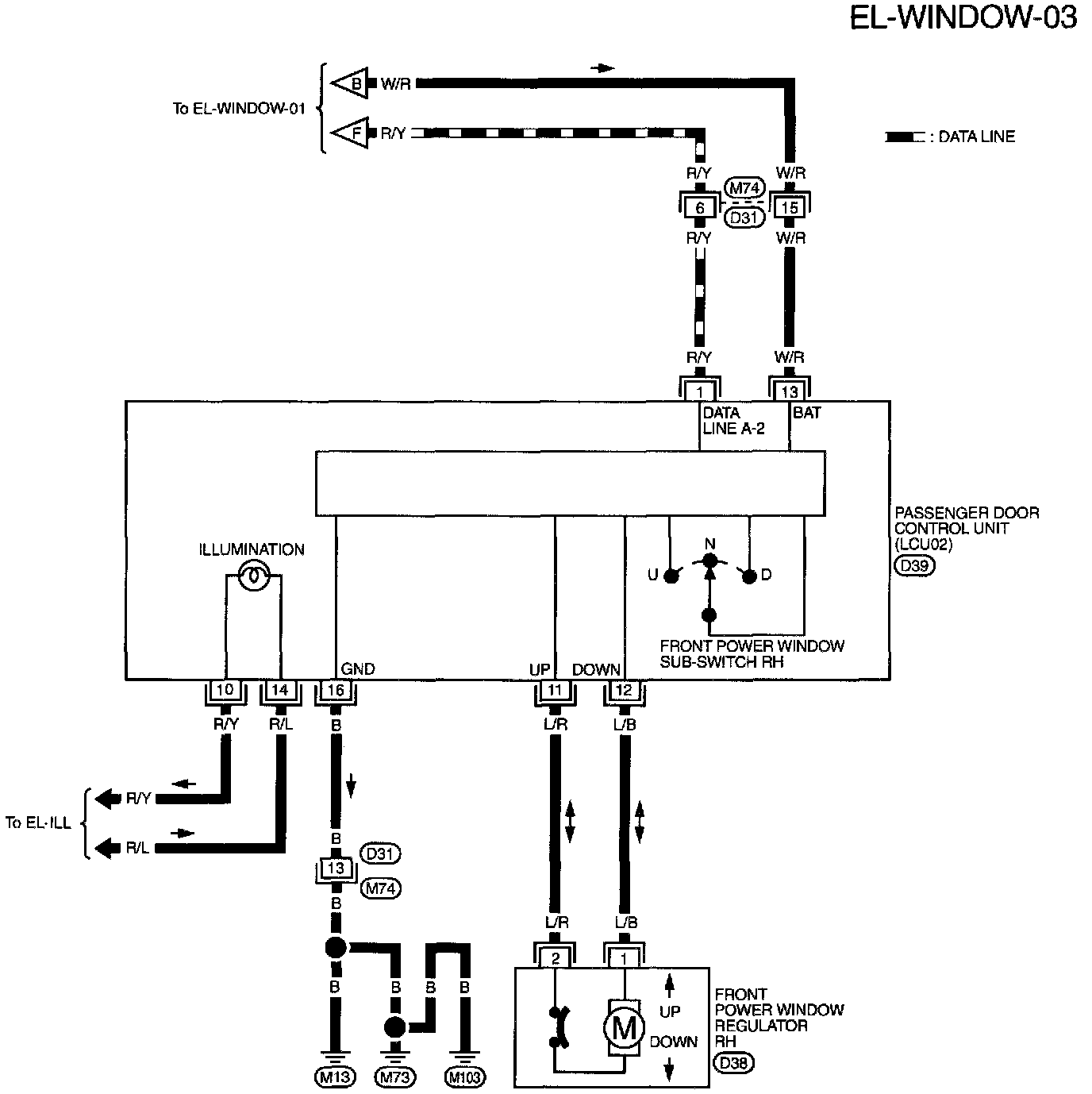

(Part 3 of 4)
Front Power Window Regulator RH
Passenger Door Control Unit
- Illumination
- Front Power Window Sub-Switch RH




(Part 4 of 4)
Rear LH Door Control Unit
- Illumination
- Front Power Window Sub-Switch LH
Rear RH Door Control Unit
- Illumination
- Front Power Window Sub-Switch RH
Rear Power Window Regulator LH
Rear Power Window Regulator RH














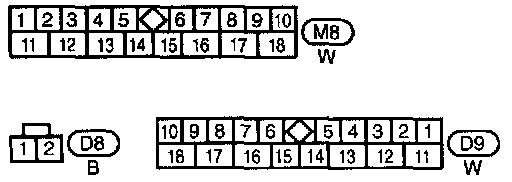

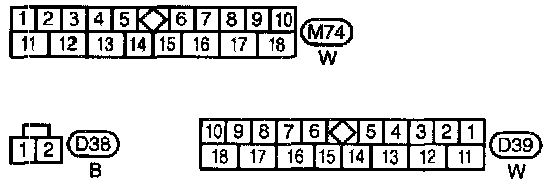

Circuit Connectors





B4, E106, M1 Terminal Arrangement





B1, E101, M3, M4 Body, Main Harness Terminal Arrangement
