Rear Power Window Switch Illumination-IVMS

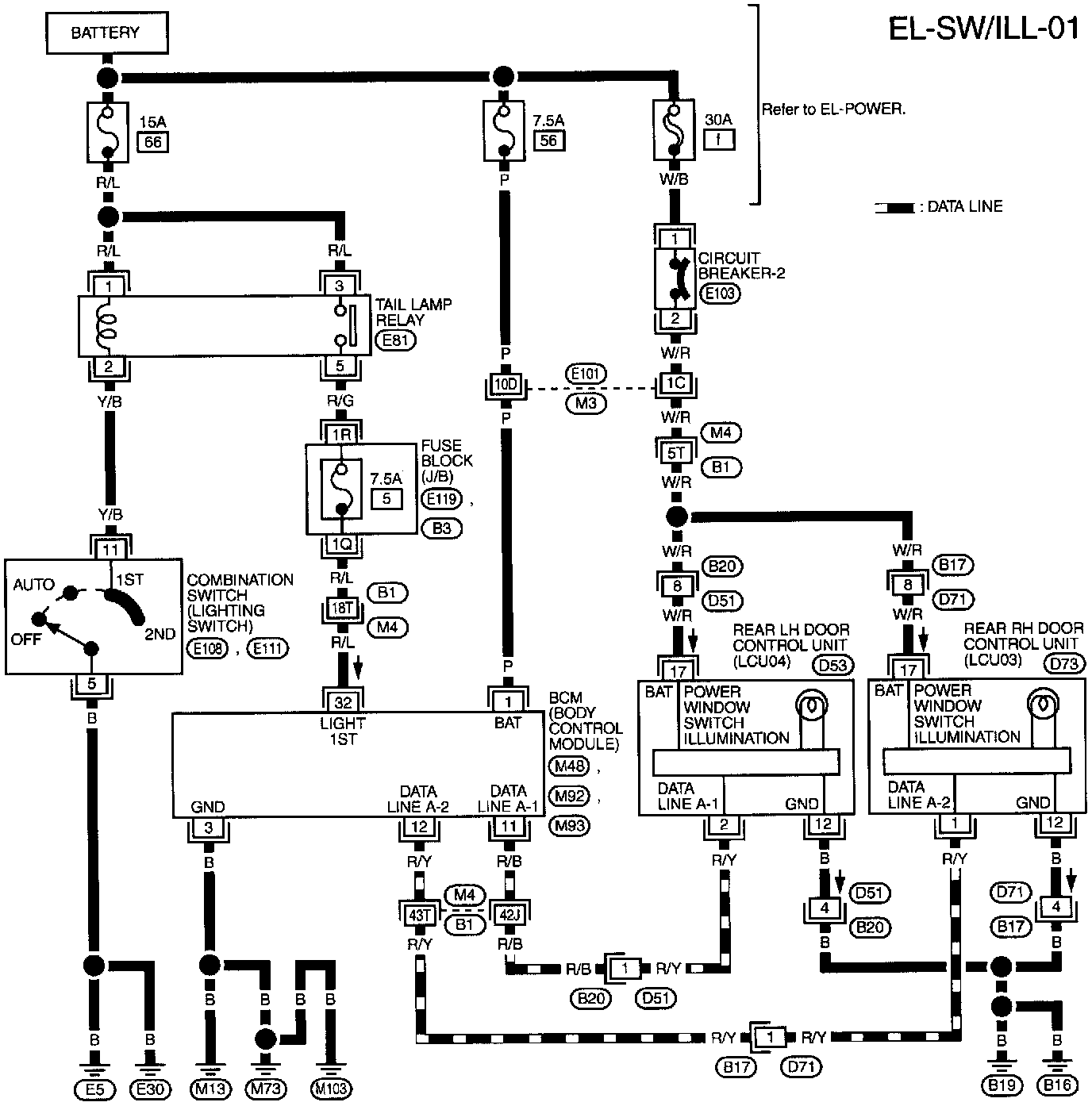

Circuit Diagrams

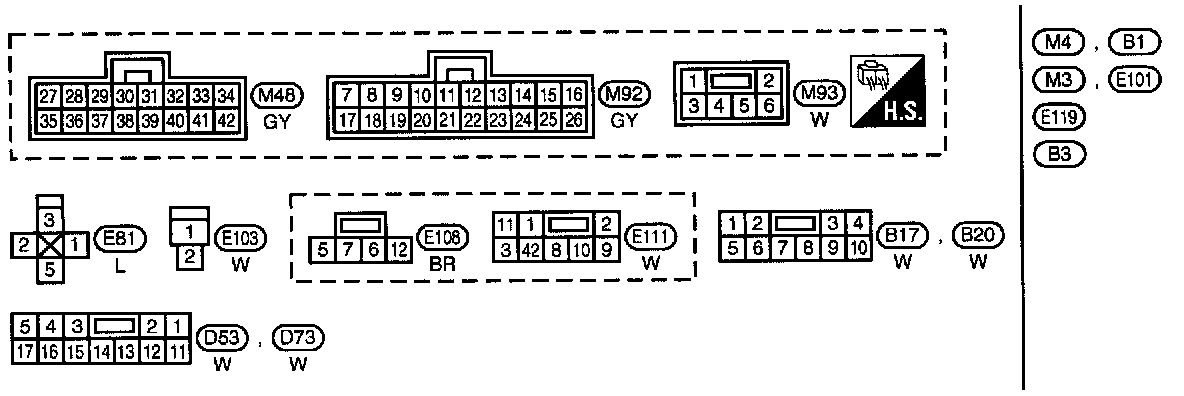

Circuit Connectors





B1, E101, M3, M4 Body, Engine Room, Main Harness Terminal Arrangement





B3, E119 Terminal Arrangement
